Drive Selection Switch Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
- Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.COMPONENT OPERATIONS

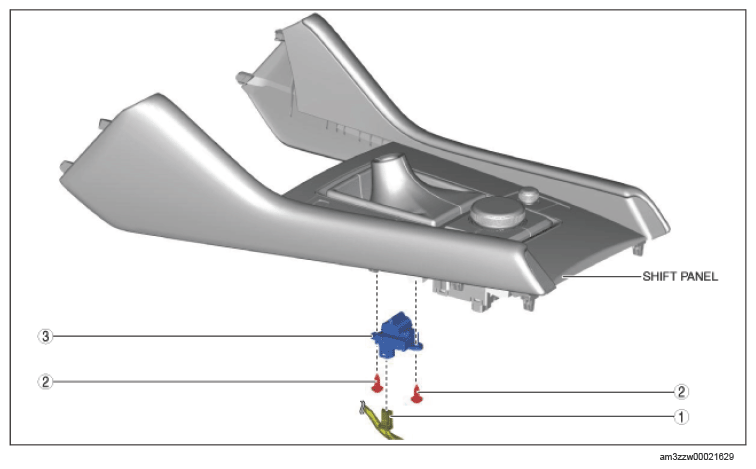

Component No. Refer to 1 Drive selection switch connector 2 Screw 3 Drive selection switch
