Exhaust CMP Sensor

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
  3. Disconnect the exhaust CMP sensor connector.
  4. Remove the exhaust CMP sensor.

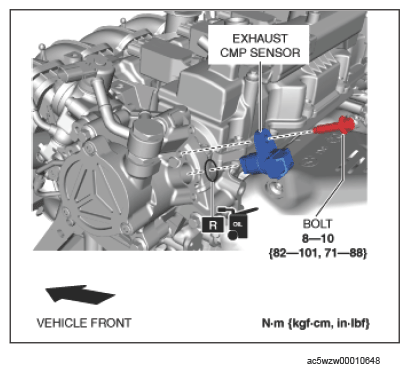

    Fig 1: Exhaust CMP Sensor Bolt With Torque Specifications
    G14579977Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
