Engine Compartment

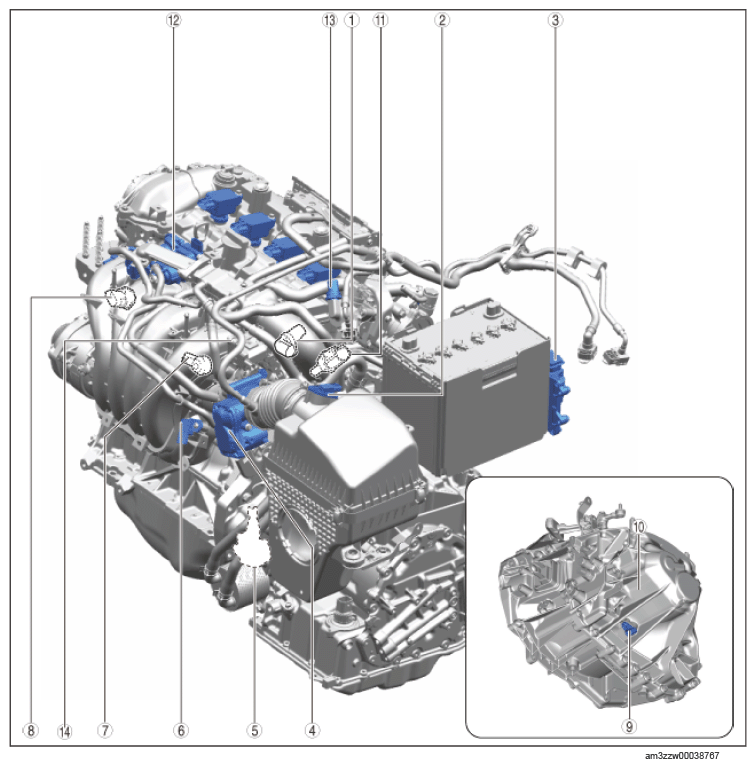

Fig 1: Control System Components Location - Engine Compartment

Courtesy of MAZDA MOTORS CORP.

CONTROL SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Intake CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
2	MAF sensor/IAT sensor No. 1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
3	PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See PCM INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
4	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See THROTTLE POSITION (TP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
5	Engine oil level sensor (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
6	MAP sensor/IAT sensor No. 2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
7	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See KNOCK SENSOR (KS) INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
8	High fuel pressure sensor (See HIGH FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See HIGH FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
9	Revolution sensor (MTX) (See REVOLUTION SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
10	Neutral sensor (MTX) (See NEUTRAL SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
11	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
12	EGR valve position sensor (See EGR VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
13	Low fuel pressure sensor/Fuel temperature sensor (See LOW FUEL PRESSURE SENSOR/FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See LOW FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
14	Swirl control valve position sensor (See SWIRL CONTROL VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .) (See SWIRL CONTROL VALVE POSITION SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
