Specification (Reference)

ENGINE OIL TEMPERATURE SPECIFICATIONS

Engine oil temperature (°C {°F}) Resistance (Kilohms)
-40 {-40} Approx. 44.9
0 {32} Approx. 5.78
25 {77} Approx. 2.04
140 {284} Approx. 0.0719

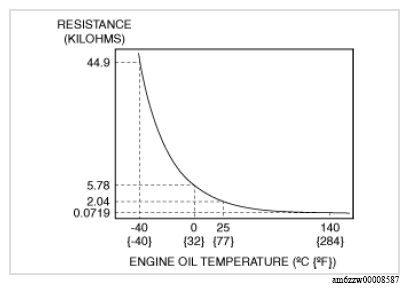

G16328226Courtesy of MAZDA MOTORS CORP.
