Fuel Tank Pressure Sensor Removal/Installation

NOTE:

The fuel tank pressure sensor cannot be removed as a single unit. When replacing the fuel tank pressure sensor, replace it together with the pressure control valve as a single unit.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
Remove the insulator (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)

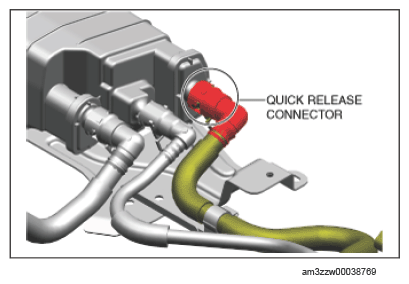

Disconnect the quick release connector shown in the figure while lowering the charcoal canister (main) component. (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)

Courtesy of MAZDA MOTORS CORP.
Temporarily install the charcoal canister (main) bracket.

Remove in the order indicated in the table.

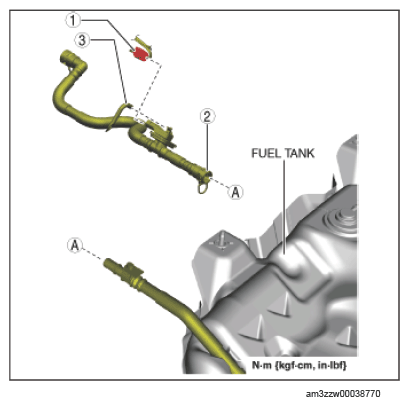

Fig 1: Fuel Tank Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No.	Refer to
1	Fuel tank pressure sensor connector
2	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION)] .)
3	Evaporative hose
