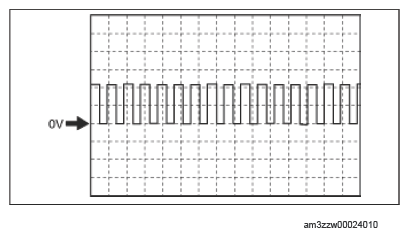

Wave pattern (reference)

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1AC (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)

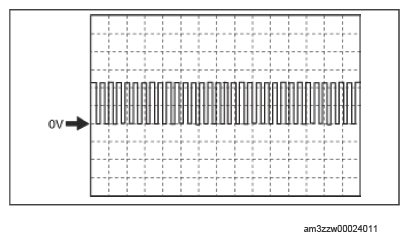

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1AC (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Racing (Engine speed: 2, 000 rpm)
