Specification (Reference)

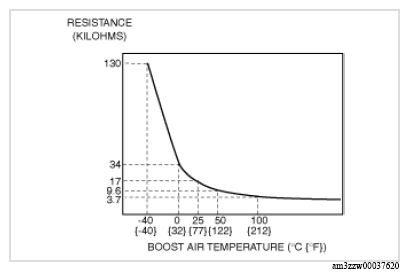

BOOST AIR TEMPERATURE SPECIFICATIONS

Boost air temperature (°C {°F}) Resistance (Kilohms)
0 {32} Approx. 34
25 {77} Approx. 17
50 {122} Approx. 9.6
100 {212} Approx. 3.7
G16372902Courtesy of MAZDA MOTORS CORP.
