Boost Pressure Sensor Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

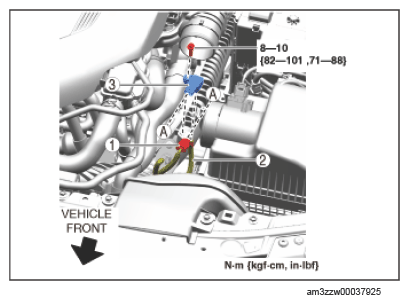

COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Boost pressure sensor connector |
| 2 | Hose |
| 3 | Boost pressure sensor |
