ECT Sensor No. 2

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front under cover No. 1 and the front under cover No. 2. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .) (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T] .)
Disconnect the ECT sensor No. 2 connector.

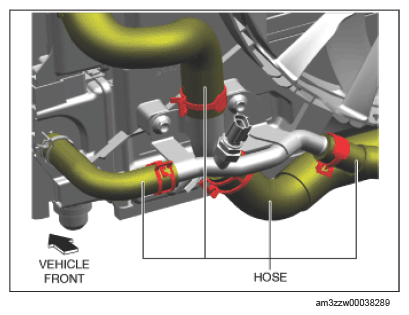

Disconnect the hoses shown in the figure below.

Courtesy of MAZDA MOTORS CORP.

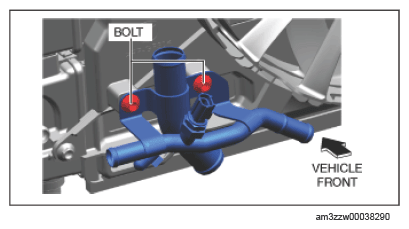

Remove the bolts shown in the figure below and remove the water pipe. (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the vise is tightened with excessive force, it could deform or damage the water pipe. When securing the water pipe in a vise, be careful not to deform or damage the water pipe.

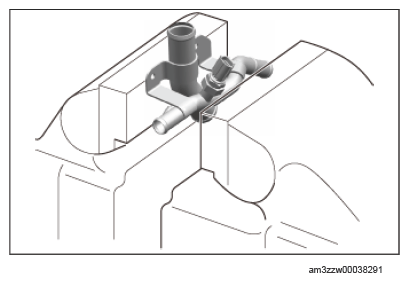

Secure the water pipe in a vise.

Courtesy of MAZDA MOTORS CORP.

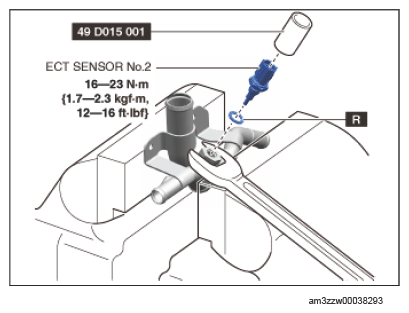

Remove ECT sensor No. 2 using the SST with the water pipe secured using a wrench.

Fig 1: ECT Sensor No. 2 With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T] .)
