Specification (Reference)

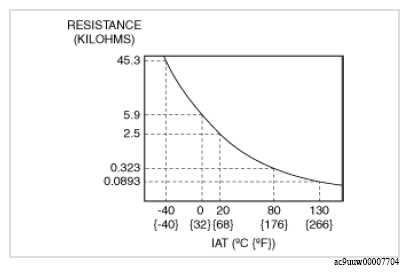

IAT SENSOR SPECIFICATIONS

IAT (°C {°F}) Resistance (Kilohms)
0 {32} Approx. 5.9
20 {68} Approx. 2.5
80 {176} Approx. 0.323
130 {266} Approx. 0.0893
G16328122Courtesy of MAZDA MOTORS CORP.
