PCM Bracket Installation Note

  1. Install the PCM to the PCM bracket.

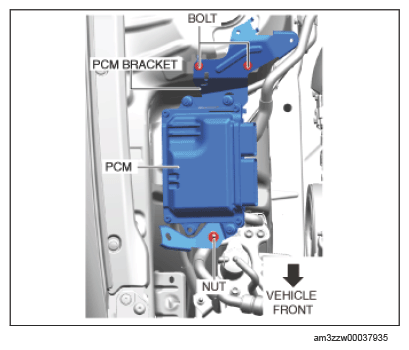

  2. Install the PCM bracket using the following procedure:
    G14580158Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component No. Refer to
    (1) Tighten the bolts.
    (2) Tighten the nut.
