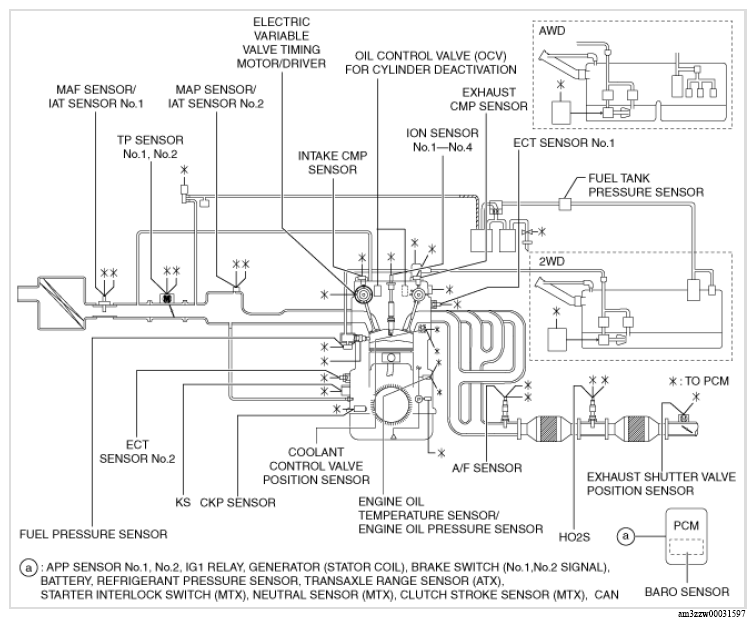

Control System Diagram (VIN M)
>>
Without EGR cooler
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Without EGR cooler
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
