Remove Shift Panel: Notes

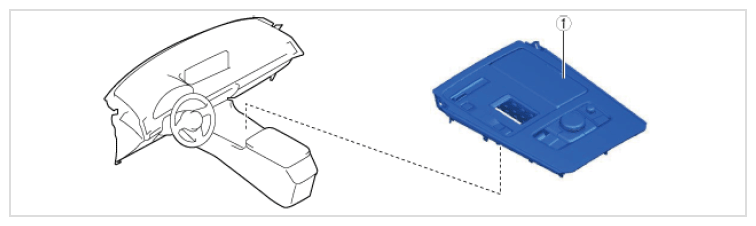

  1. Remove using the procedure shown in the figure below.
G16706892Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Shift panel
(See Shift panel removal note ).
