PCM Assembly Installation Note

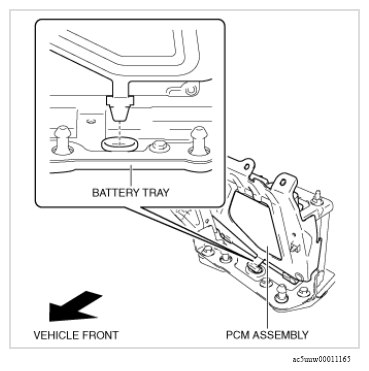

  1. Install the PCM assembly shown in the figure below.
    G16328377Courtesy of MAZDA MOTORS CORP.
