Gasoline Models

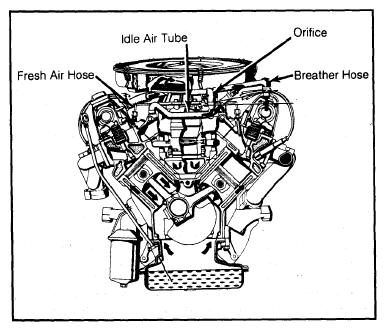

The system consists of a fresh air hose from air cleaner to right cylinder head cover, a breather hose from left cylinder head cover, an orifice and a connection to intake system.
During idle or low speed operation, vapors are drawn through the orifice, into the idle air distribution tubes, then into the intake manifold. Fresh air to vent the engine comes through the air cleaner and right cylinder head cover hose. During high speed operation, vapors pass through hose into air cleaner and are drawn in to be burned.
