Check Temperature Sensor Intake Air

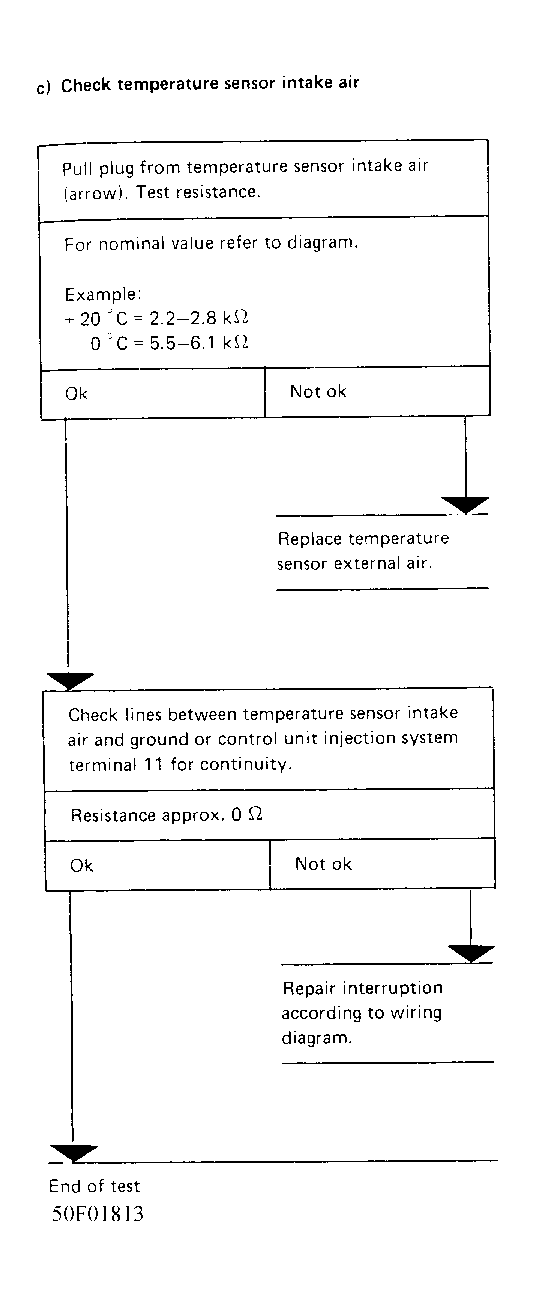

Fig 1: Check Temperature Sensor Intake Air, Flow Chart
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

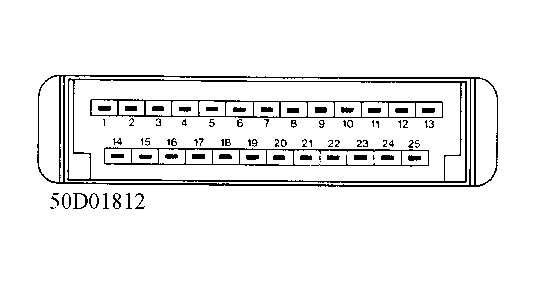

Fig 2: Check Temperature Sensor Intake Air, ECU Connector Id
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
