Testing DECEL Shutoff

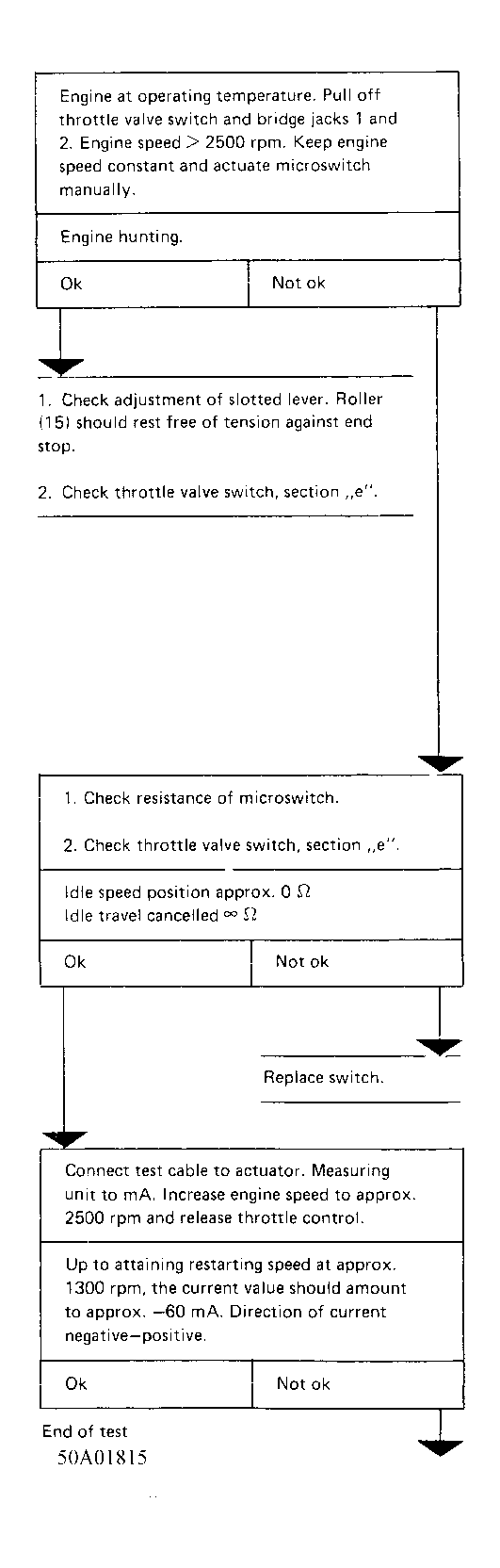

Fig 1: Testing Decel Shutoff (Flow Chart 1 of 2)
G50A01815Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 2: Testing Decel Shutoff (Flow Chart 2 of 2)
G50H01852Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 3: Testing Decel Shutoff, ECU Connector Id
G50D01812Courtesy of MERCEDES-BENZ OF NORTH AMERICA
