Test Step Charts

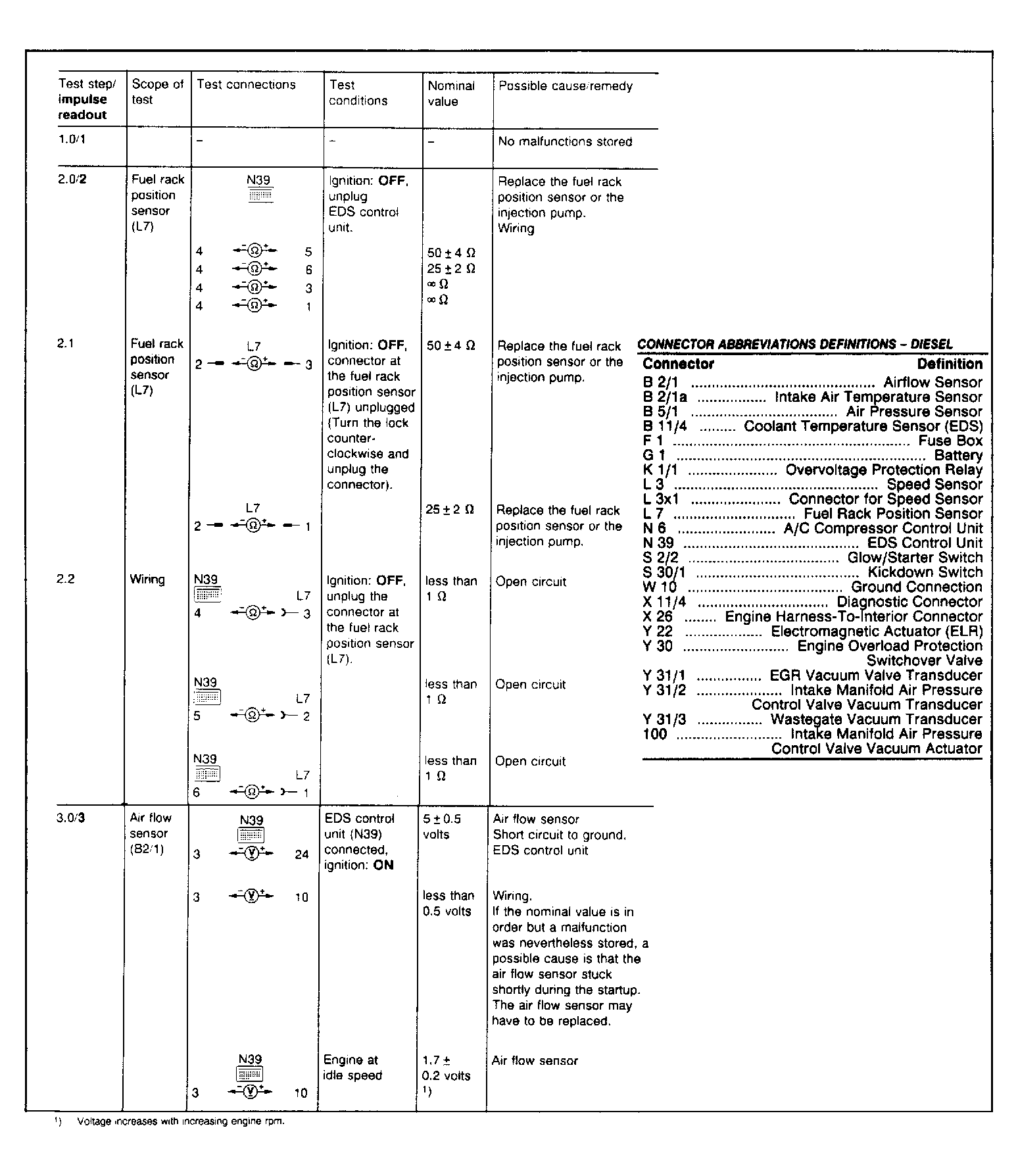

Fig 1: Test Step Charts (1 of 7)

G91E17461

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

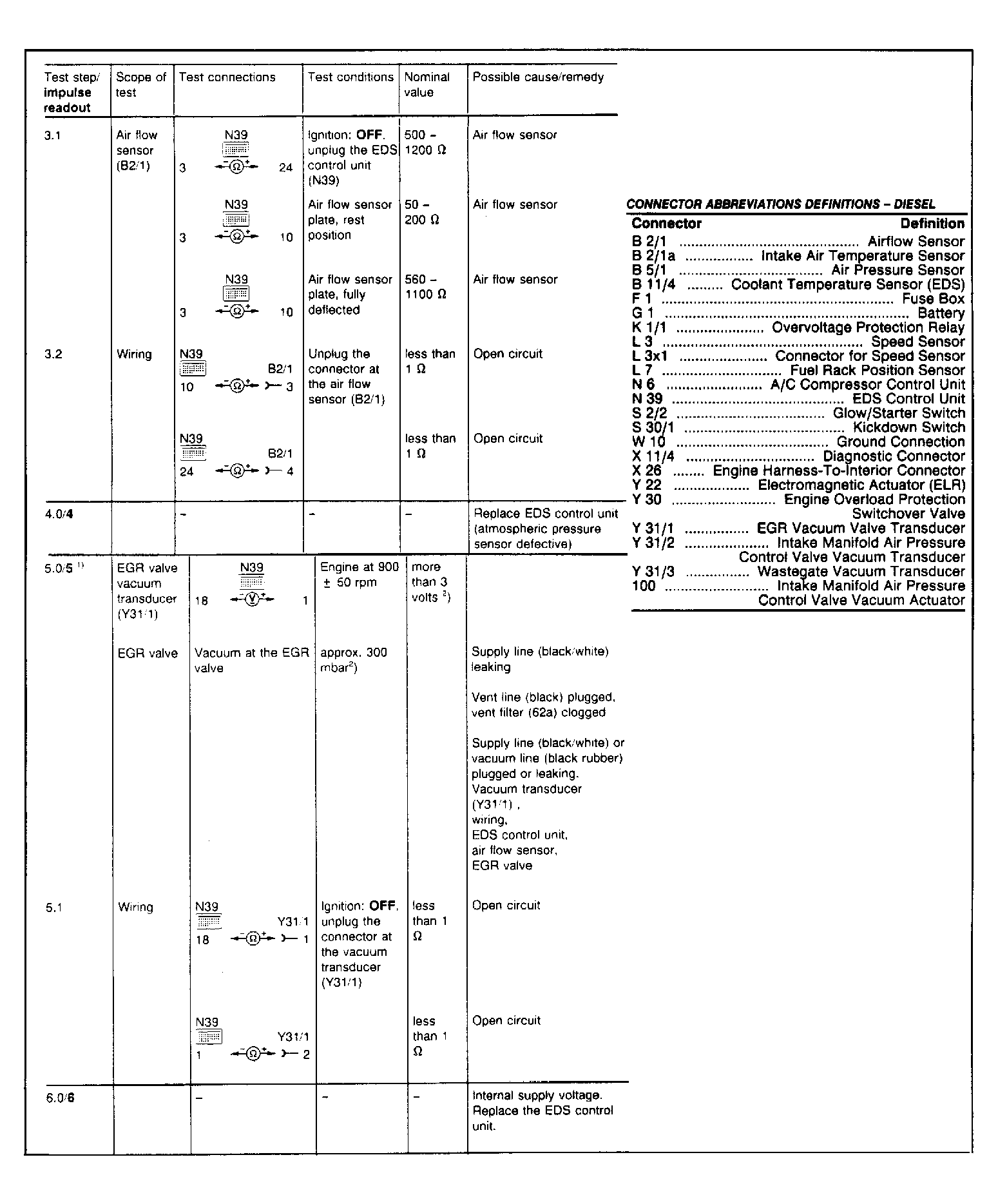

Fig 2: Test Step Charts (2 of 7)

G91F17462

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

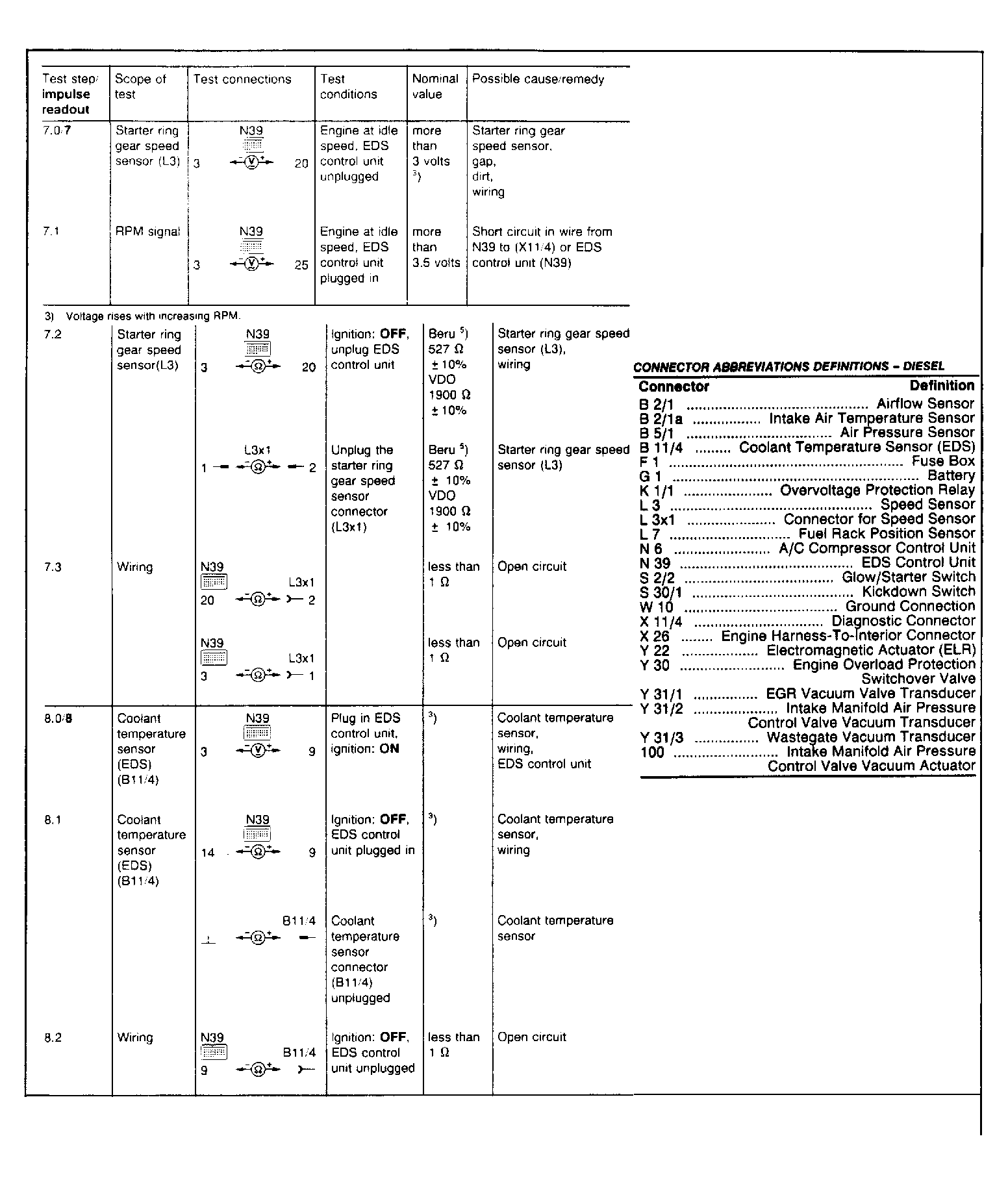

Fig 3: Test Step Charts (3 of 7)

G91G17463

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

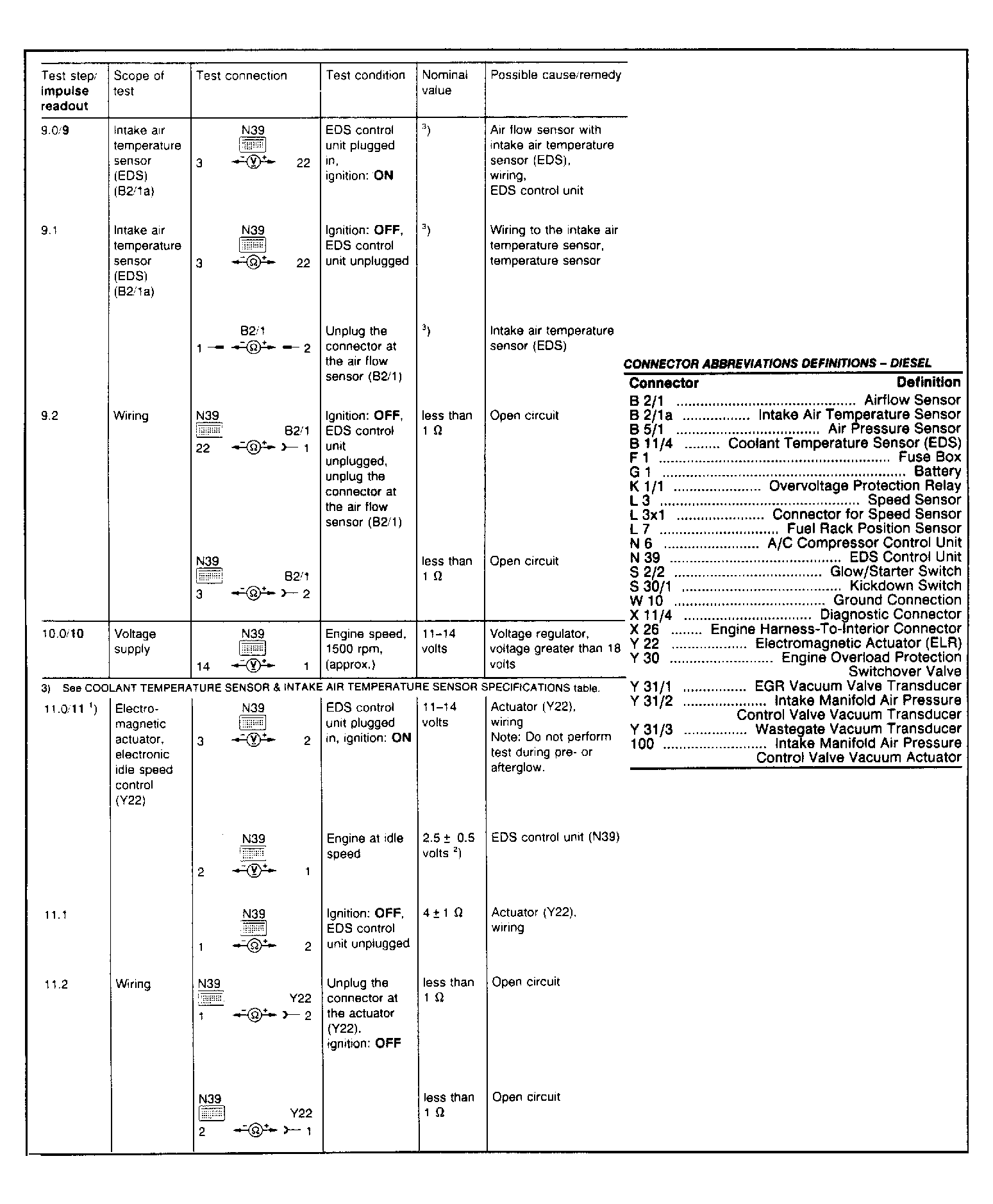

Fig 4: Test Step Charts (4 of 7)

G91H17464

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

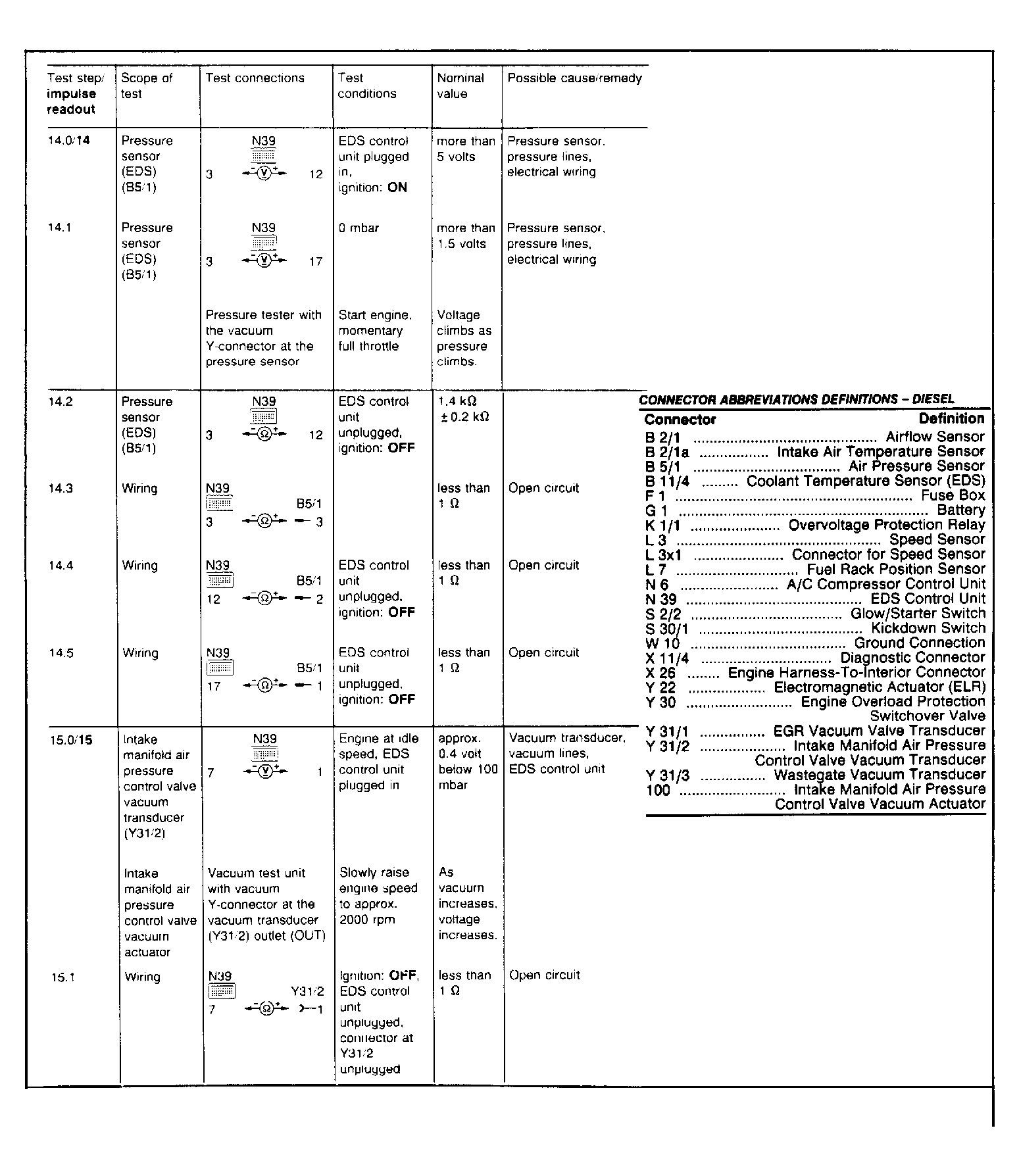

Fig 5: Test Step Charts (5 of 7)

G91I17465

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

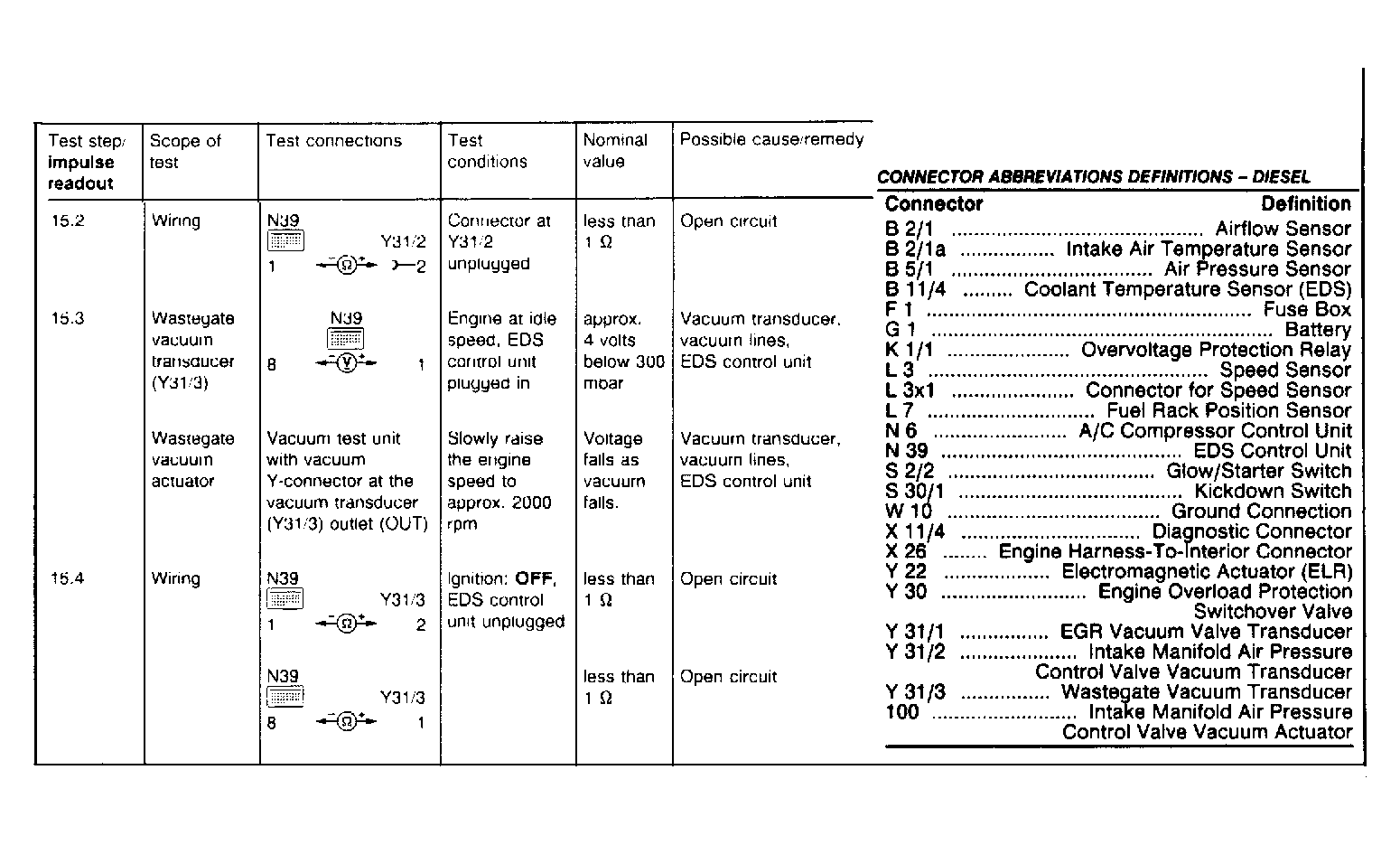

Fig 6: Test Step Charts (6 of 7)

G91J17466

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

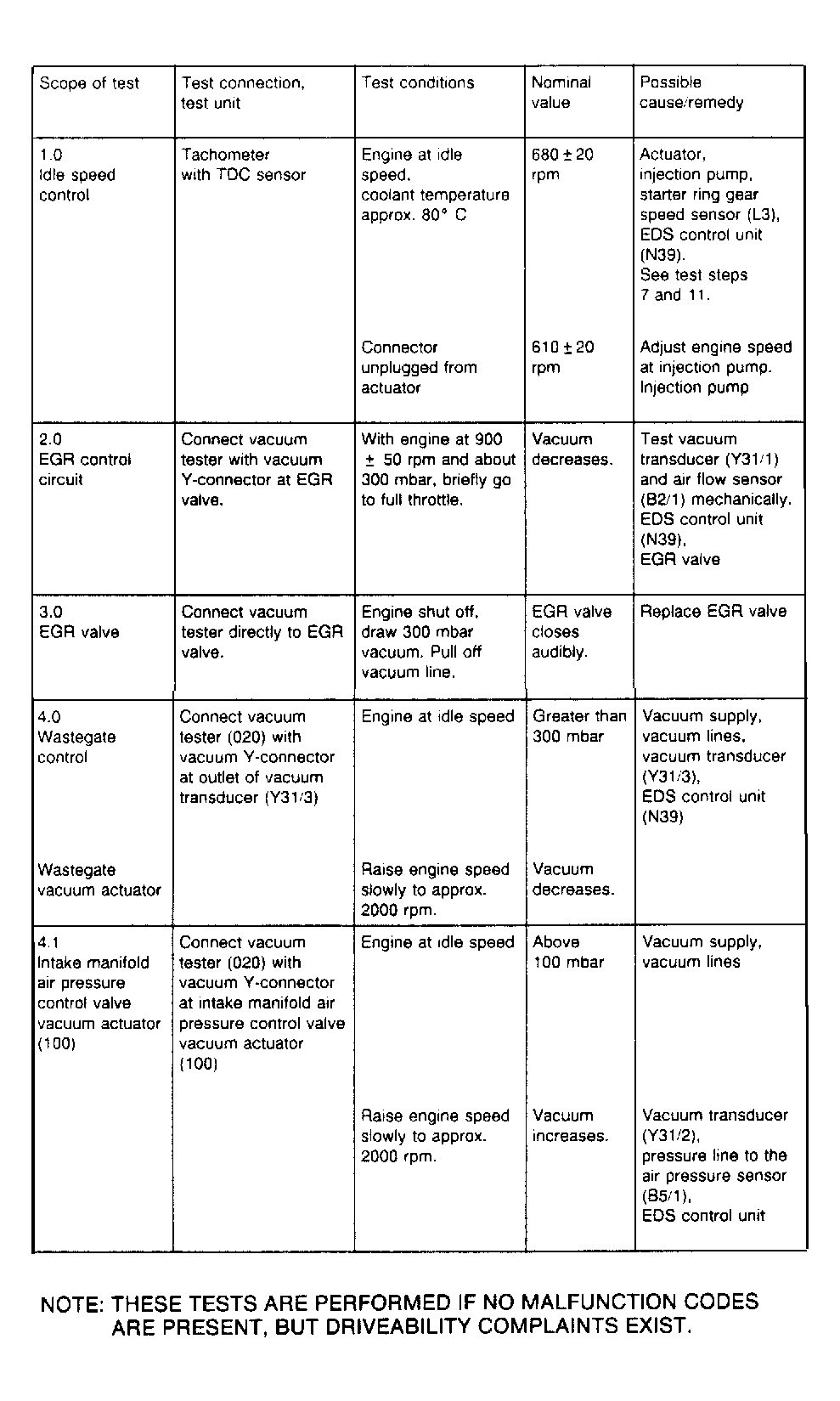

Fig 7: Test Step Charts (7 of 7)

G91A17467

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
