EGR Temperature Sensor Resistance Specifications

EGR TEMPERATURE SENSOR RESISTANCE TEST (1)

Temperature Position Ohms
302°F (150°C) Idle (2) 30
(1) Measure resistance between terminals No. 3 and 2 (Full load contact) at idle position.
(2) See Fig 1 .

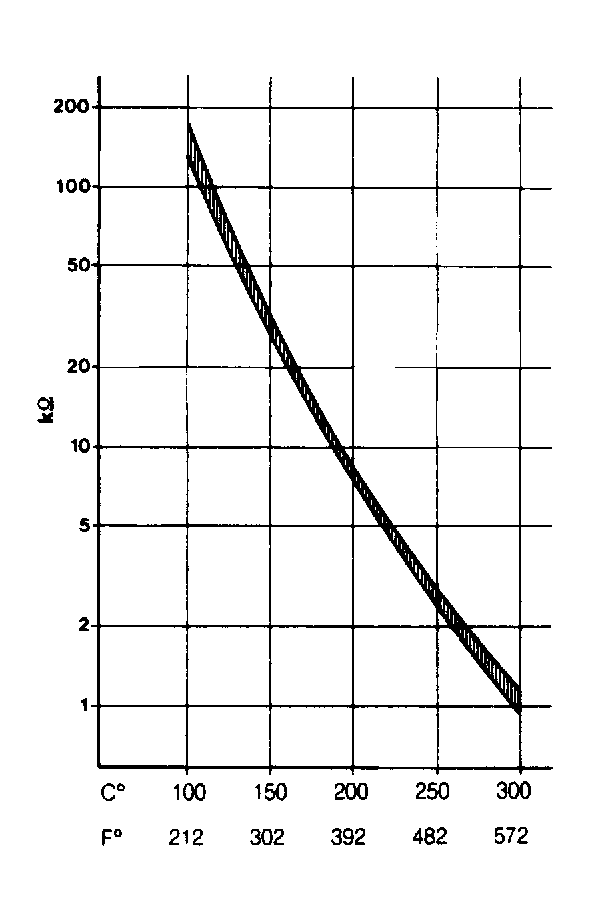

Fig 1: EGR Temperature Sensor Operating Ranges
G121449Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
