Display 12: EGR Temperature Sensor
See Fig 18.

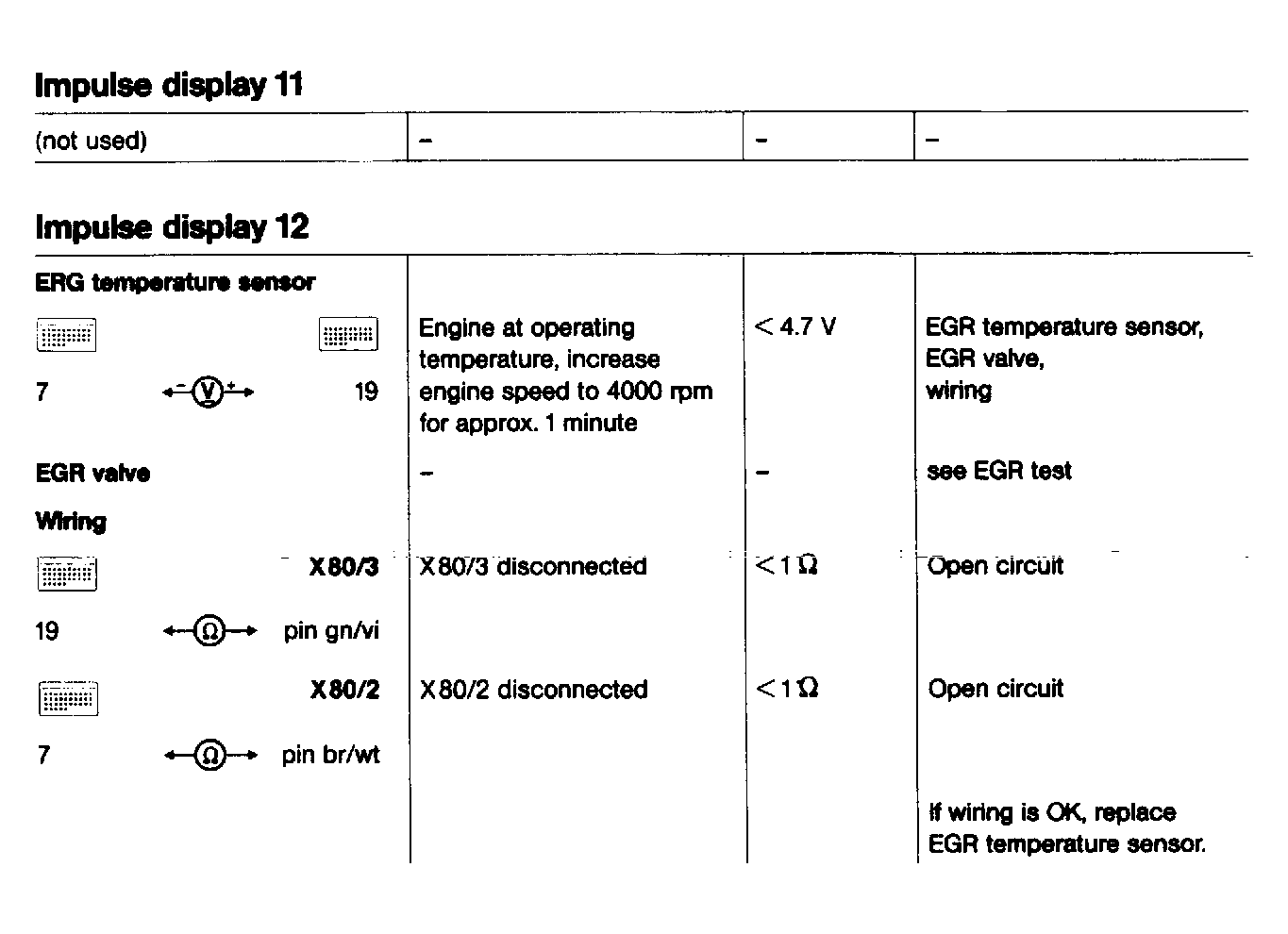

Fig 1: Impulse Display 11 & 12
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
