Display 8: Altitude Correction Capsule

See Fig 16.

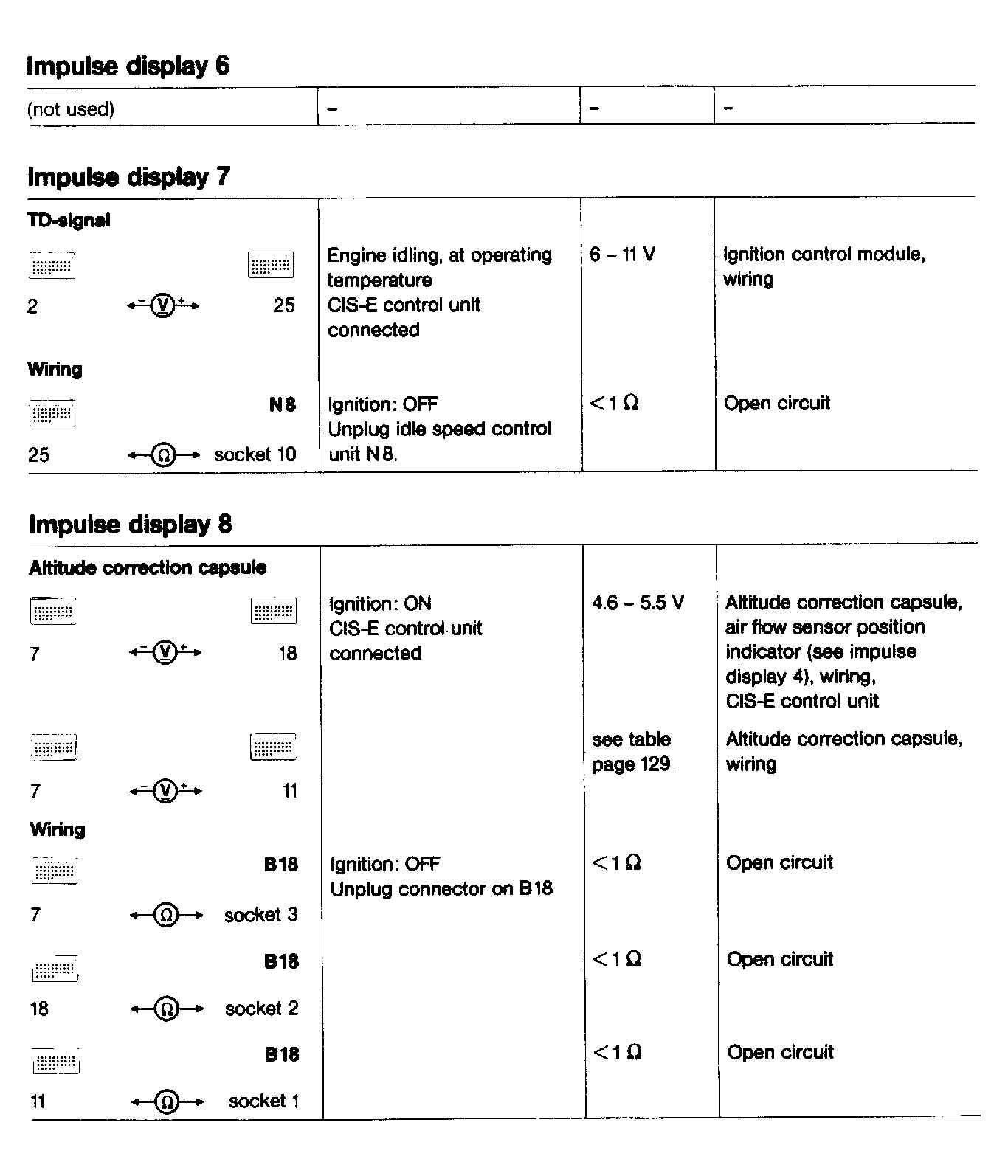

Fig 1: Impulse Display 6, 7 & 8
G121446Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
ALTITUDE CORRECTION CAPSULE

Altitude: Ft. (m) Pressure: In. Hg Volts
0 (0) 27.2 3-5
3281 (1000) 24.2 2-4
6562 (2000) 21.4 1-3
