Adjustment Procedure

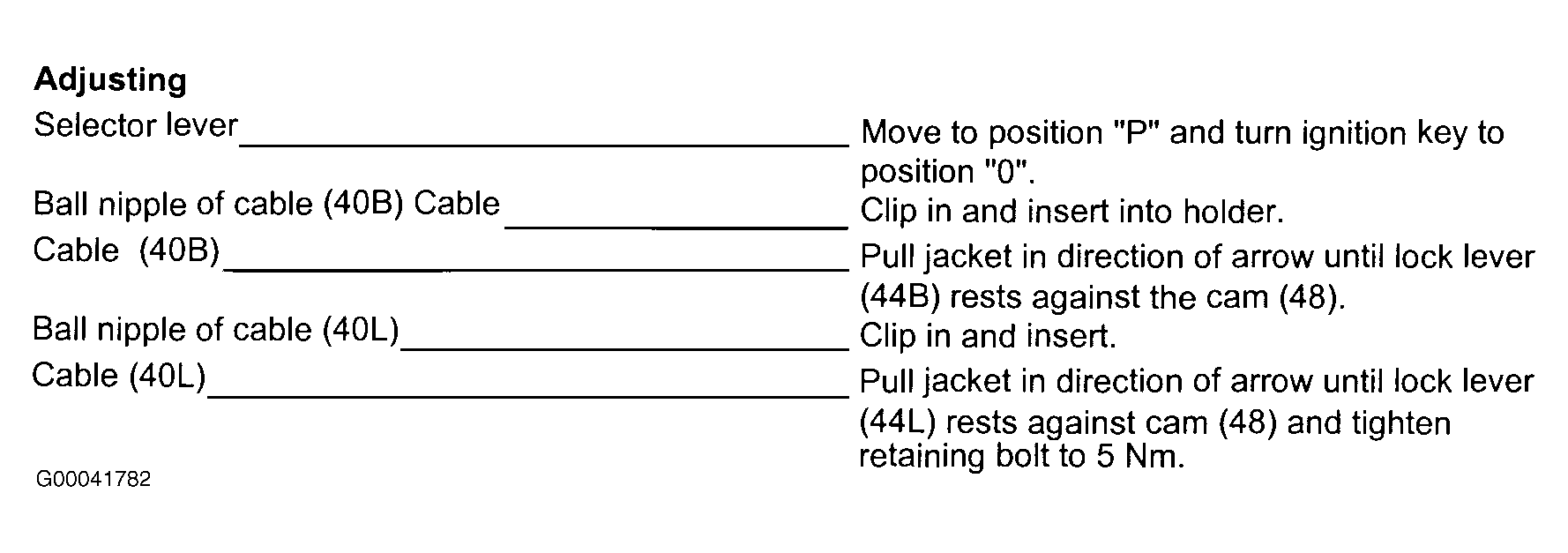

Fig 1: Adjustment Procedure
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
