Diagnostic Trouble Code Definitions

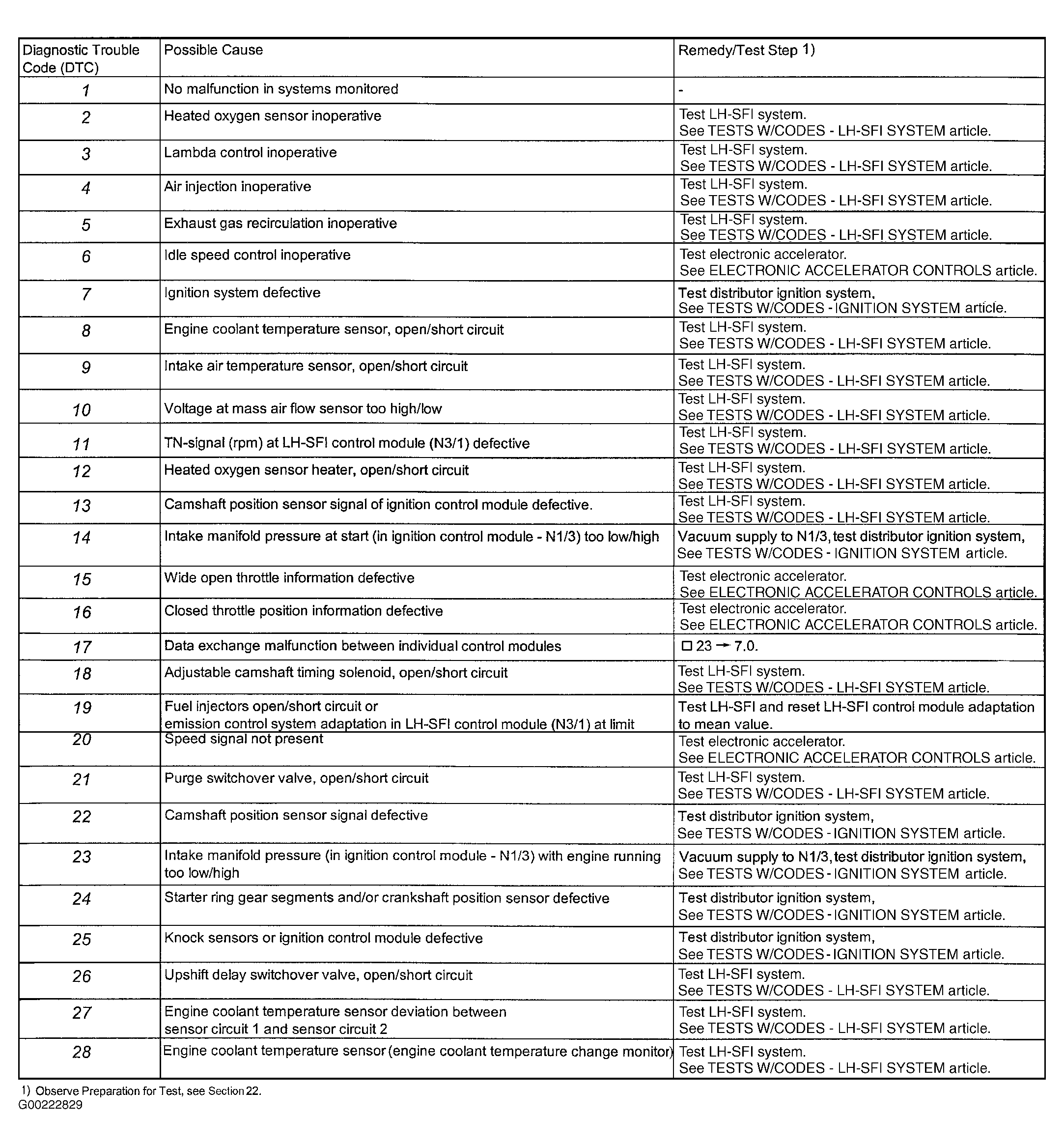

To determine which illustration contains the appropriate information, see DIAGNOSTIC MODULE TROUBLE CODE REFERENCE CHART .
DIAGNOSTIC MODULE TROUBLE CODE REFERENCE CHART
| DTC | See |
|---|---|
| 1 | Fig 1 |
| 2 | Fig 1 |
| 3 | Fig 1 |
| 4 | Fig 1 |
| 5 | Fig 1 |
| 7 | Fig 1 |
| 8 | Fig 1 |
| 9 | Fig 1 |
| 10 | Fig 1 |
| 11 | Fig 1 |
| 12 | Fig 1 |
| 13 | Fig 1 |
| 14 | Fig 1 |
| 15 | Fig 1 |
| 16 | Fig 1 |
| 17 | Fig 1 |
| 18 | Fig 1 |
| 19 | Fig 1 |
| 20 | Fig 1 |
| 21 | Fig 1 |
| 22 | Fig 1 |
| 23 | Fig 1 |
| 24 | Fig 1 |
| 25 | Fig 1 |
| 26 | Fig 1 |
| 27 | Fig 1 |
| 28 | Fig 1 |
