Diagnostic Trouble Code Definitions
To determine which illustration contains the appropriate information, see DIAGNOSTIC MODULE TROUBLE CODE REFERENCE CHART table.
DIAGNOSTIC MODULE TROUBLE CODE REFERENCE CHART
| DTC | See |
|---|---|

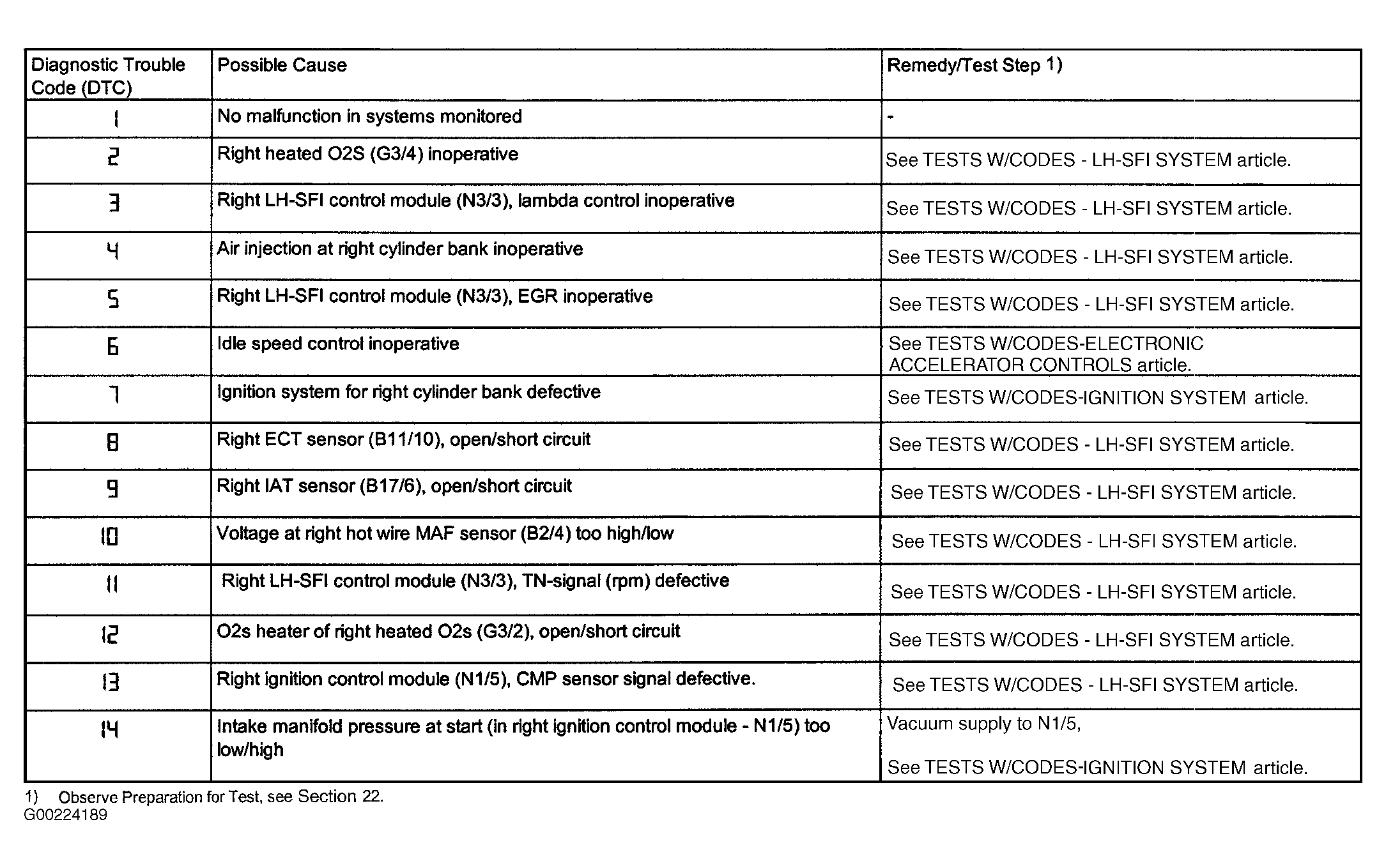

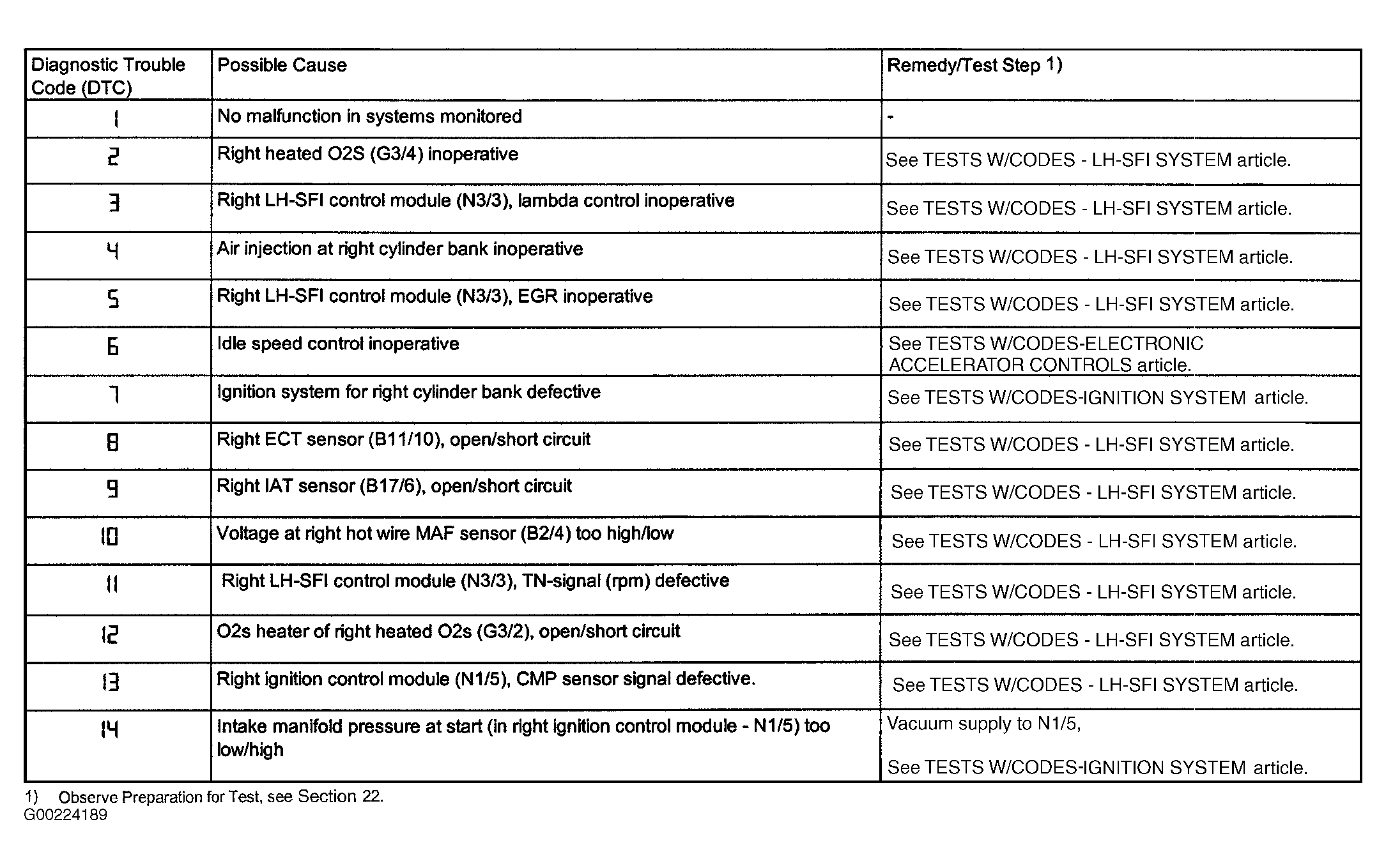

| 1 | Fig 1 |
| 2 | Fig 1 |
| 3 | Fig 1 |
| 4 | Fig 1 |
| 5 | Fig 1 |
| 6 | Fig 1 |
| 7 | Fig 1 |
| 8 | Fig 1 |
| 9 | Fig 1 |
| 10 | Fig 1 |
| 11 | Fig 1 |
| 12 | Fig 1 |
| 13 | Fig 1 |
| 14 | Fig 1 |

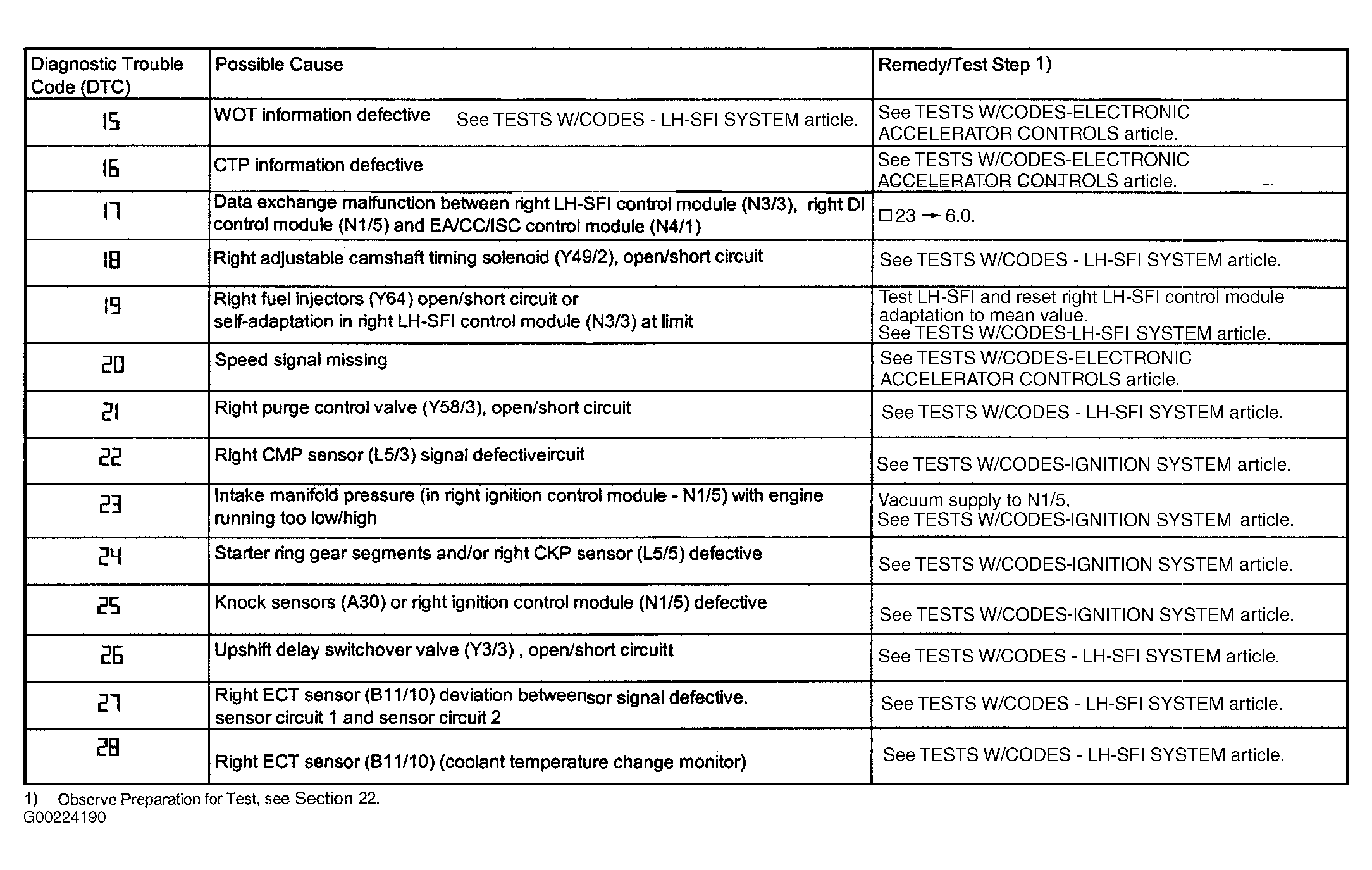

| 15 | Fig 2 |
| 16 | Fig 2 |
| 17 | Fig 2 |
| 18 | Fig 2 |
| 19 | Fig 2 |
| 20 | Fig 2 |
| 21 | Fig 2 |
| 22 | Fig 2 |
| 23 | Fig 2 |
| 24 | Fig 2 |
| 24 | Fig 2 |
| 24 | Fig 2 |
| 25 | Fig 2 |
| 26 | Fig 2 |
| 27 | Fig 2 |
| 28 | Fig 2 |

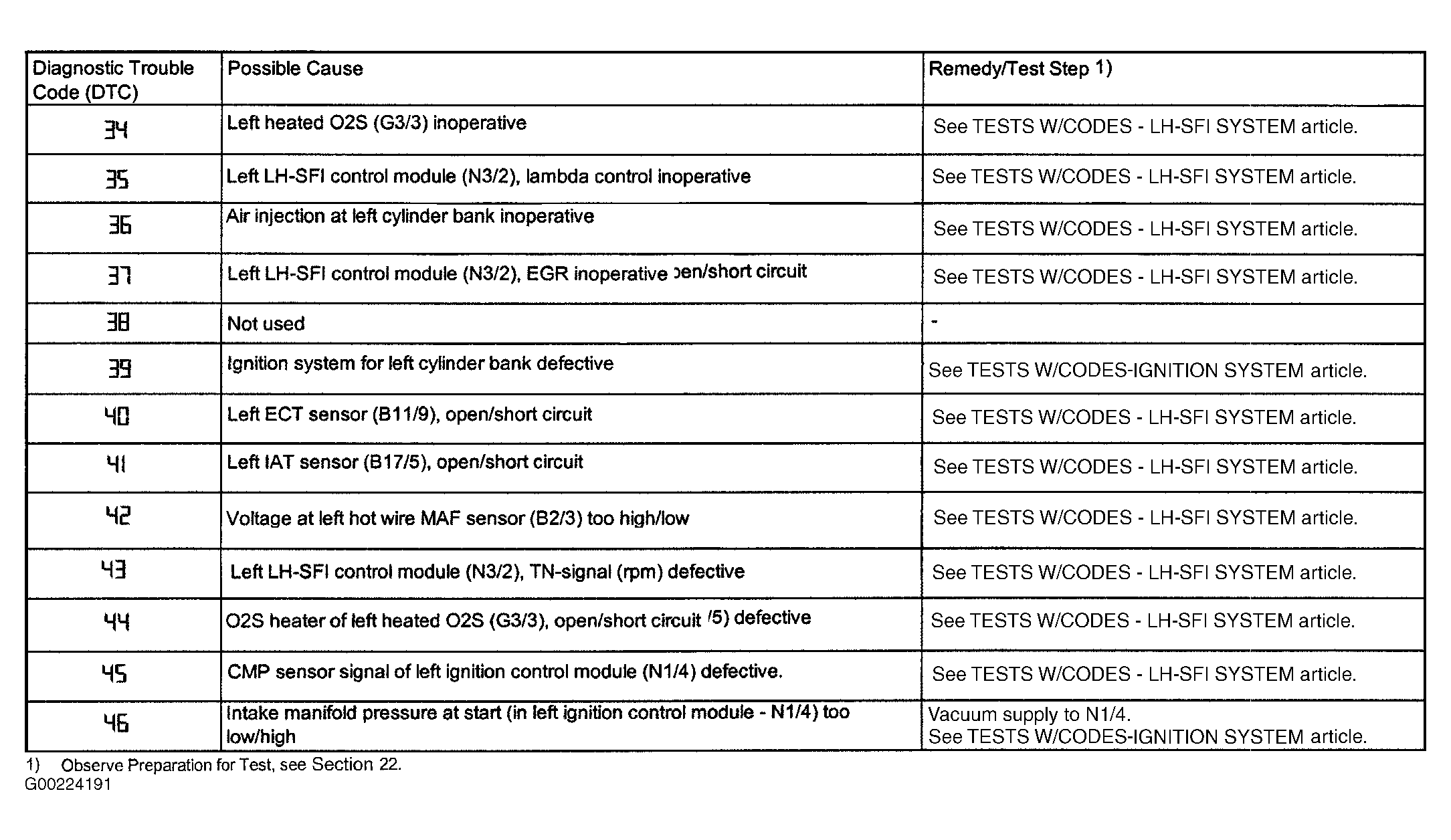

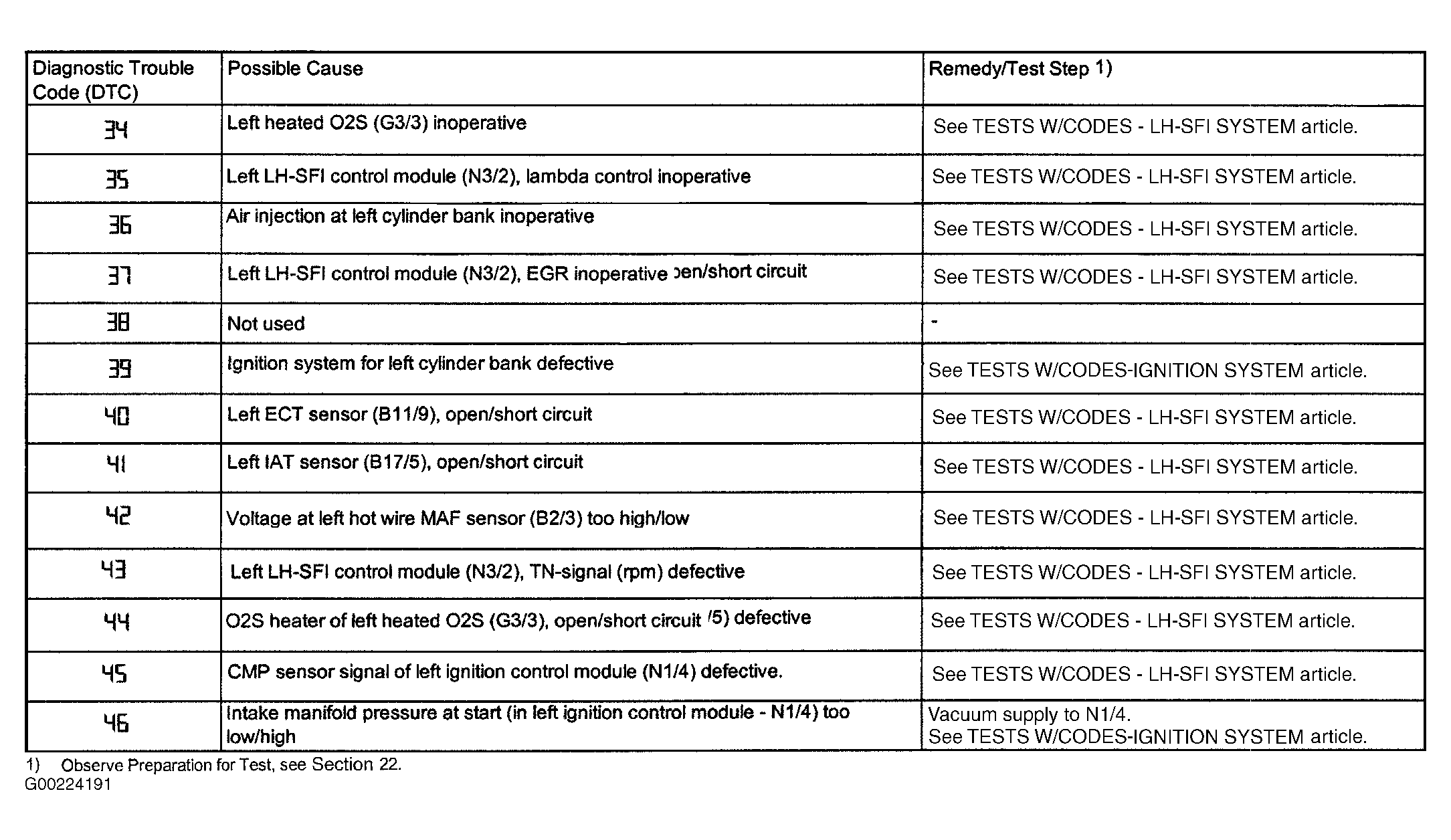

| 34 | Fig 3 |
| 35 | Fig 3 |
| 36 | Fig 3 |
| 37 | Fig 3 |
| 38 | Fig 3 |
| 39 | Fig 3 |
| 40 | Fig 3 |
| 41 | Fig 3 |
| 42 | Fig 3 |
| 43 | Fig 3 |
| 44 | Fig 3 |
| 45 | Fig 3 |
| 46 | Fig 3 |

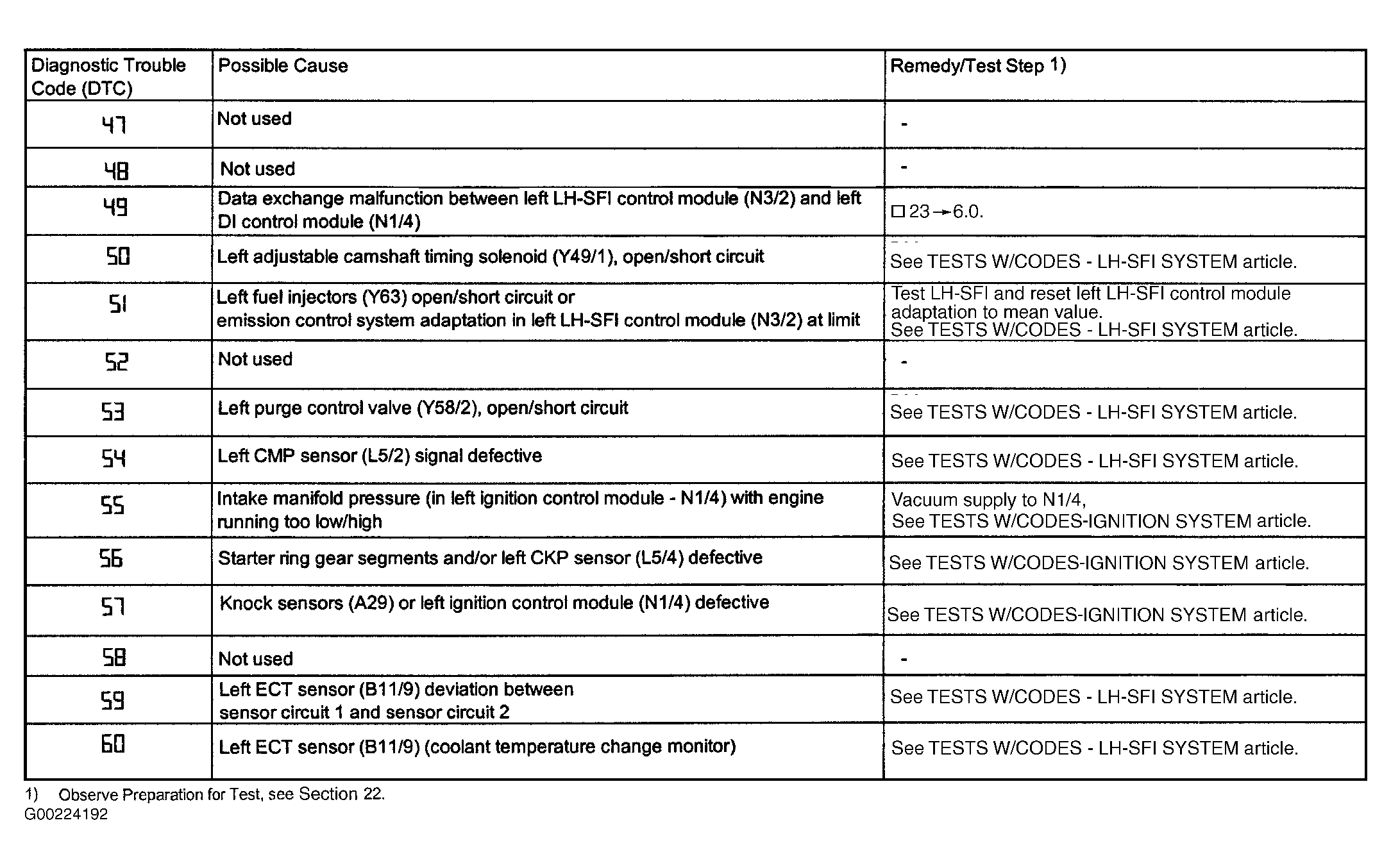

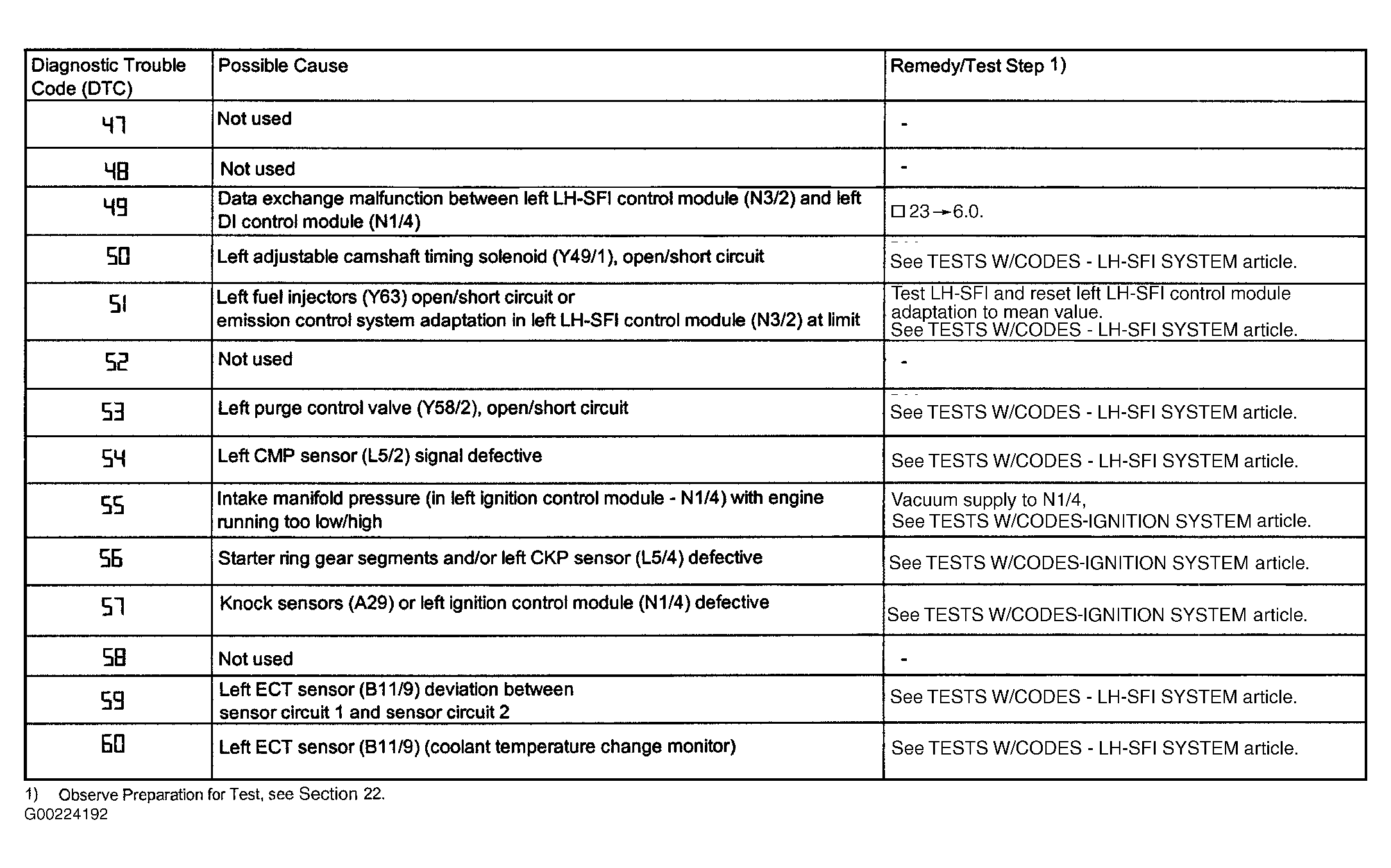

| 47 | Fig 4 |
| 48 | Fig 4 |
| 49 | Fig 4 |
| 50 | Fig 4 |
| 51 | Fig 4 |
| 52 | Fig 4 |
| 53 | Fig 4 |
| 54 | Fig 4 |
| 55 | Fig 4 |
| 56 | Fig 4 |
| 57 | Fig 4 |
| 58 | Fig 4 |
| 59 | Fig 4 |
