Electronic Acceleration System Tests (Section 23)

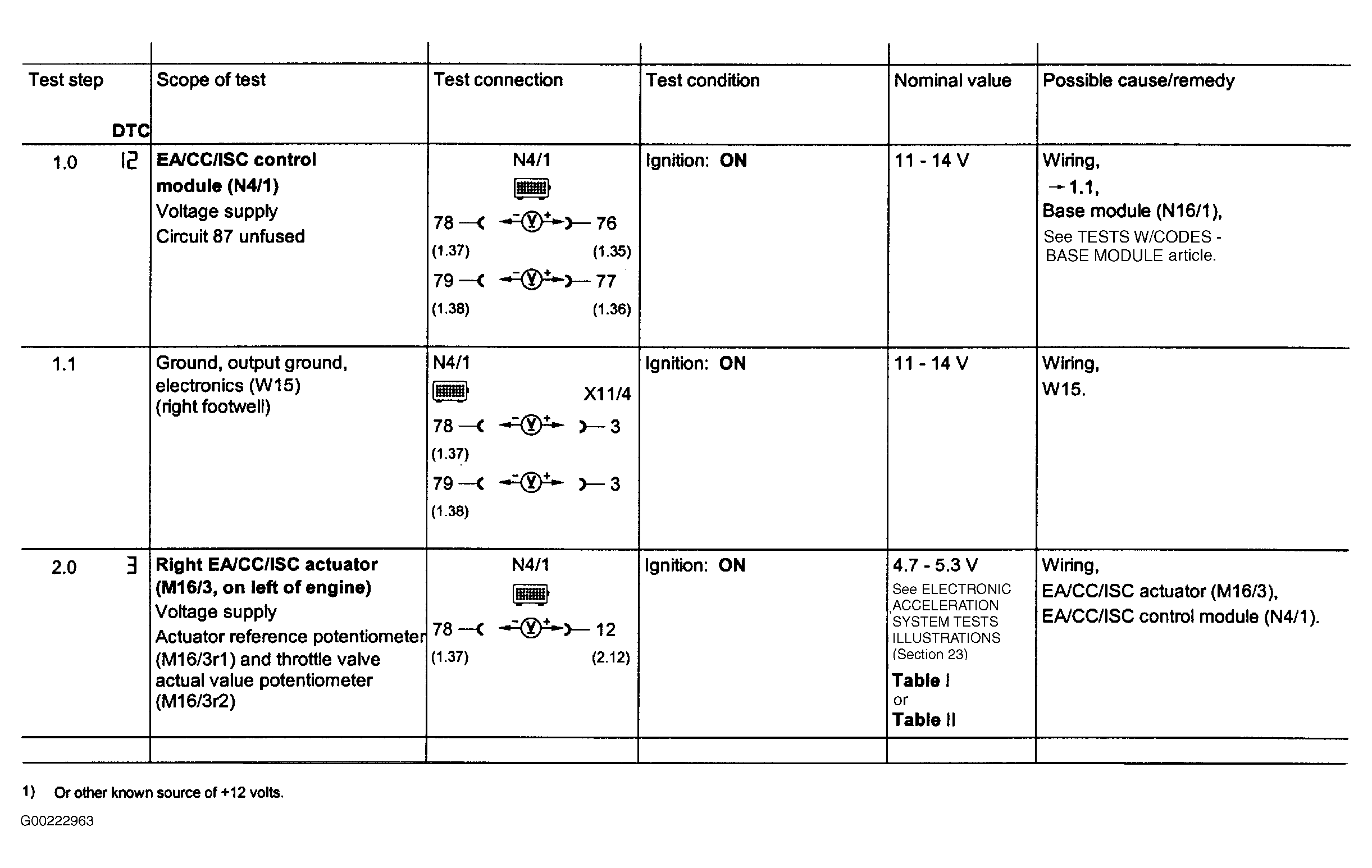

Fig 1: Electronic Acceleration System Test - Section 23 (Steps 1.0-2.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

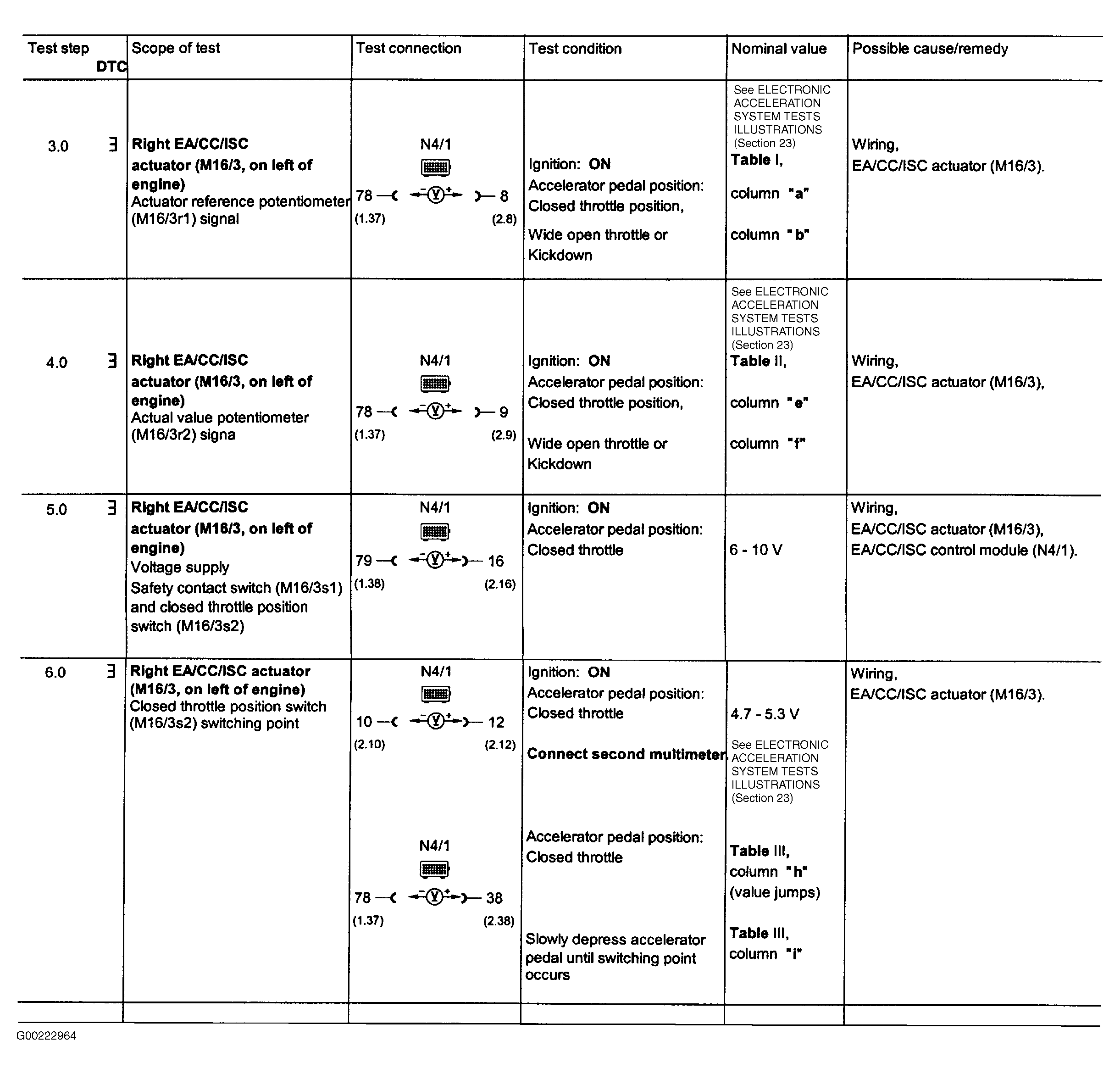

Fig 2: Electronic Acceleration System Test - Section 23 (Steps 3.0-6.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

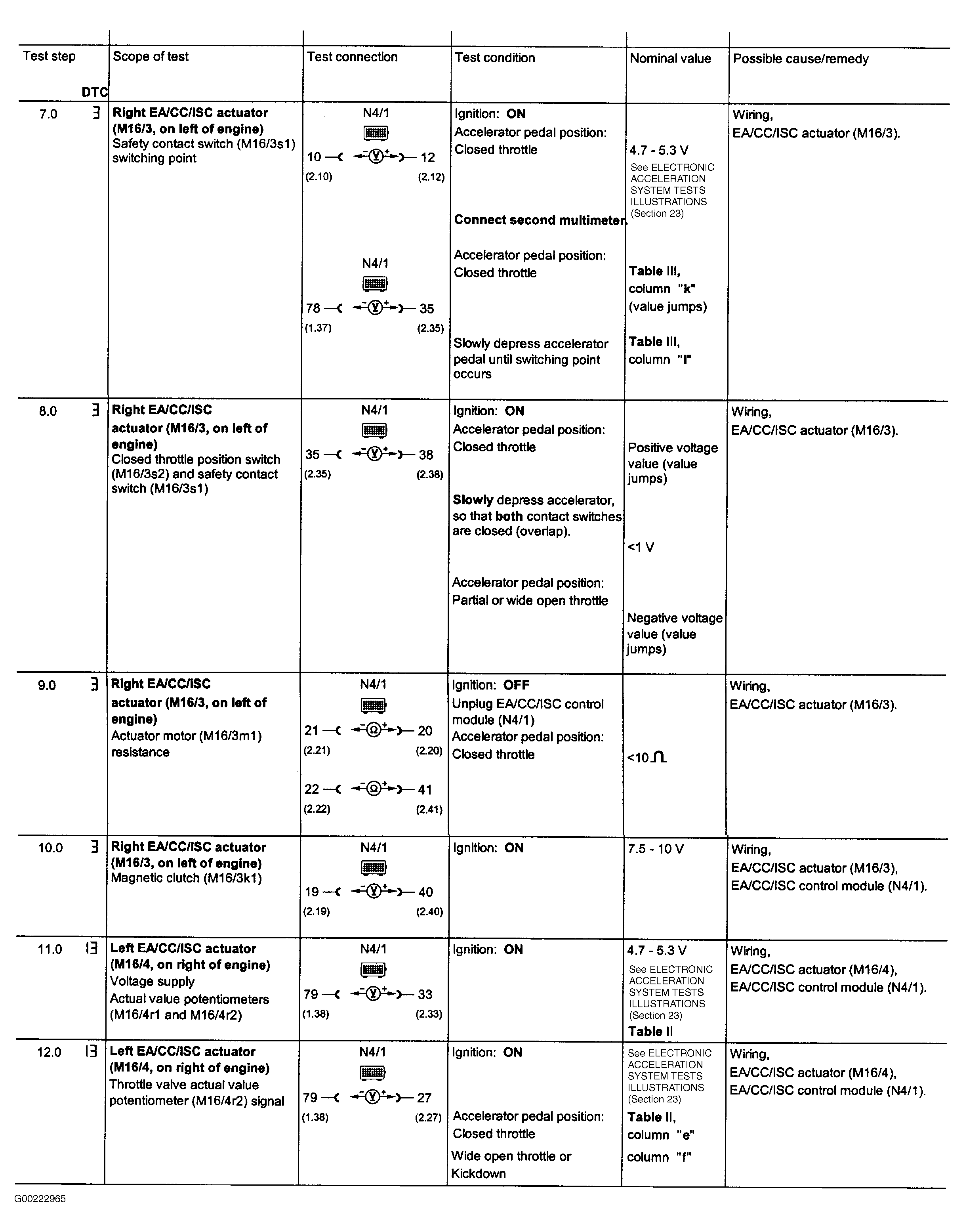

Fig 3: Electronic Acceleration System Test - Section 23 (Steps 7.0-12.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

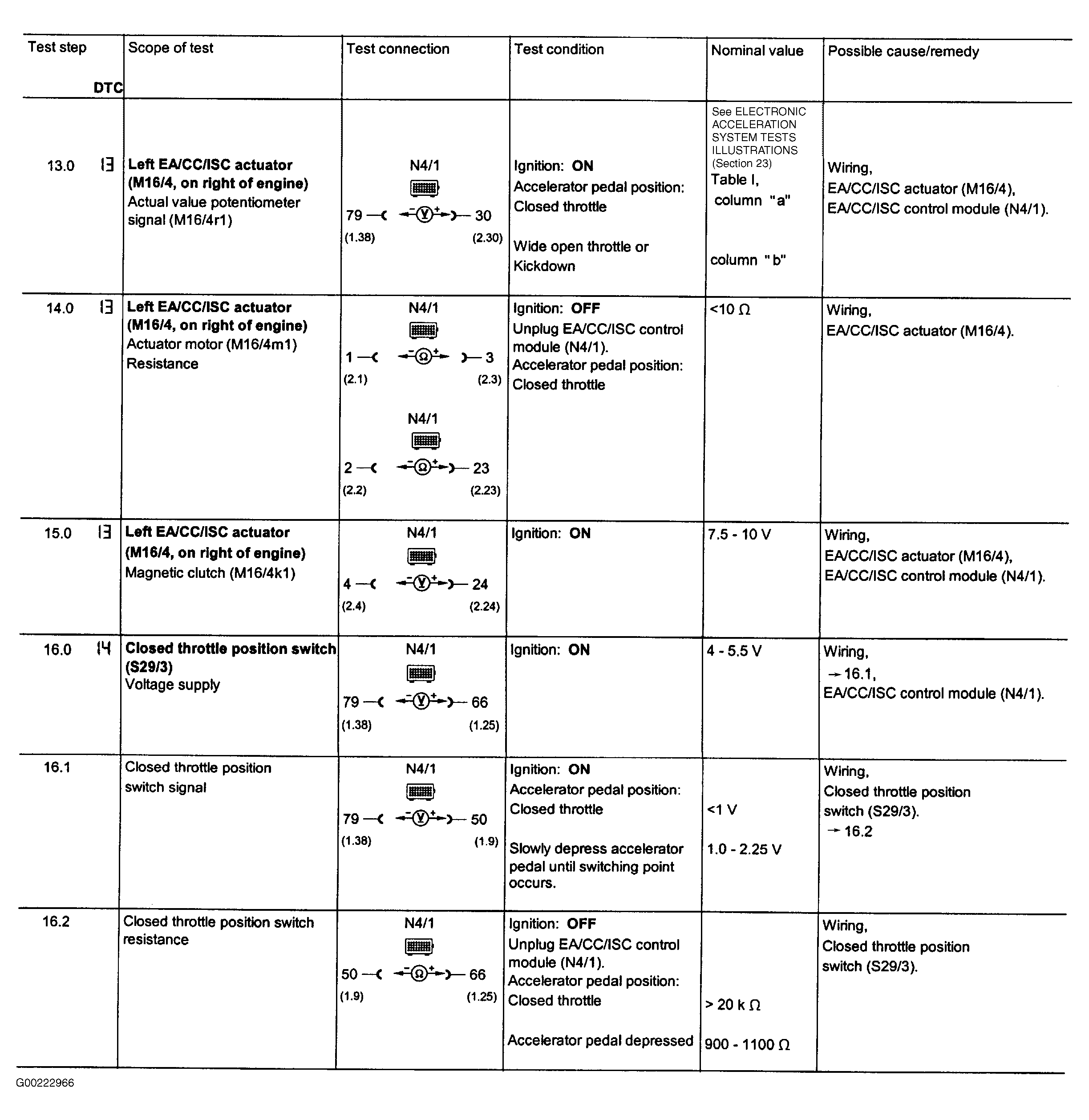

Fig 4: Electronic Acceleration System Test - Section 23 (Steps 13.0-16.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

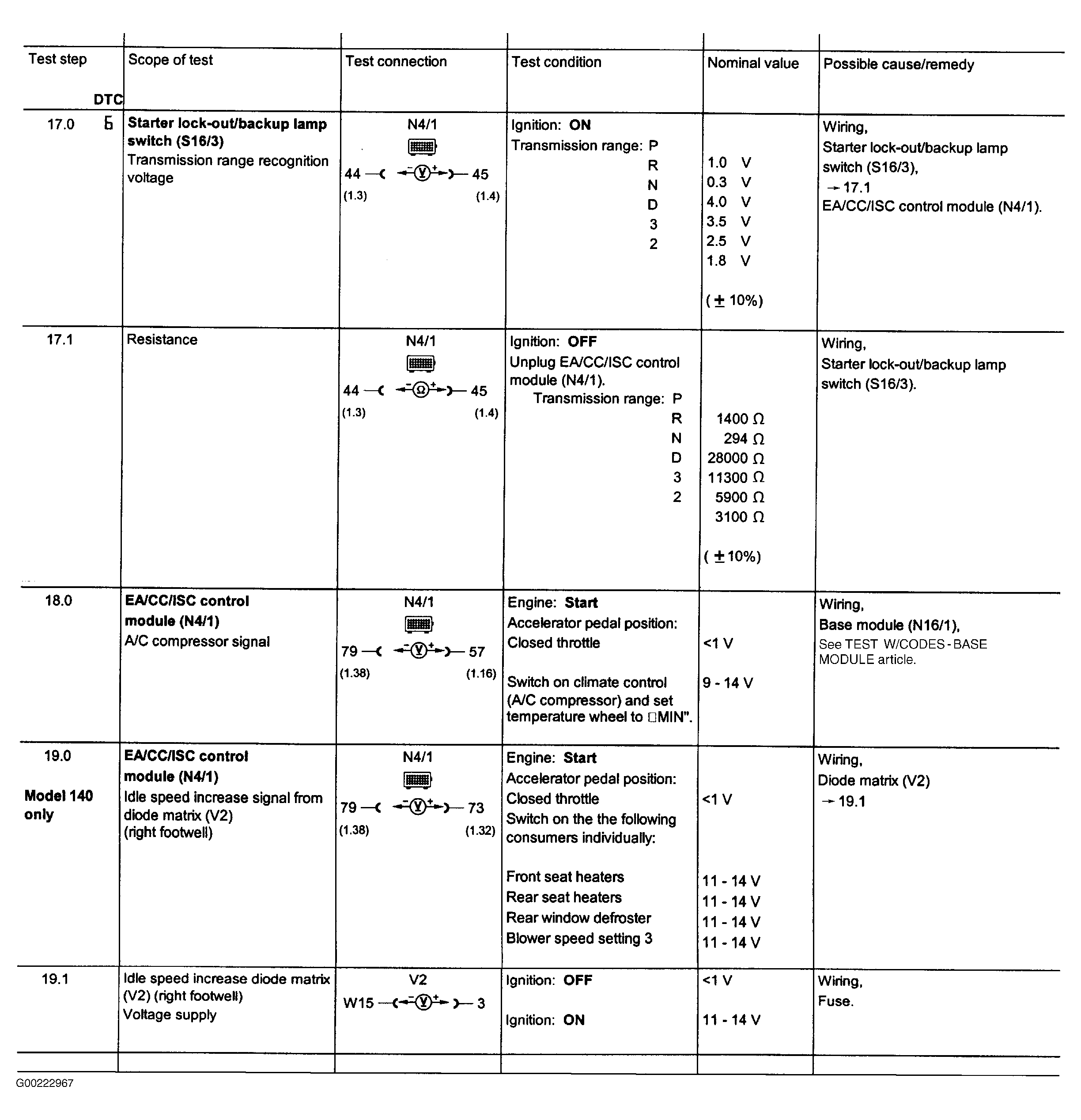

Fig 5: Electronic Acceleration System Test - Section 23 (Steps 17.0-19.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

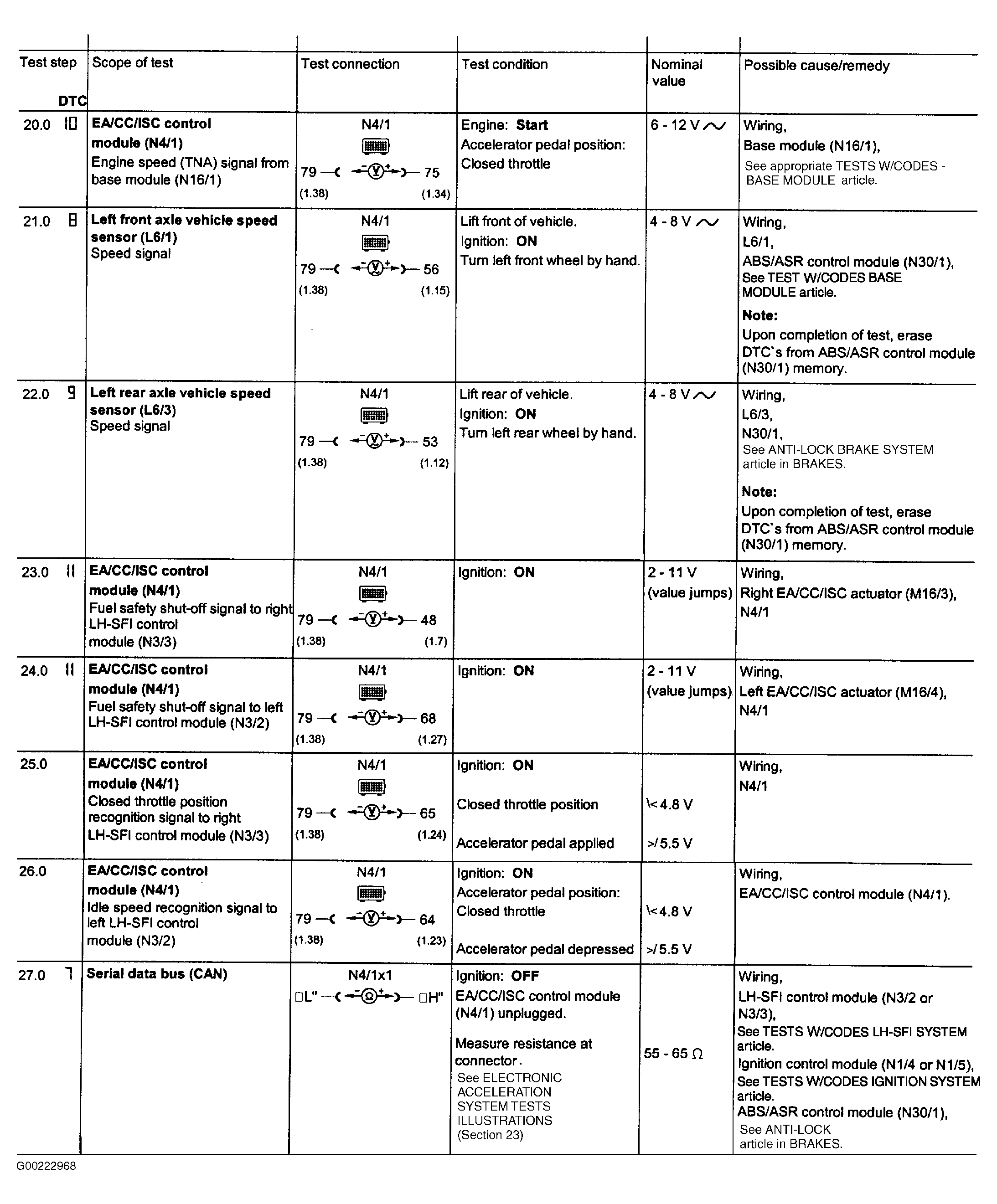

Fig 6: Electronic Acceleration System Test - Section 23 (Steps 20.0-27.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
