Electronic Acceleration System Tests (Section 23)

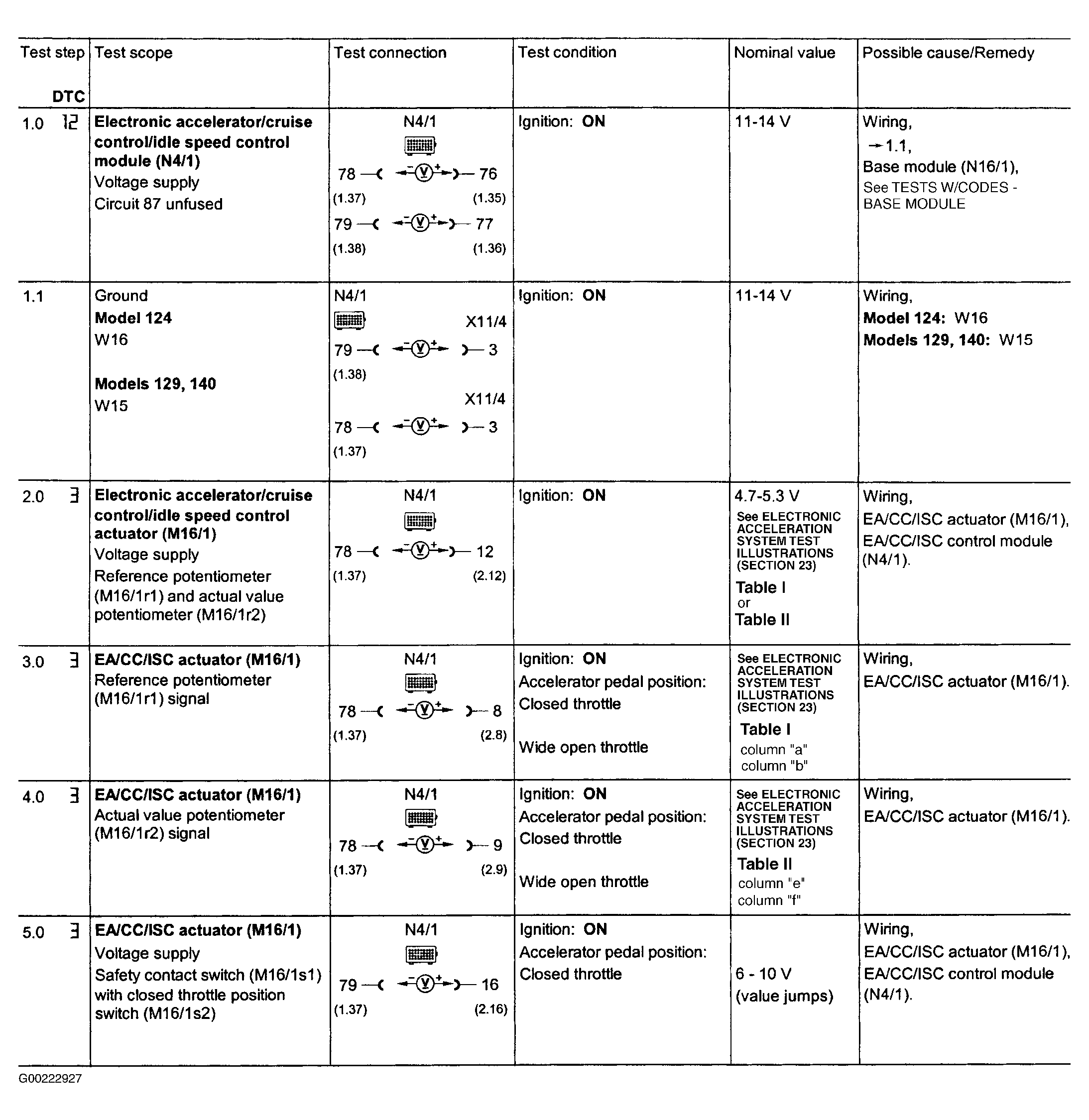

Fig 1: Electronic Acceleration System Test - Section 23 (Steps 1.0-5.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

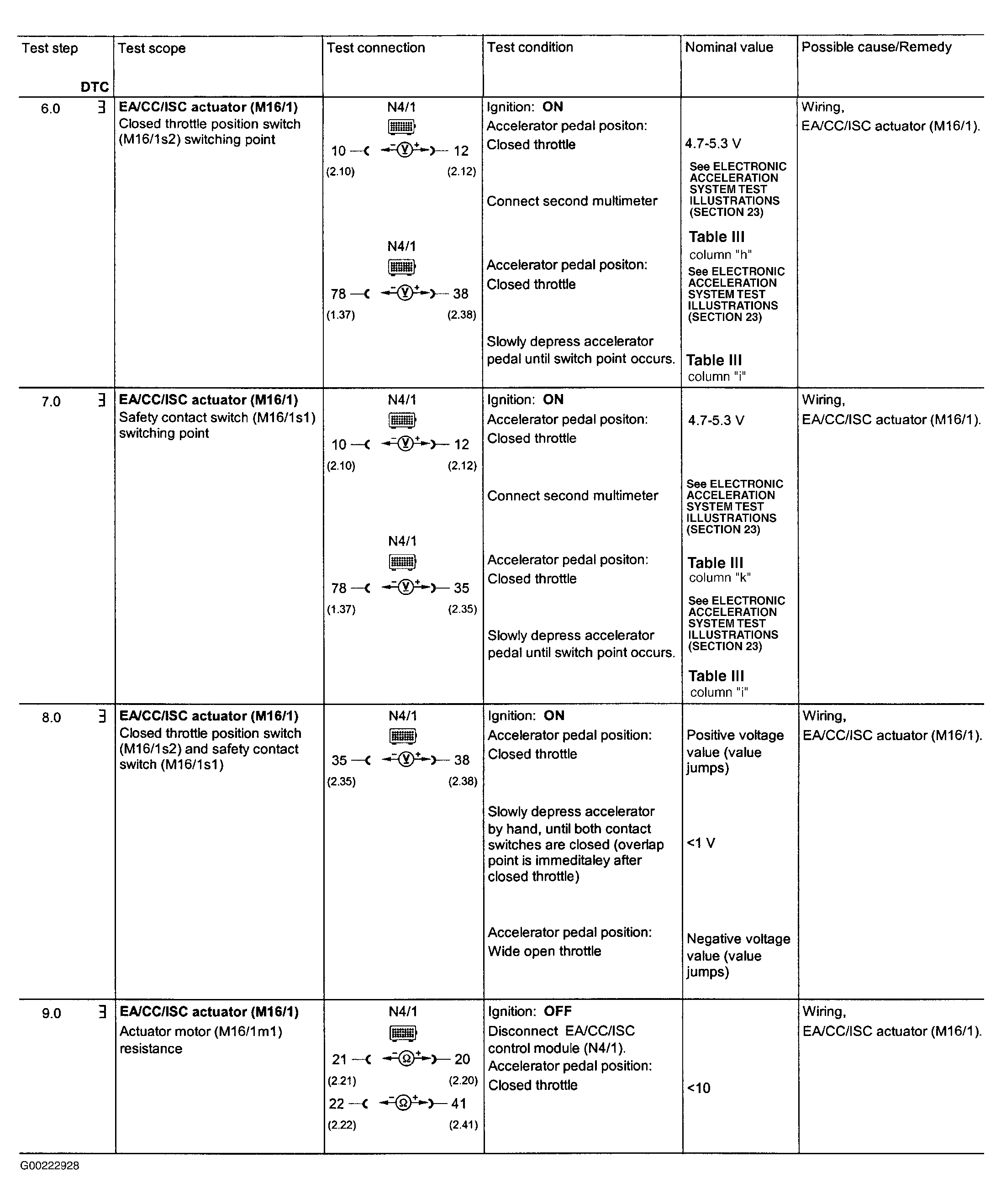

Fig 2: Electronic Acceleration System Test - Section 23 (Steps 6.0-9.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

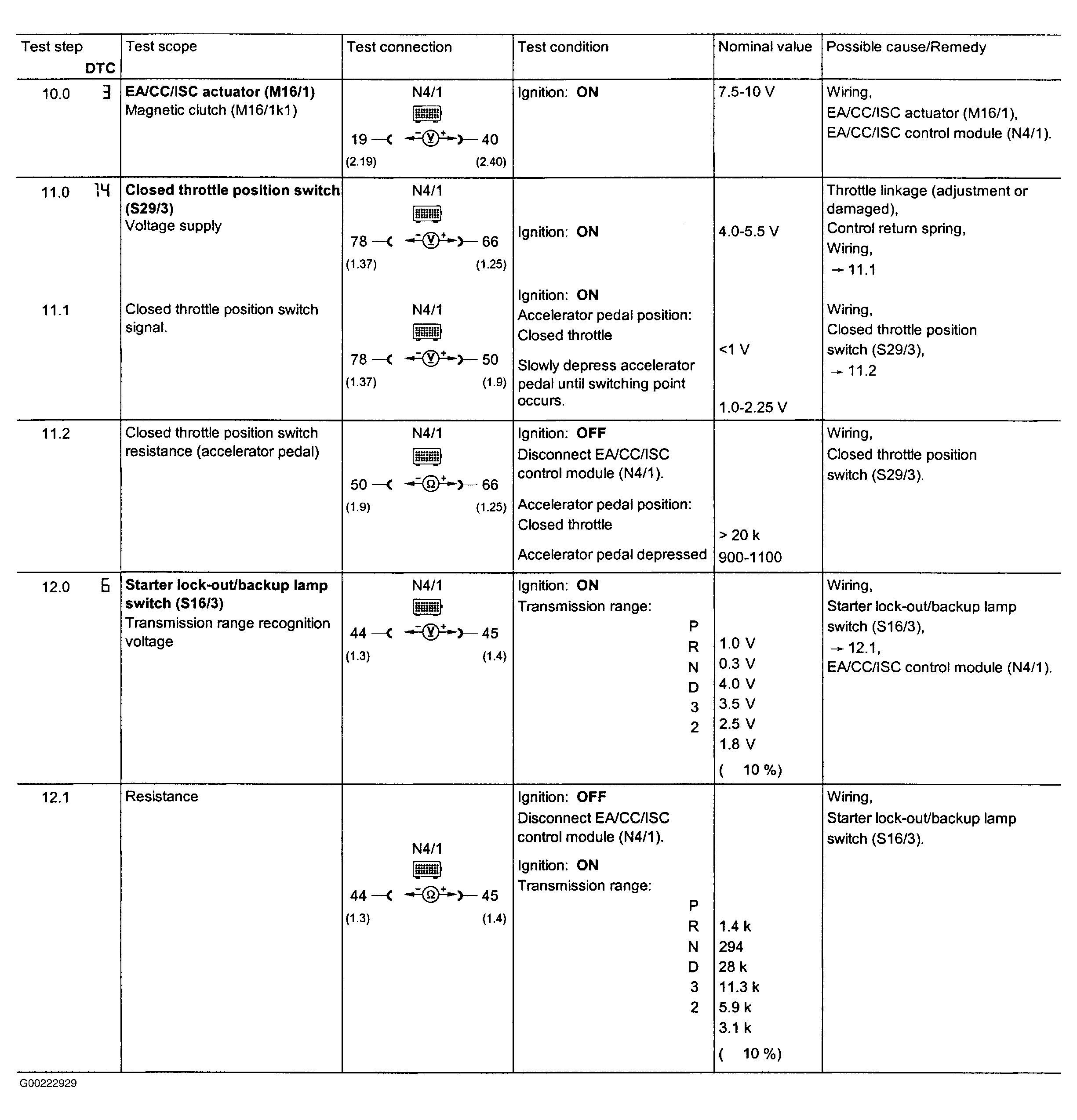

Fig 3: Electronic Acceleration System Test - Section 23 (Steps 10.0-12.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

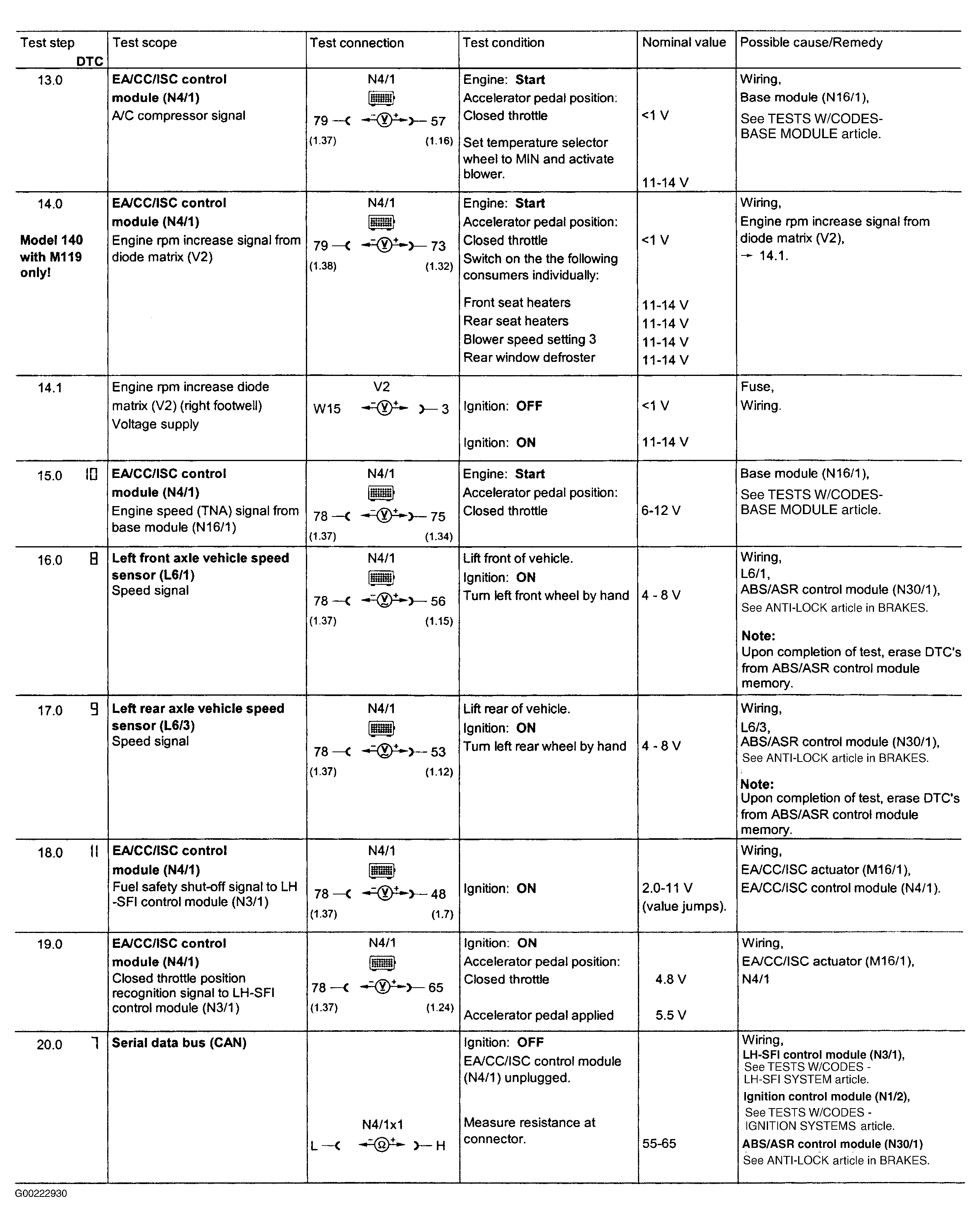

Fig 4: Electronic Acceleration System Test - Section 23 (Steps 13.0-20.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
