Electronic Acceleration System Tests Illustrations (Section 23)

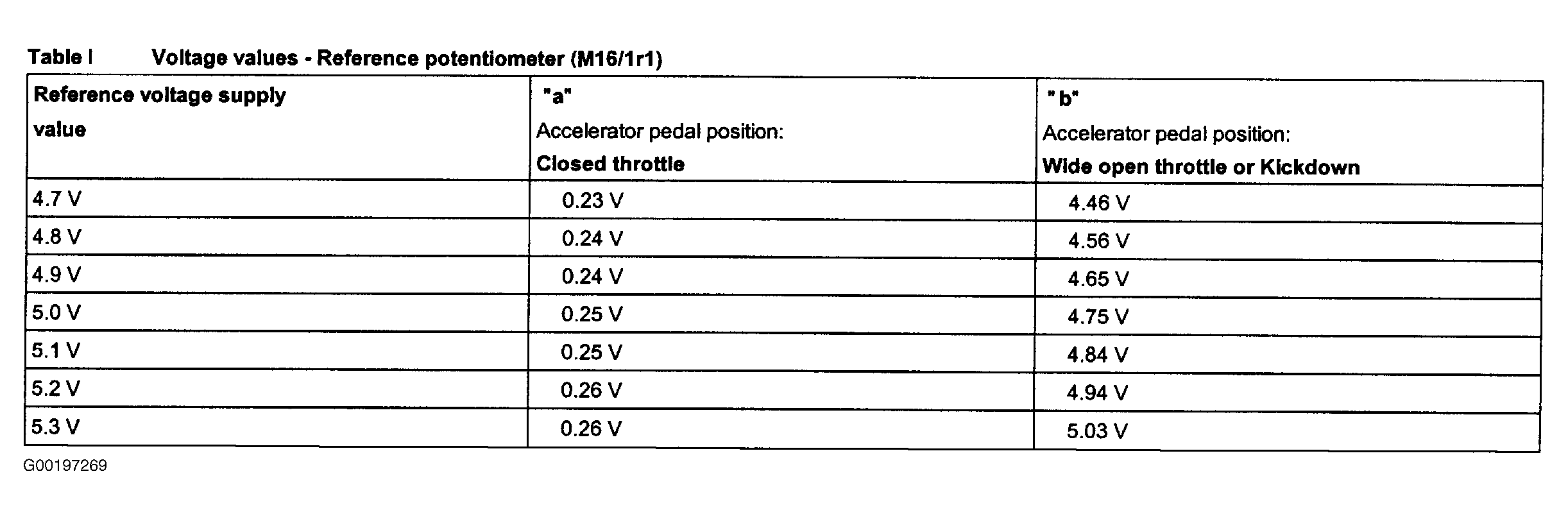

Fig 1: Identifying Electronic Accelerator Pedal Position Voltage Values (Table I)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

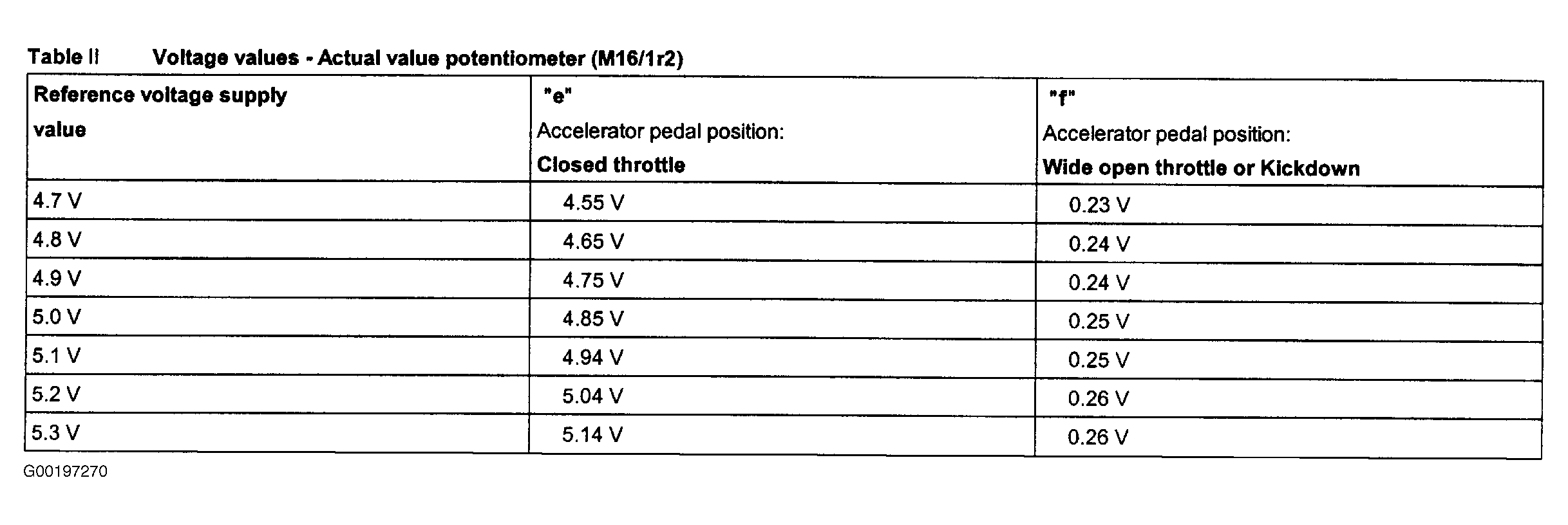

Fig 2: Identifying Electronic Accelerator Pedal Position Voltage Values (Table II)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

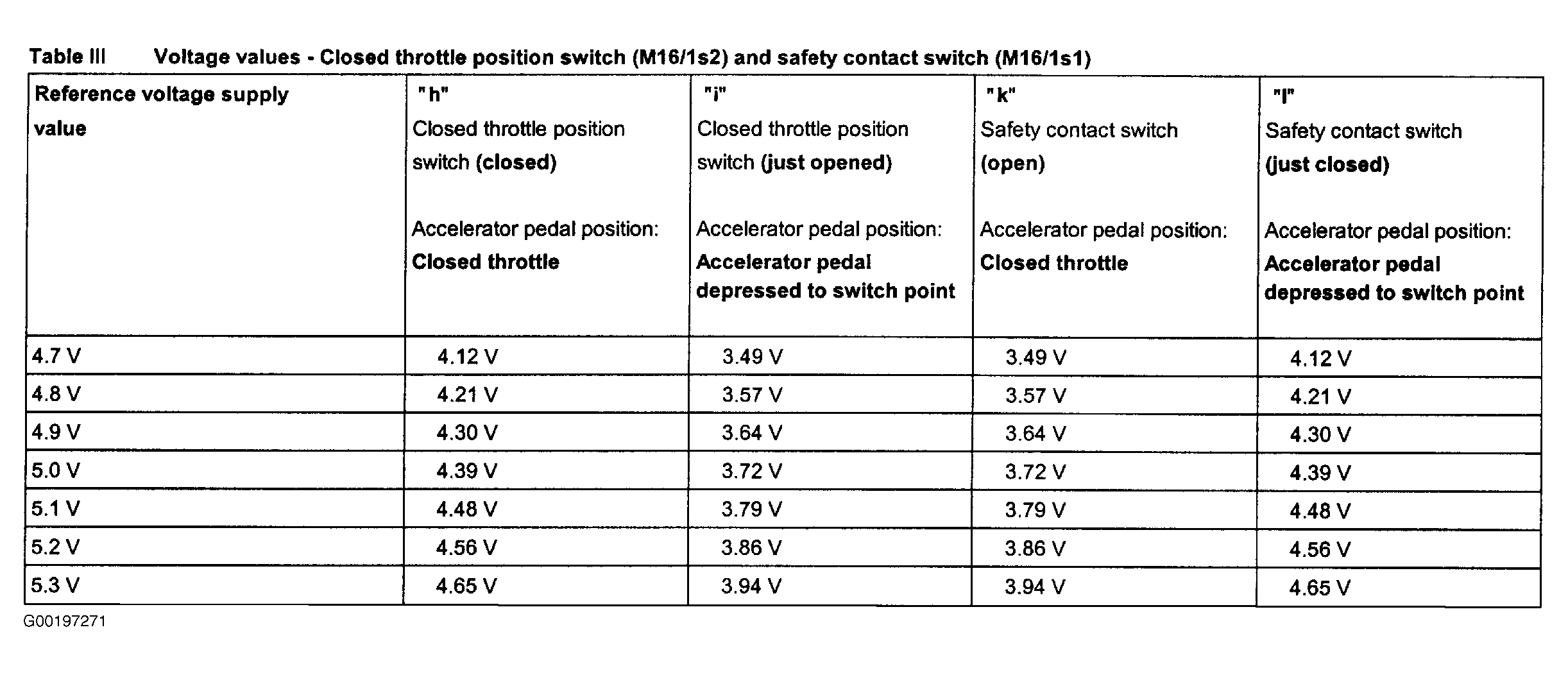

Fig 3: Identifying Electronic Accelerator Closed Throttle Position & Safety Contact Switches Voltage Values (Table III)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
