Electrical System Tests - Engine Does Not Run (Section 23)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS  .

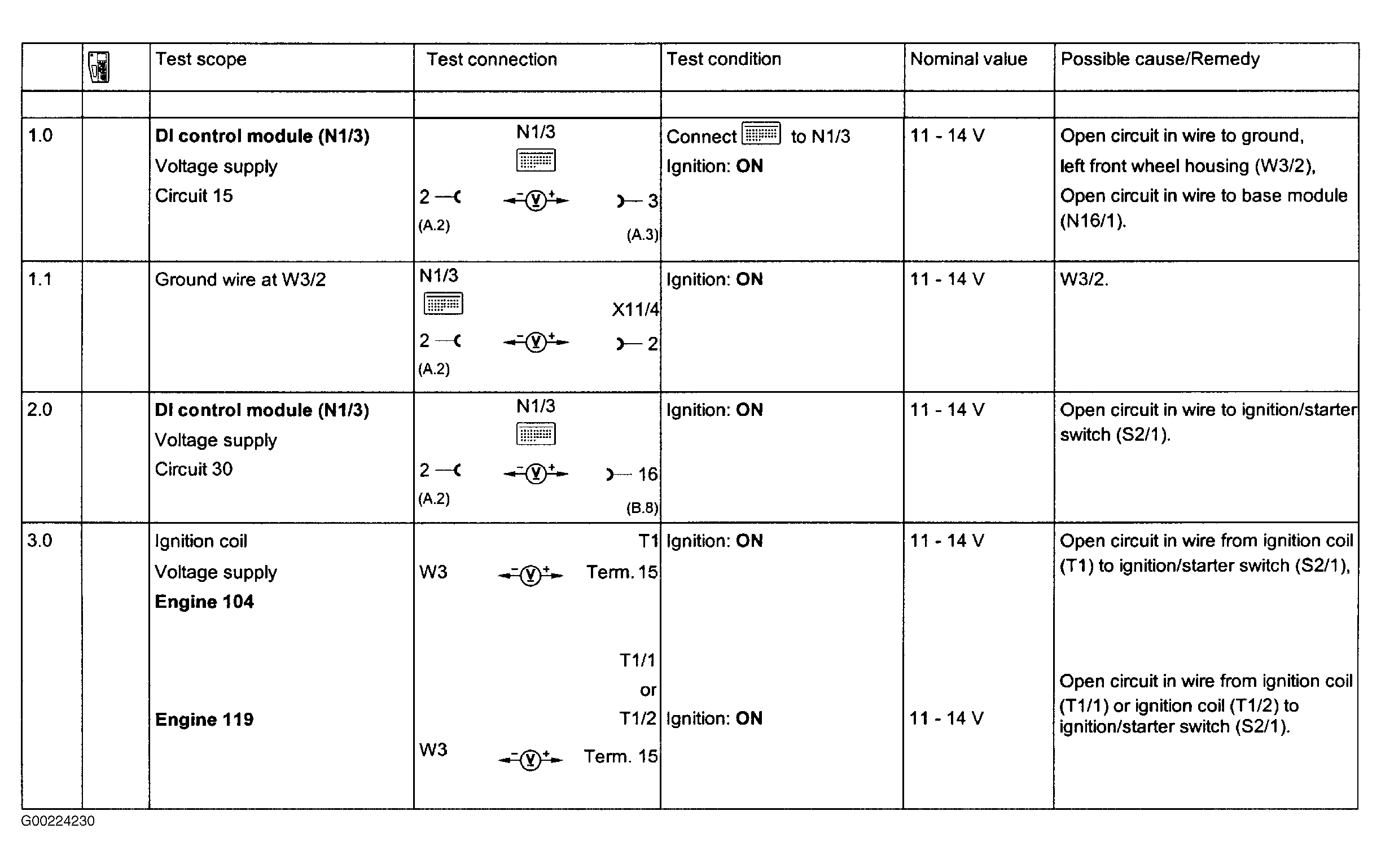

Fig 1: Electrical System Tests - Engine Does Not Run - Section 23 (Steps 1.0-3.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

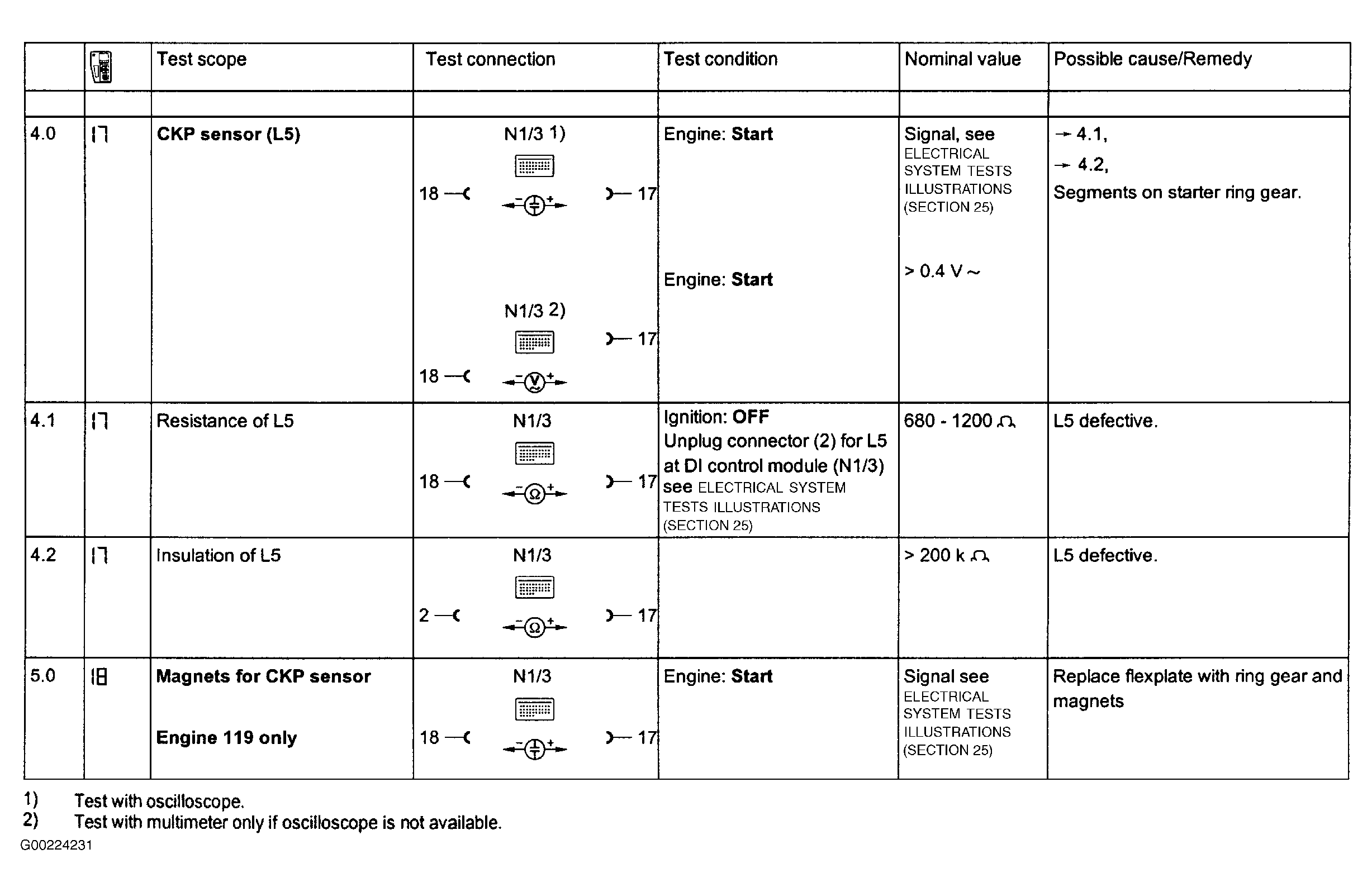

Fig 2: Electrical System Tests - Engine Does Not Run - Section 23 (Steps 4.0-5.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

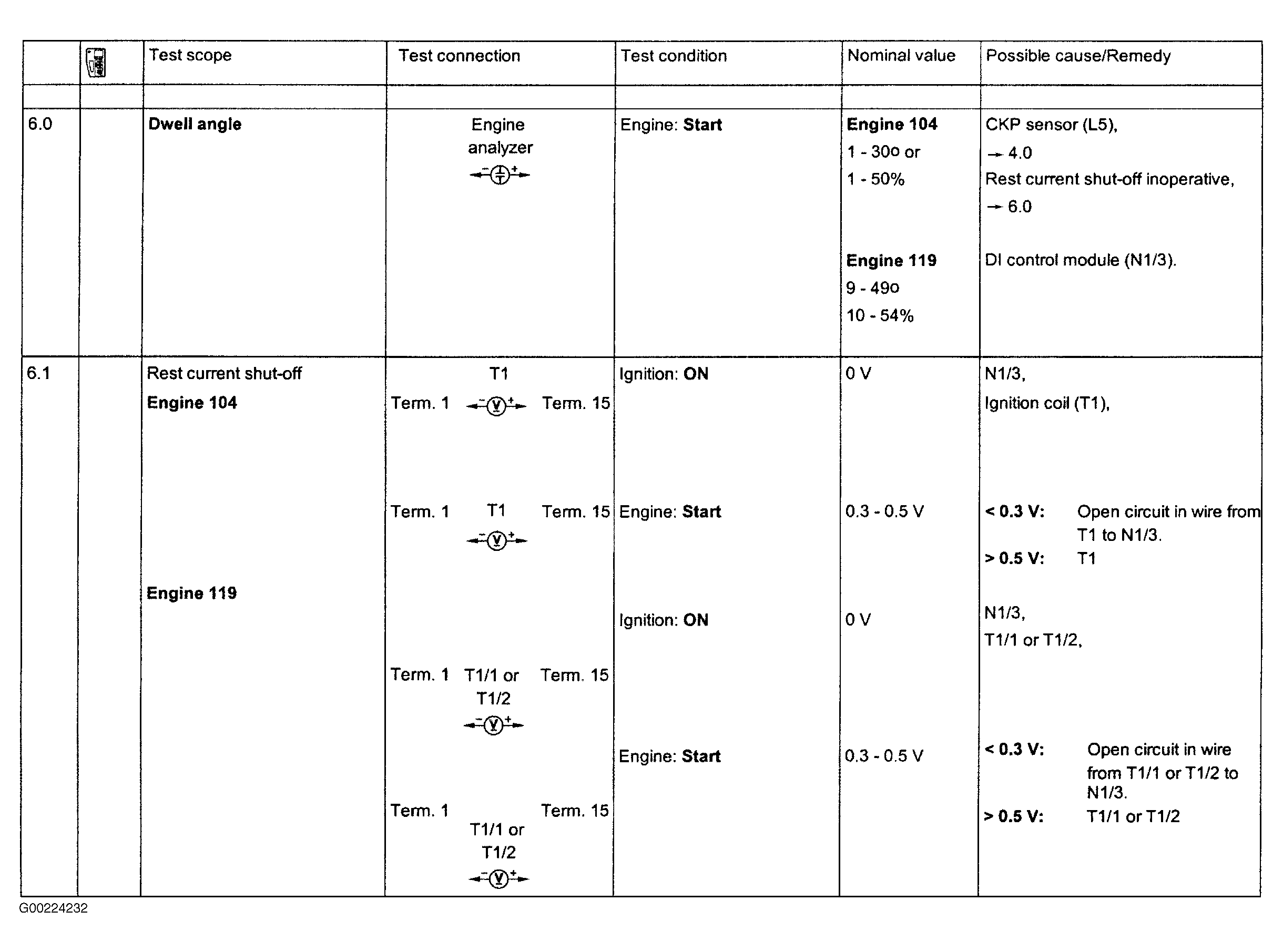

Fig 3: Electrical System Tests - Engine Does Not Run - Section 23 (Steps 6.0-6.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

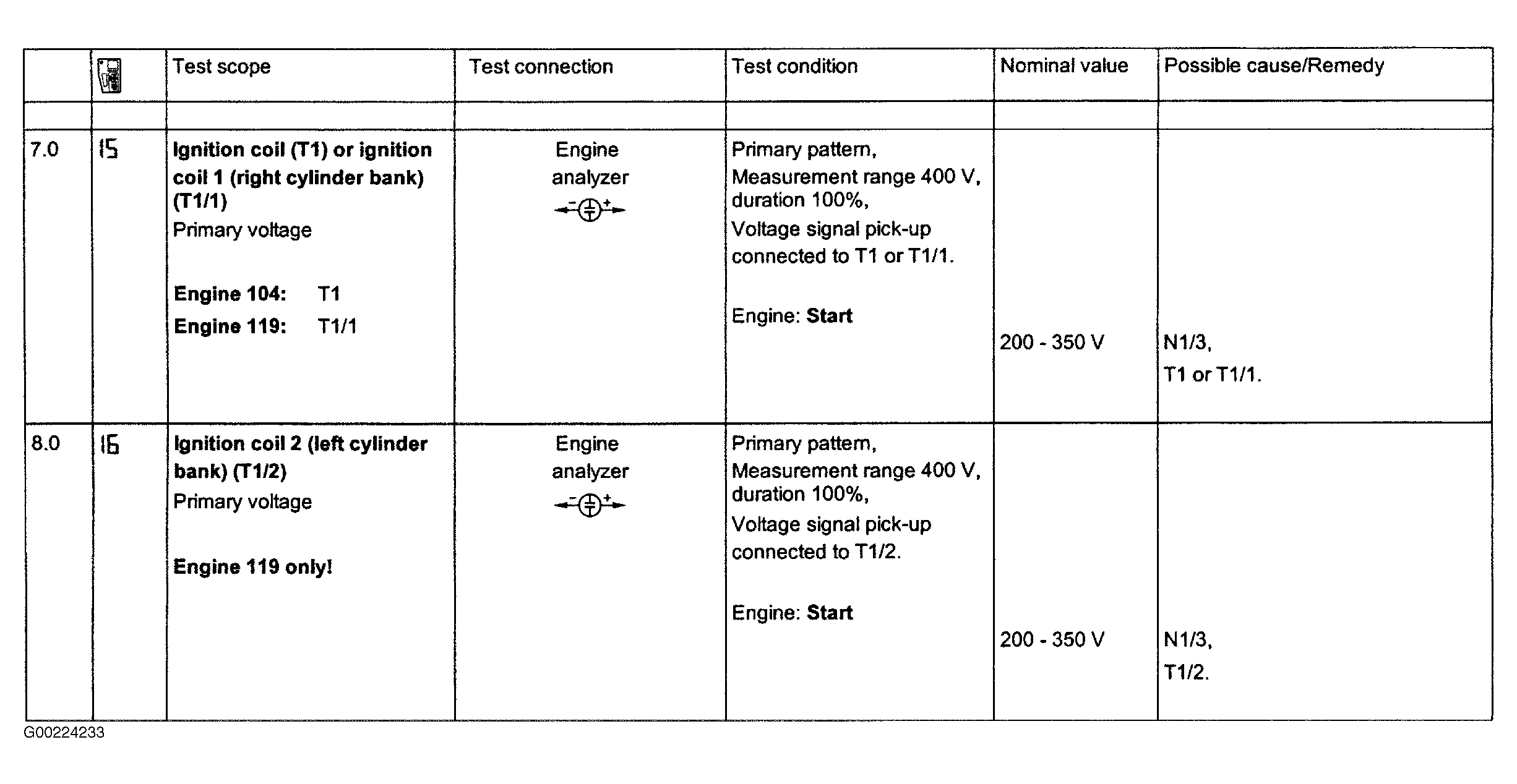

Fig 4: Electrical System Tests - Engine Does Not Run - Section 23 (Steps 7.0-8.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

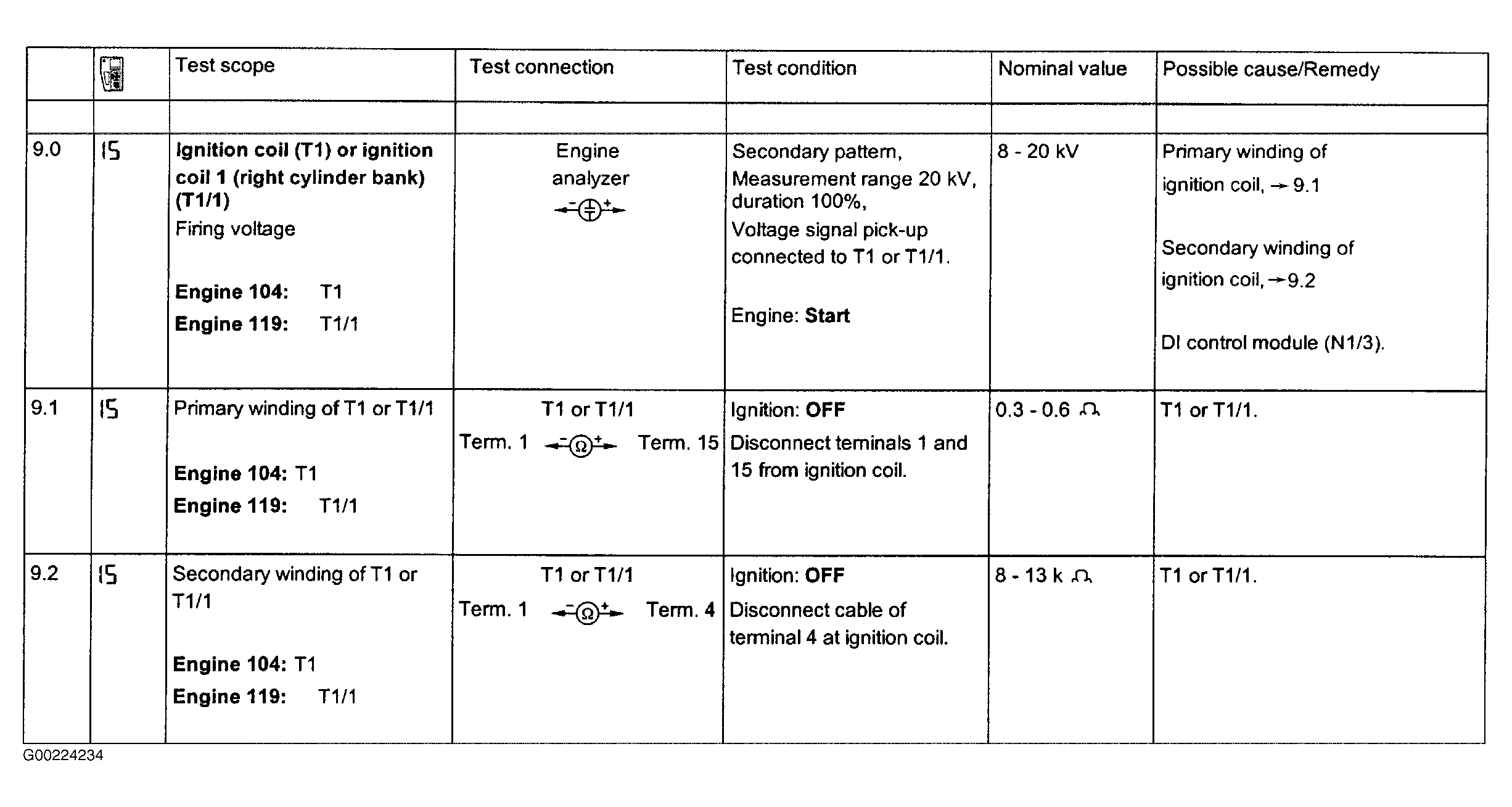

Fig 5: Electrical System Tests - Engine Does Not Run - Section 23 (Steps 9.0-9.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

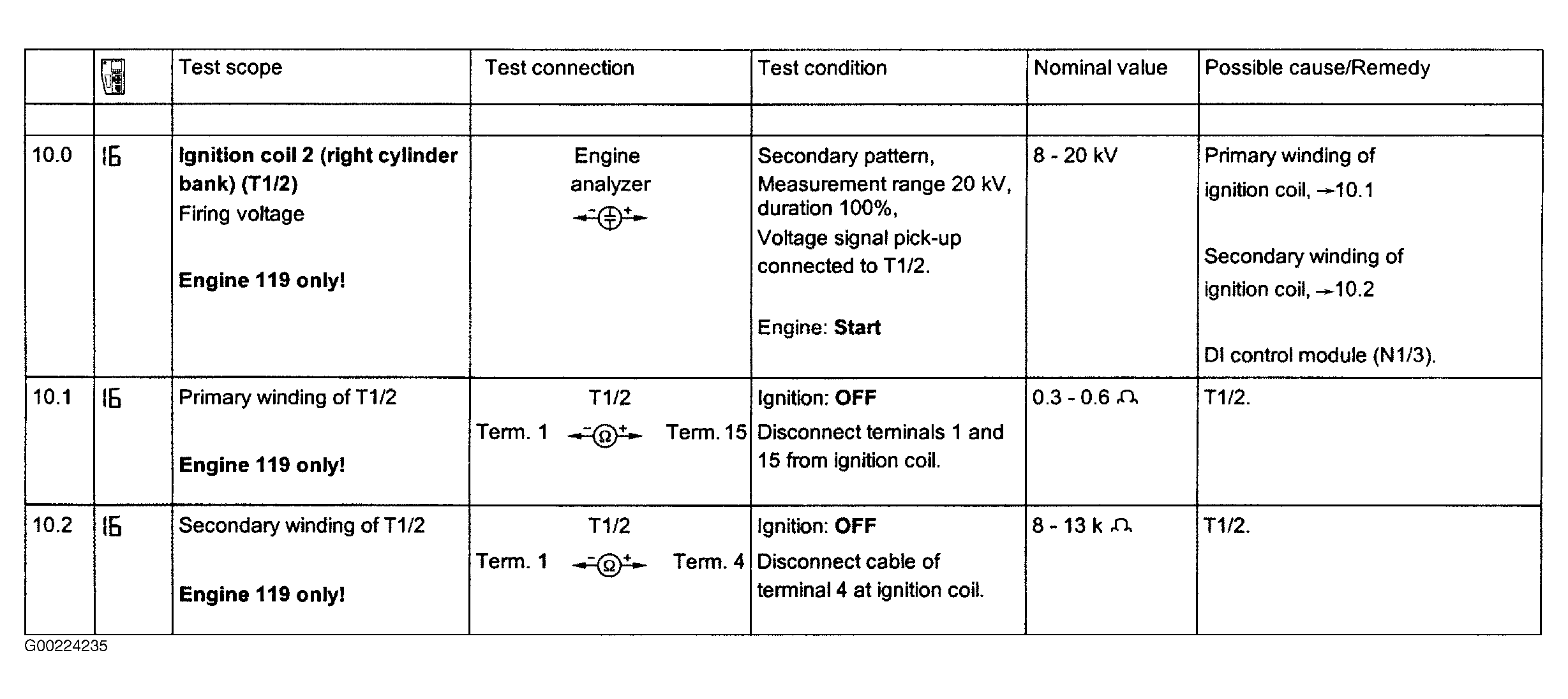

Fig 6: Electrical System Tests - Engine Does Not Run - Section 23 (Steps 10.0-10.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

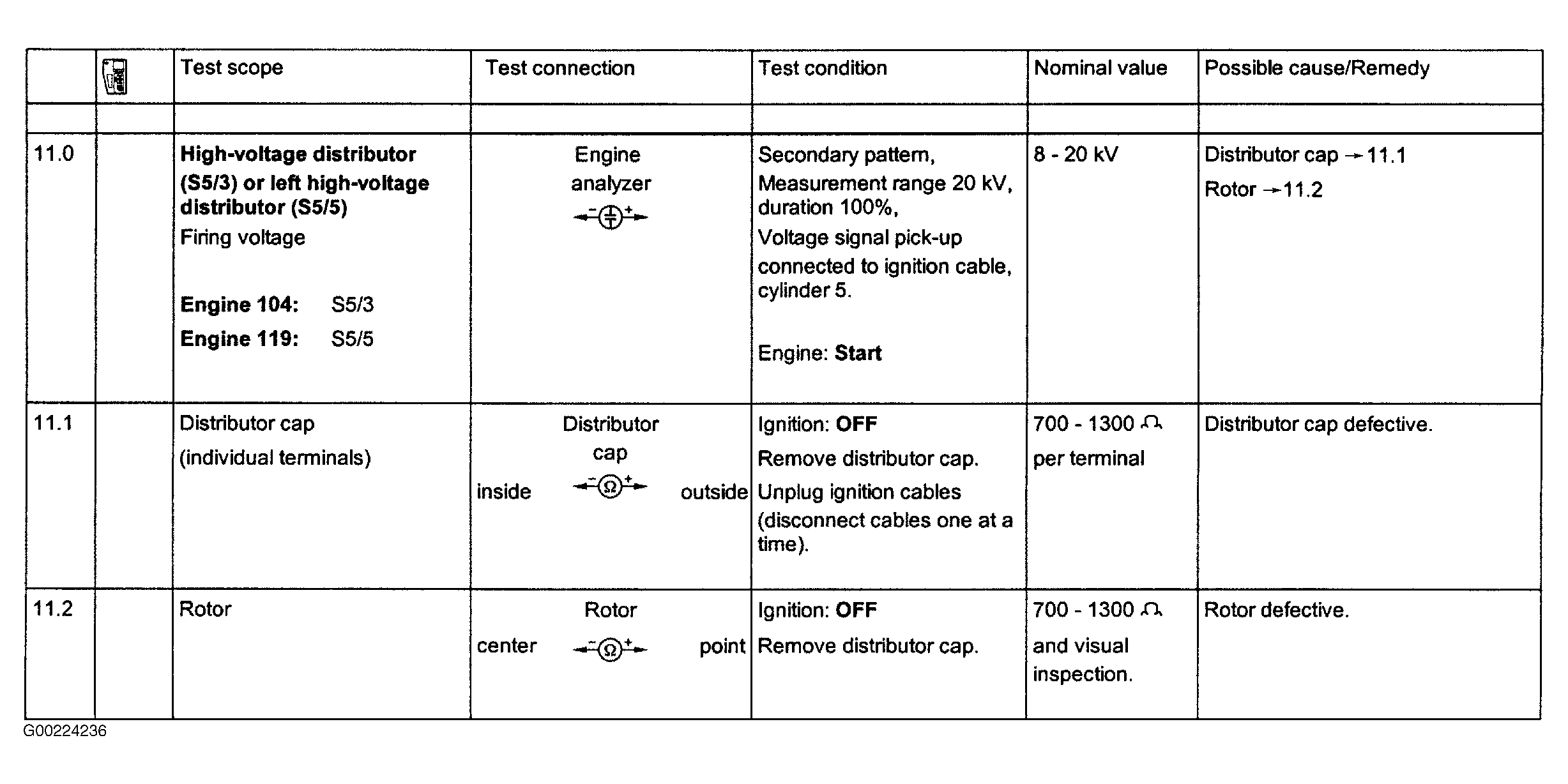

Fig 7: Electrical System Tests - Engine Does Not Run - Section 23 (Steps 11.0-11.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

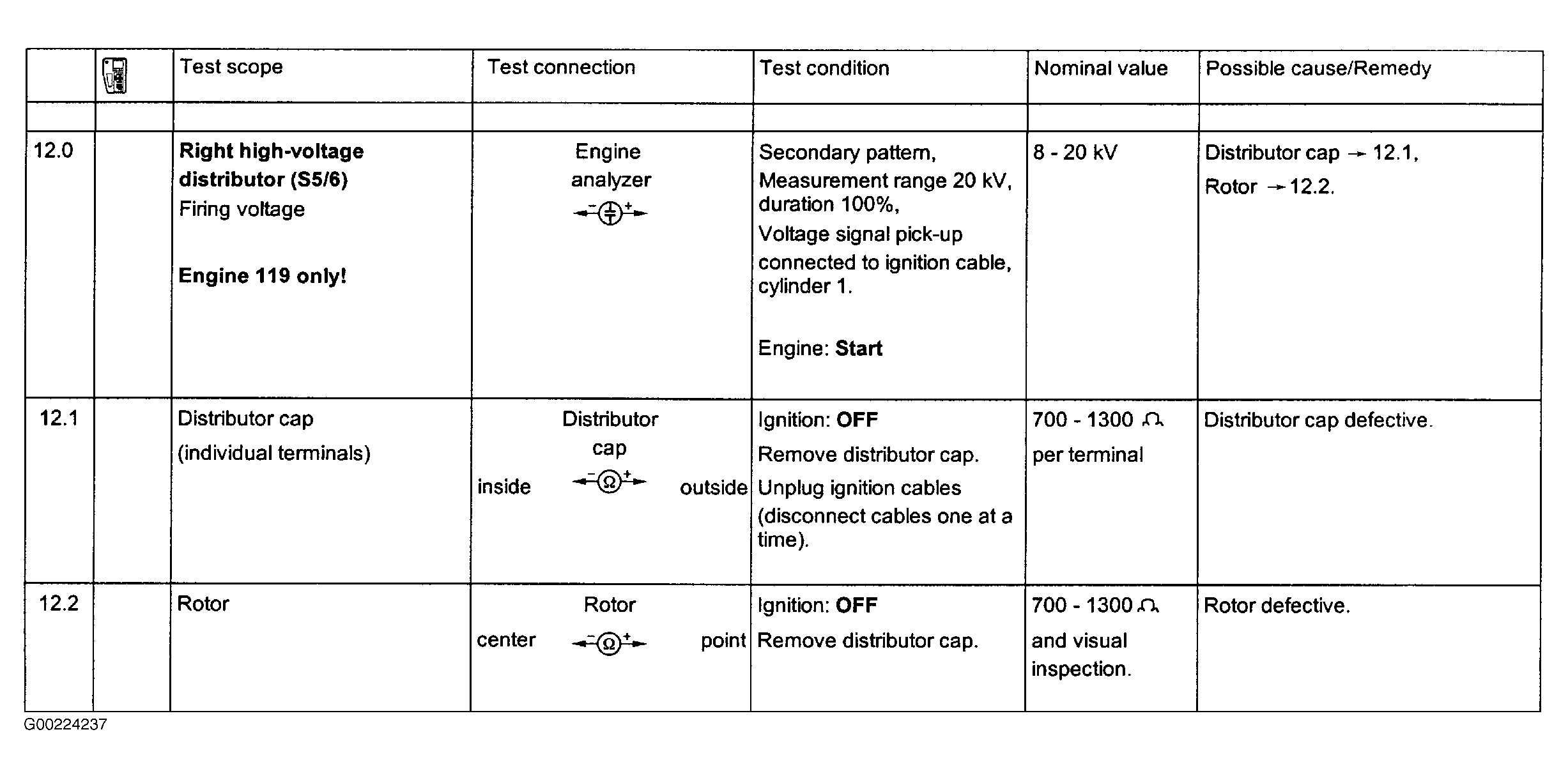

Fig 8: Electrical System Tests - Engine Does Not Run - Section 23 (Steps 12.0-12.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
