Connecting Test Equipment (Section 22)

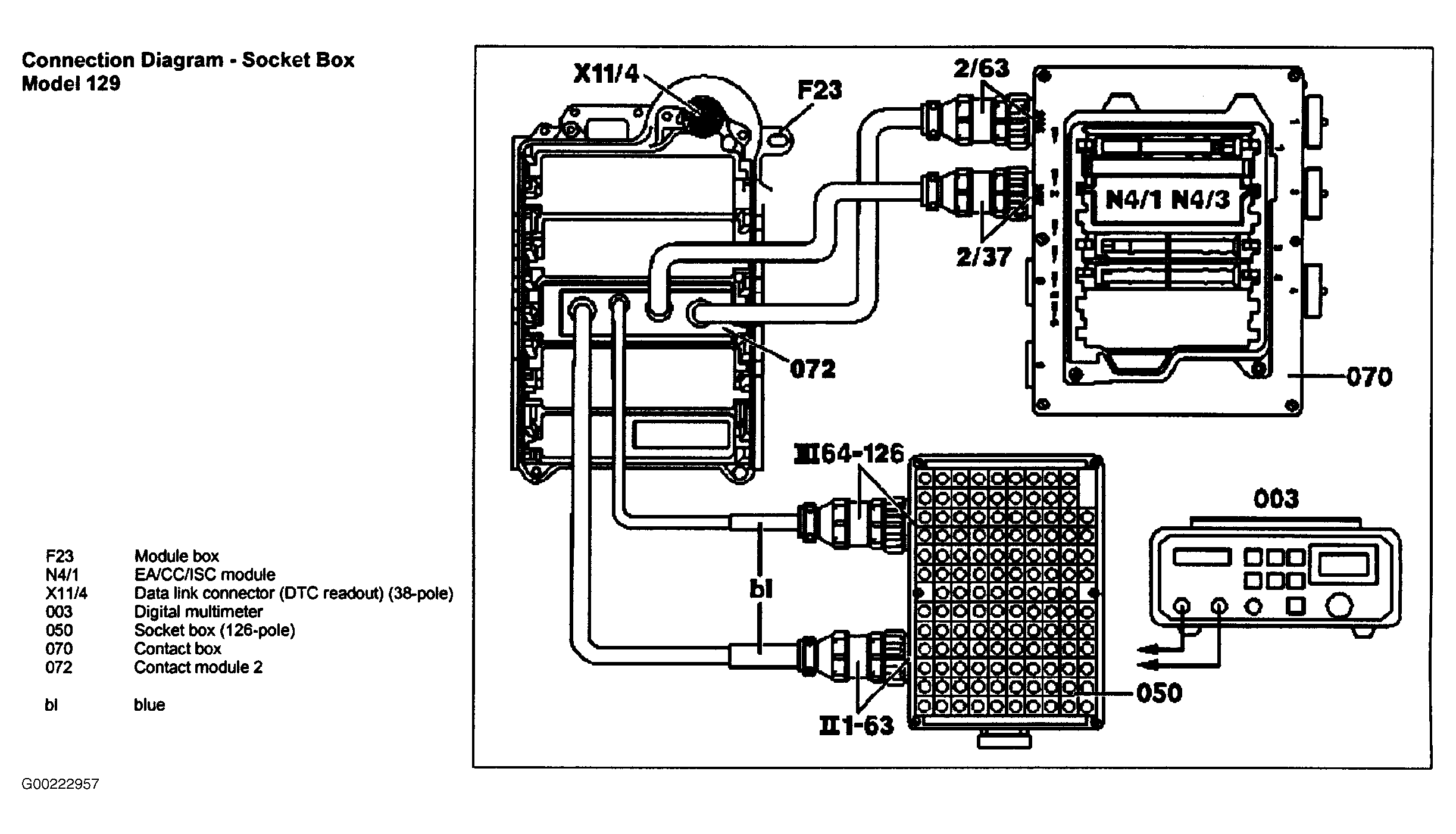

Fig 1: Connecting Socket Box To Control Module - Model 129
G00222957Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

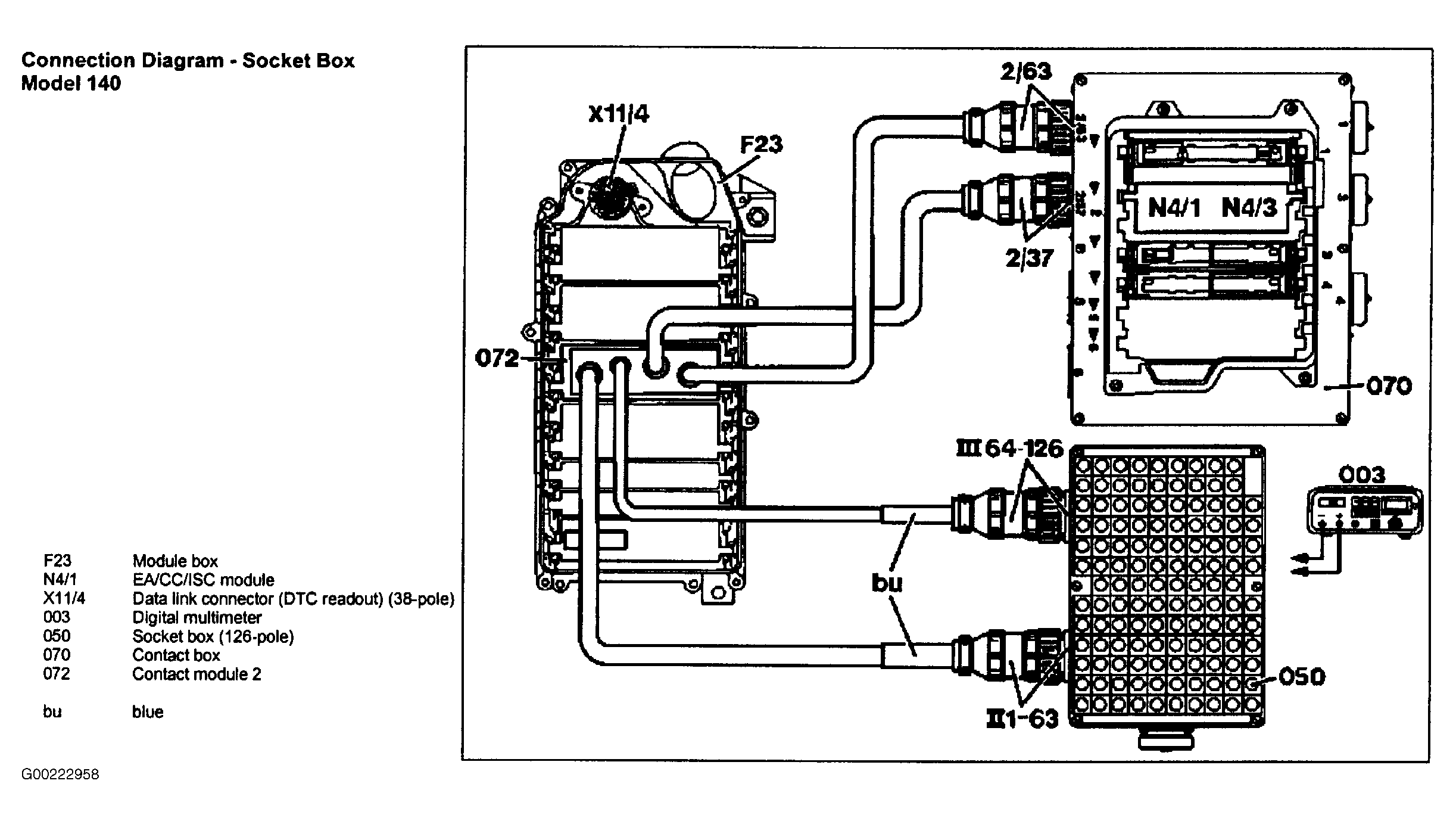

Fig 2: Connecting Socket Box To Control Module - Model 140
G00222958Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
