Electronic Acceleration System Tests Illustrations (Section 23)

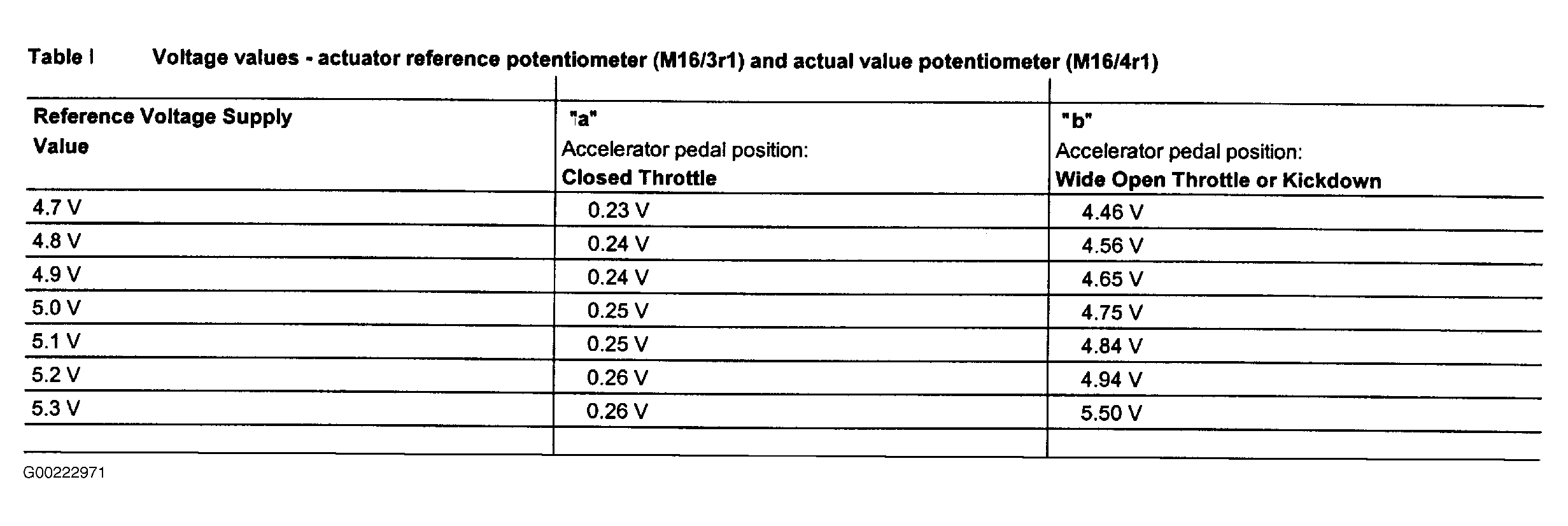

Fig 1: Electronic Acceleration System Tests Illustrations (Section 23) - Voltage Values - Actuator Reference Potentiometer (M16/3r1) & Actual Value Potentiometer (M16/4r1) - Table I

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

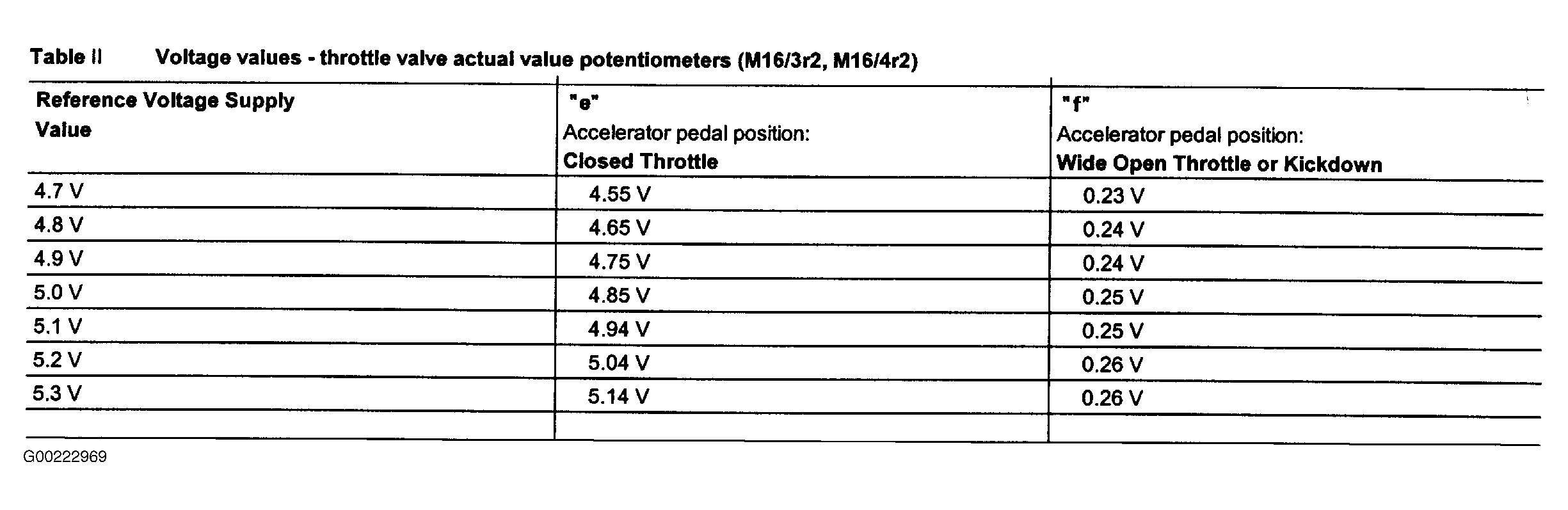

Fig 2: Electronic Acceleration System Tests Illustrations (Section 23) - Voltage Values - Throttle Valve Actual Value Potentiometer (M16/3r2 & M16/4r2) - Table II

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

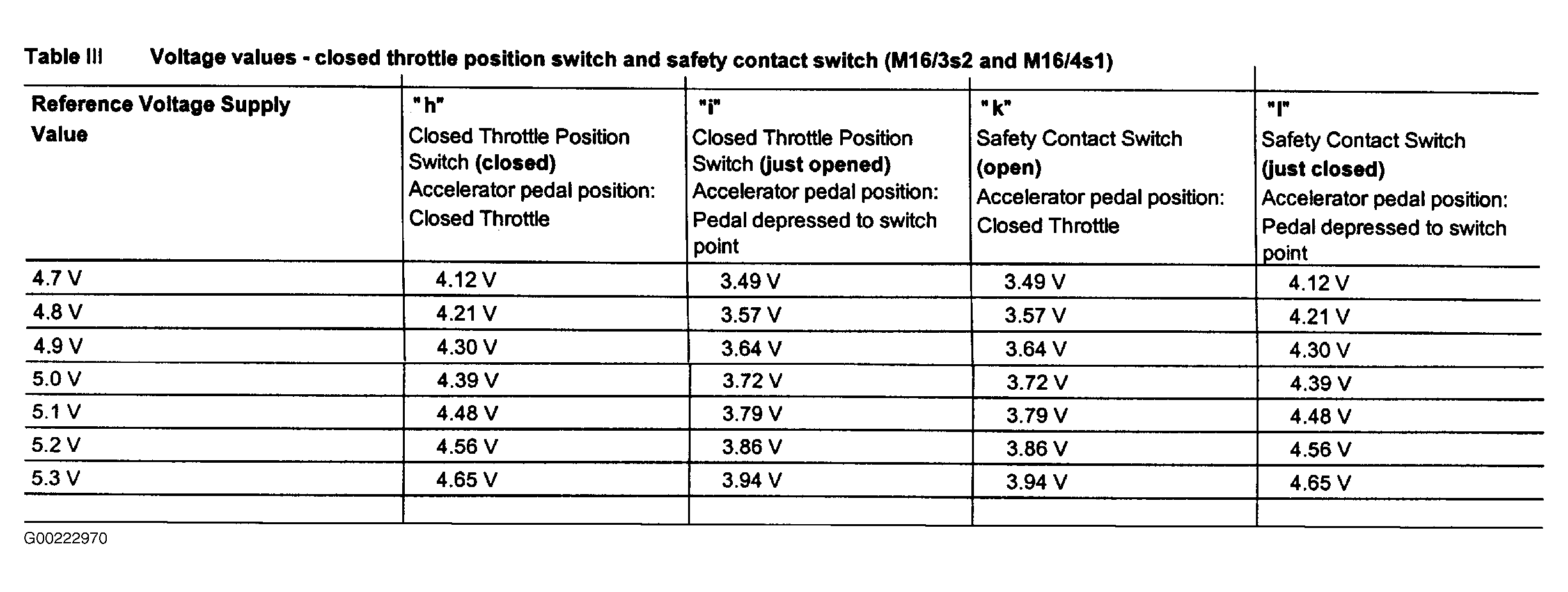

Fig 3: Electronic Acceleration System Tests Illustrations (Section 23) - Voltage Values - Closed Throttle Position Switch & Safety Contact Switch (M16/3s2 & M16/4s1) - Table III

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

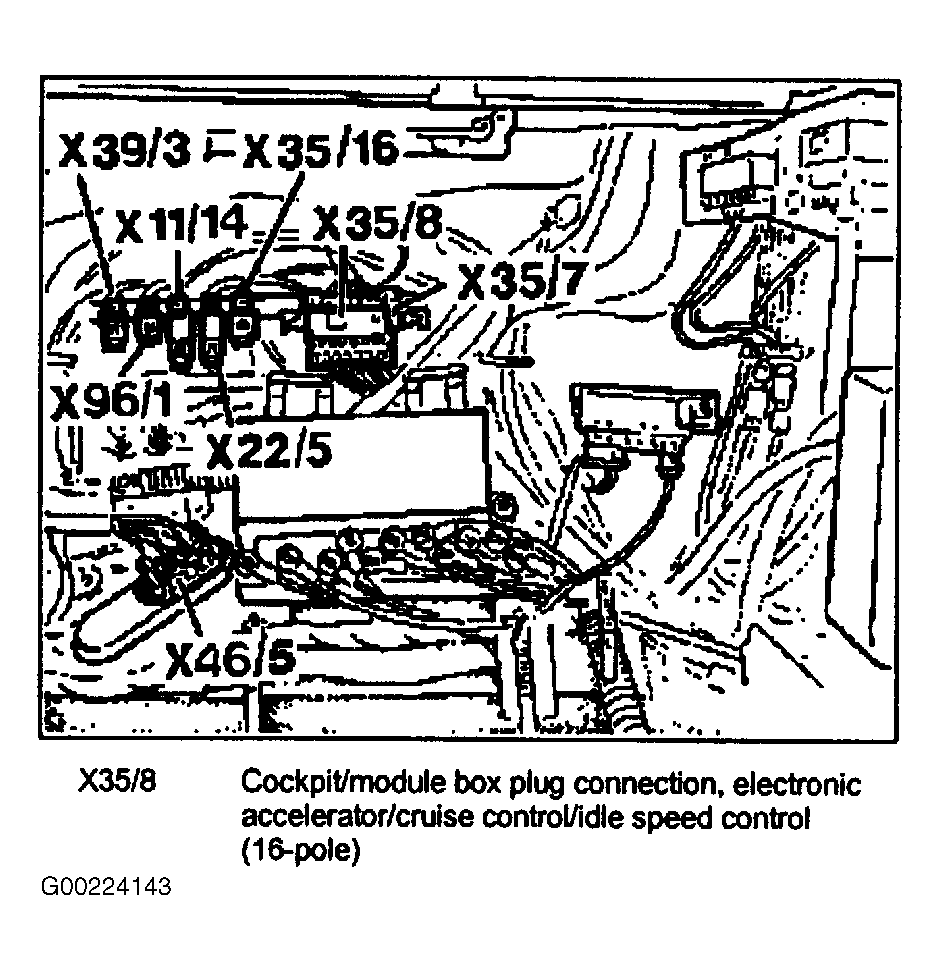

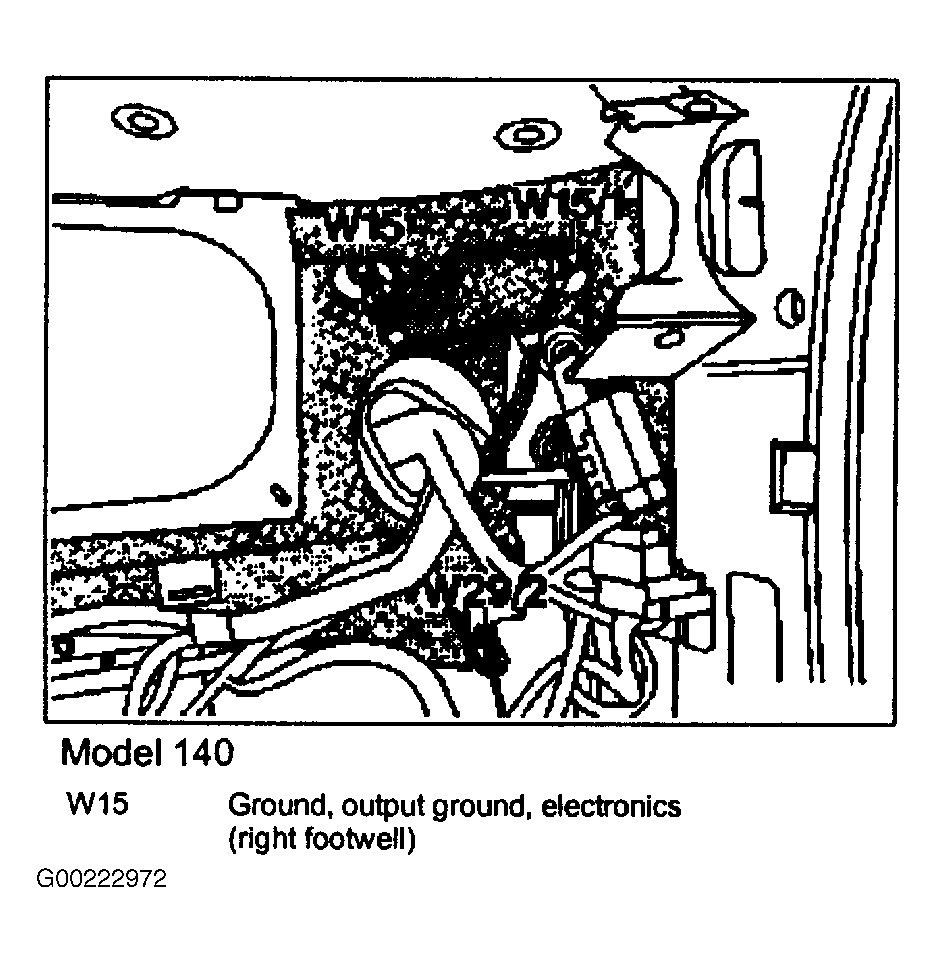

Fig 4: Electronic Acceleration System Tests Illustrations - Section 23 (1 Of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

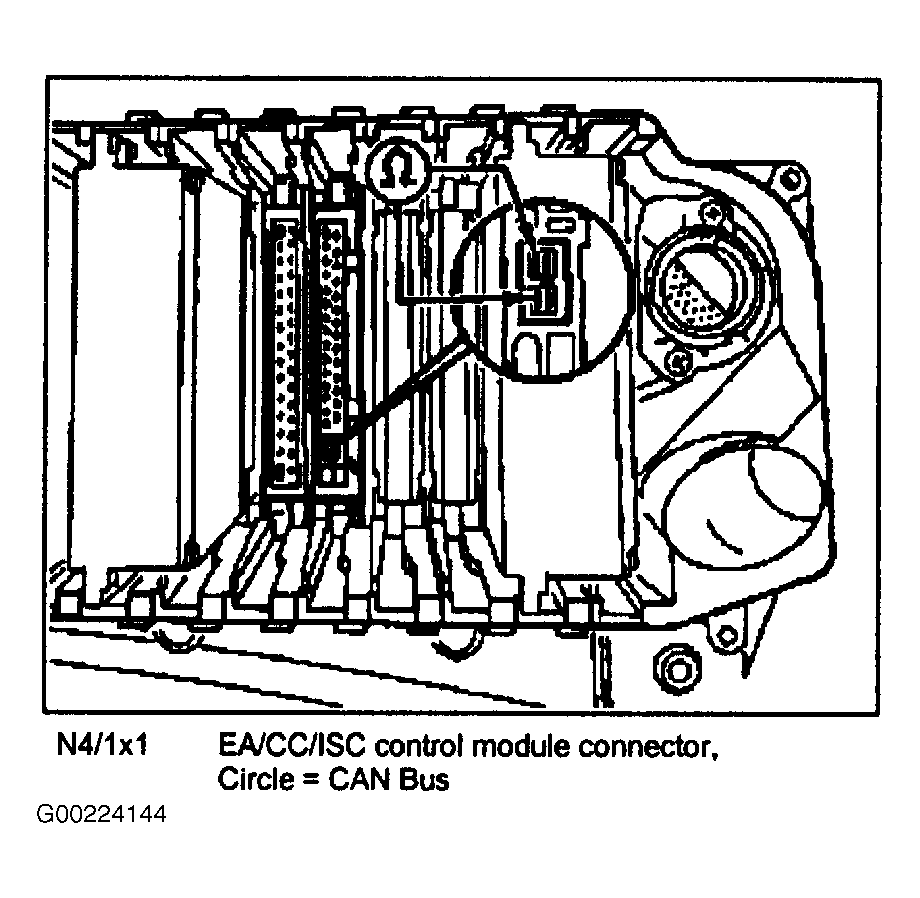

Fig 5: Electronic Acceleration System Tests Illustrations - Section 23 (2 Of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

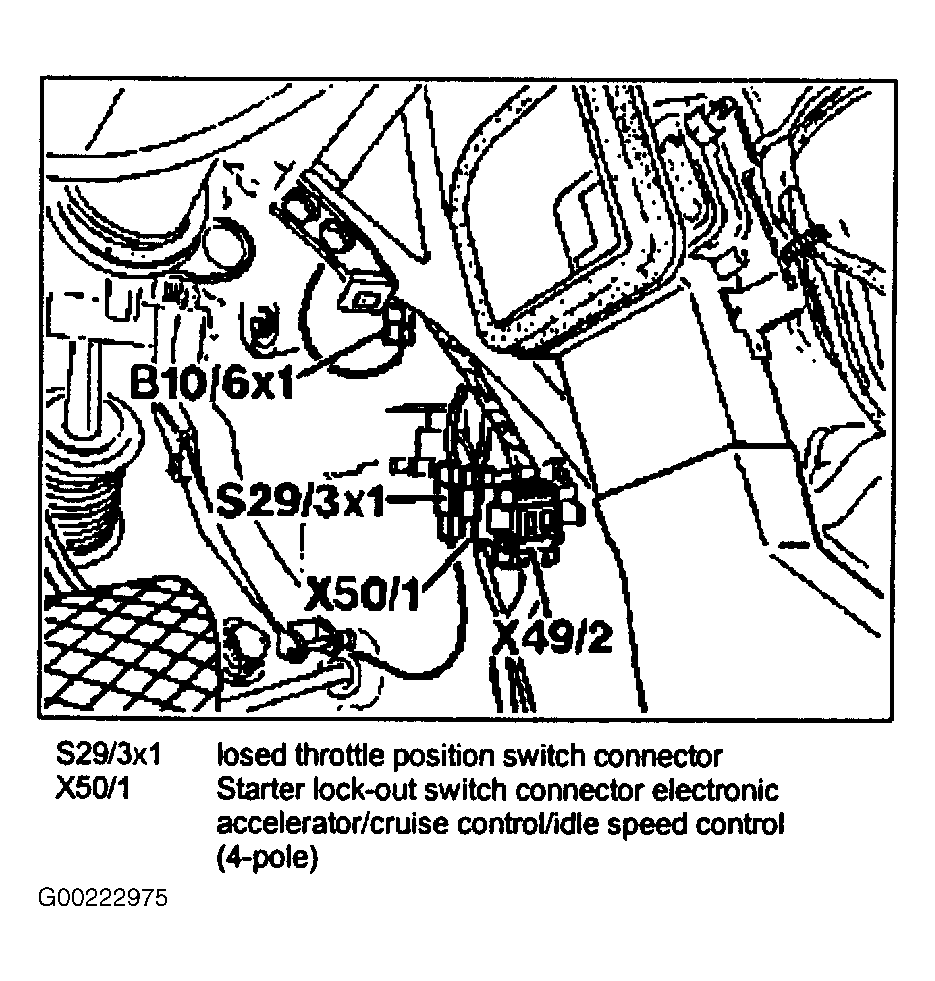

Fig 6: Electronic Acceleration System Tests Illustrations - Section 23 (3 Of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

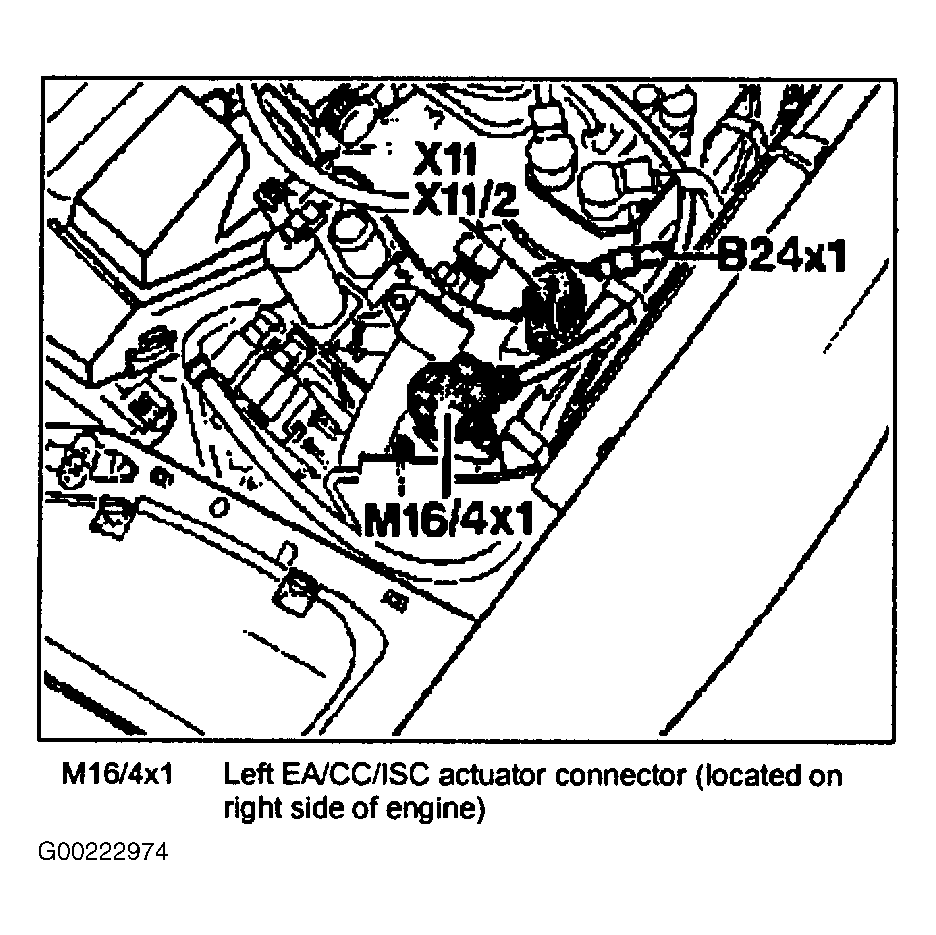

Fig 7: Electronic Acceleration System Tests Illustrations - Section 23 (4 Of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

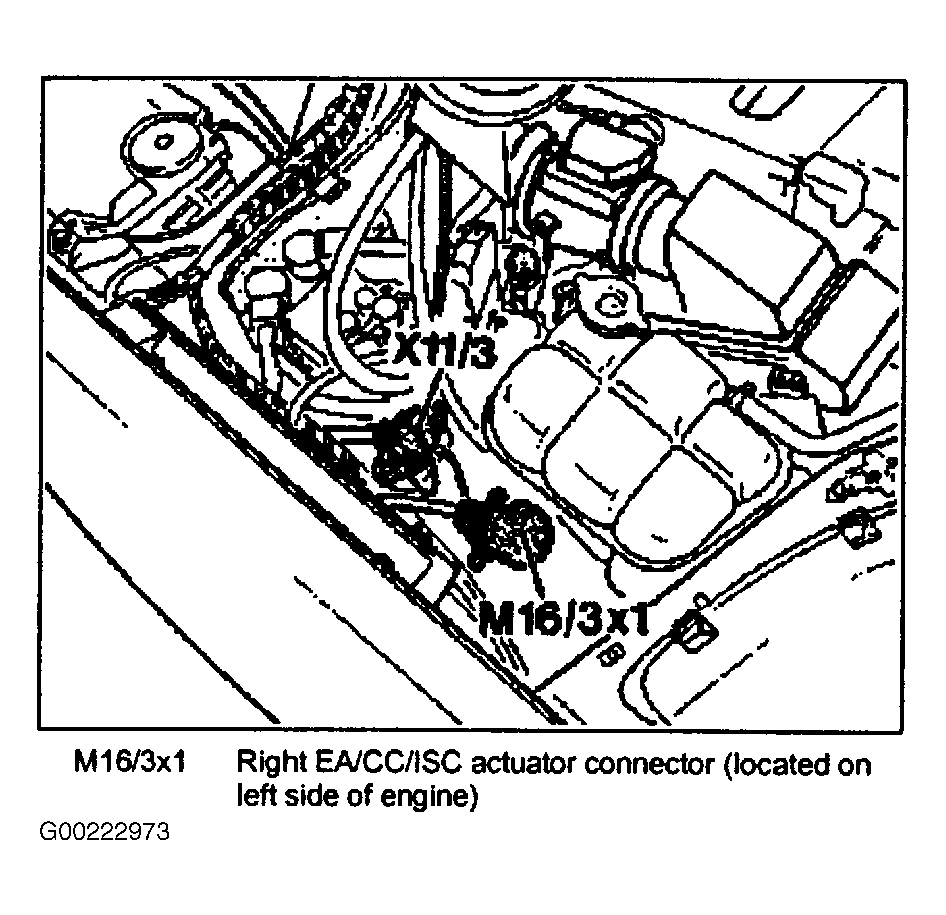

Fig 8: Electronic Acceleration System Tests Illustrations - Section 23 (5 Of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

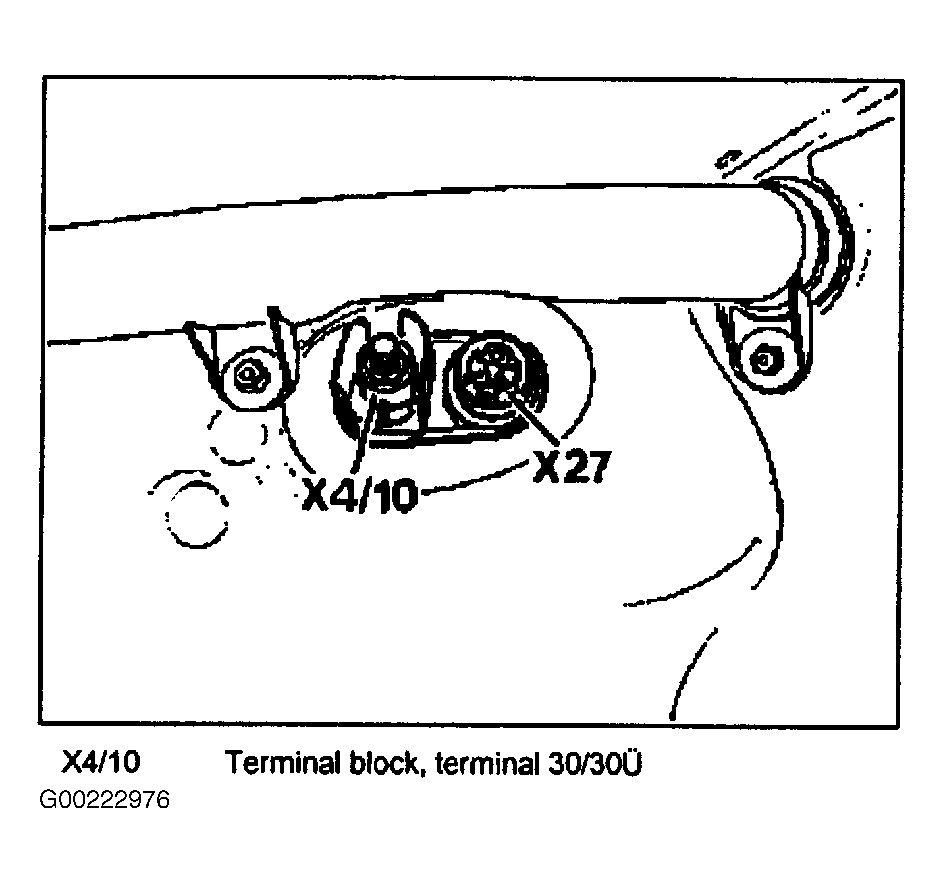

Fig 9: Electronic Acceleration System Tests Illustrations - Section 23 (6 Of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

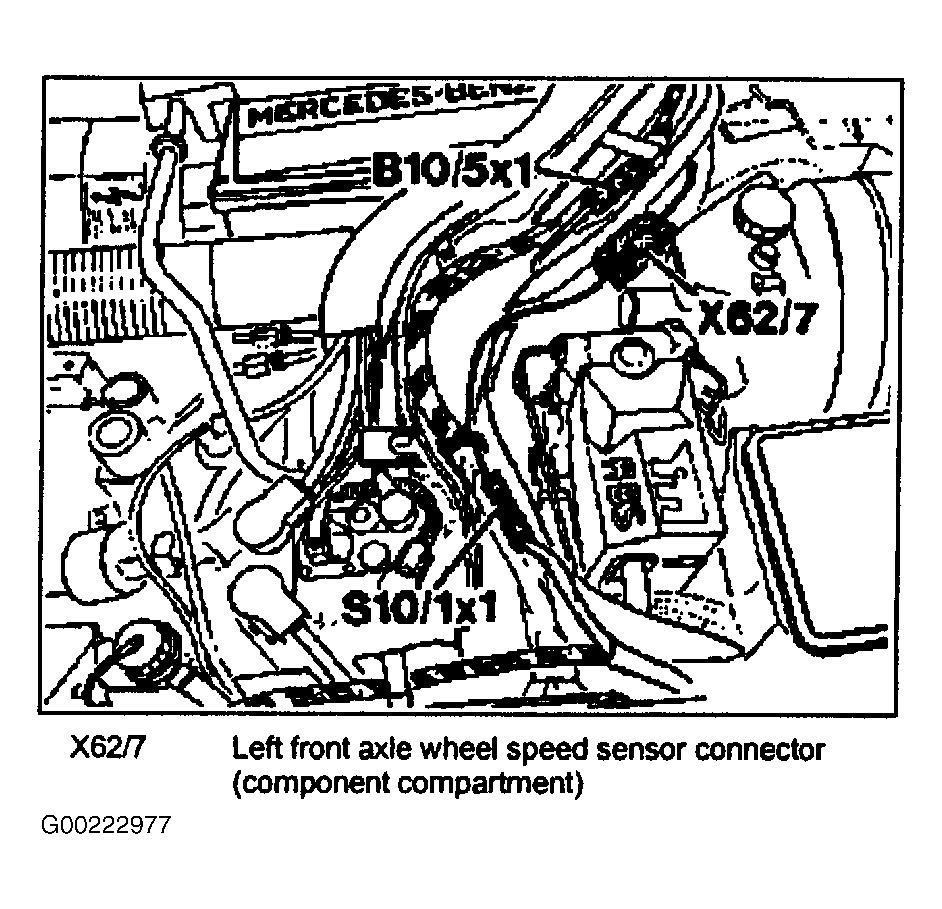

Fig 10: Electronic Acceleration System Tests Illustrations - Section 23 (7 Of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

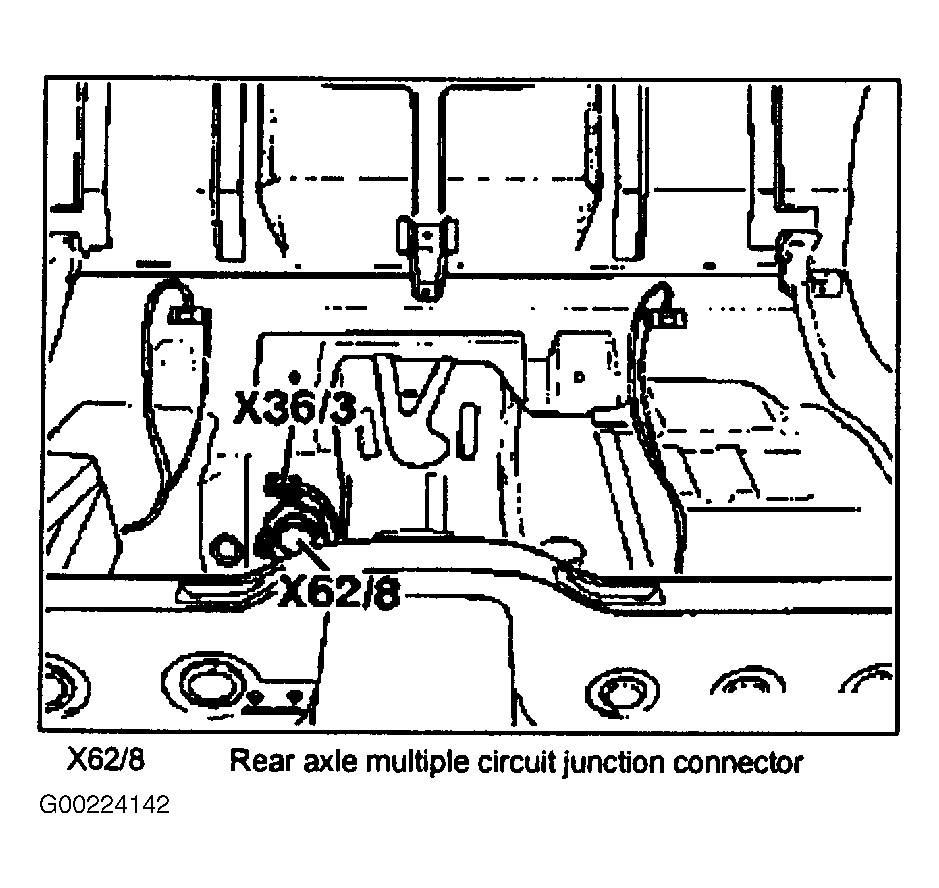

Fig 11: Electronic Acceleration System Tests Illustrations - Section 23 (8 Of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 12: Electronic Acceleration System Tests Illustrations - Section 23 (9 Of 9)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
