Complaint Related Diagnostic Chart (Section 12)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS .

Before diagnosing by symptom, retrieve diagnostic trouble codes. See SELF-DIAGNOSTIC SYSTEM . If no diagnostic trouble codes exist, diagnose by symptom, see Fig 1 .

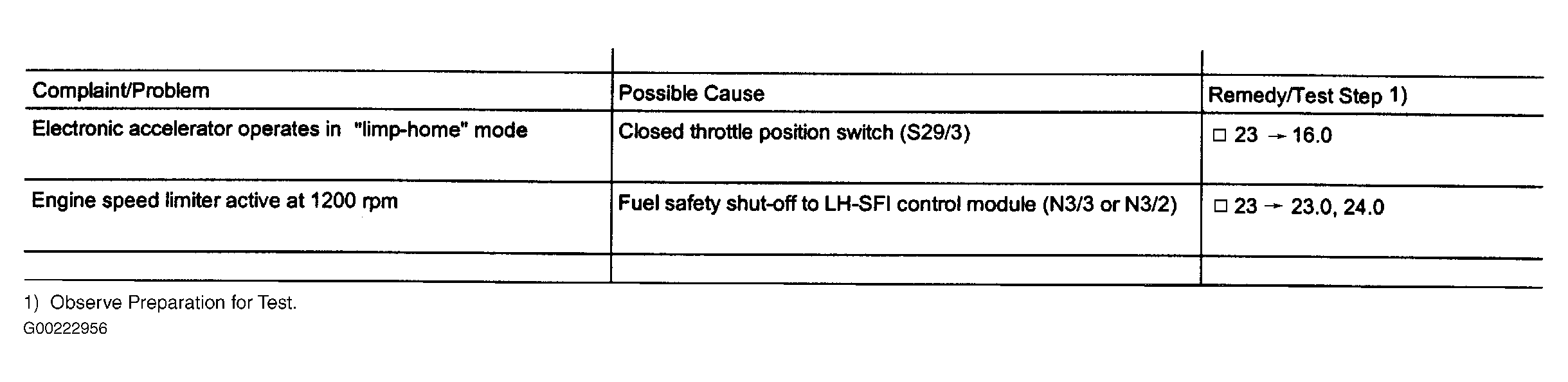

Fig 1: Complaint Related Diagnostic Chart (Section 12)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
