Electrical System Tests - Engine Does Not Run (Section 23)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS  .

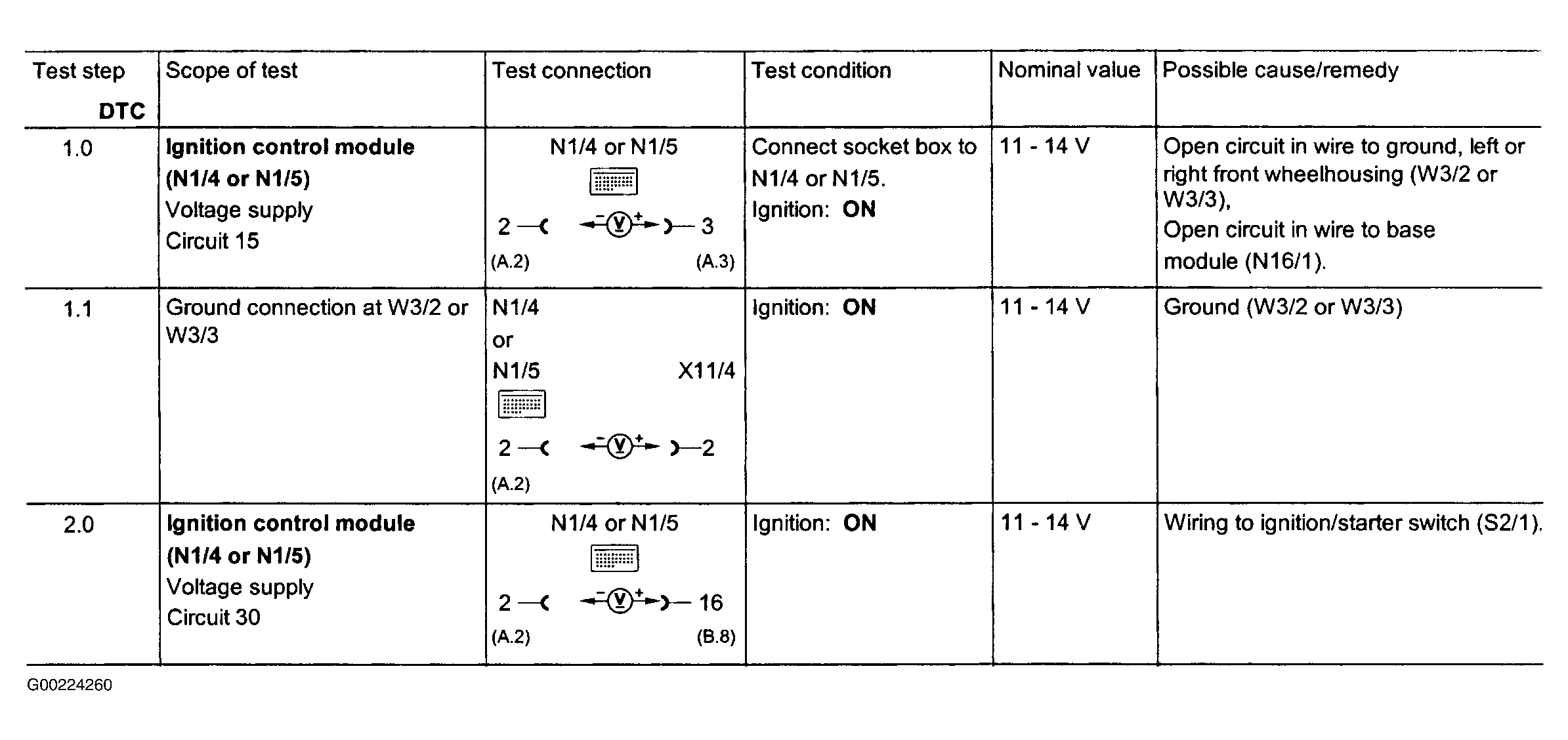

Fig 1: Electrical System Tests - Section 23 (Steps 1.0-2.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

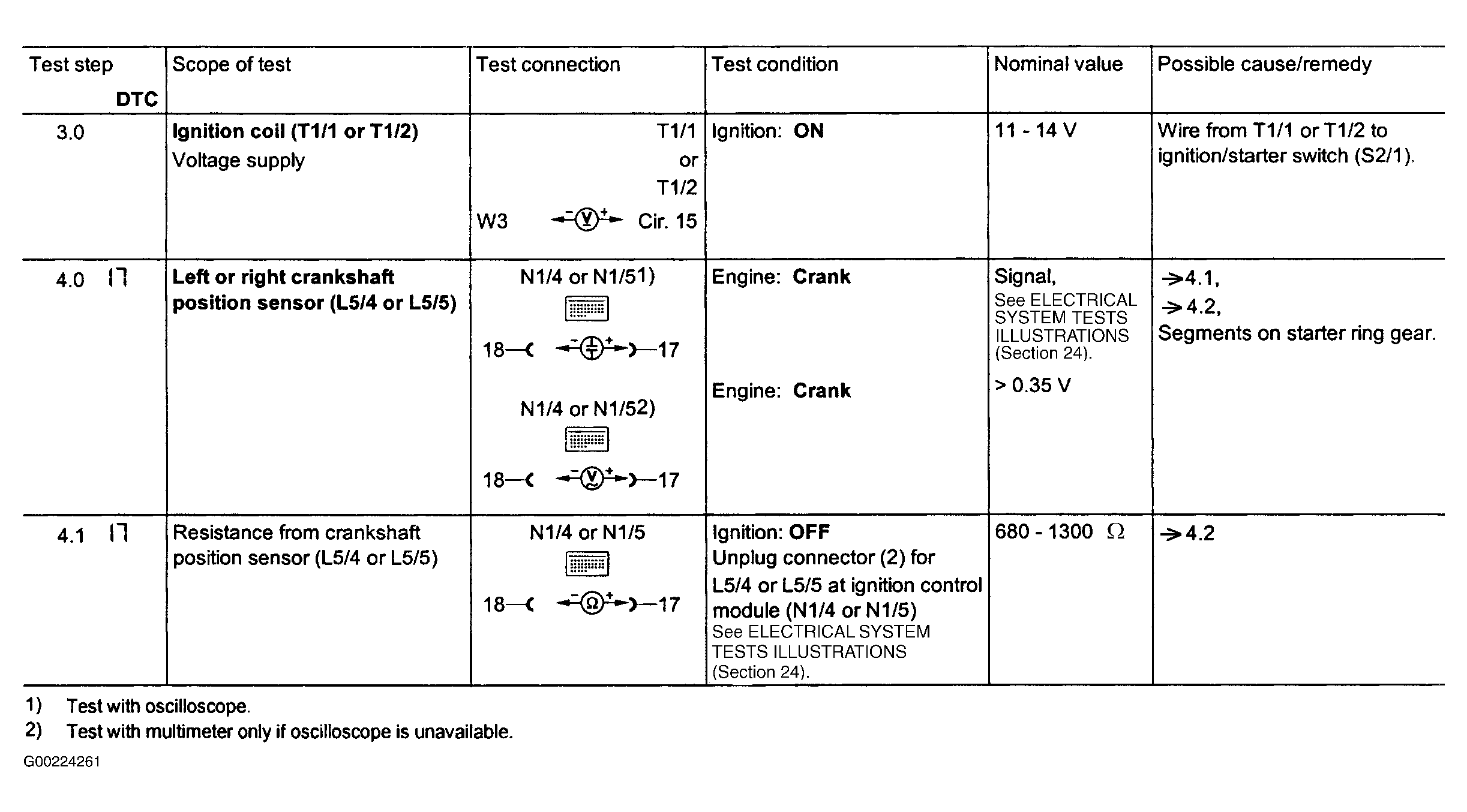

Fig 2: Electrical System Tests - Section 23 (Steps 3.0-4.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

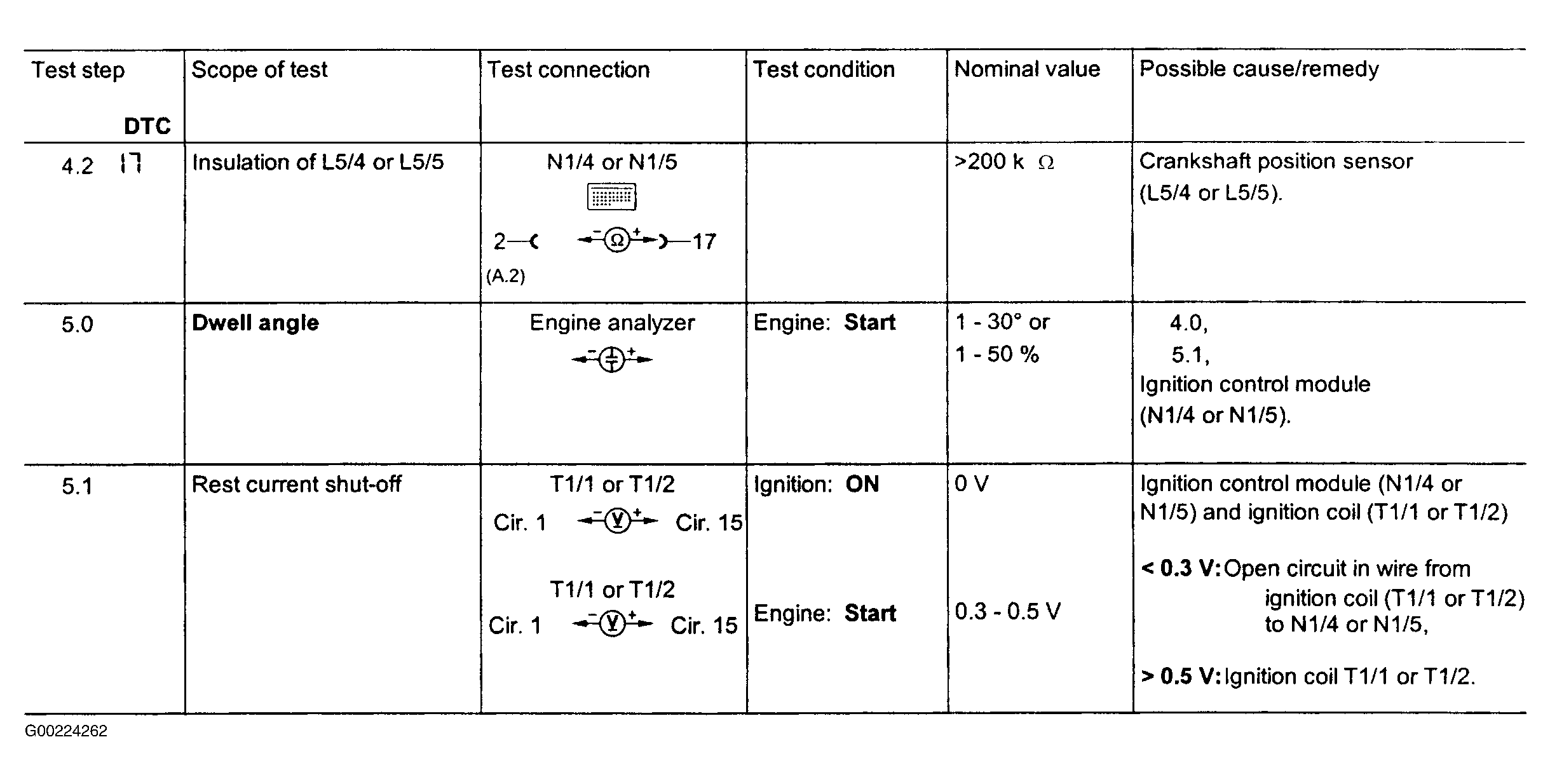

Fig 3: Electrical System Tests - Section 23 (Steps 4.2-5.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

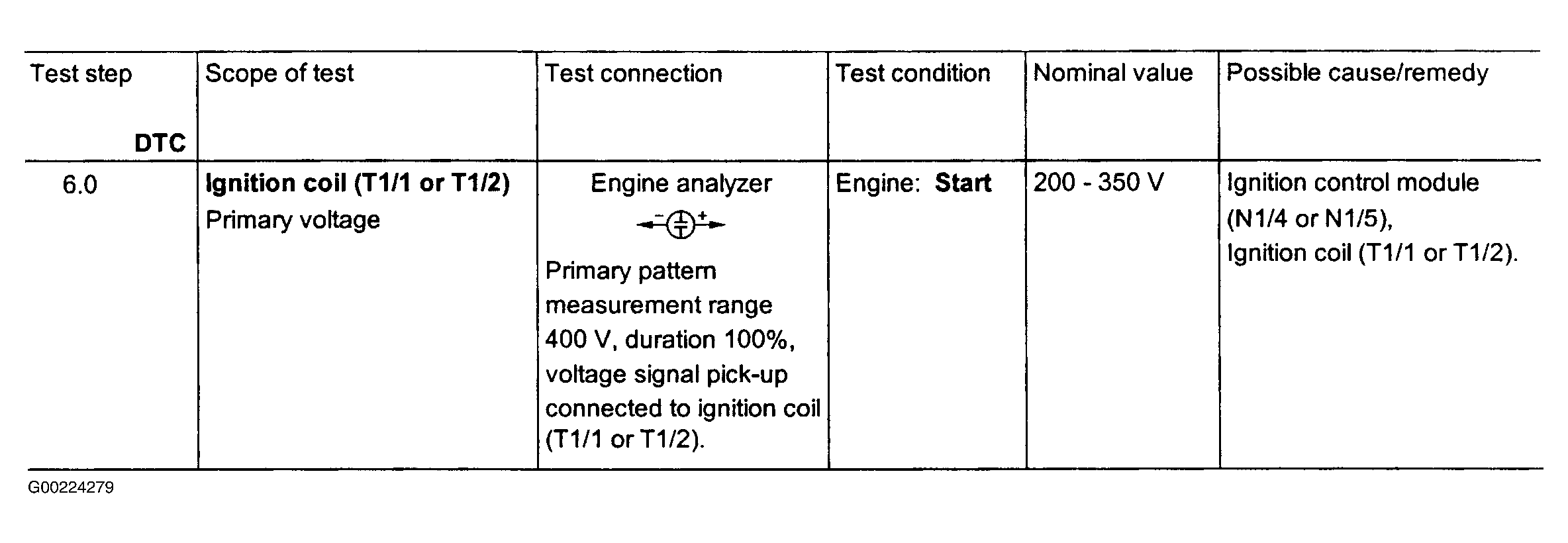

Fig 4: Electrical System Tests - Section 23 (Step 6.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

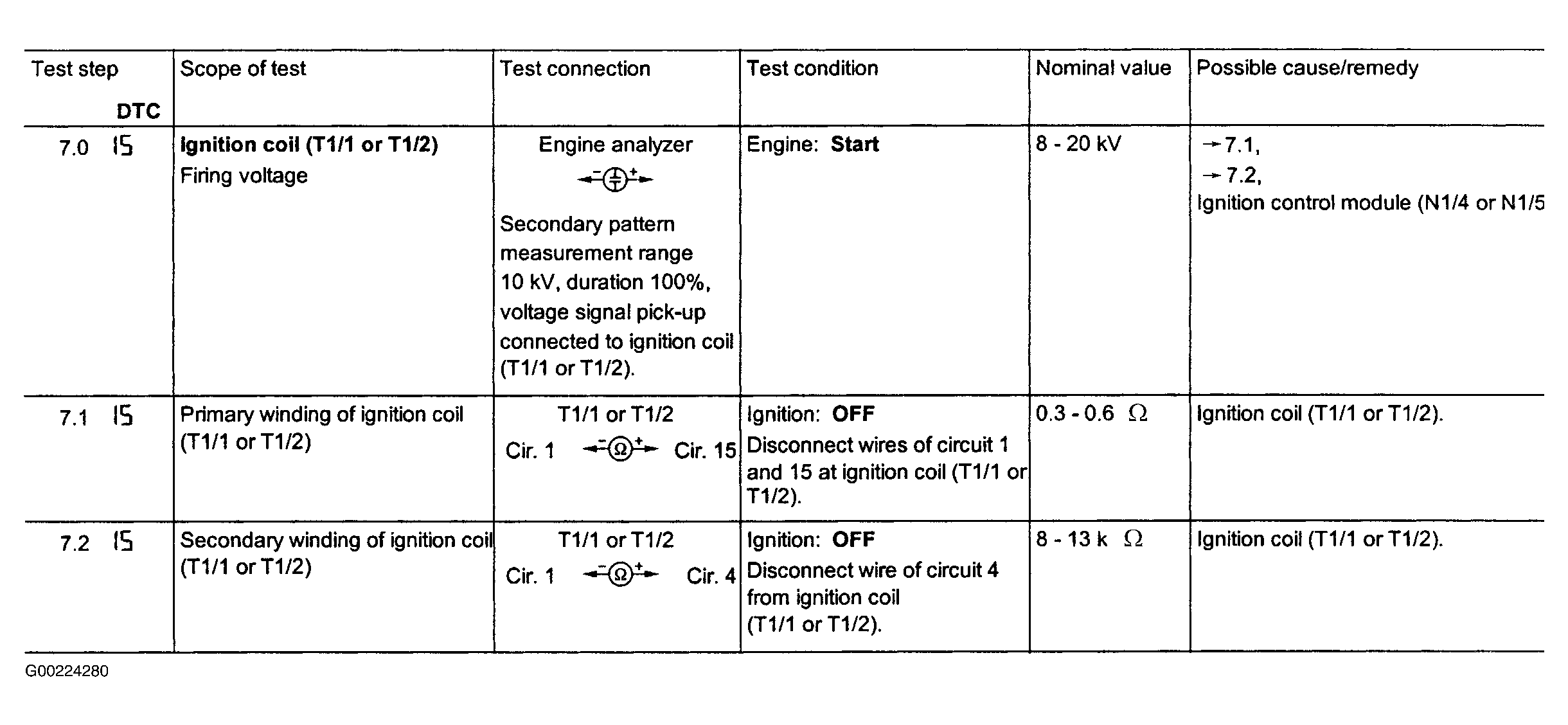

Fig 5: Electrical System Tests - Section 23 (Steps 7.0-7.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

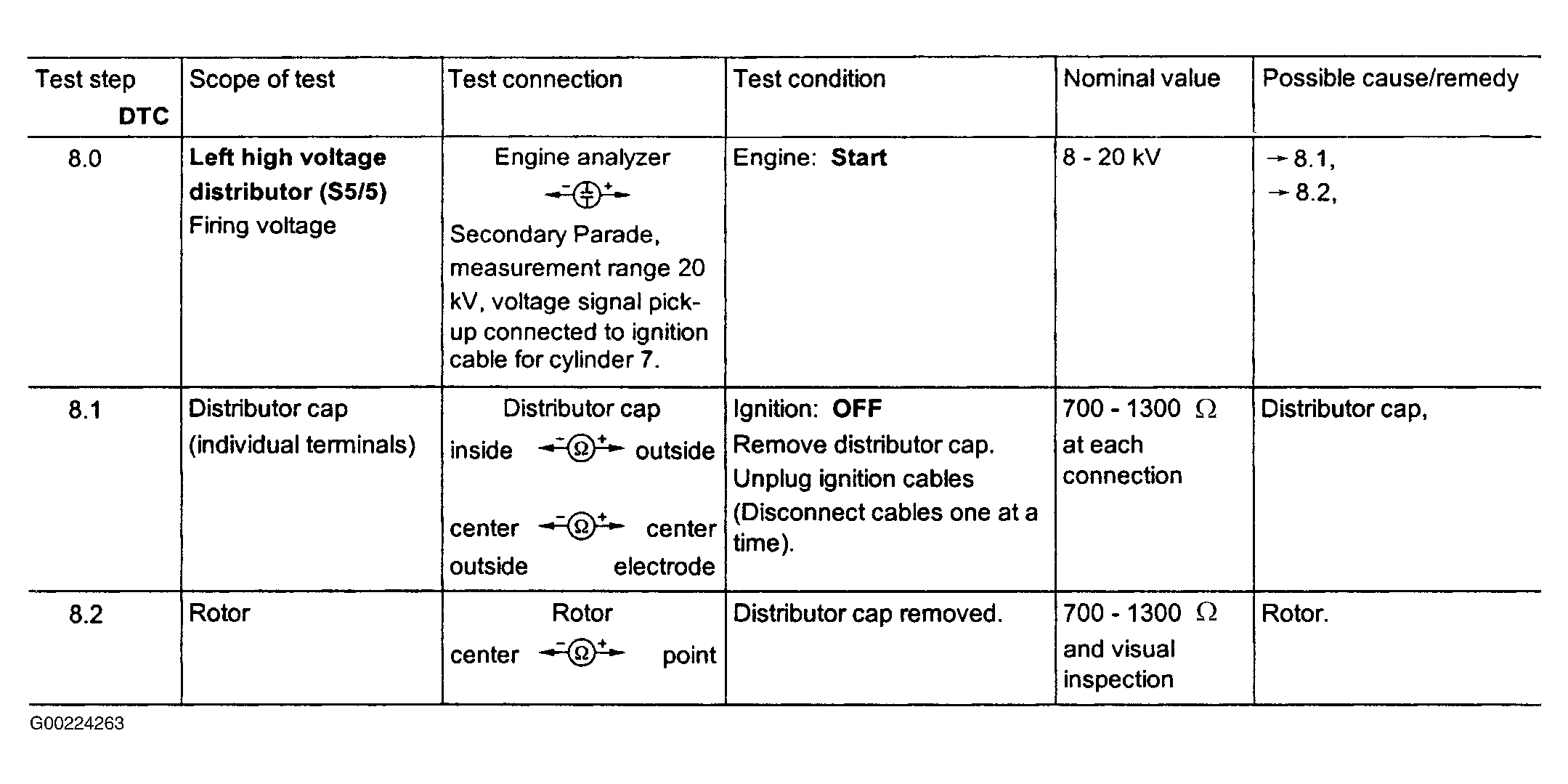

Fig 6: Electrical System Tests - Section 23 (Steps 8.0-8.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

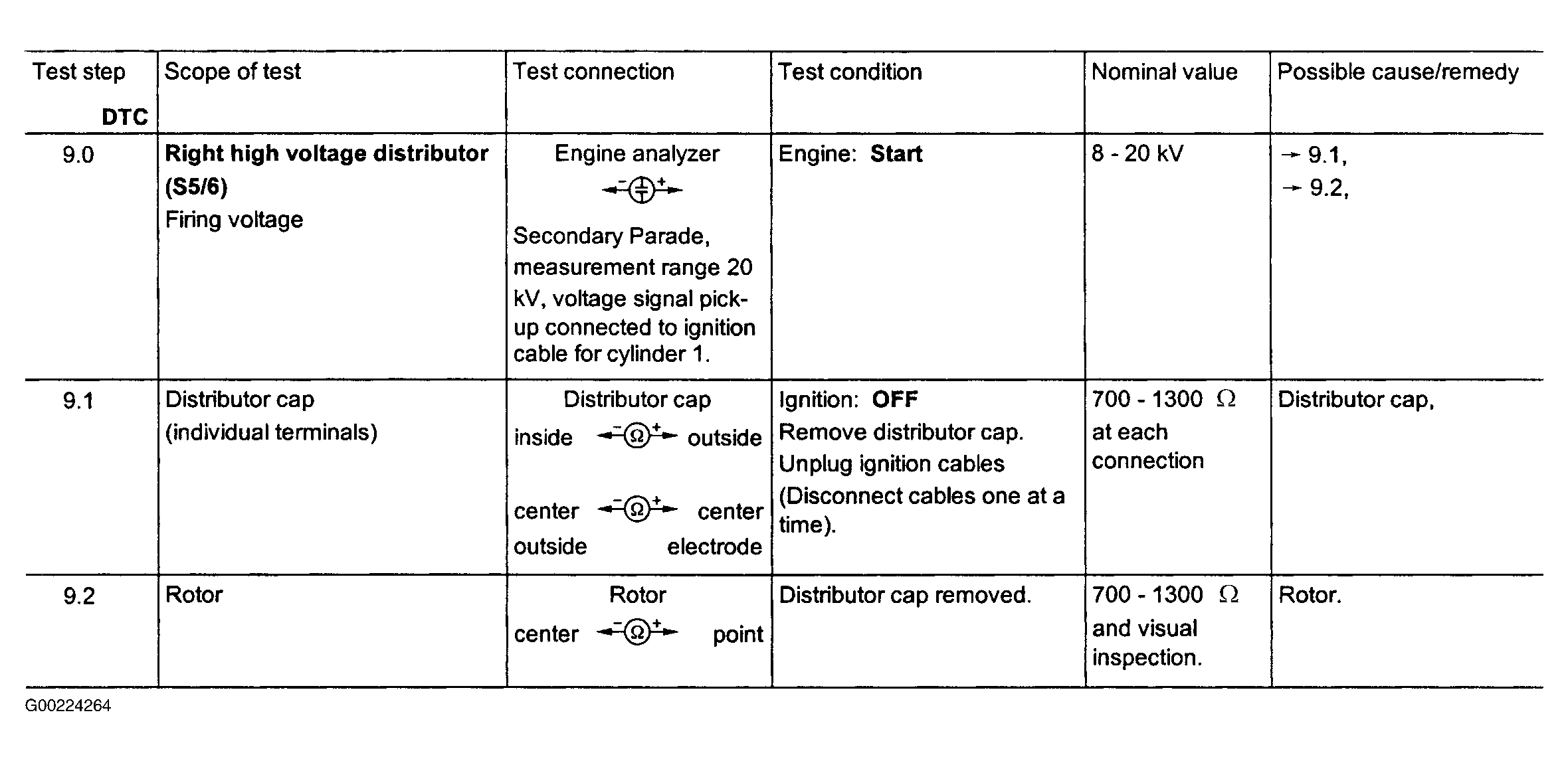

Fig 7: Electrical System Tests - Section 23 (Steps 9.0-9.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
