Engine Controls - Tests W/Codes - Base Module
>>
Connector Identification
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector Identification

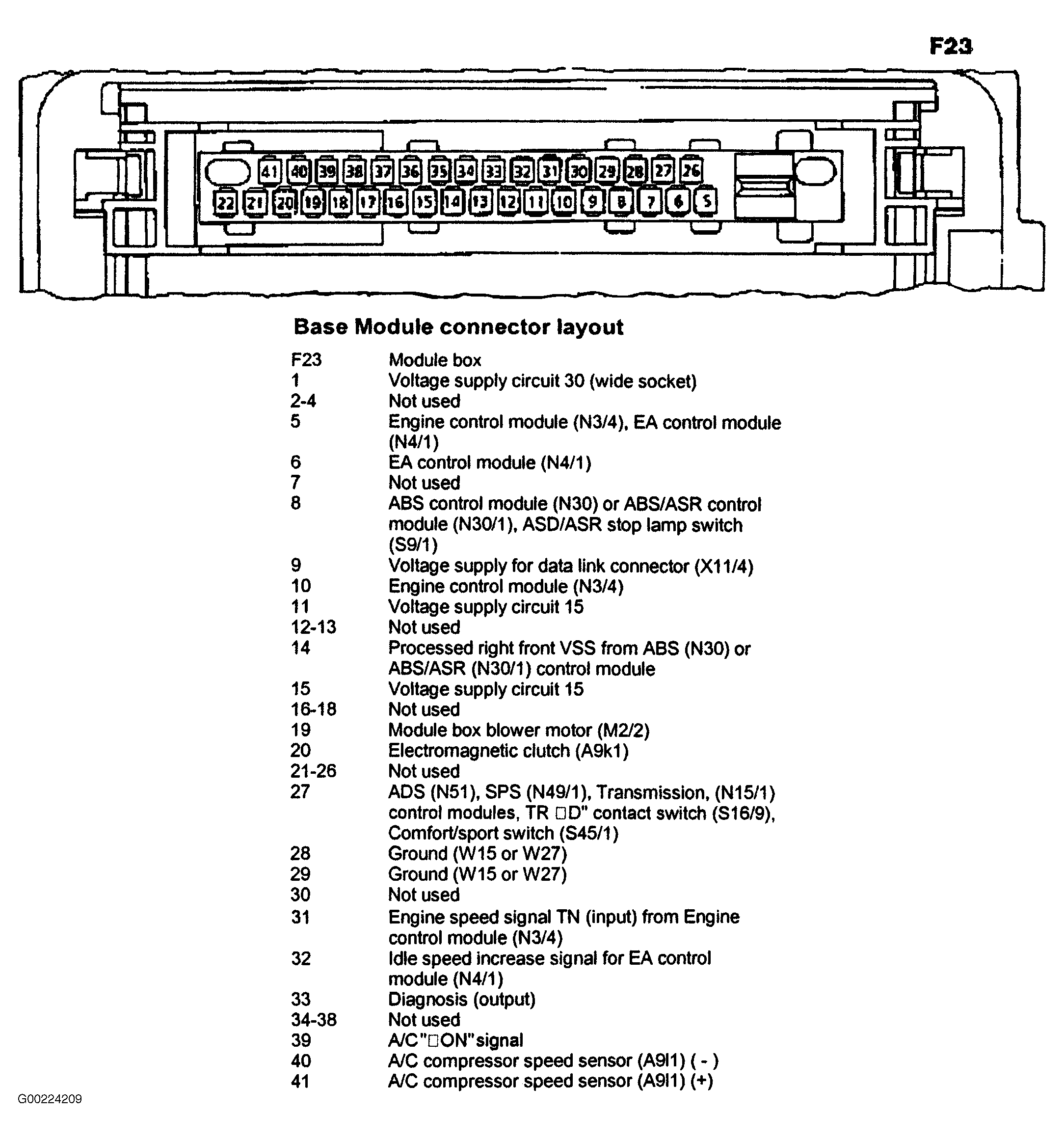

Fig 1: Base Module Connector Pin Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
