Electrical System Tests Illustrations (Section 23)

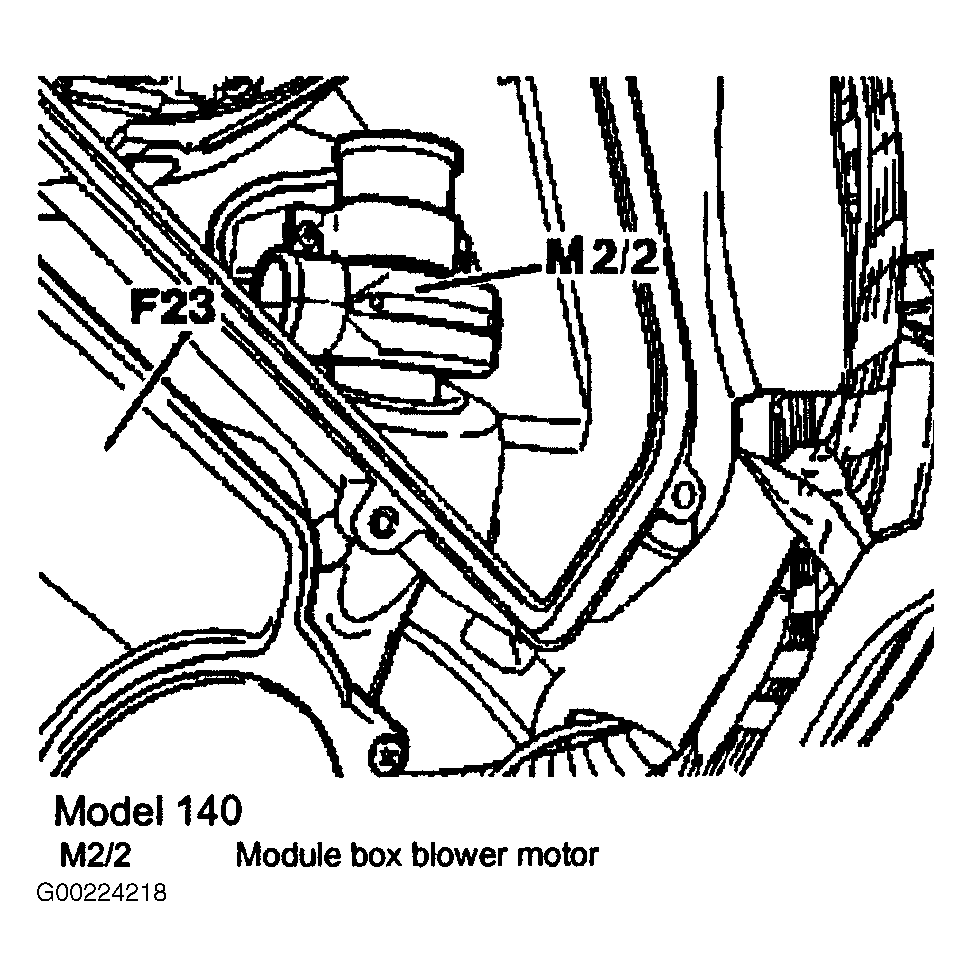

Fig 1: Electrical System Test Illustrations - Section 23 (1 Of 4)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

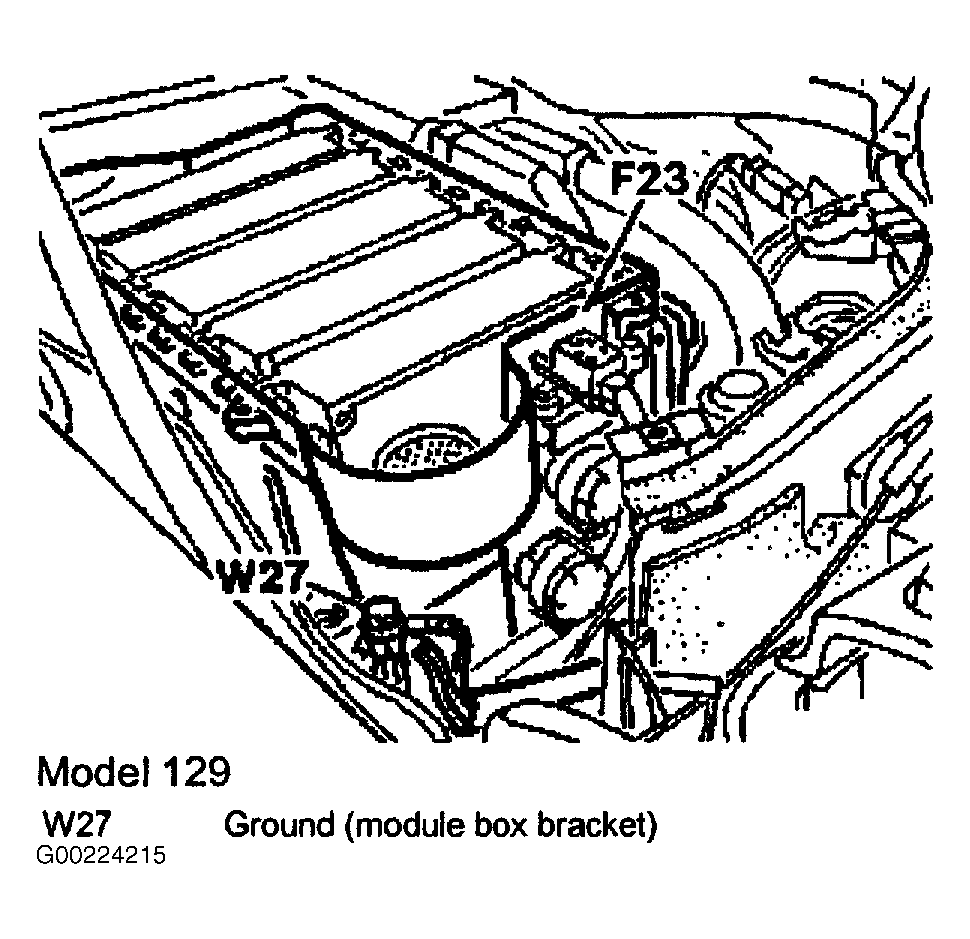

Fig 2: Electrical System Test Illustrations - Section 23 (2 Of 4)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

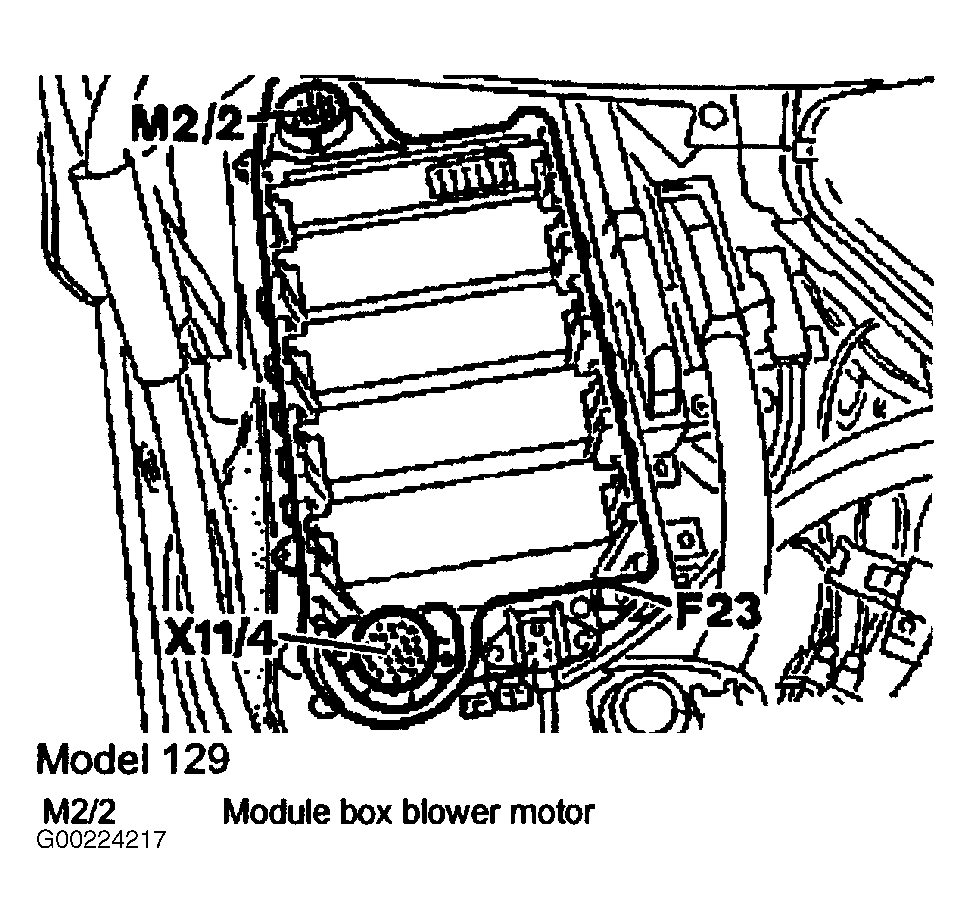

Fig 3: Electrical System Test Illustrations - Section 23 (3 Of 4)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

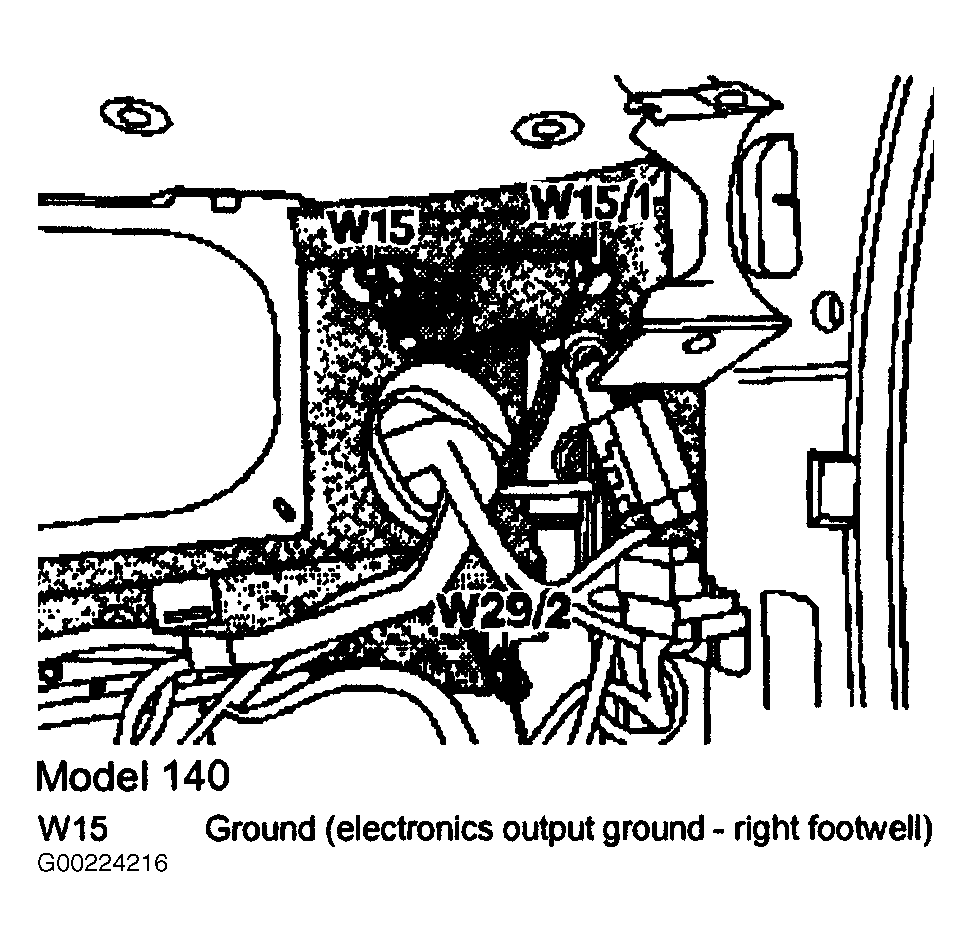

Fig 4: Electrical System Test Illustrations - Section 23 (4 Of 4)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
