Using Diagnostic Charts

Use following illustrations to understand diagnostic charts and identify symbols used. See Fig 1-Fig 3 .

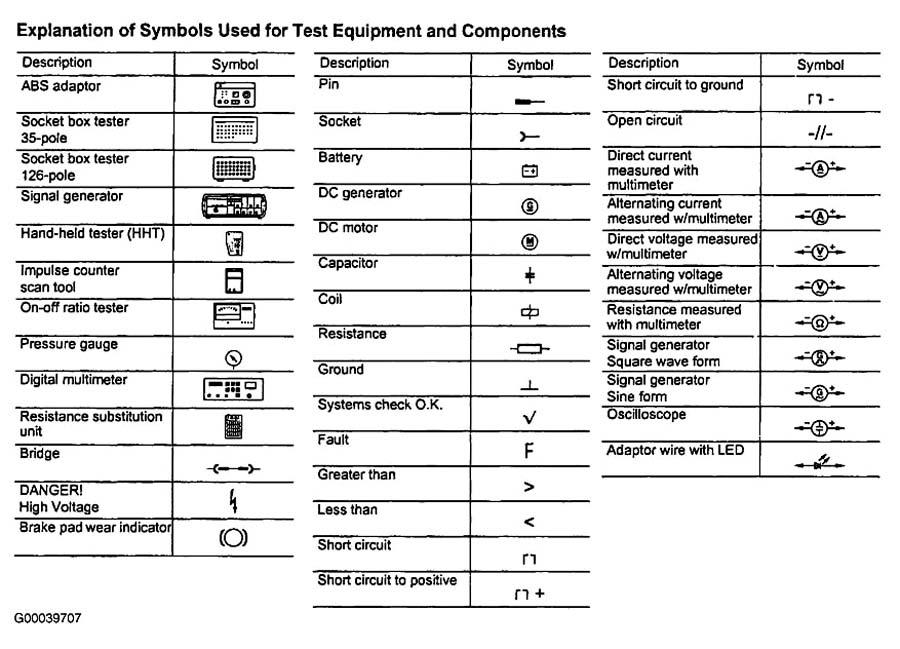

Fig 1: Identifying Symbols

Courtesy of DAIMLERCHRYSLER CORPORATION

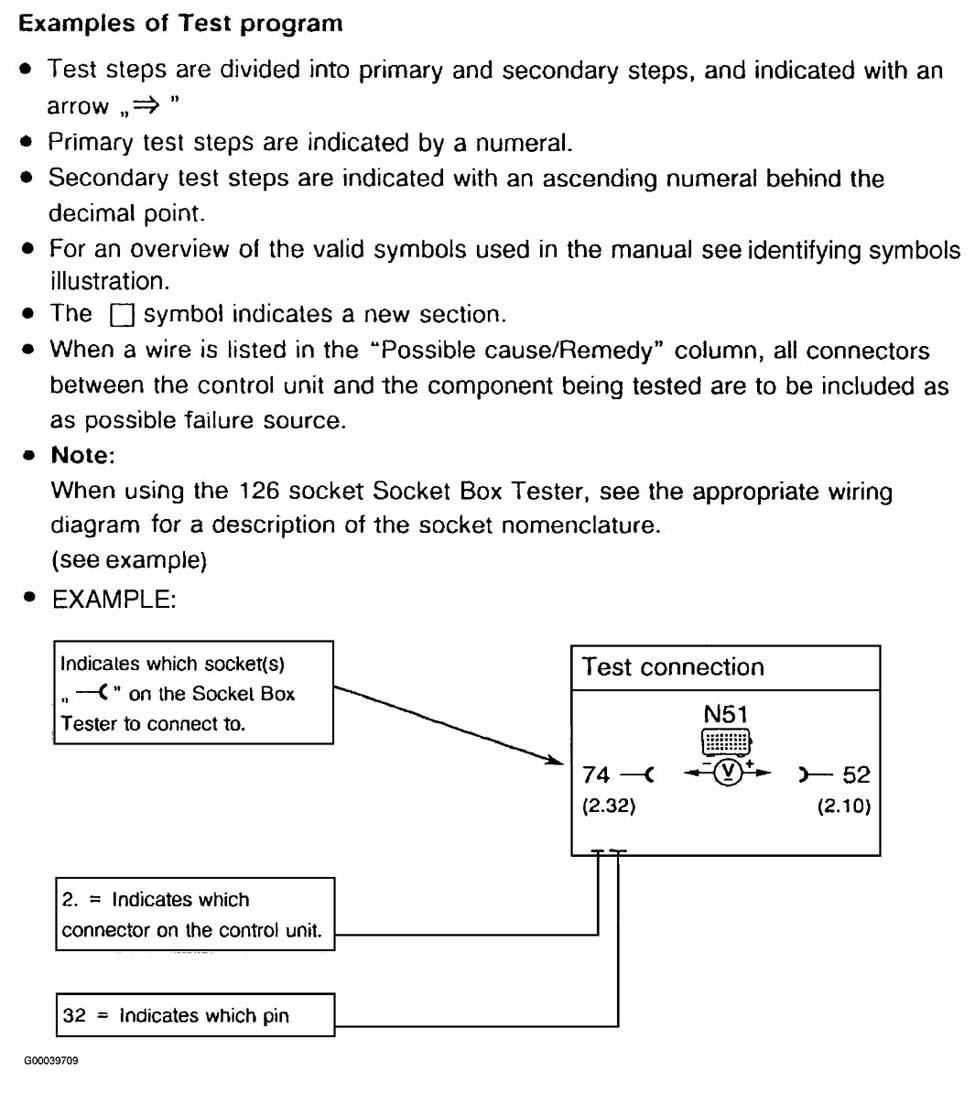

Fig 2: Using Diagnostic Charts (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Using Diagnostic Charts (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
