Connector Identification

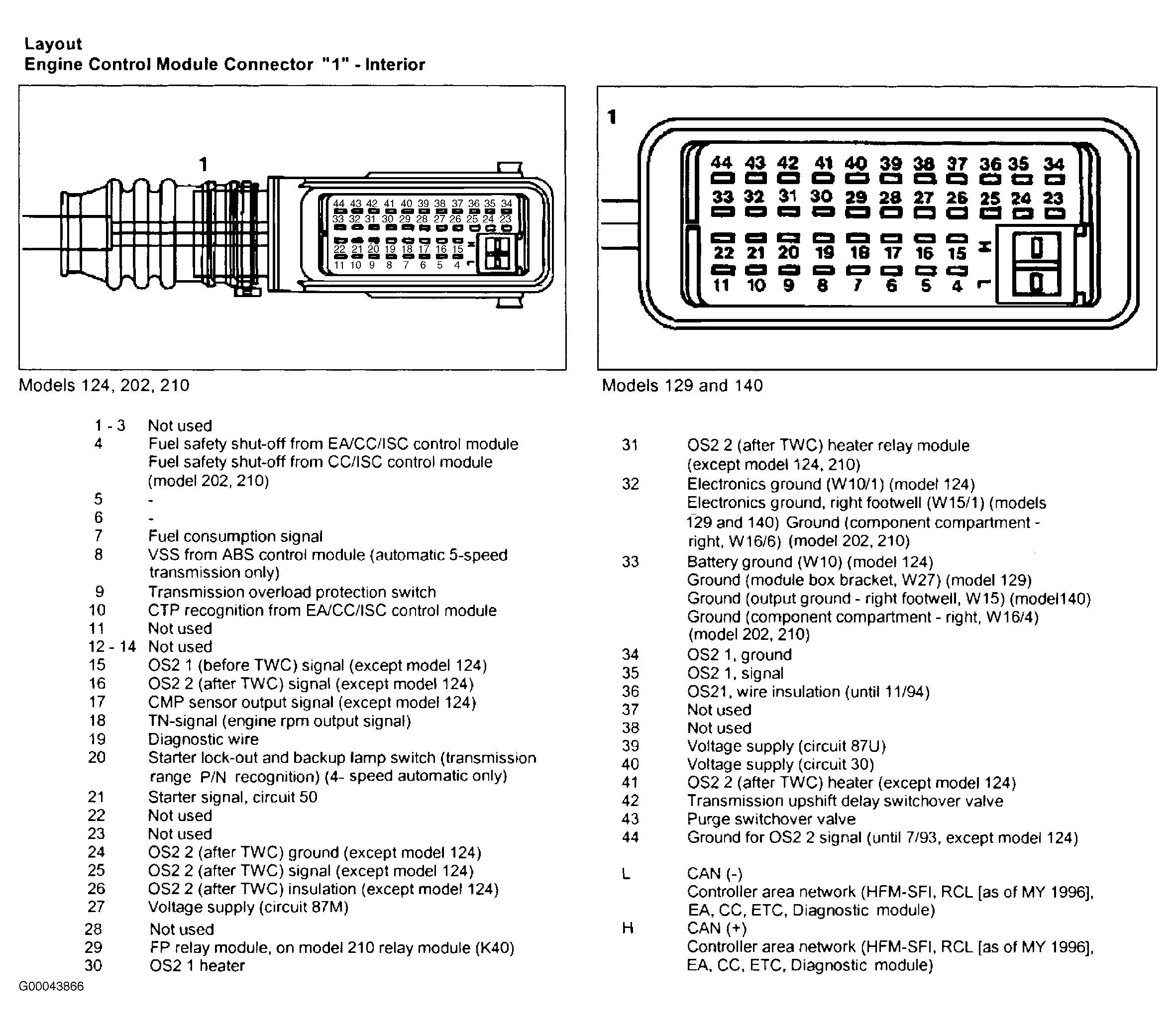

Fig 1: Engine Control Module Connector 1 Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

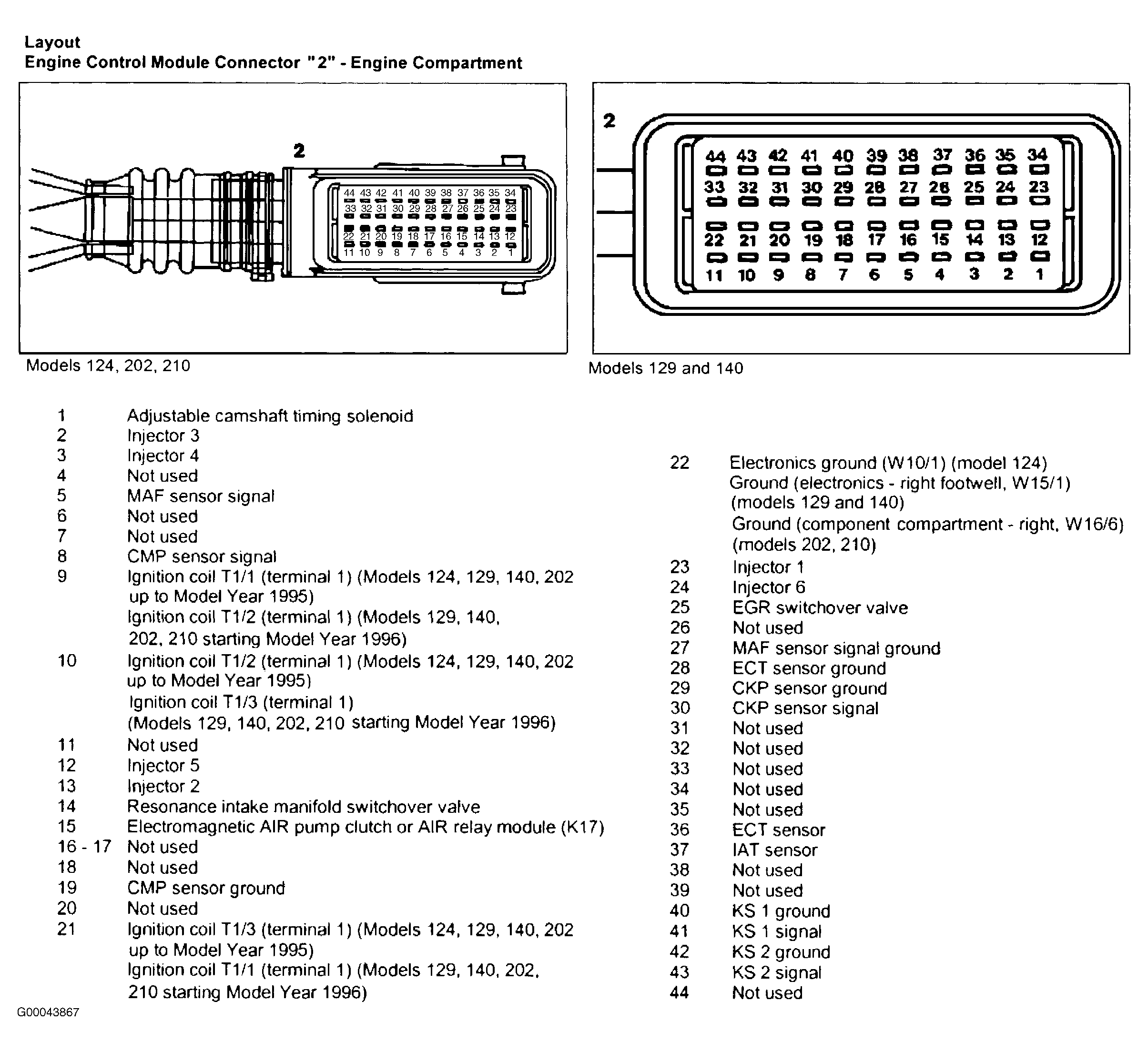

Fig 2: Engine Control Module Connector 2 Identification

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

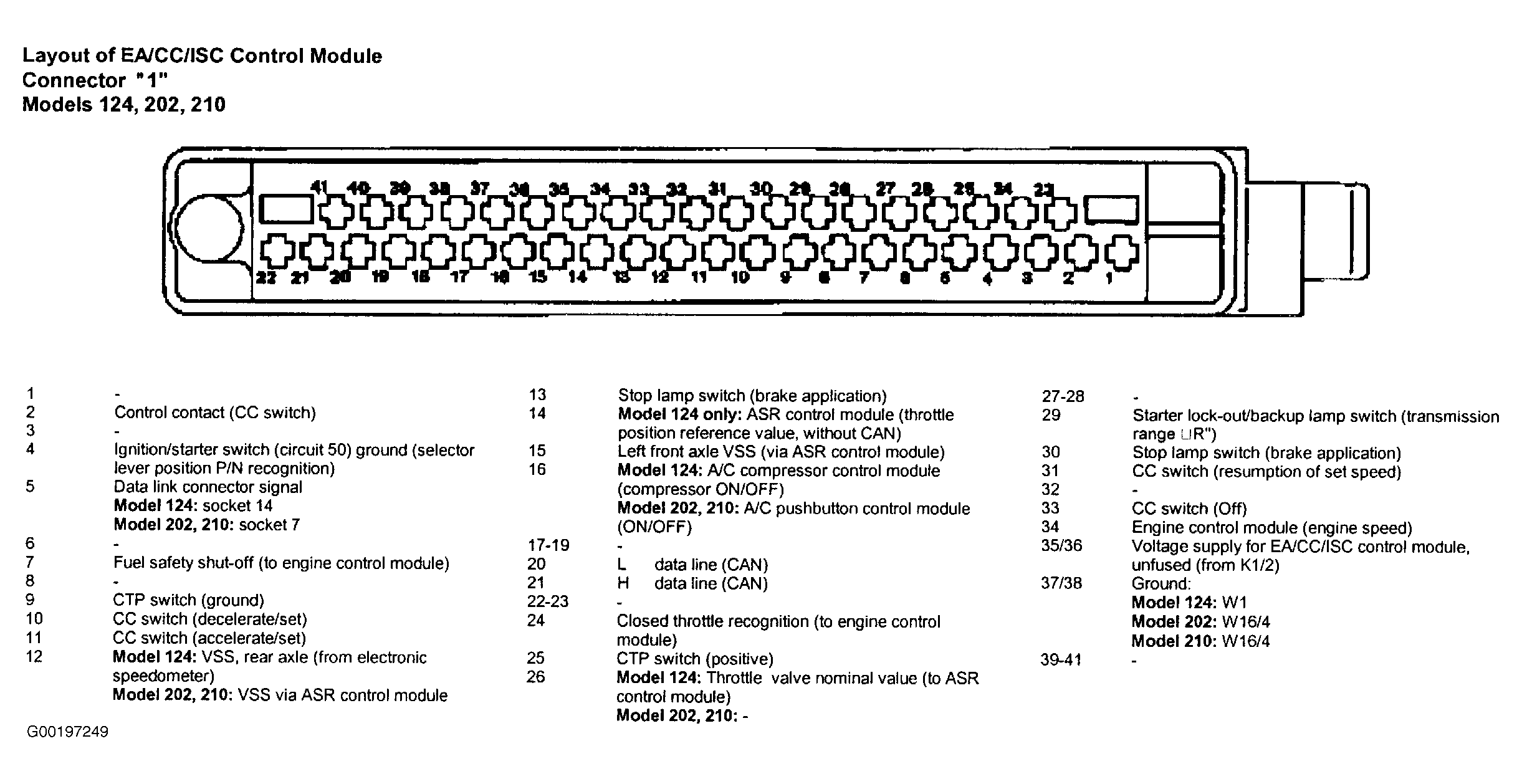

Fig 3: Identifying EA/CC/ISA Control Module Connector 1 Terminals (Models 124, 202 & 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

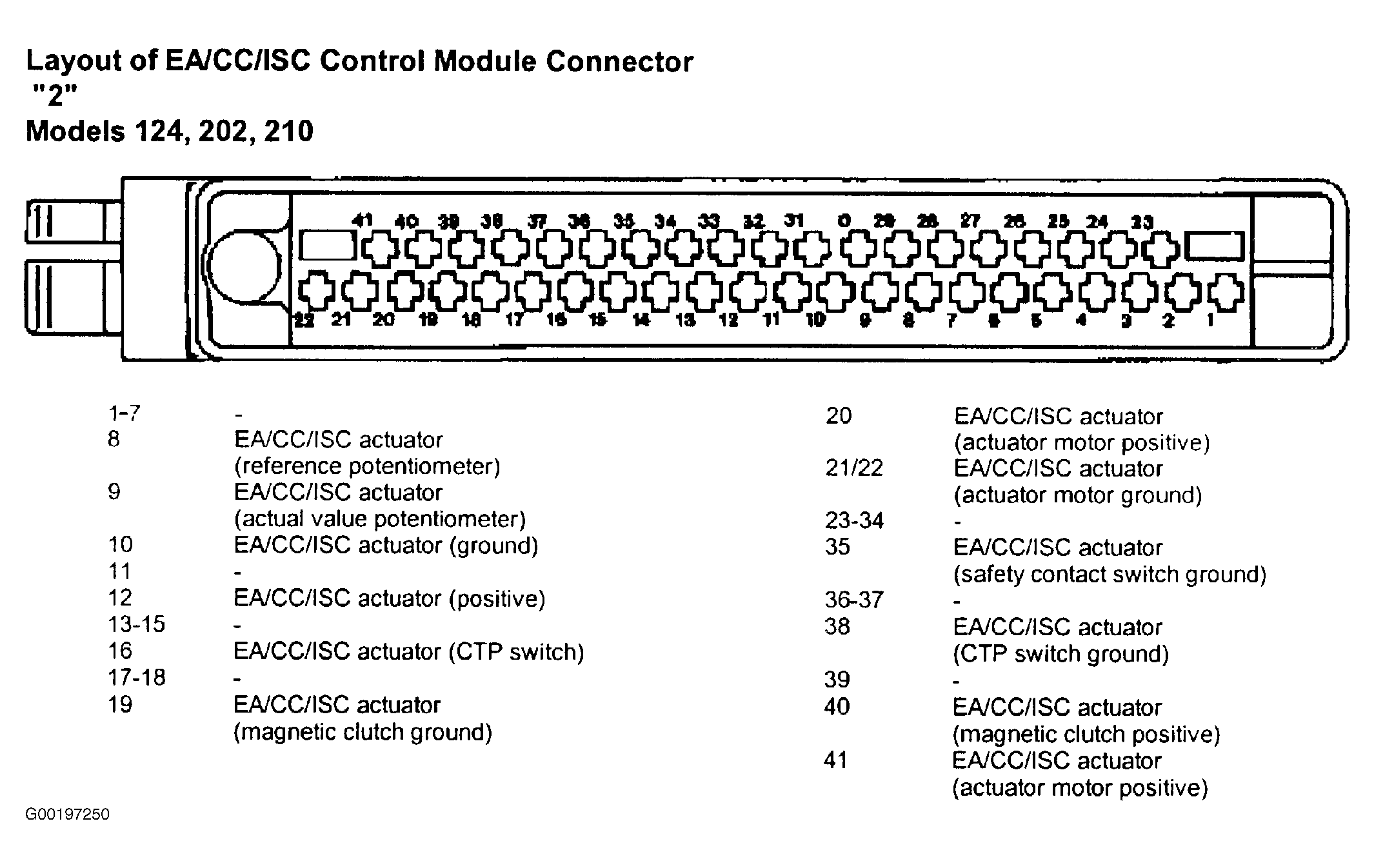

Fig 4: Identifying EA/CC/ISA Control Module Connector 2 Terminals (Models 124, 202 & 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

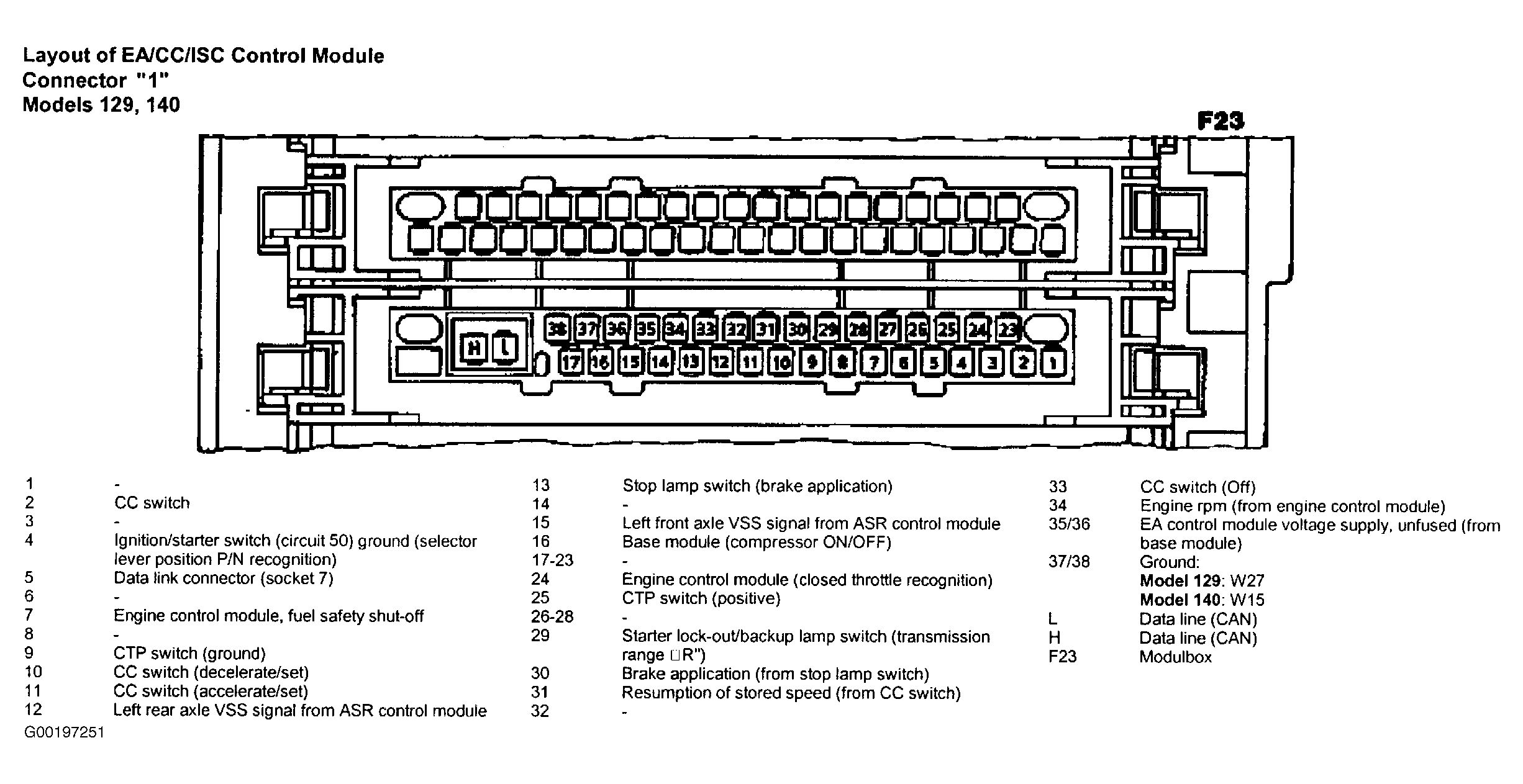

Fig 5: Identifying EA/CC/ISA Control Module Connector 1 Terminals (Models 129 & 140)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

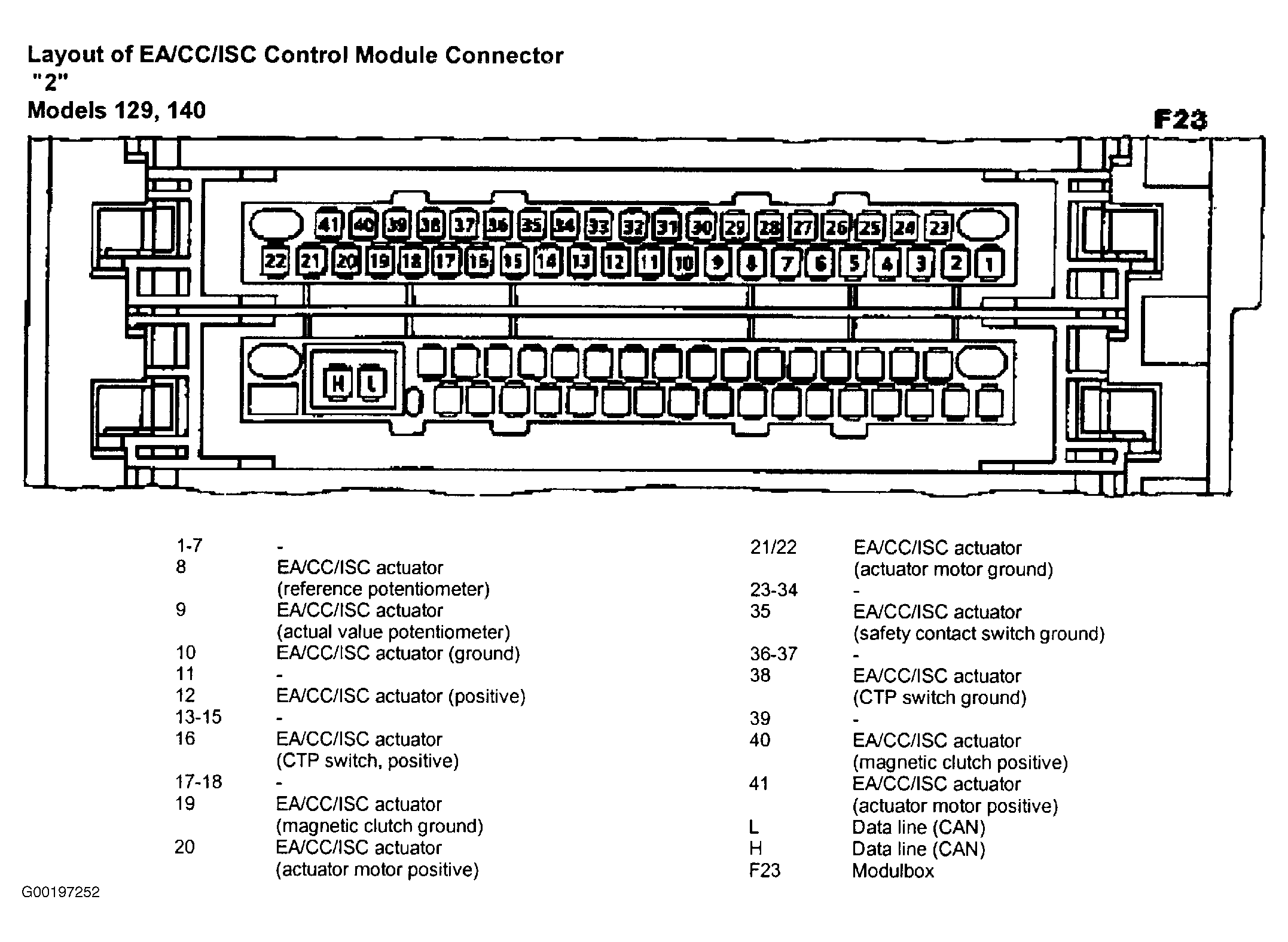

Fig 6: Identifying EA/CC/ISA Control Module Connector 2 Terminals (Models 129 & 140)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
