Electrical System Tests Component Locations (Section 21)

ELECTRICAL SYSTEM TESTS COMPONENT LOCATIONS (SECTION 21)

Component	See
Base Module N16/1 (A)	Fig 1
Fuse F1	Fig 1
Fuse F2	Fig 1
Fuse F3	Fig 1
Fuse F4	Fig 1

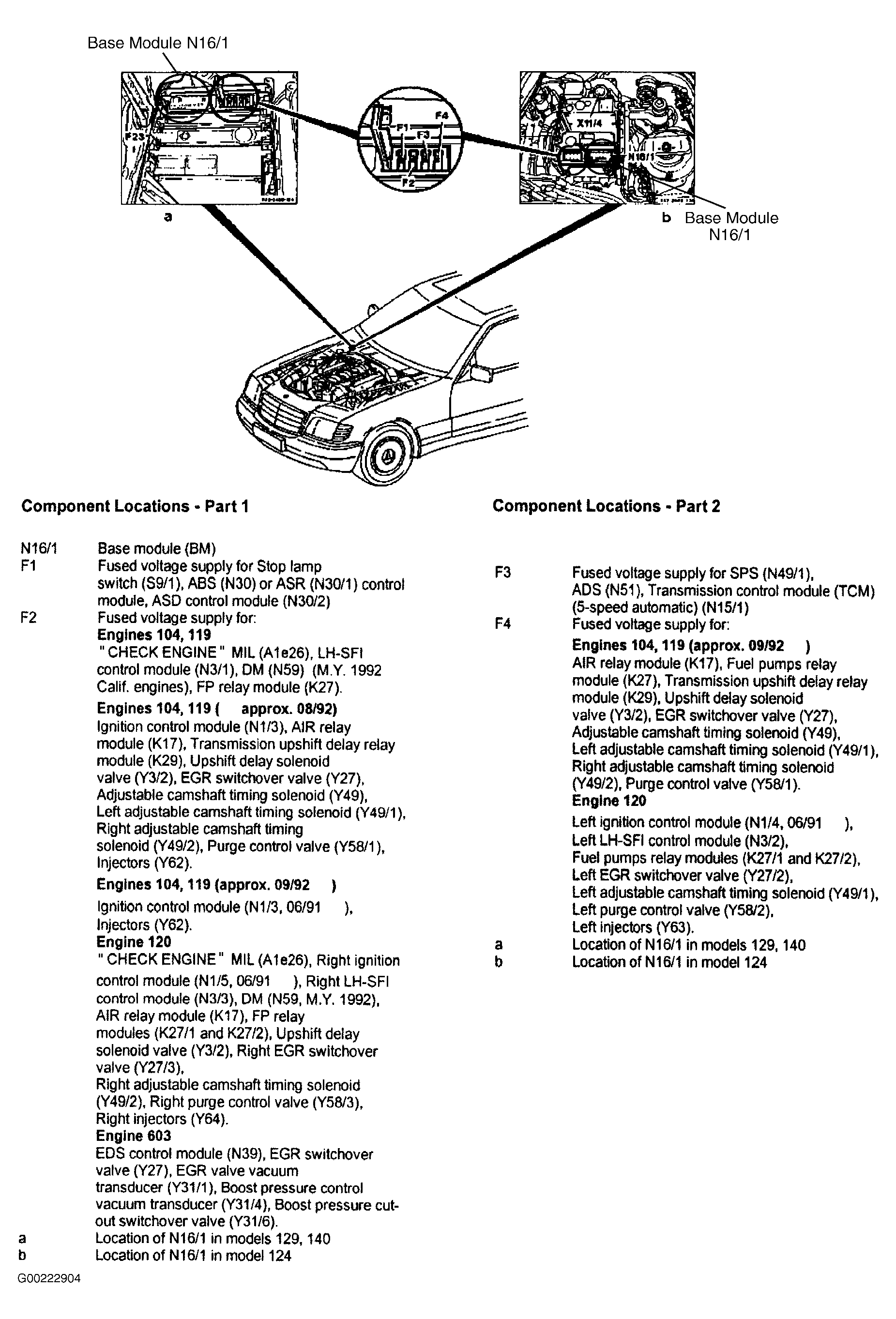

Fig 1: Electrical System Tests Component Locations (Section 21)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
