Electrical System Tests - Engine Runs (Section 24)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS  .

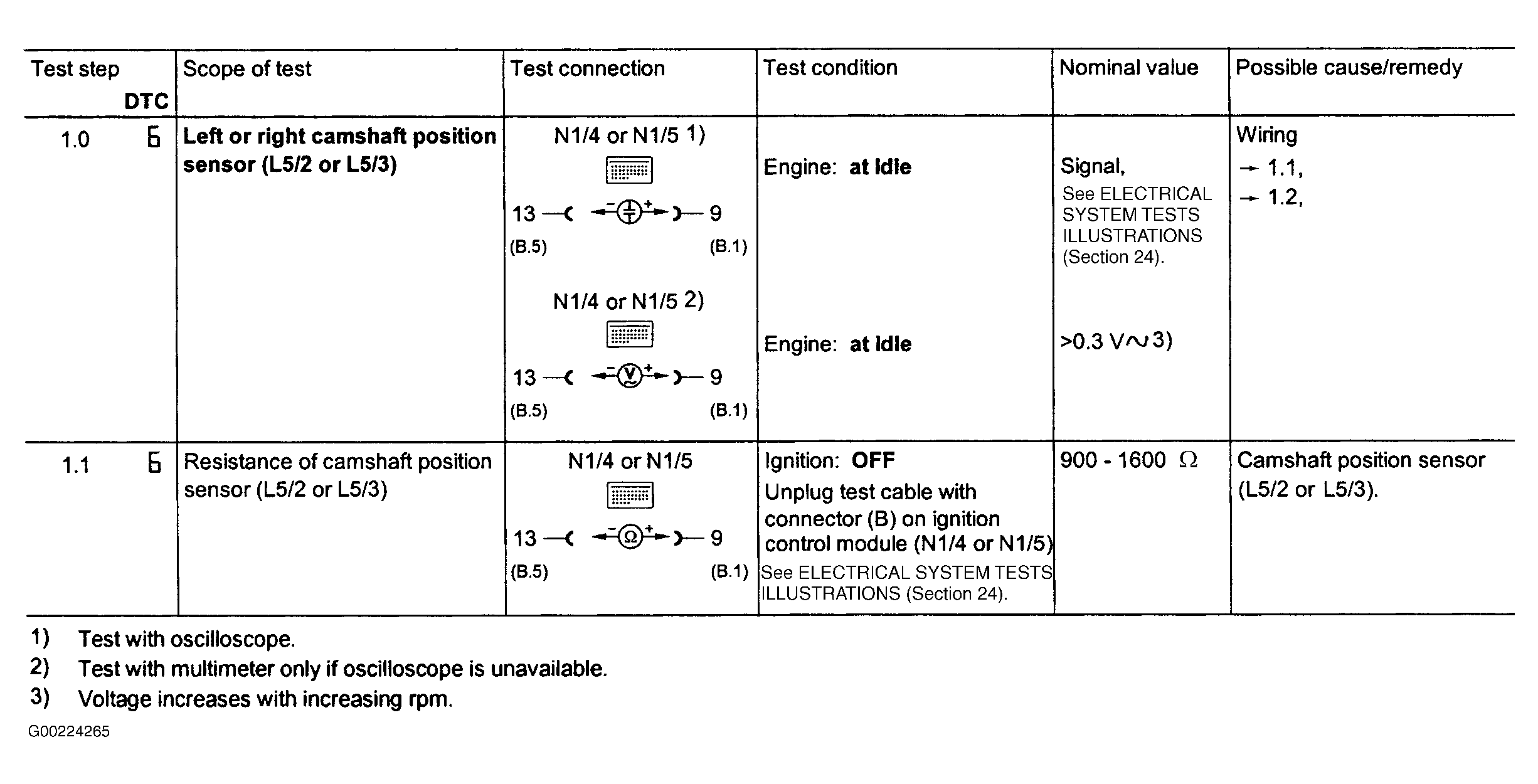

Fig 1: Electrical System Tests - Section 24 (Steps 1.0-1.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

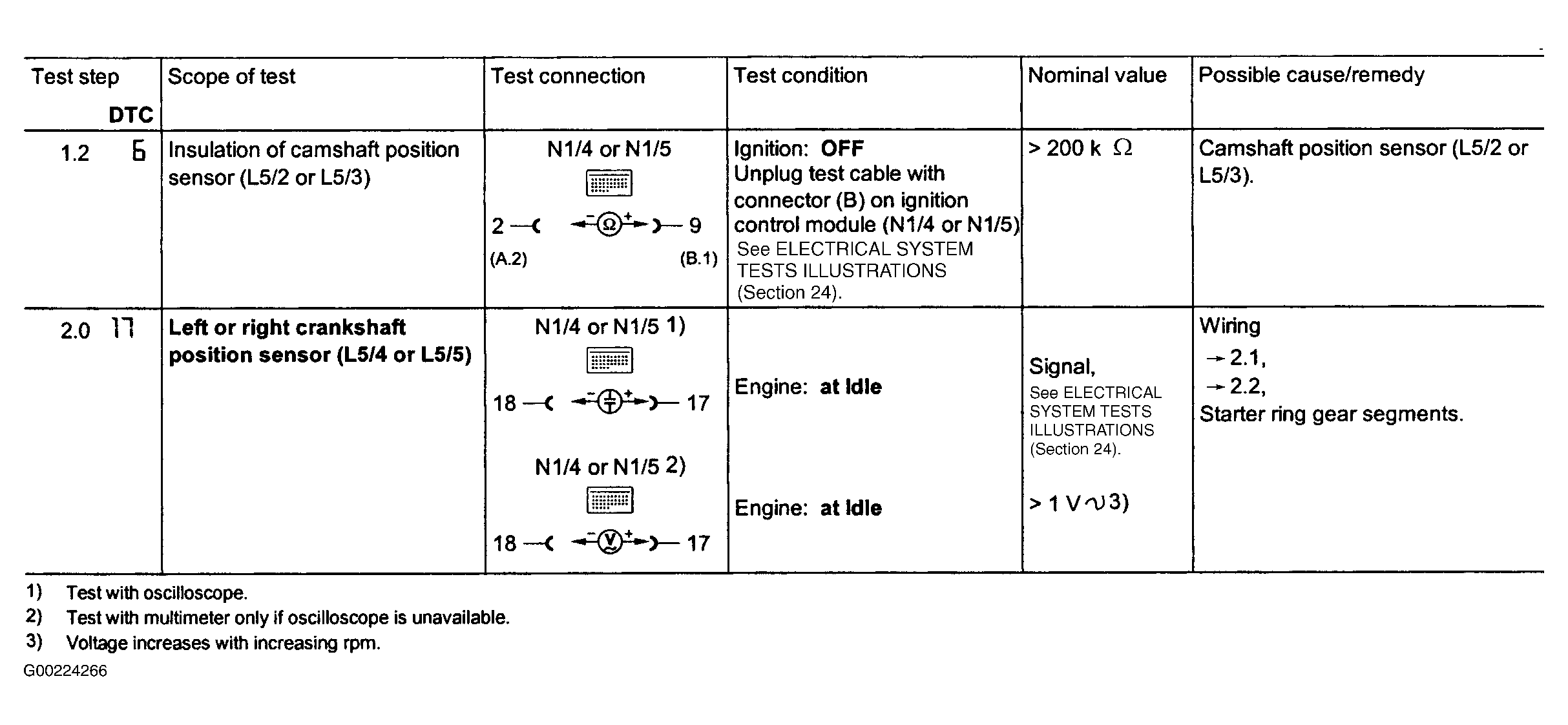

Fig 2: Electrical System Tests - Section 24 (Steps 1.2-2.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

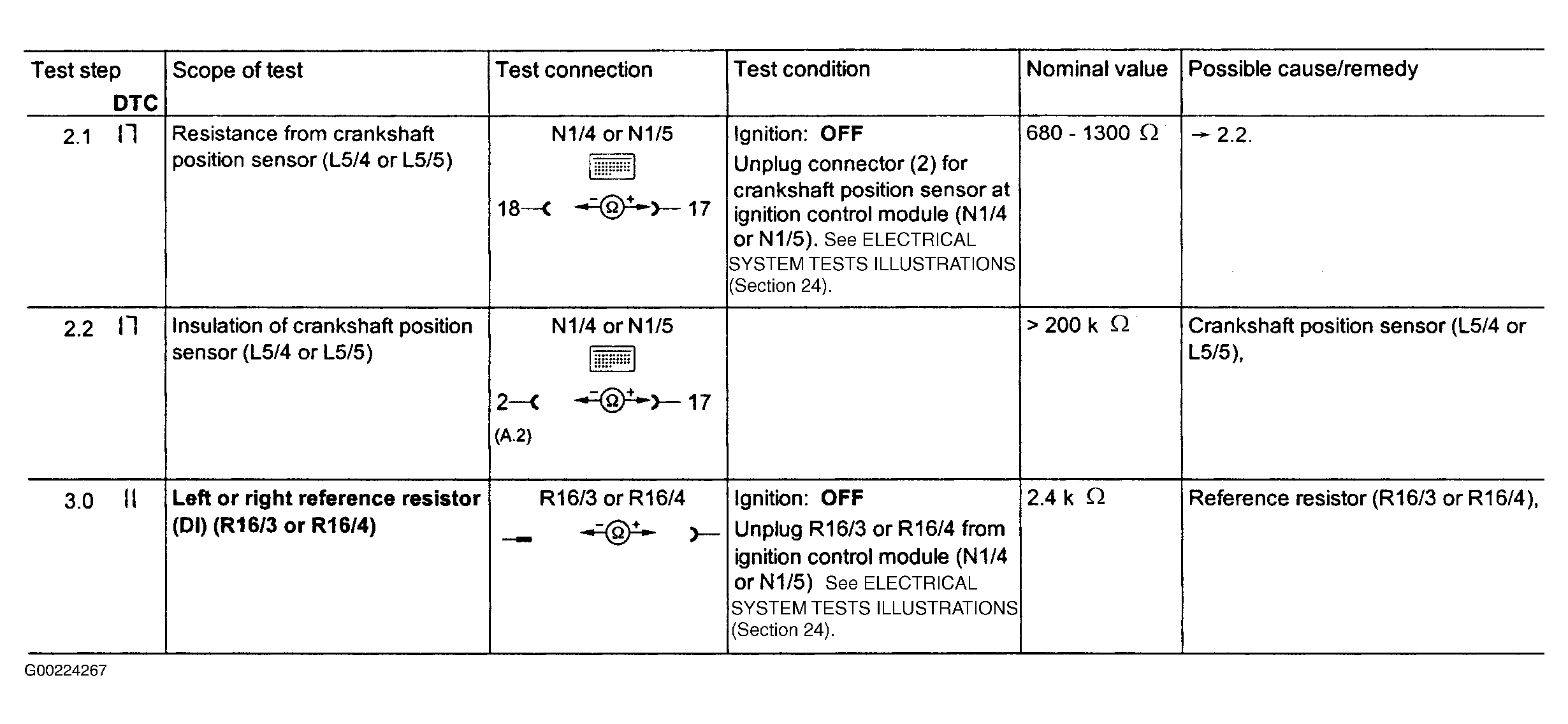

Fig 3: Electrical System Tests - Section 24 (Steps 2.1-3.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

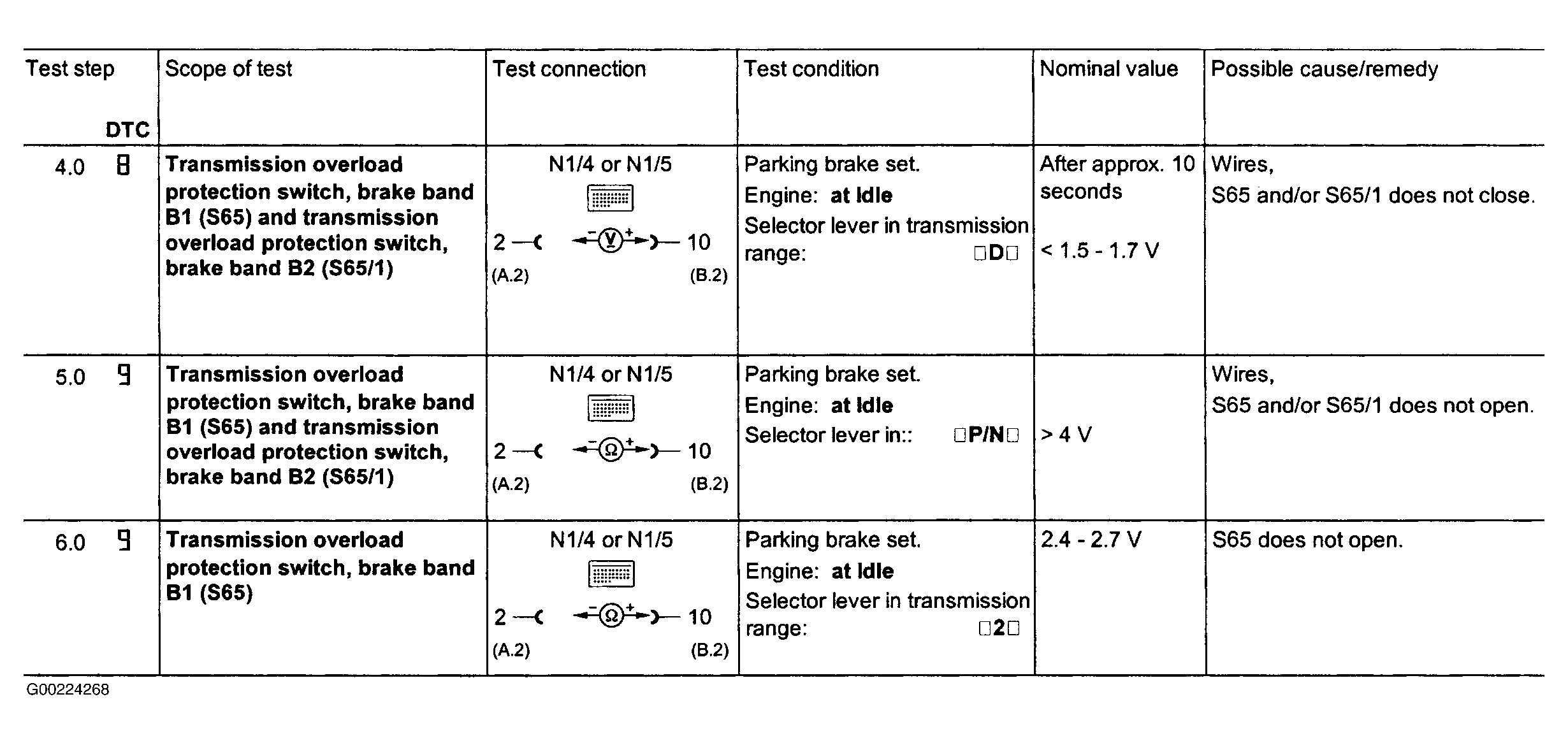

Fig 4: Electrical System Tests - Section 24 (Steps 4.0-6.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

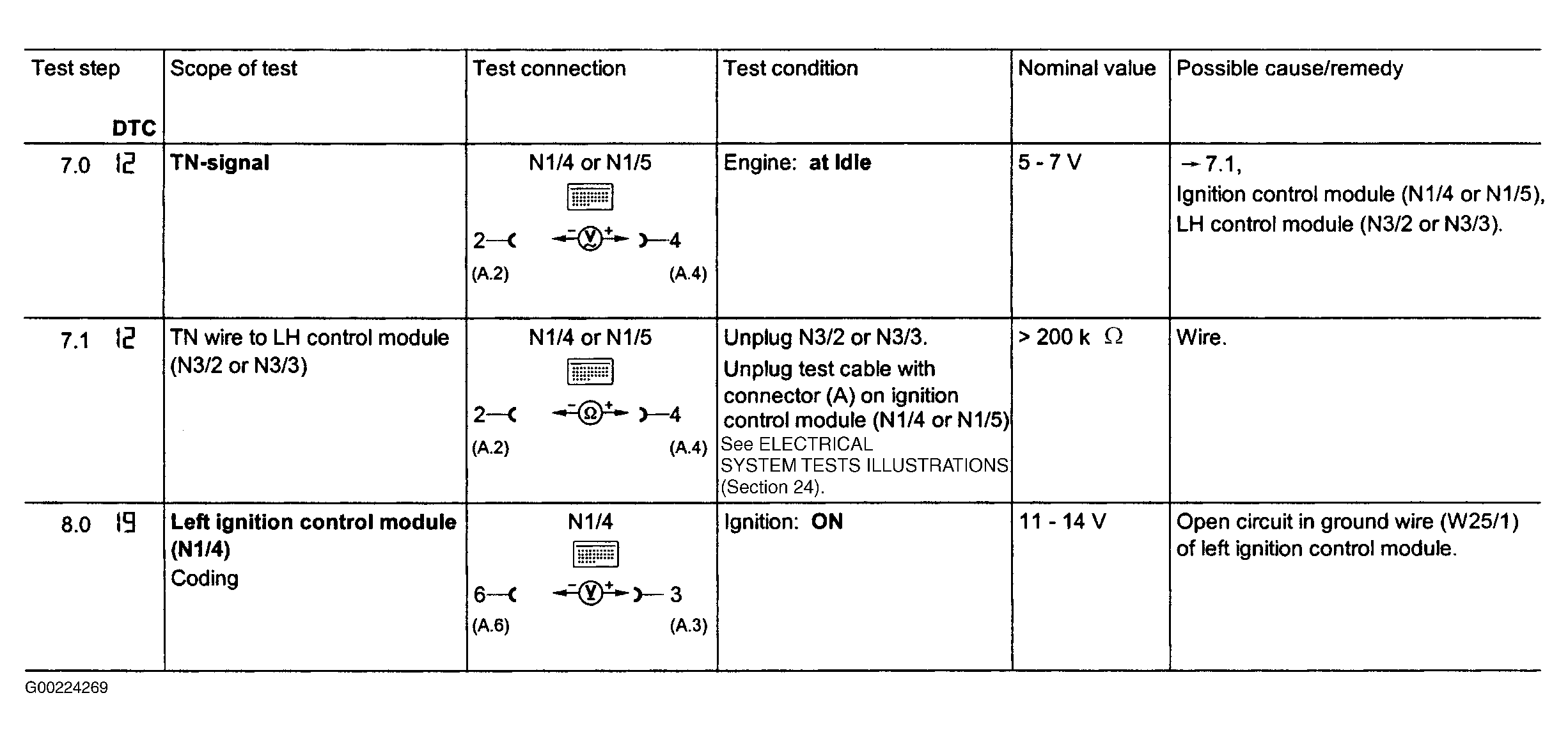

Fig 5: Electrical System Tests - Section 24 (Steps 7.0-8.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

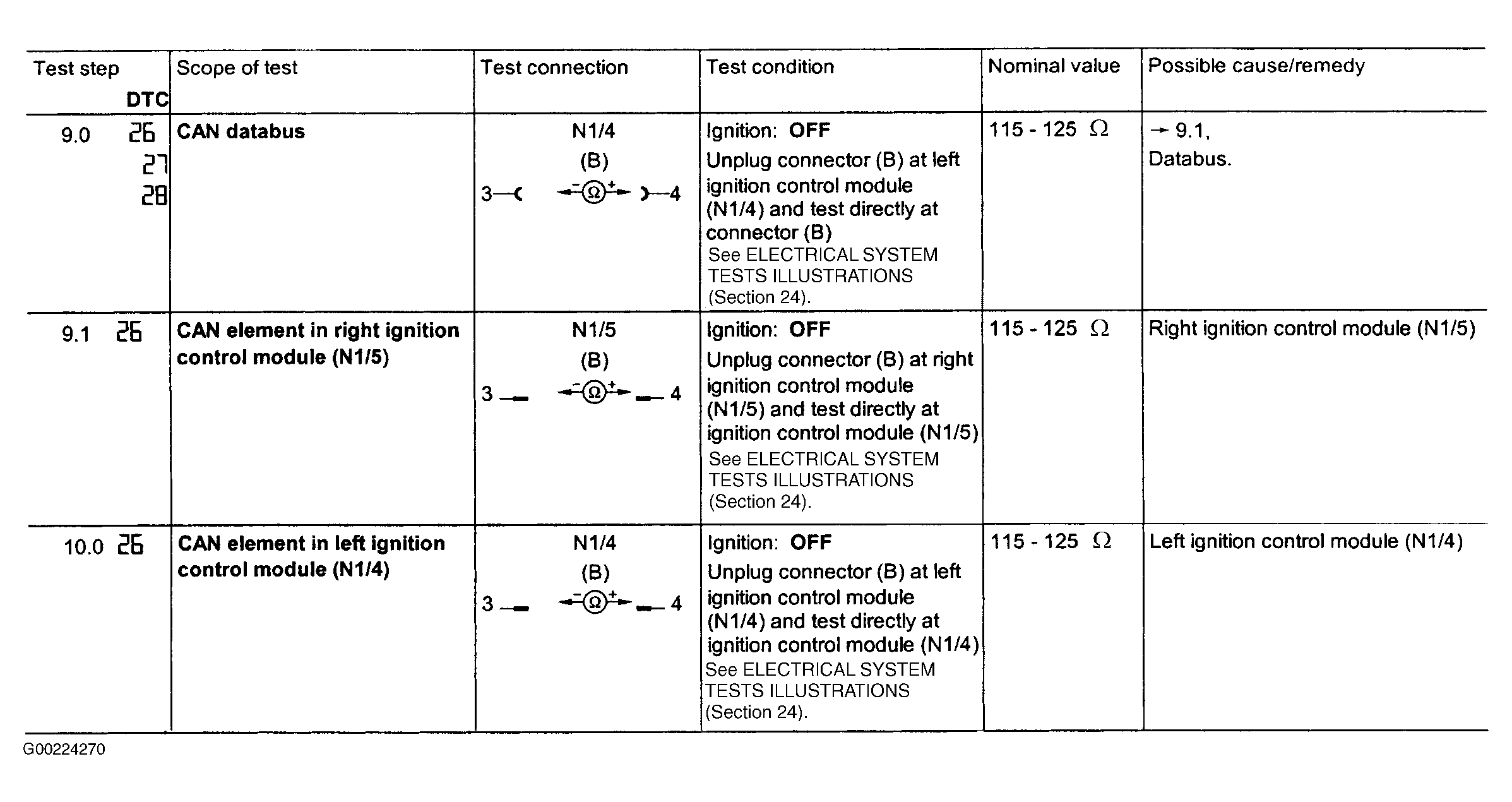

Fig 6: Electrical System Tests - Section 24 ( Steps 9.0-10.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
