Electrical System Tests - Section 23 (Steps 3.0-5.0)

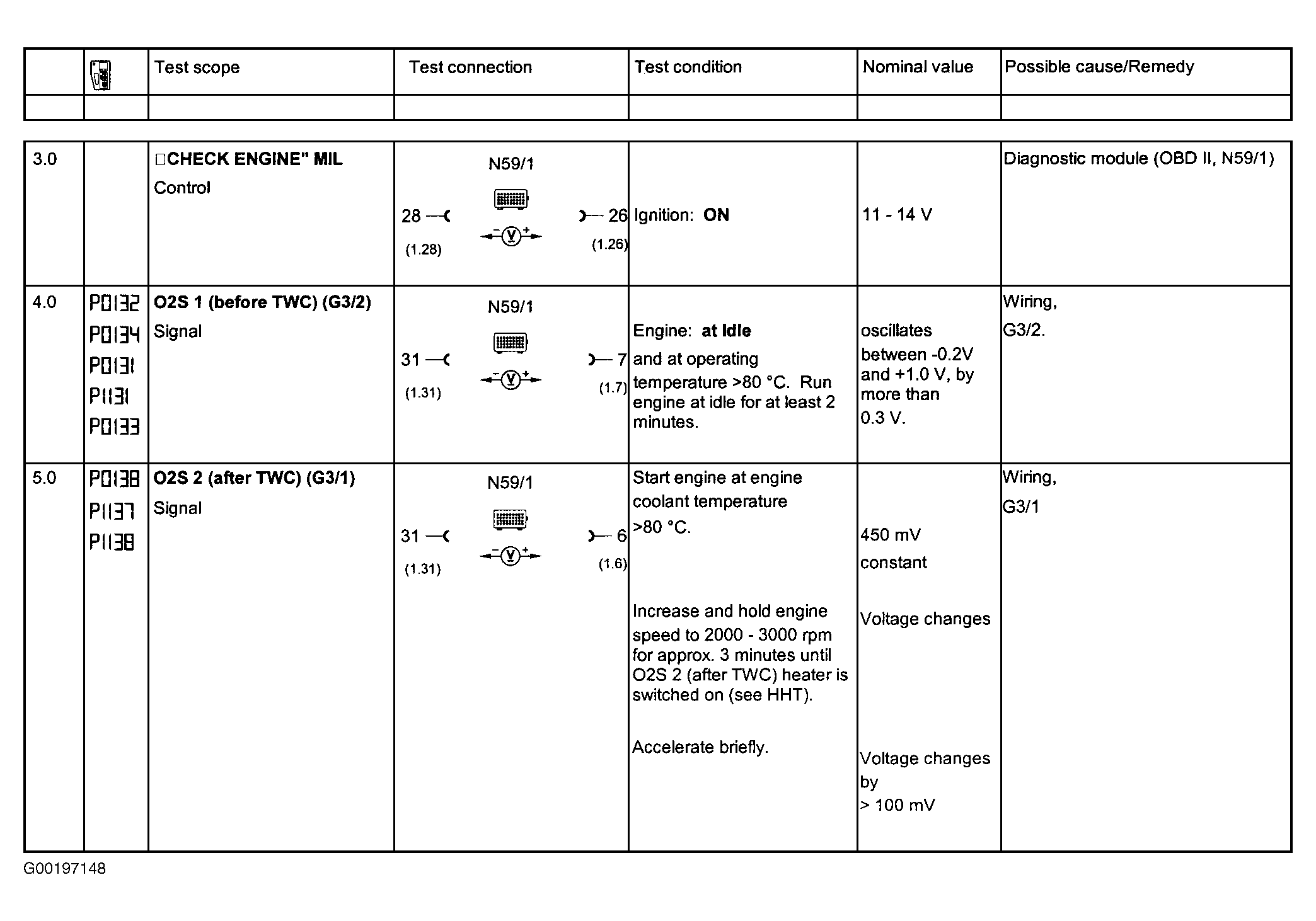

Fig 1: Electrical System Tests - Section 23 (Steps 3.0-5.0)
G00197148Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
