Connector Identification

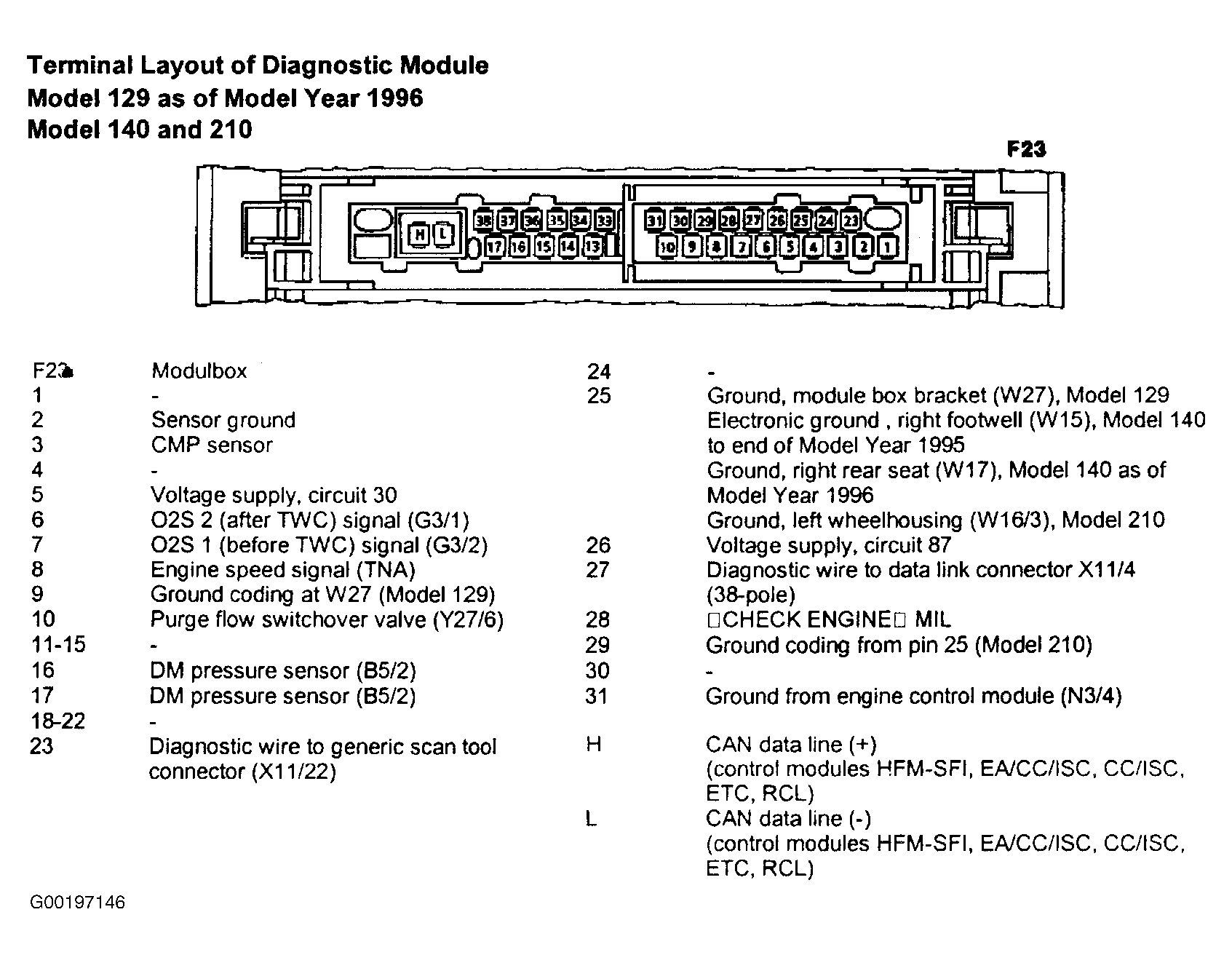

Fig 1: Diagnostic Module Connector Pin Identification
G00197146Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

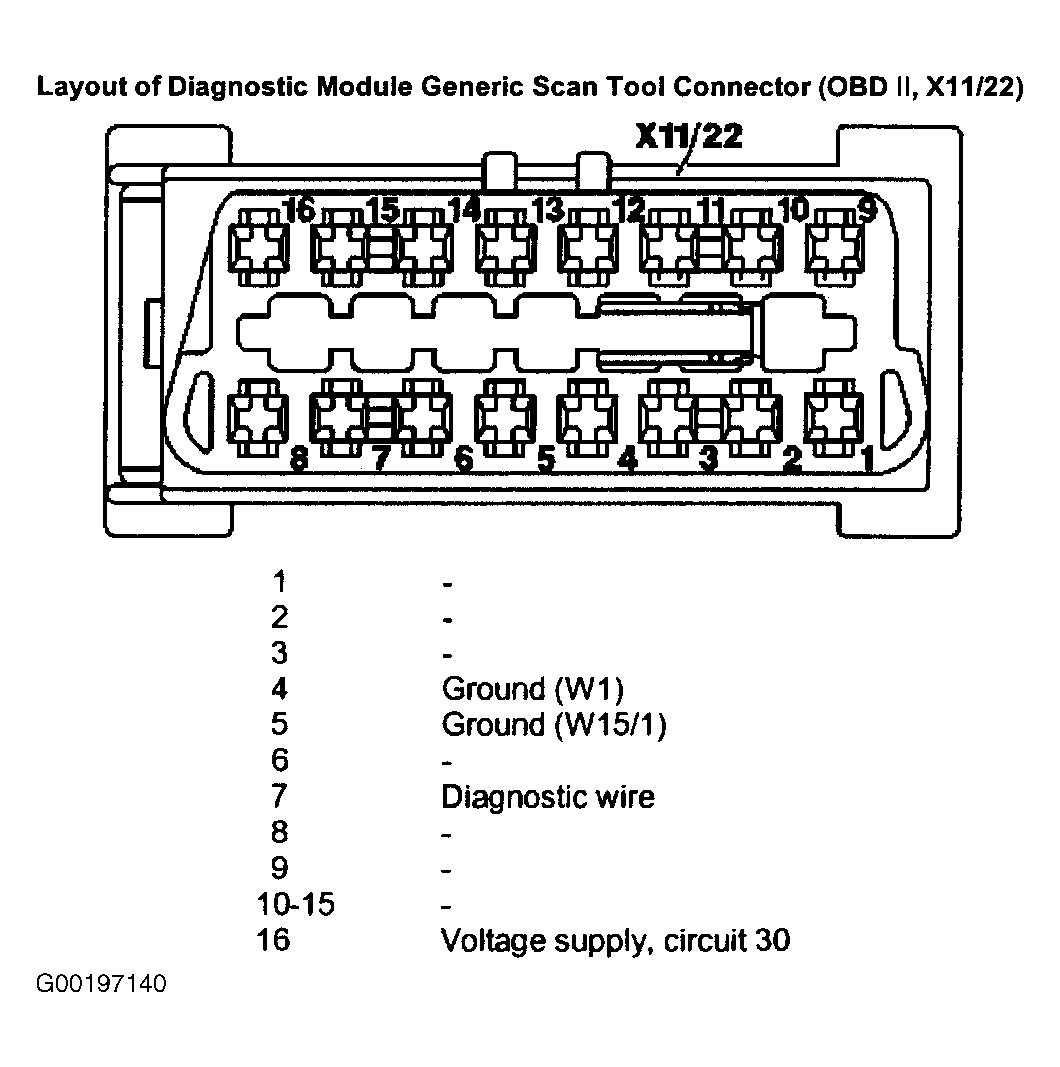

Fig 2: Data Link Connector Pin Identification (X11/22)
G00197140Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

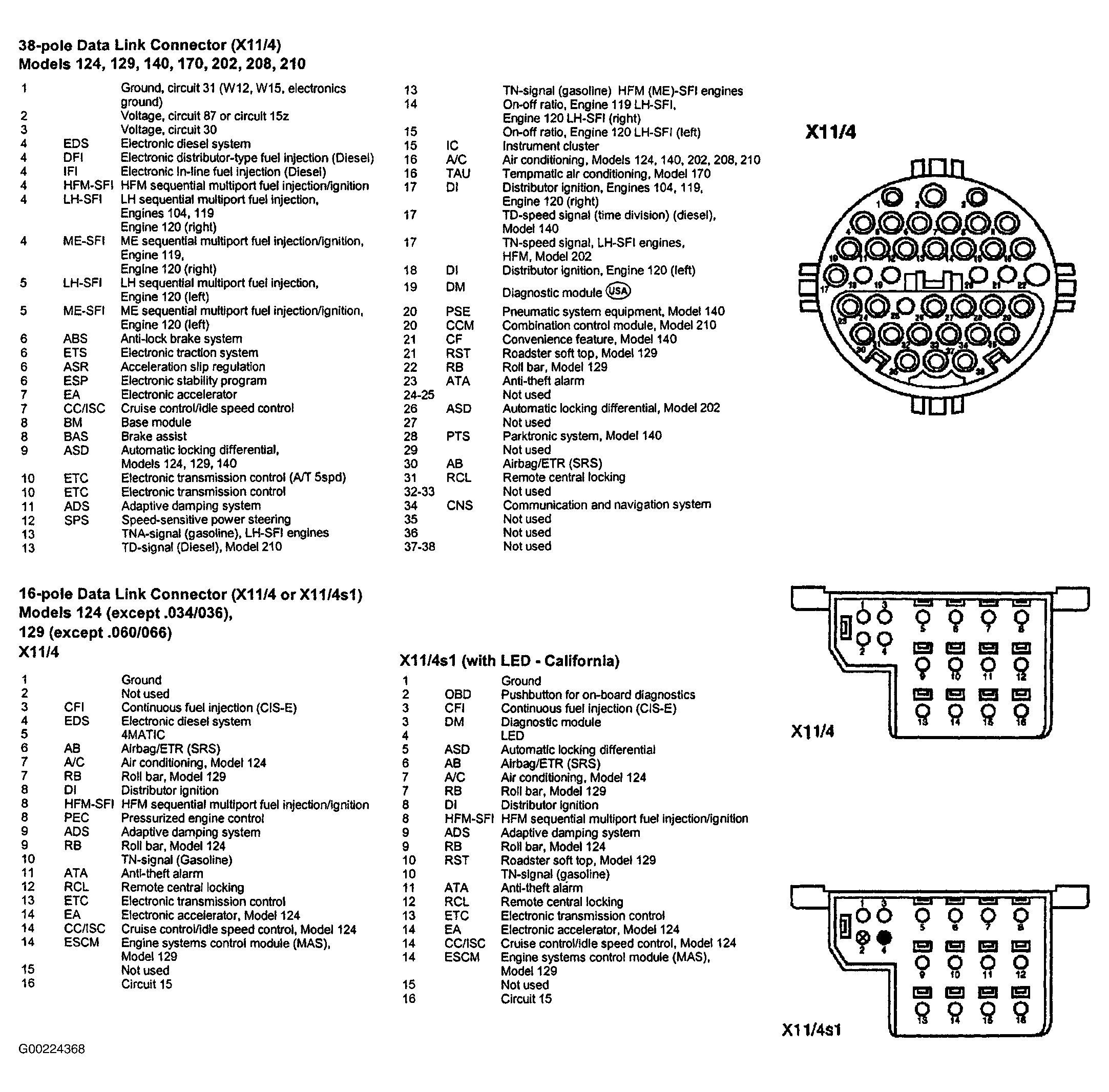

Fig 3: Data Link Connector Pin Identification (X/11 & X11/4s1)
G00224368Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
