Preparation For Test (Section 22)

CAUTION: To avoid damaging control modules all electrical testing should be done with a DVOM. DO NOT use an analog meter or test light to check control module circuits.

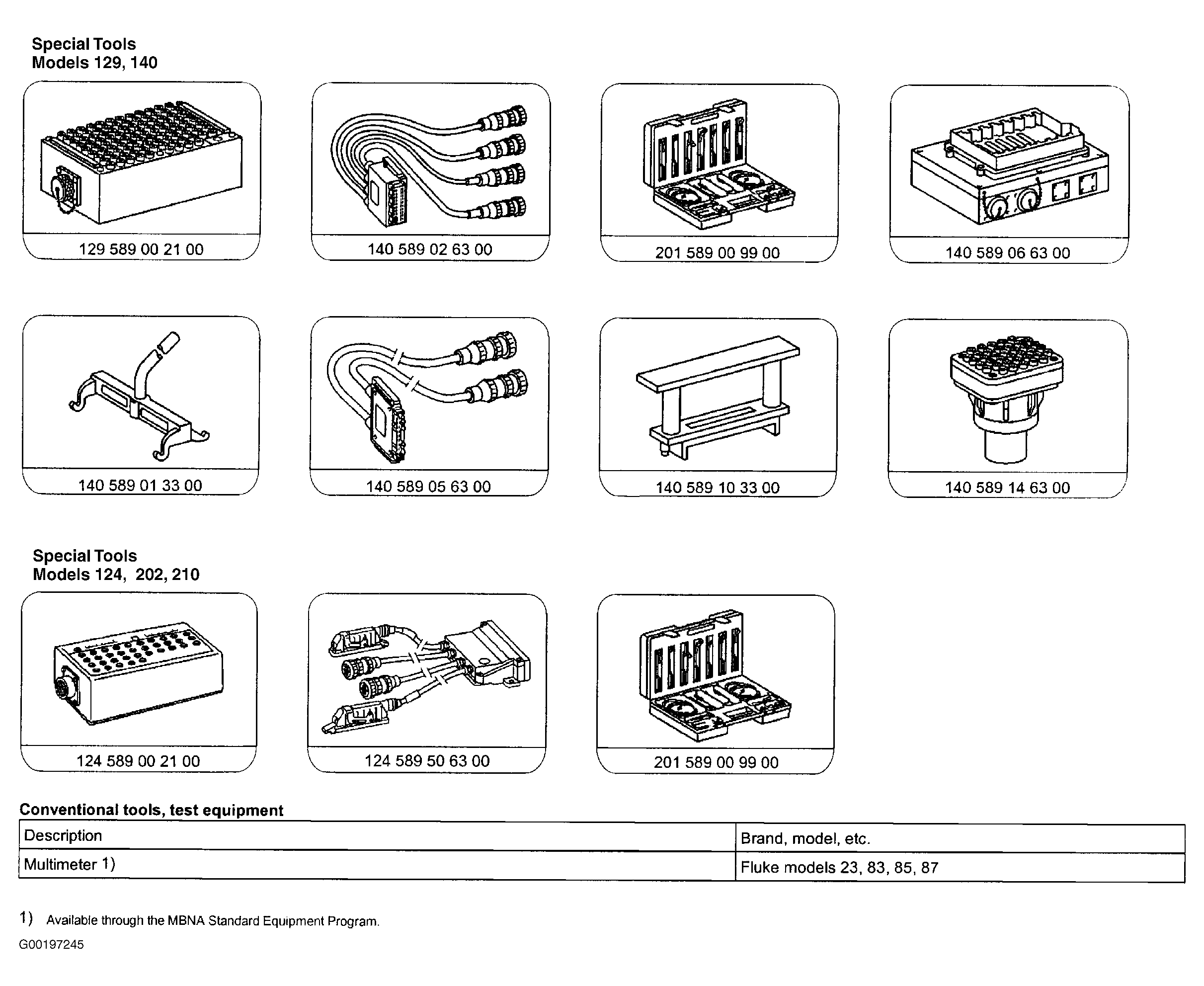

Fig 1: Identifying Special Tools

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

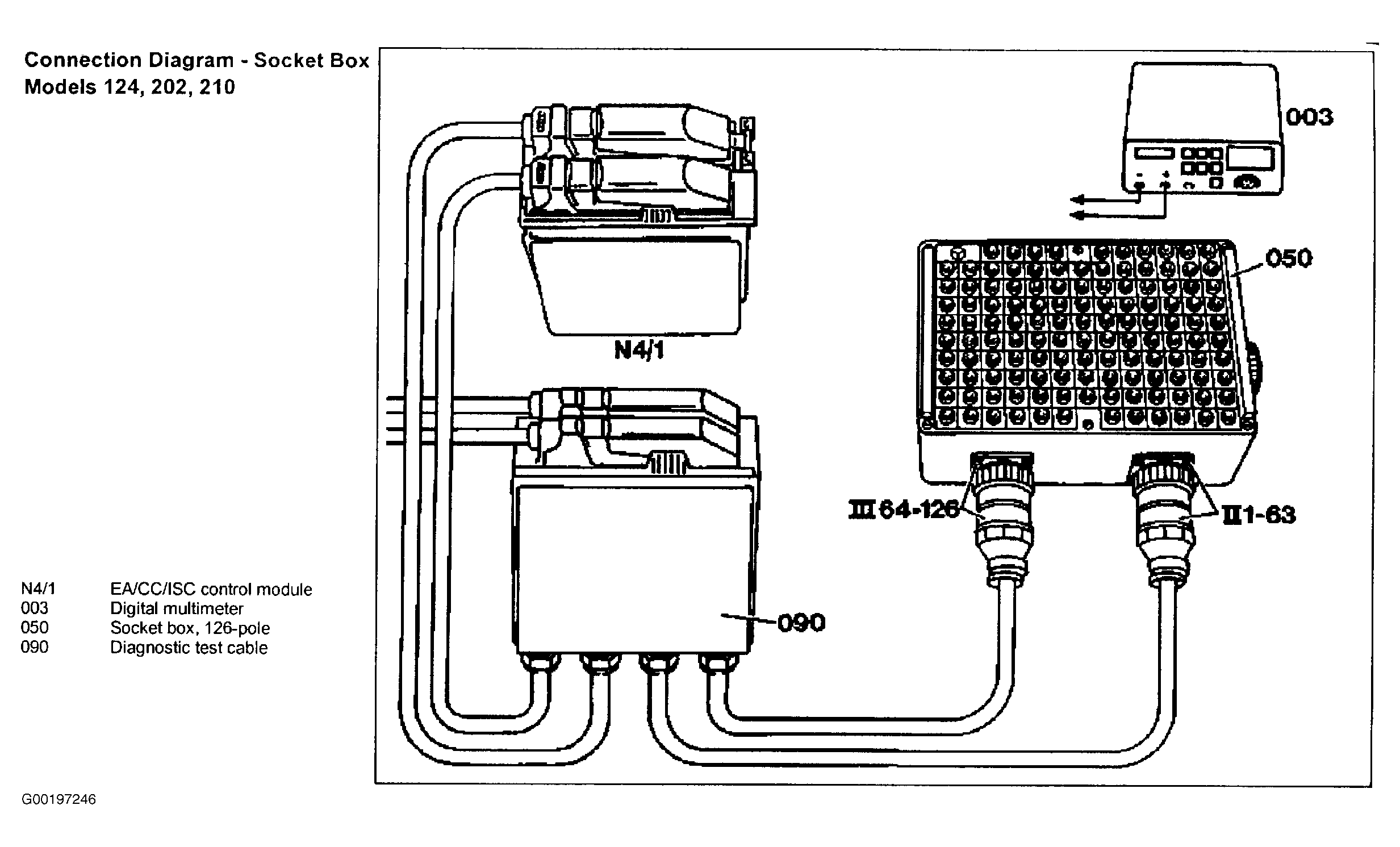

Fig 2: Connecting Socket Box To Control Module (Models 124, 202 & 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

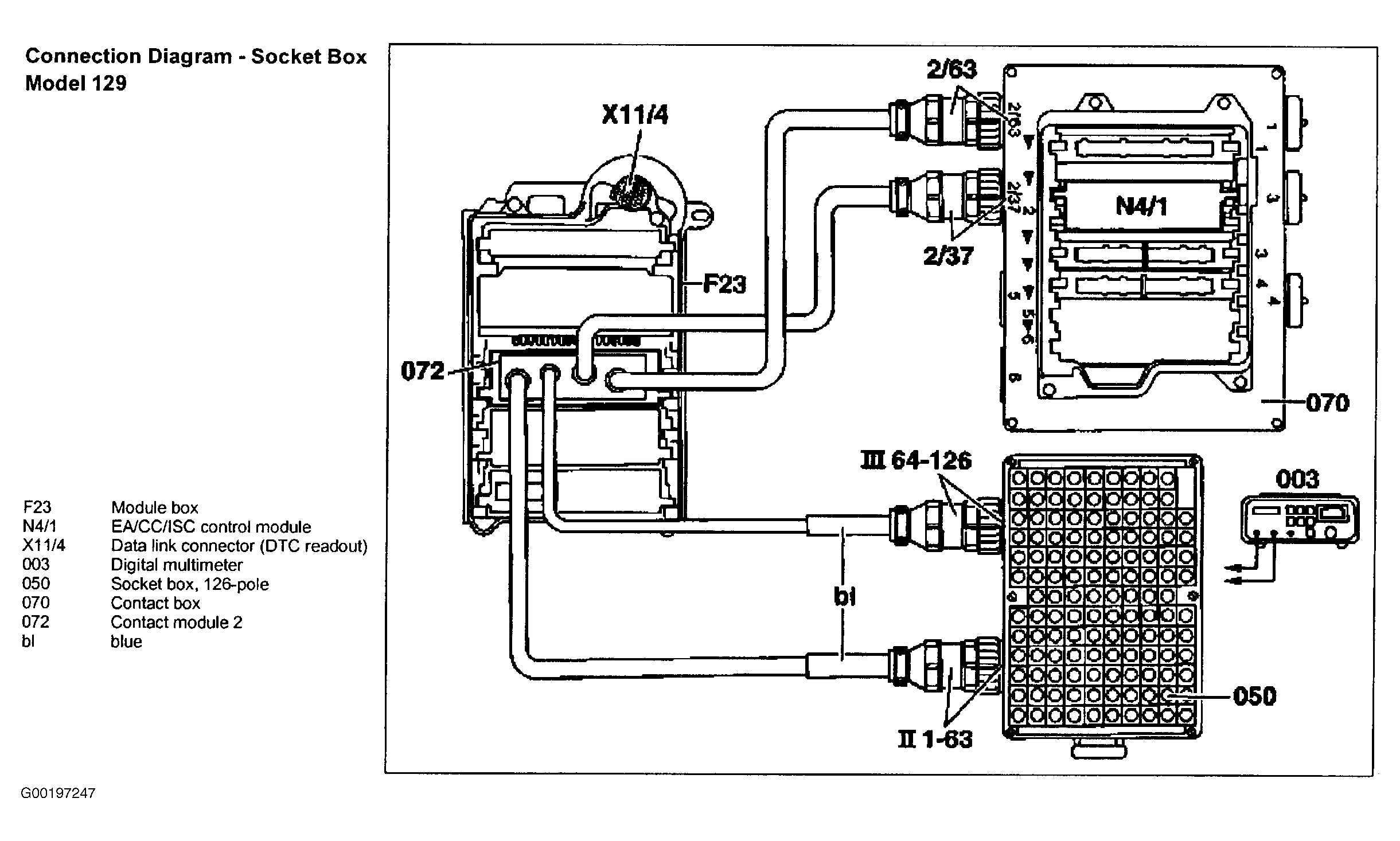

Fig 3: Connecting Socket Box To Control Module (Model 129)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

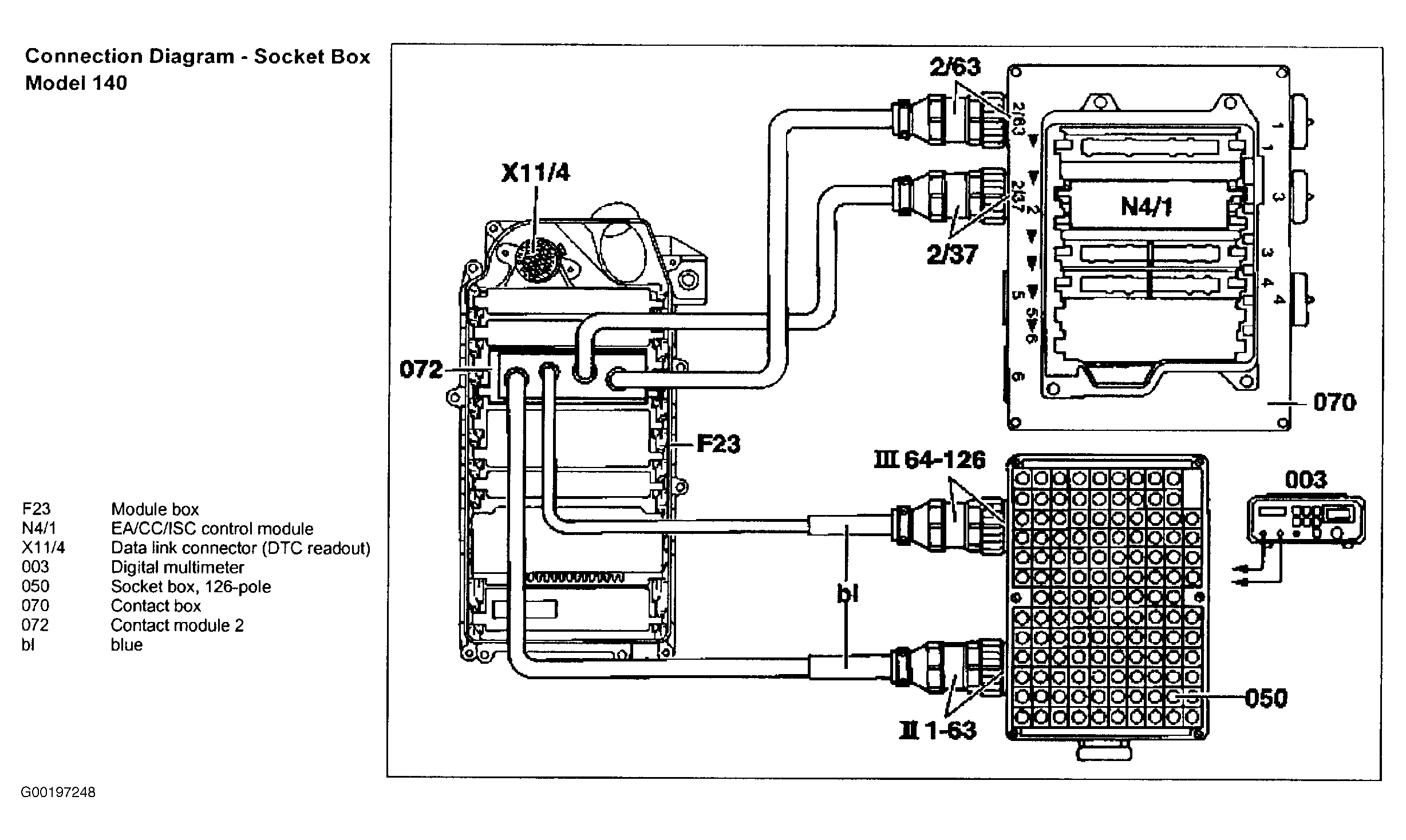

Fig 4: Connecting Socket Box To Control Module (Model 140)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
