Fuel Injector Tests

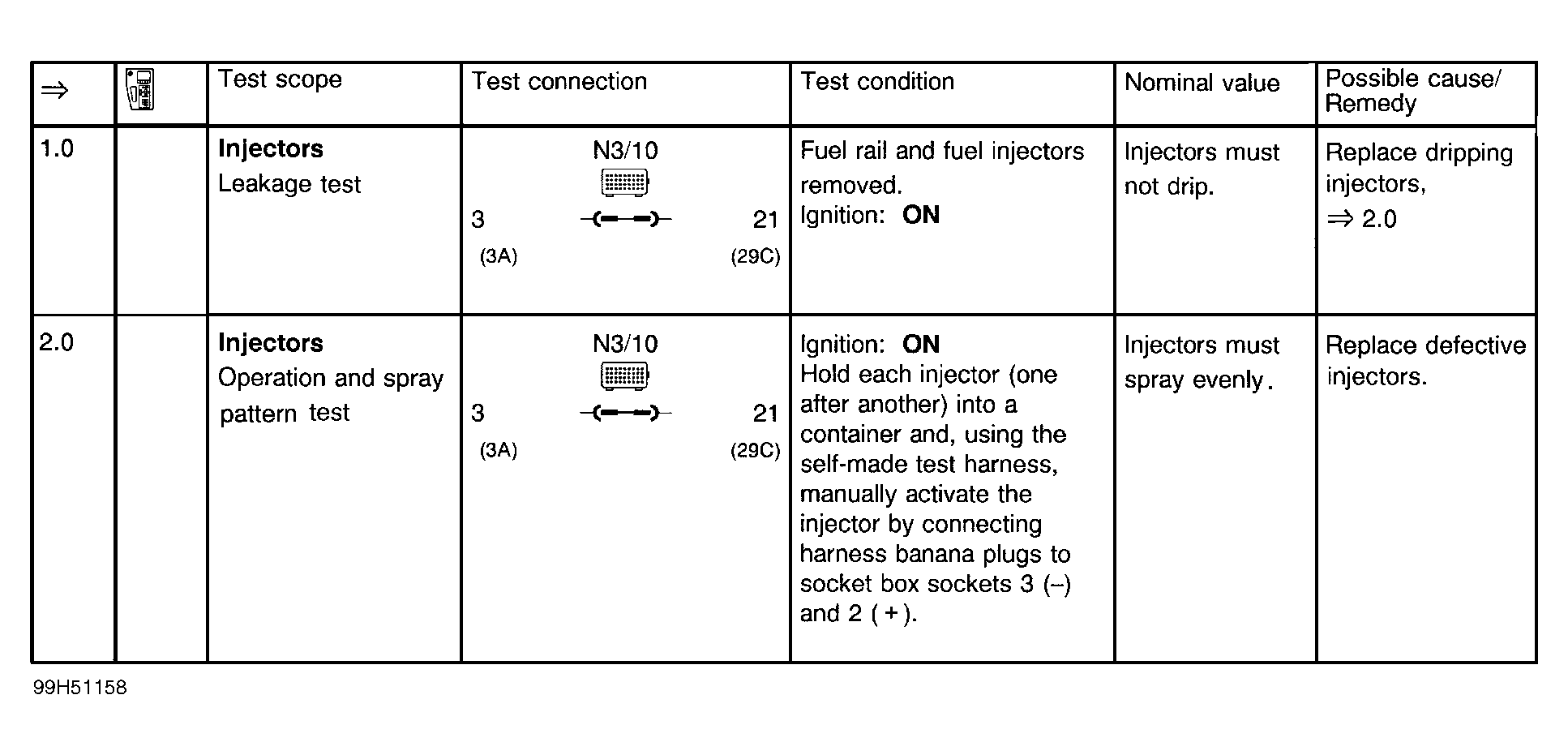

Fig 1: Fuel Injector Tests
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
