Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

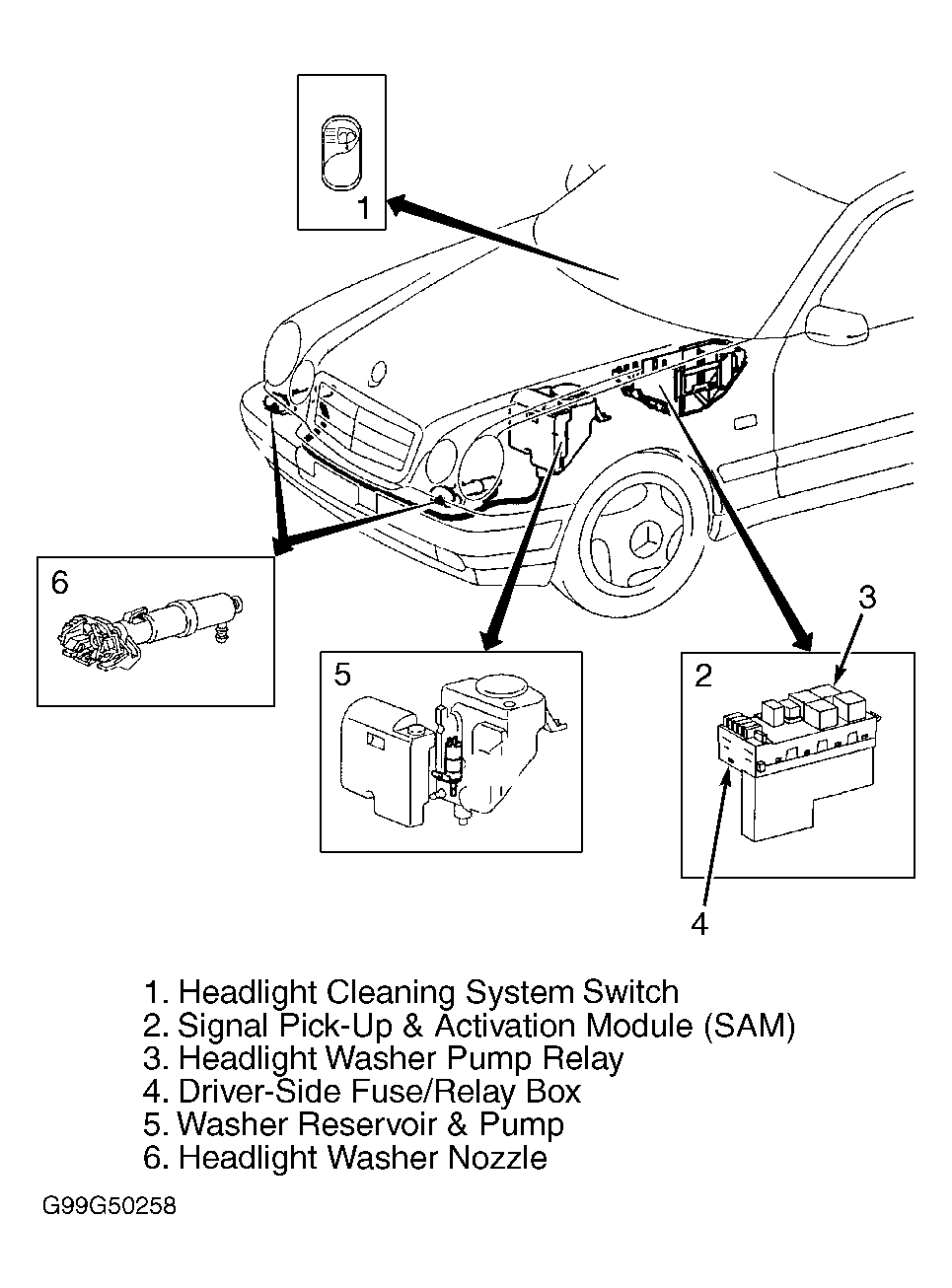

Fig 1: Component Locations (1 Of 47)

G99G50258

Courtesy of DAIMLERCHRYSLER CORPORATION

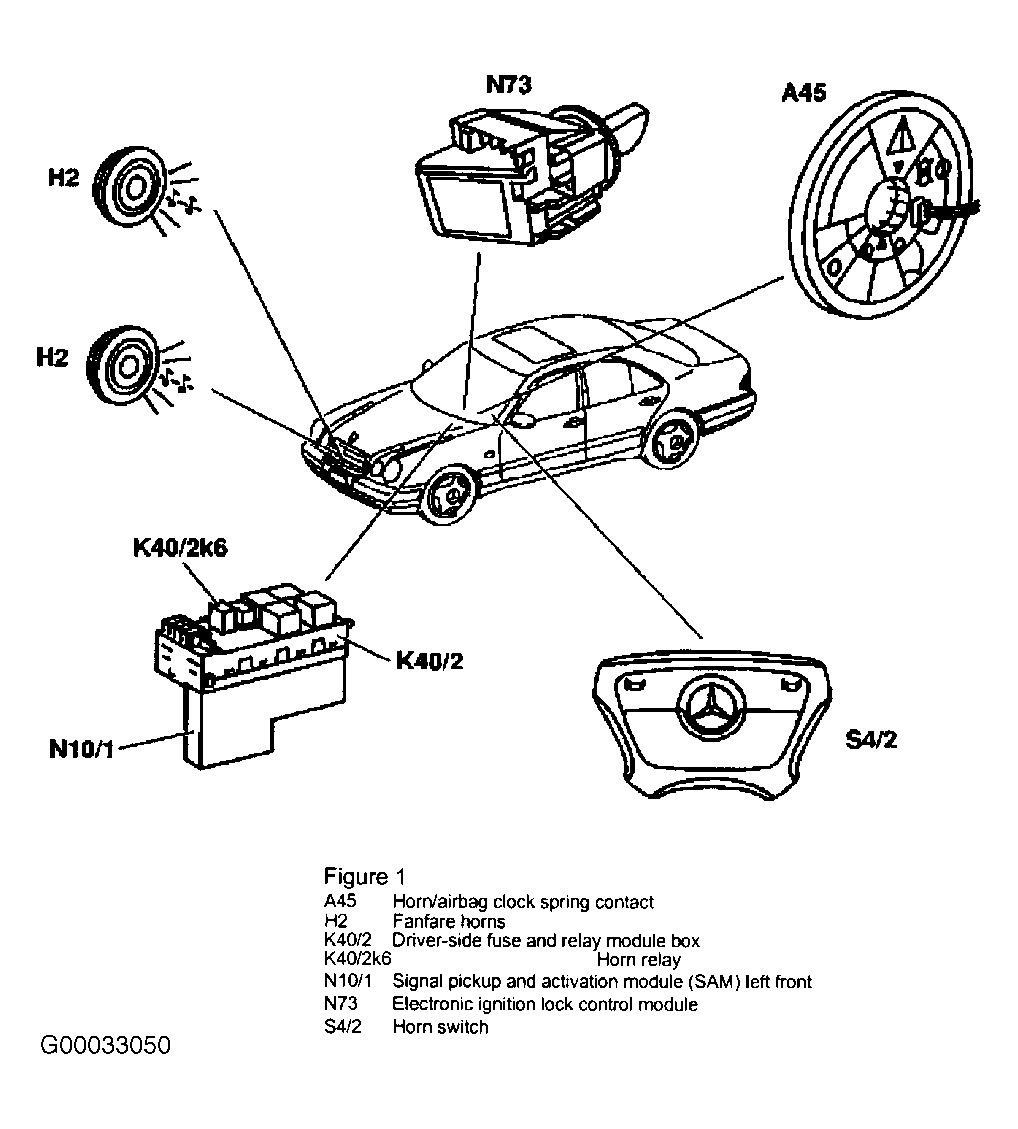

Fig 2: Component Locations (2 Of 47)

G00033050

Courtesy of DAIMLERCHRYSLER CORPORATION

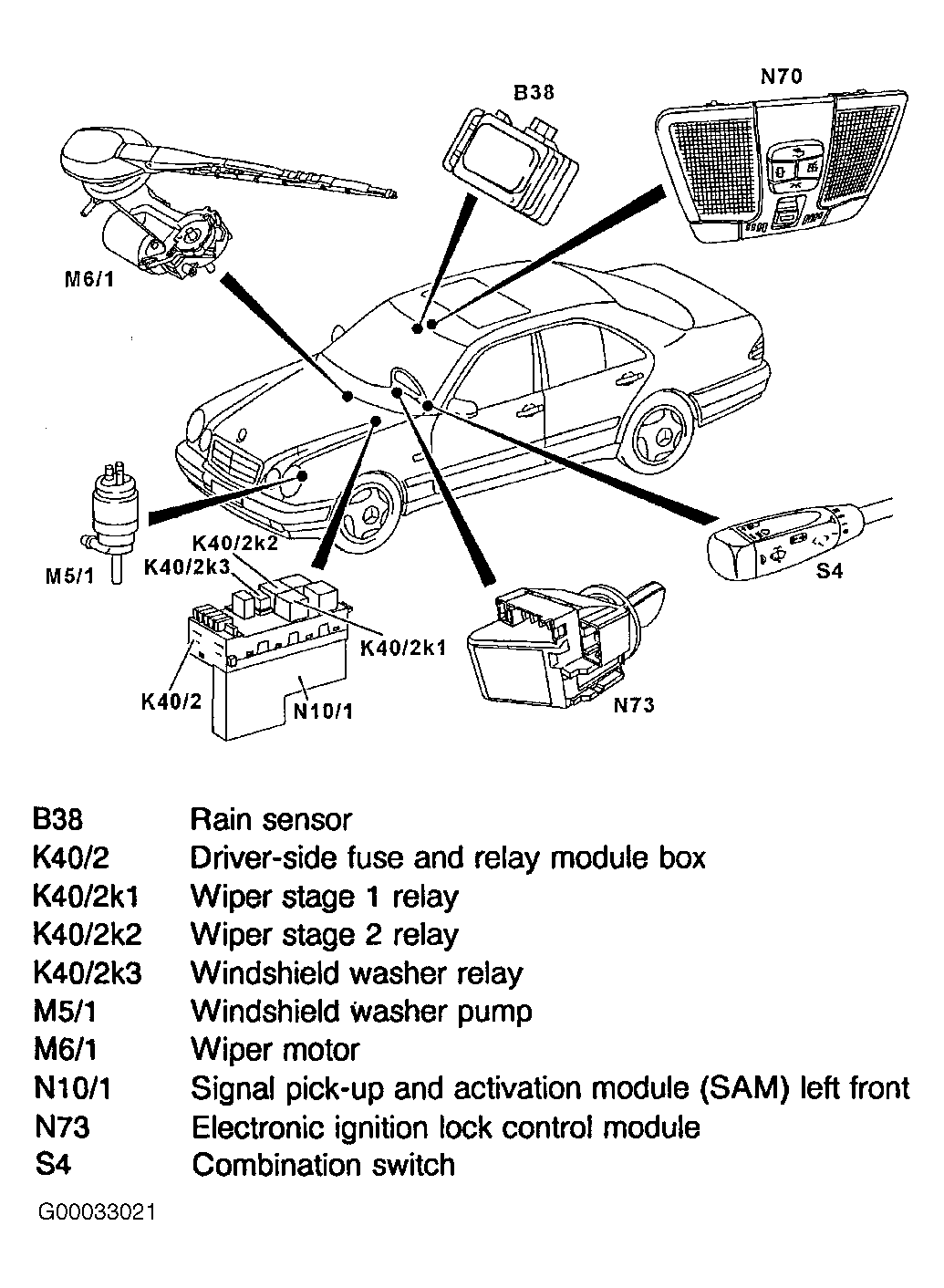

Fig 3: Component Locations (3 Of 47)

G00033021

Courtesy of DAIMLERCHRYSLER CORPORATION

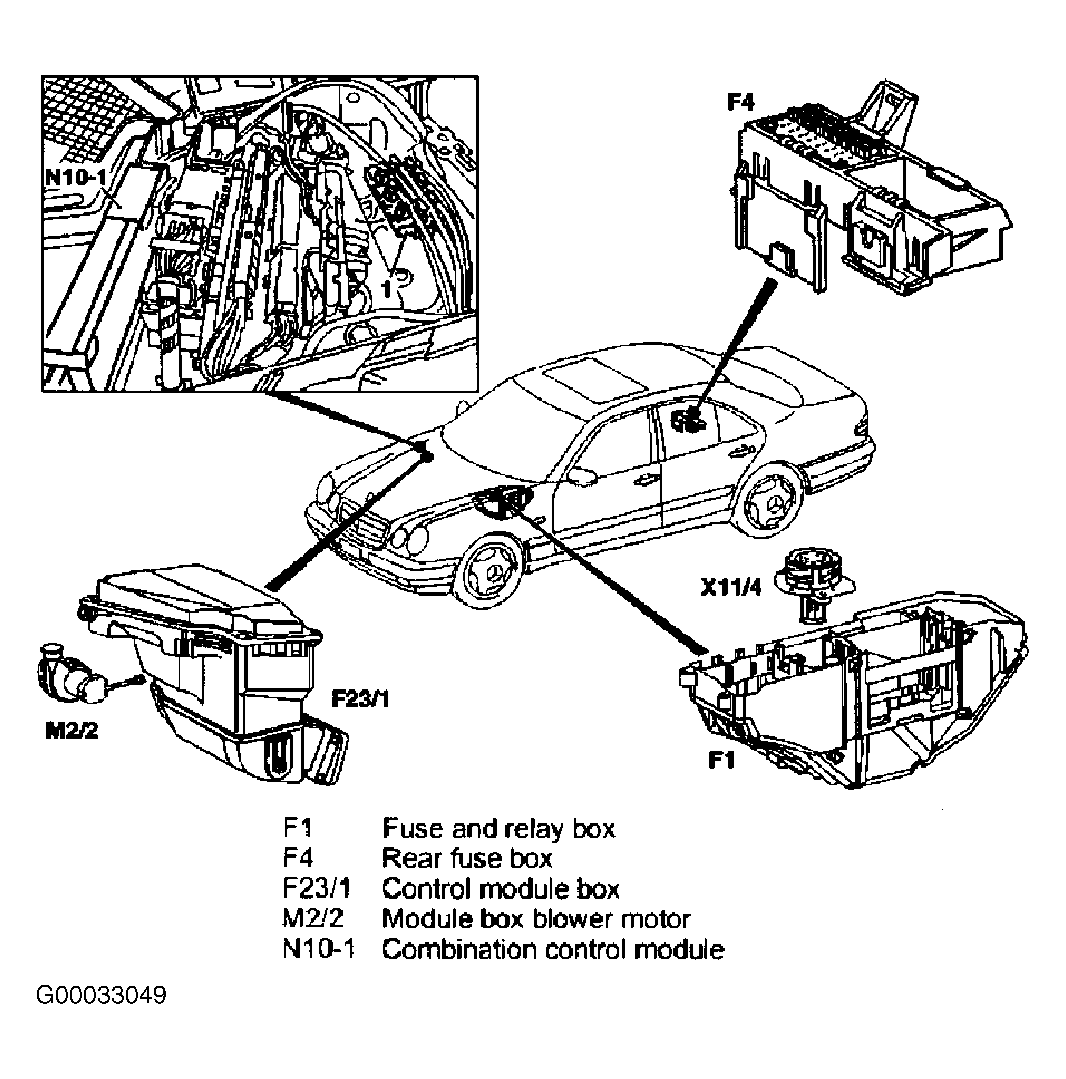

Fig 4: Component Locations (4 Of 47)

G00033049

Courtesy of DAIMLERCHRYSLER CORPORATION

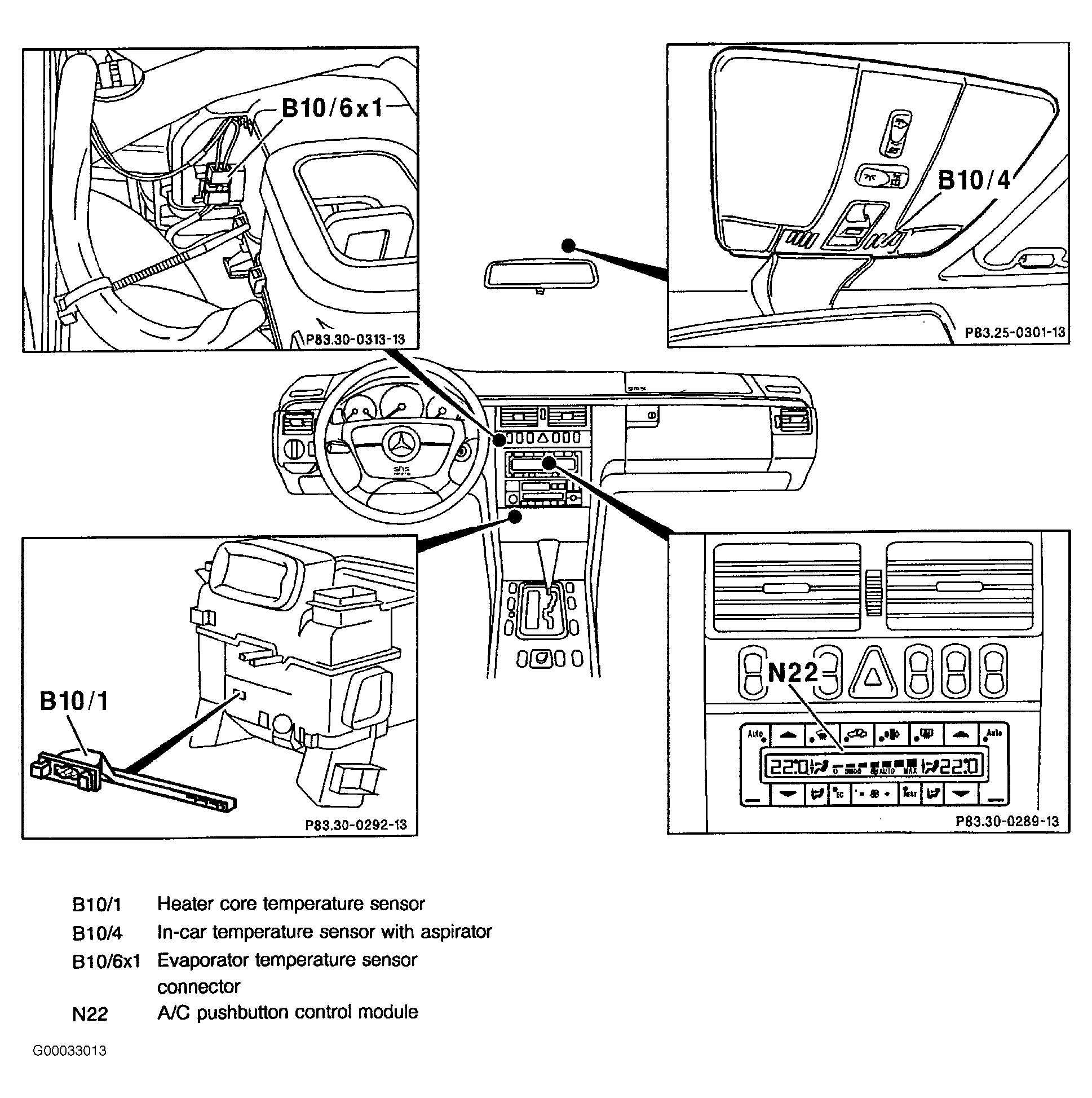

Fig 5: Component Locations (5 Of 47)

G00033013

Courtesy of DAIMLERCHRYSLER CORPORATION

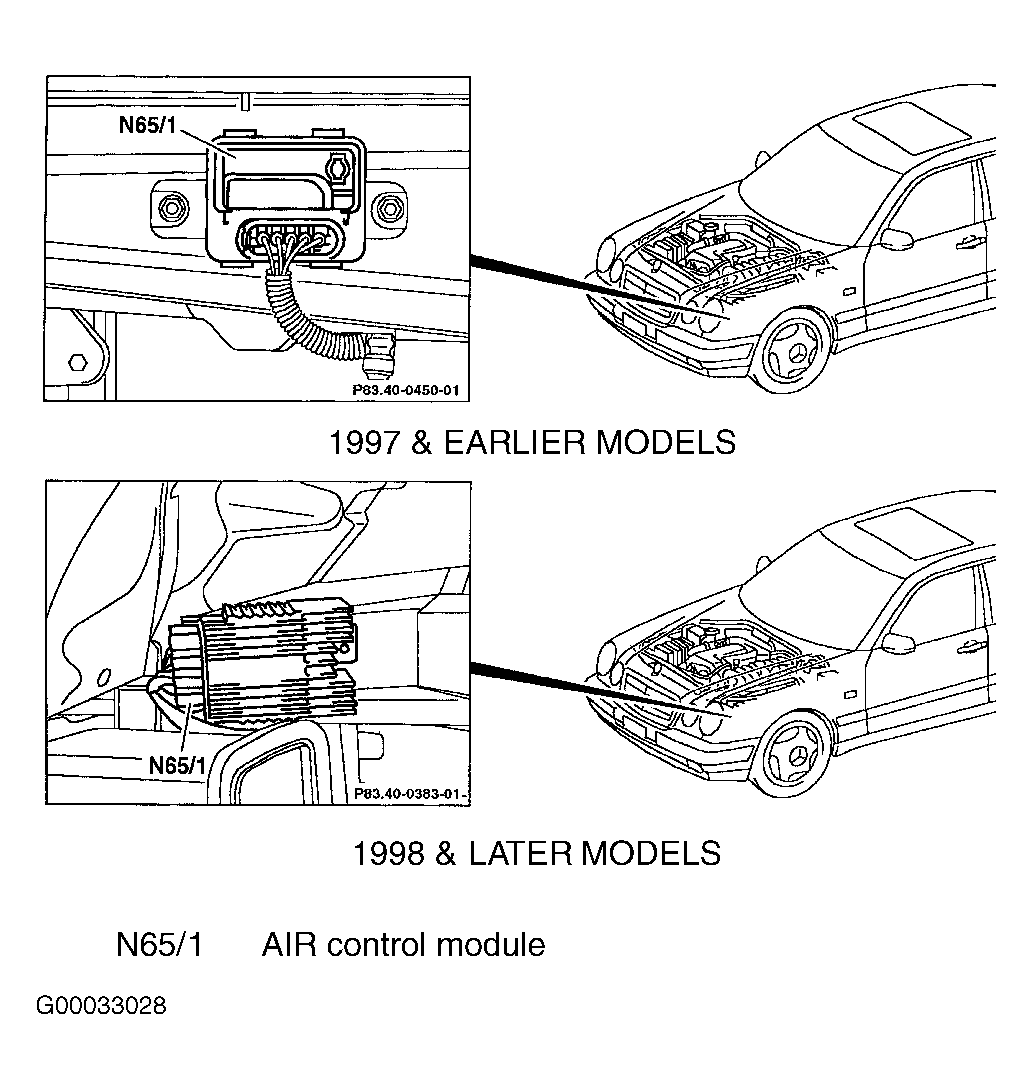

Fig 6: Component Locations (6 Of 47)

G00033028

Courtesy of DAIMLERCHRYSLER CORPORATION

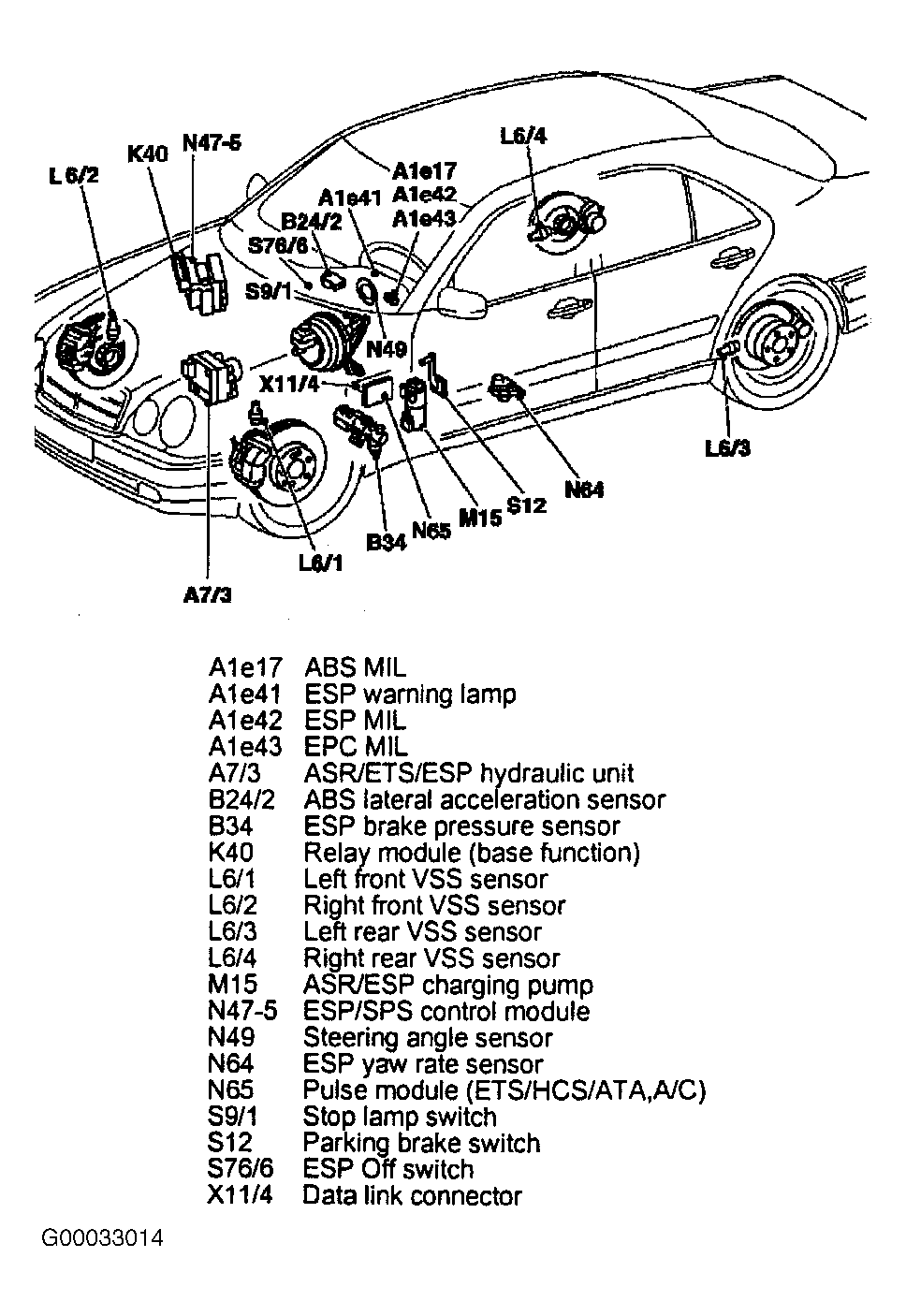

Fig 7: Component Locations (7 Of 47)

G00033014

Courtesy of DAIMLERCHRYSLER CORPORATION

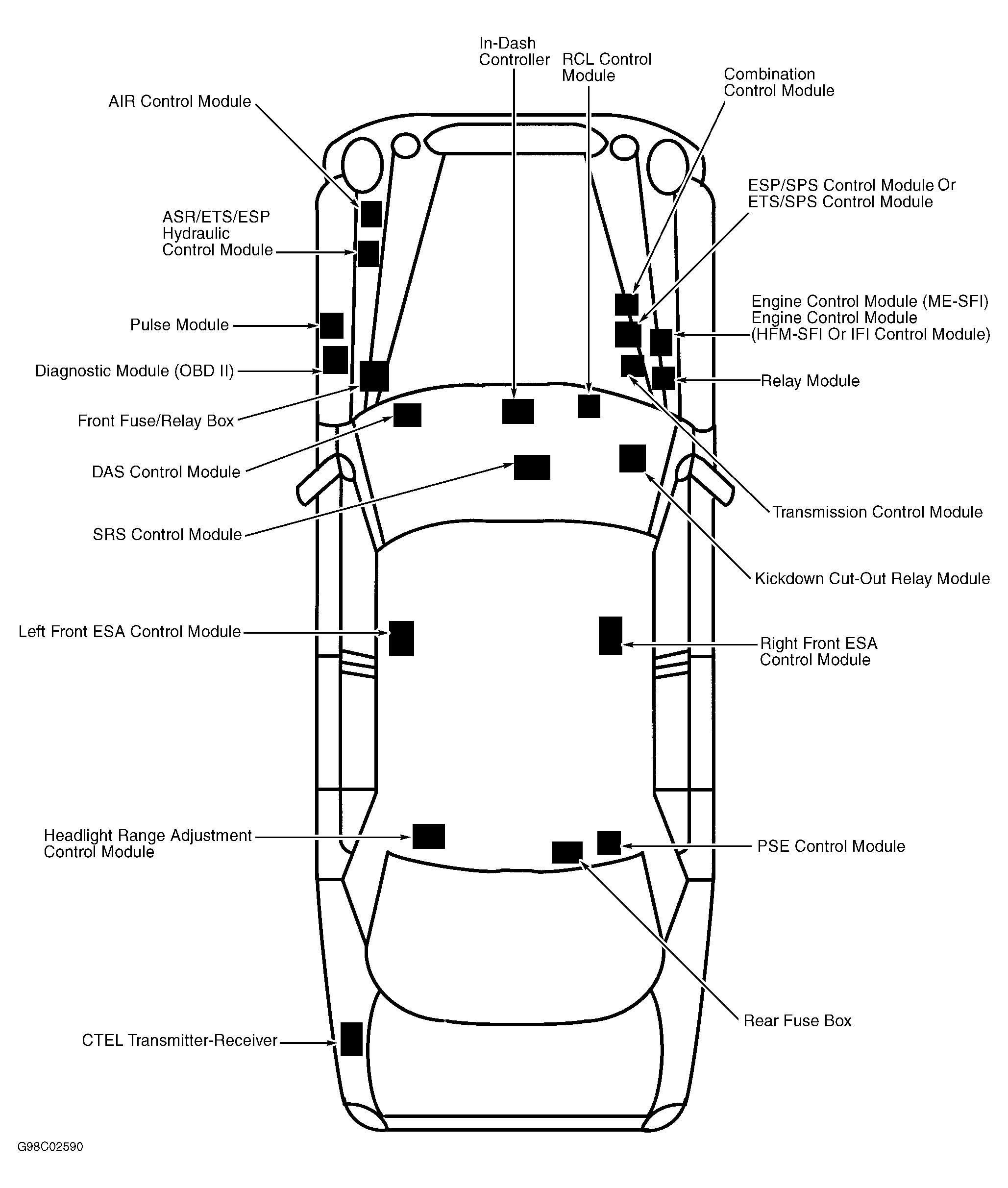

Fig 8: Component Locations (8 Of 47)

G98C02590

Courtesy of DAIMLERCHRYSLER CORPORATION

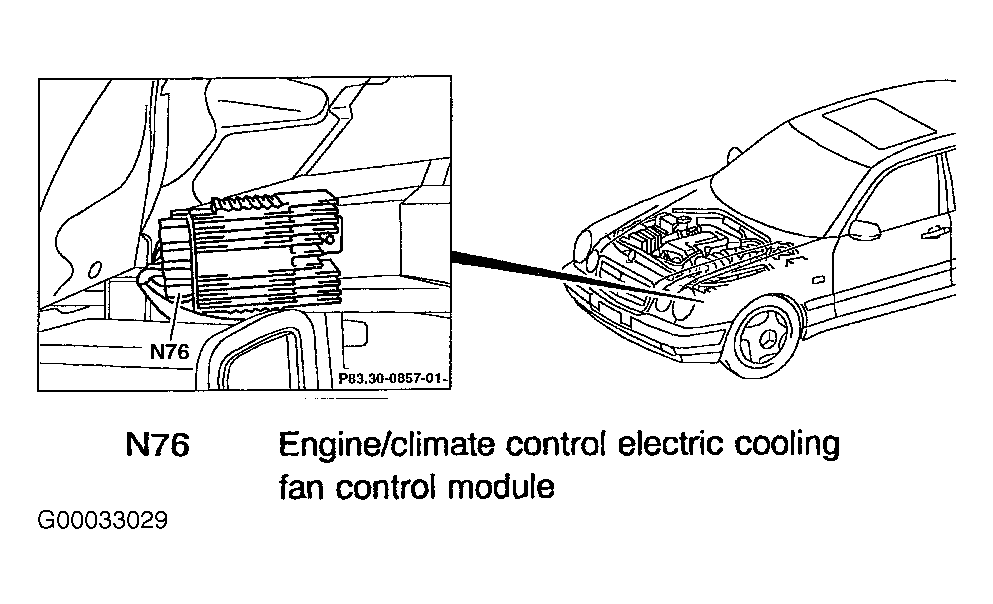

Fig 9: Component Locations (9 Of 47)

G00033029

Courtesy of DAIMLERCHRYSLER CORPORATION

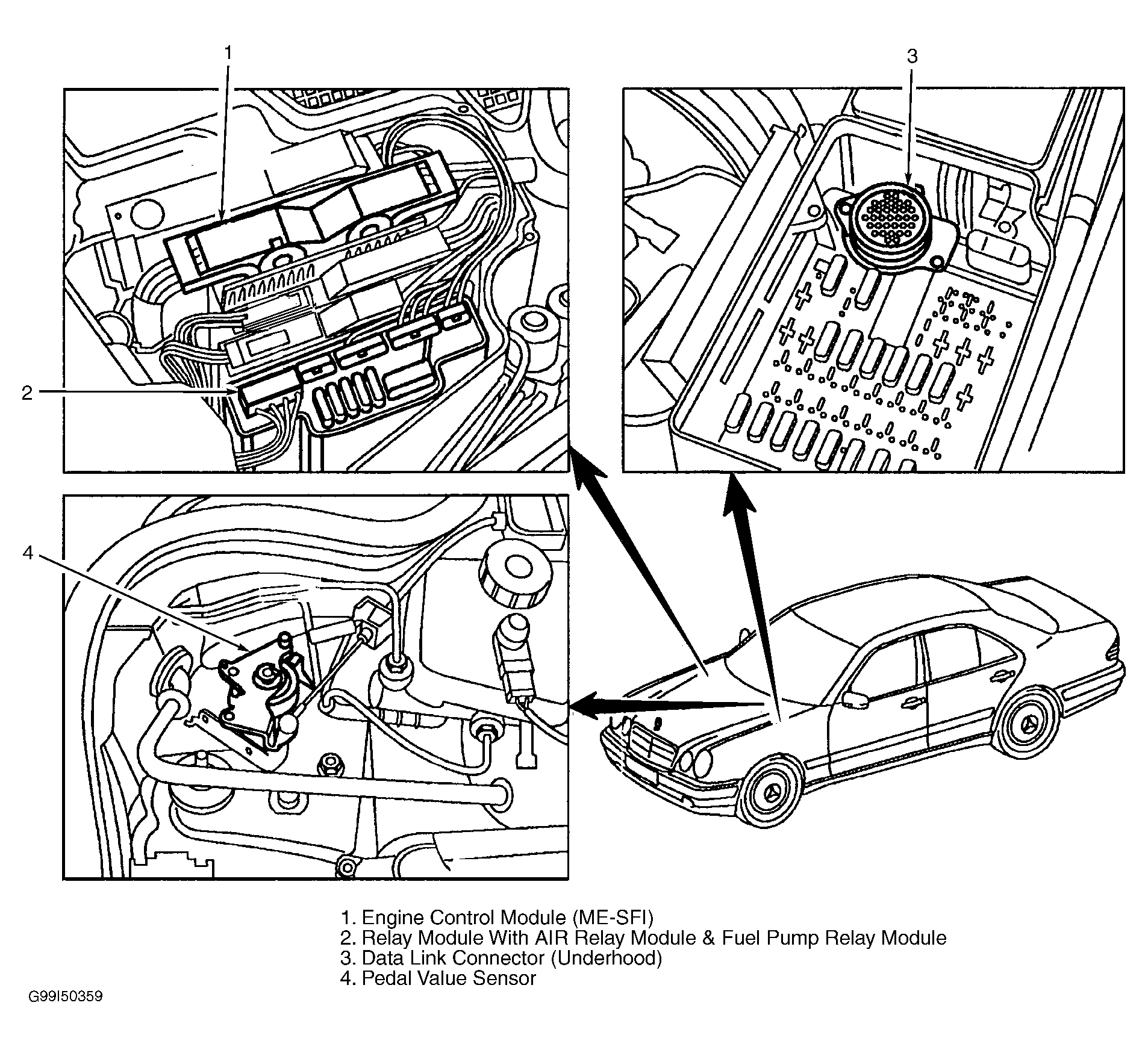

Fig 10: Component Locations (10 Of 47)

G99I50359

Courtesy of DAIMLERCHRYSLER CORPORATION

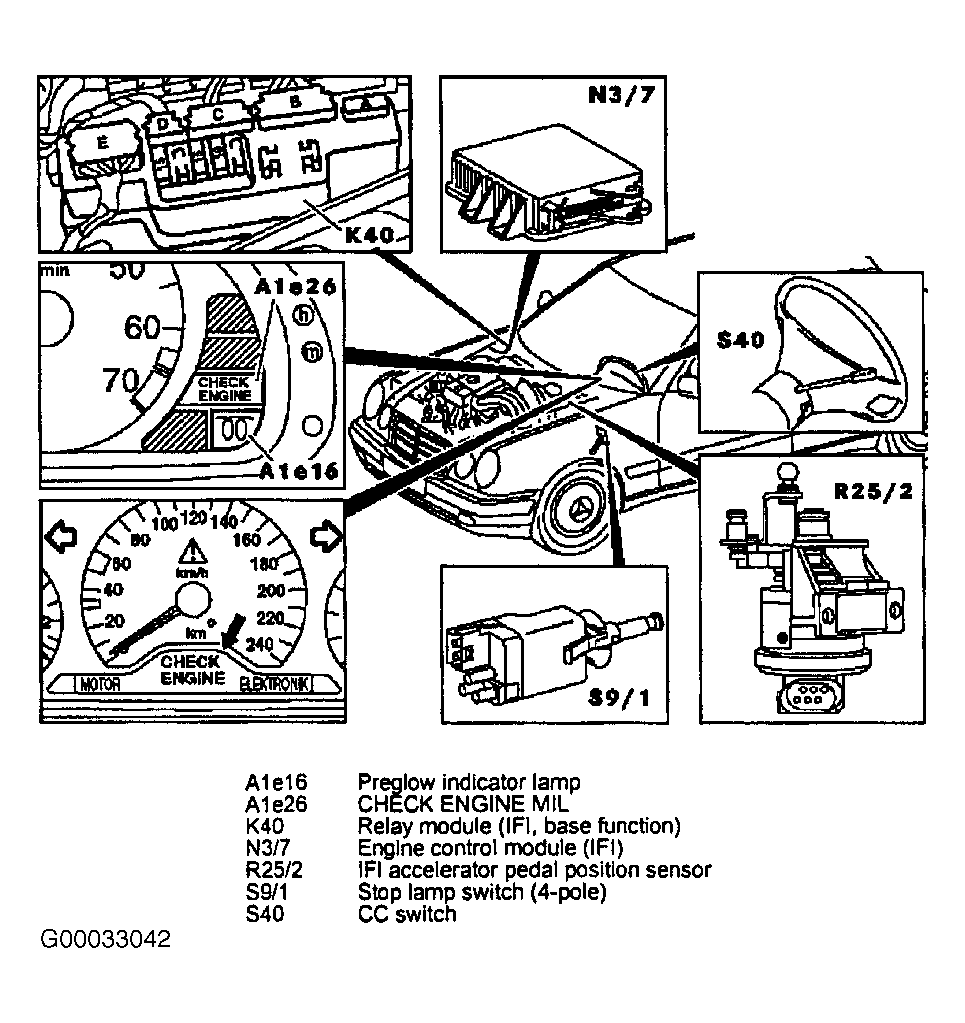

Fig 11: Component Locations (11 Of 47)

G00033042

Courtesy of DAIMLERCHRYSLER CORPORATION

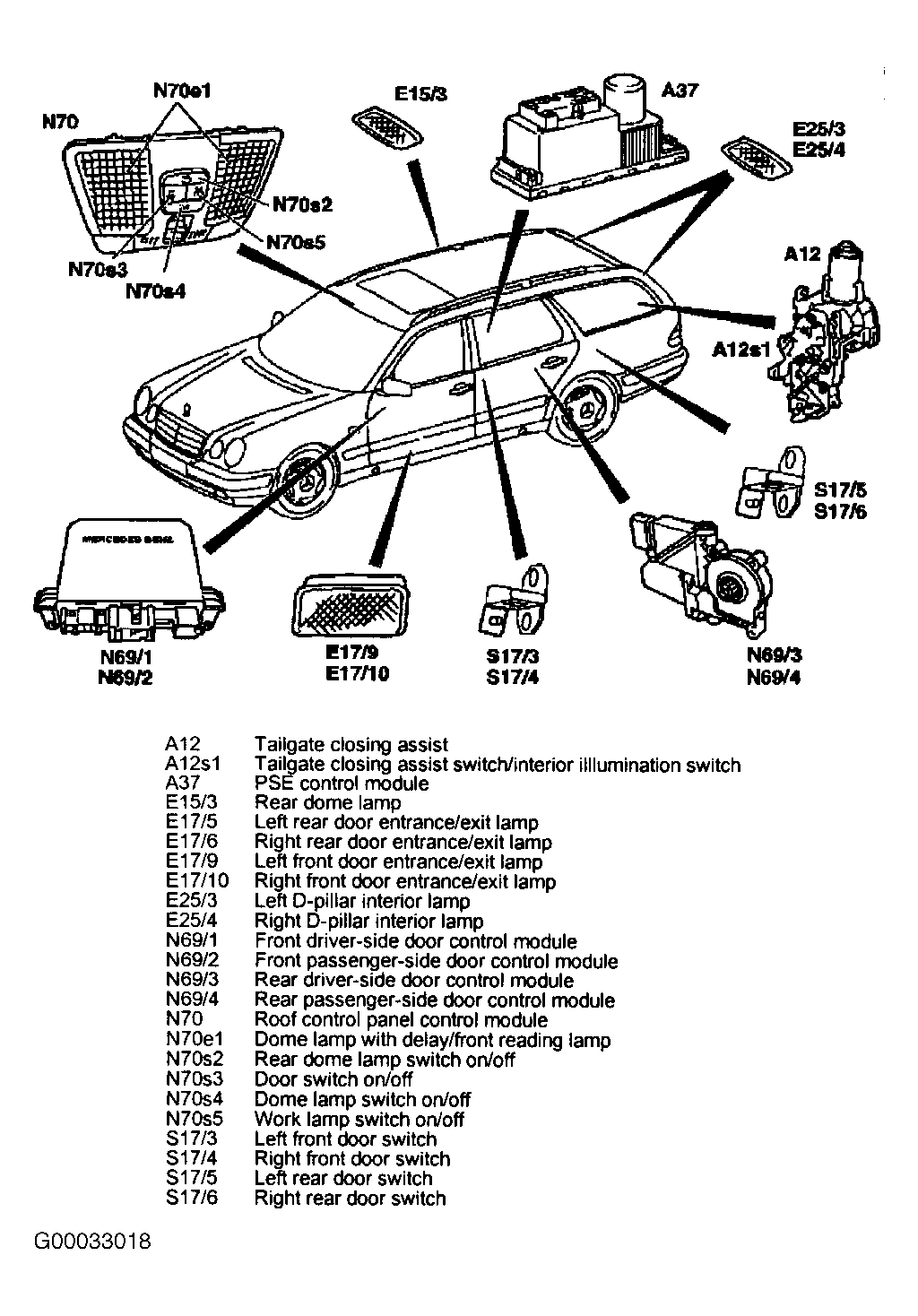

Fig 12: Component Locations (12 Of 47)

G00033018

Courtesy of DAIMLERCHRYSLER CORPORATION

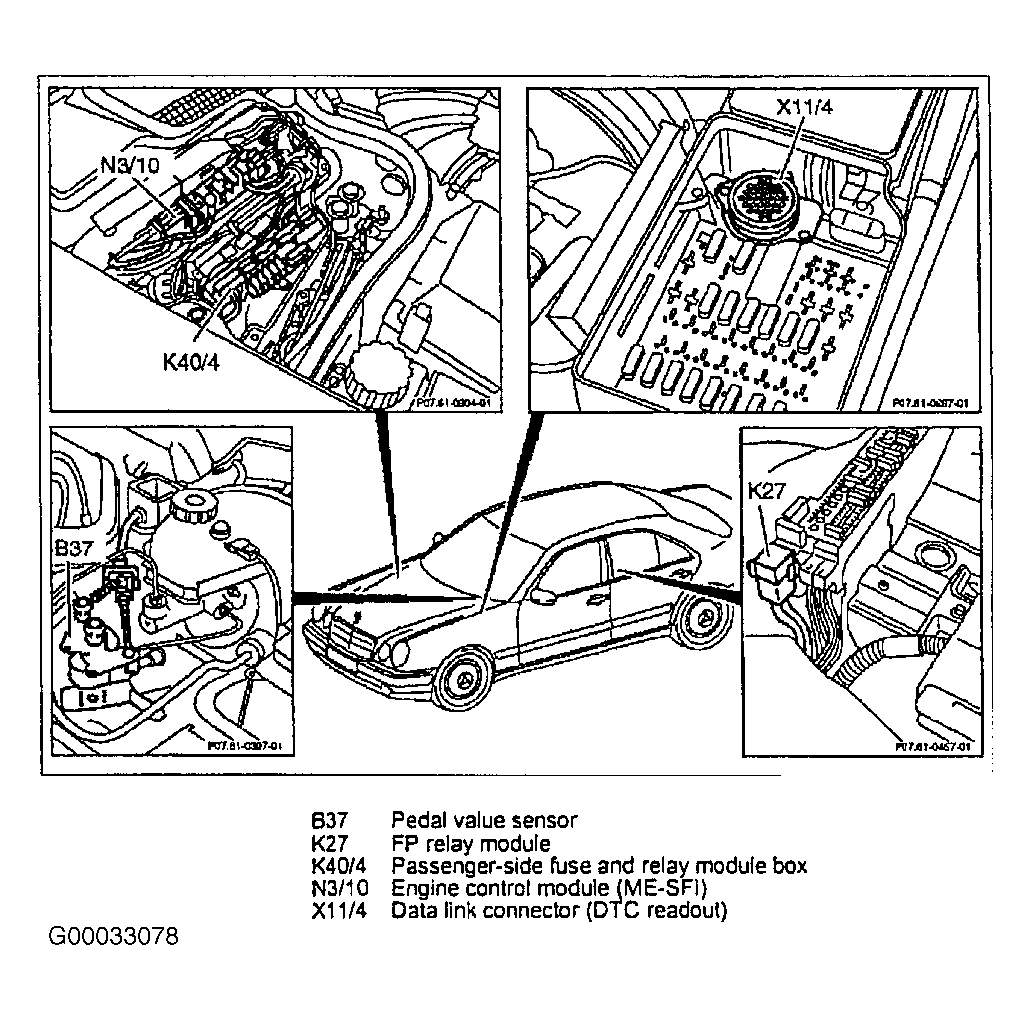

Fig 13: Component Locations (13 0f 47)

G00033078

Courtesy of DAIMLERCHRYSLER CORPORATION

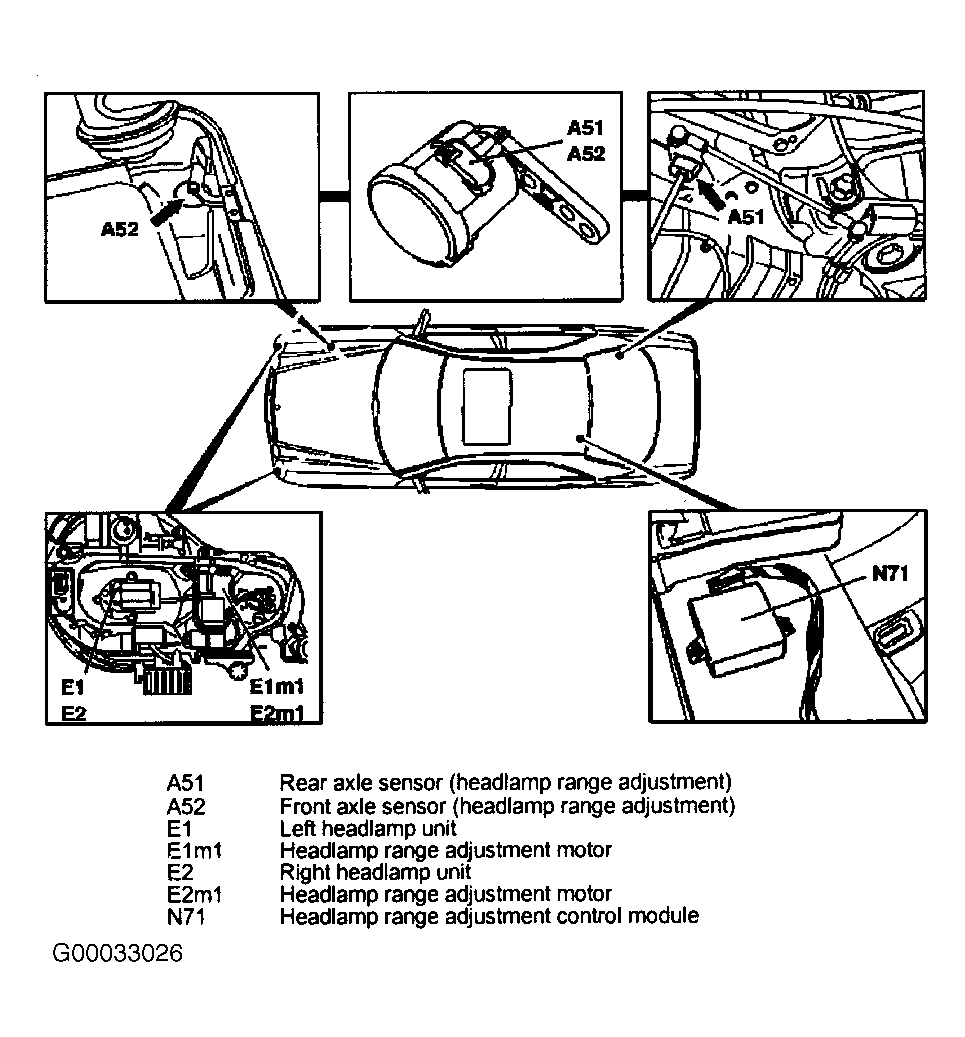

Fig 14: Component Locations (14 Of 47)

G00033026

Courtesy of DAIMLERCHRYSLER CORPORATION

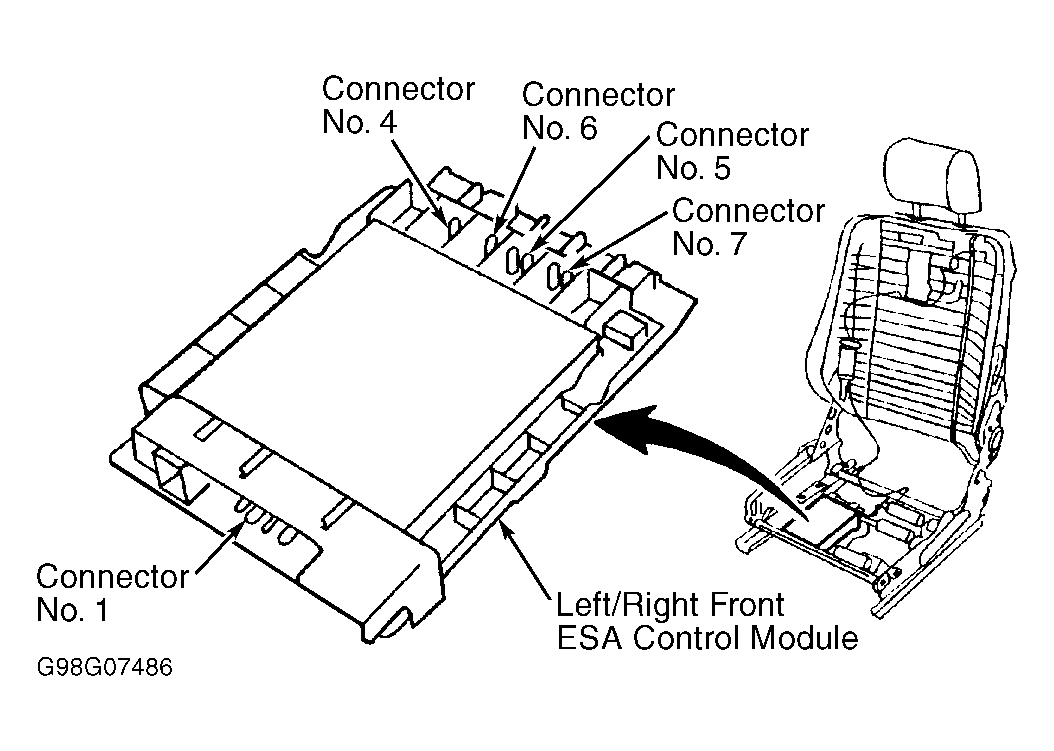

Fig 15: Component Locations (15 Of 47)

G98G07486

Courtesy of DAIMLERCHRYSLER CORPORATION

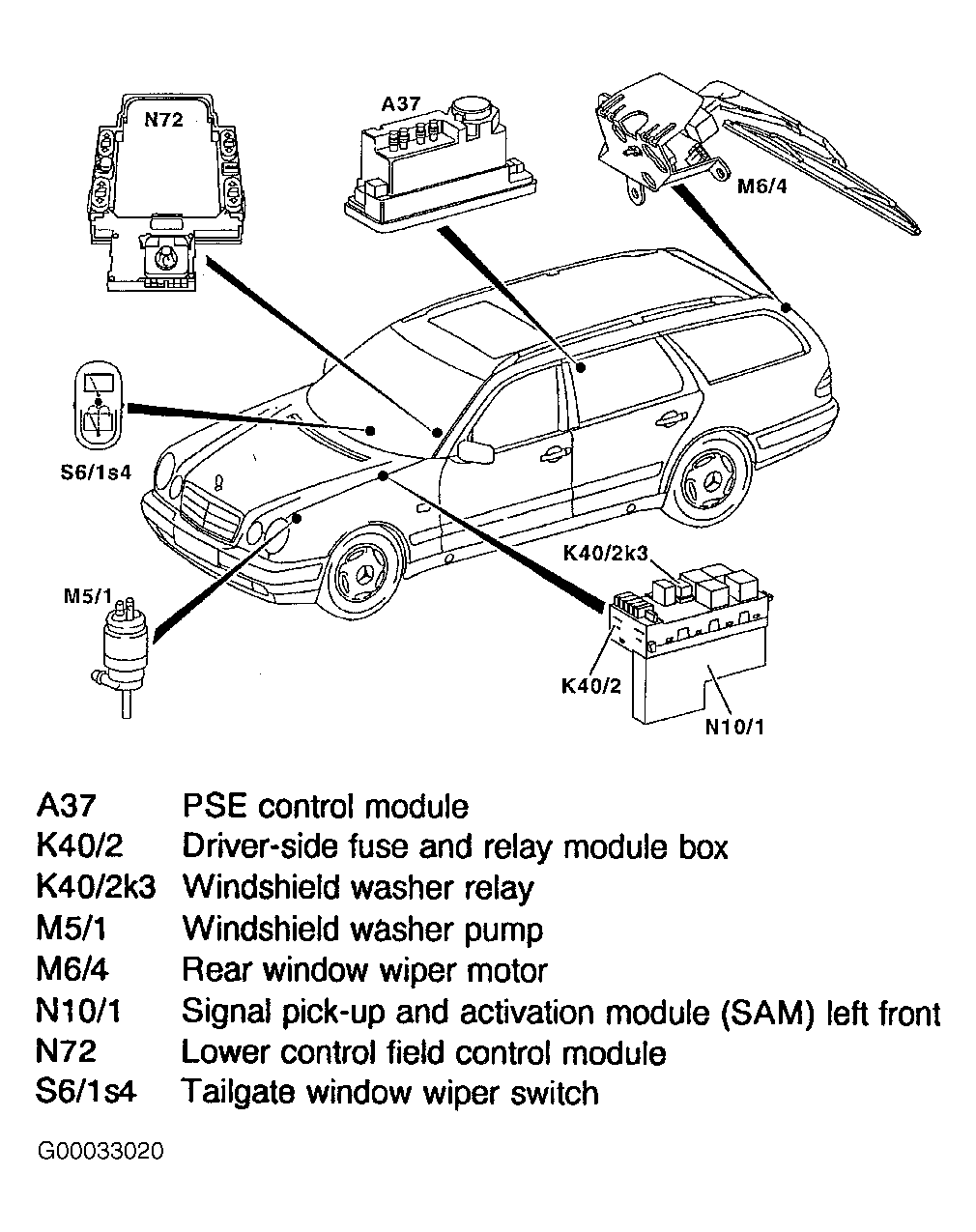

Fig 16: Component Locations (16 Of 47)

G00033020

Courtesy of DAIMLERCHRYSLER CORPORATION

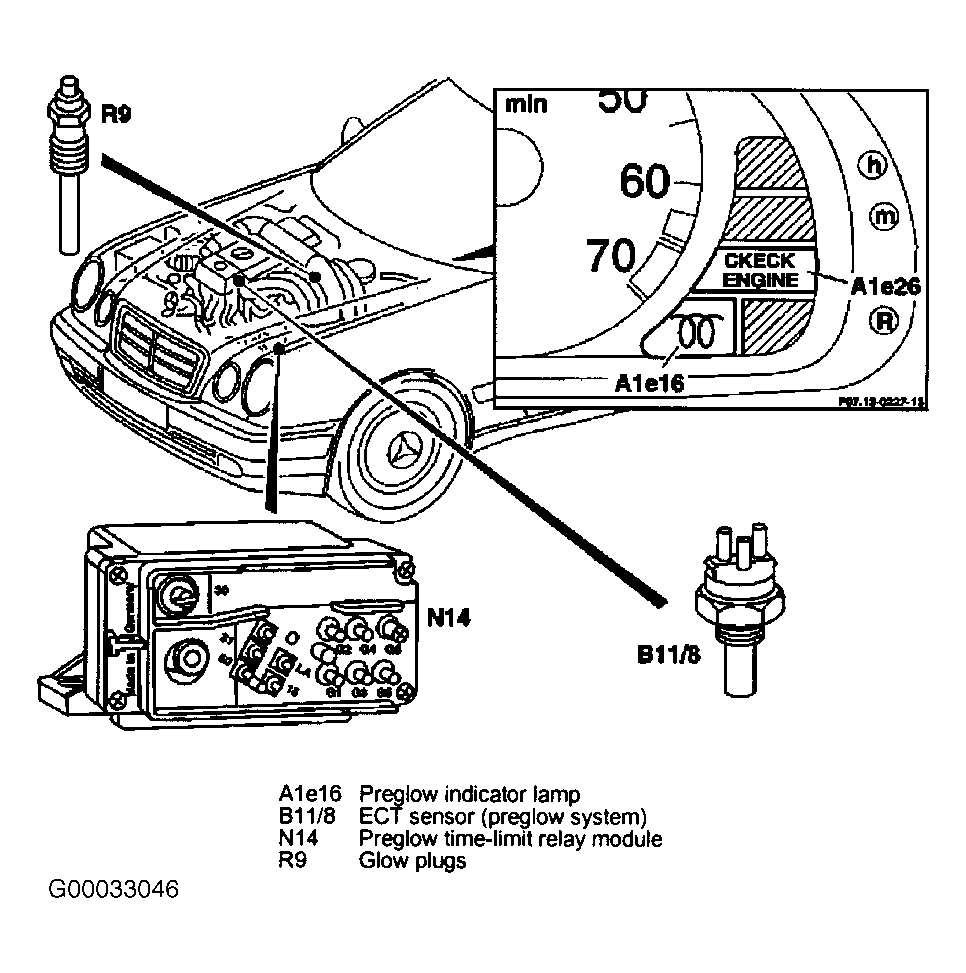

Fig 17: Component Locations (17 Of 47)

G00033046

Courtesy of DAIMLERCHRYSLER CORPORATION

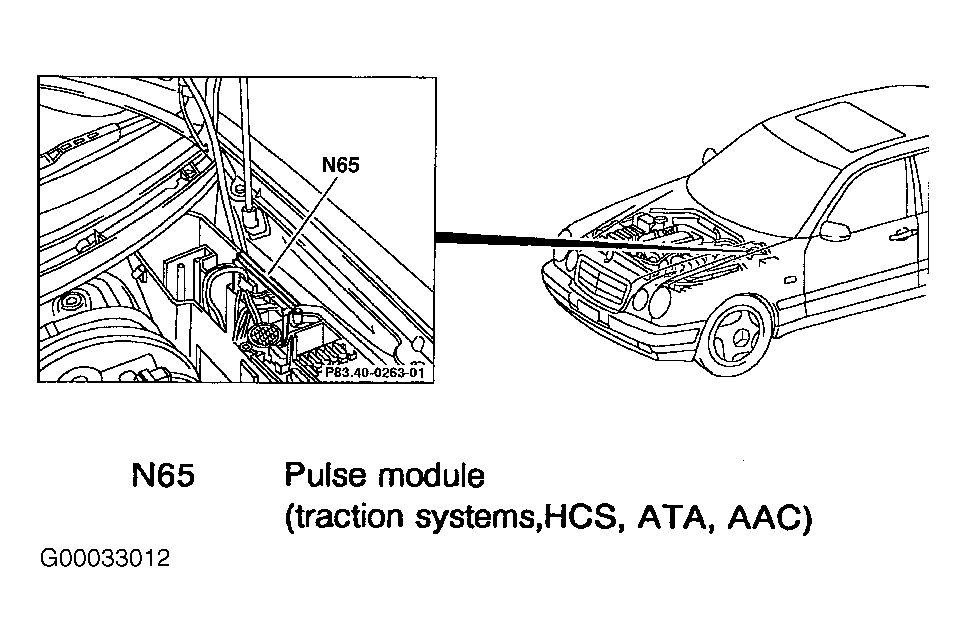

Fig 18: Component Locations (18 Of 47)

G00033012

Courtesy of DAIMLERCHRYSLER CORPORATION

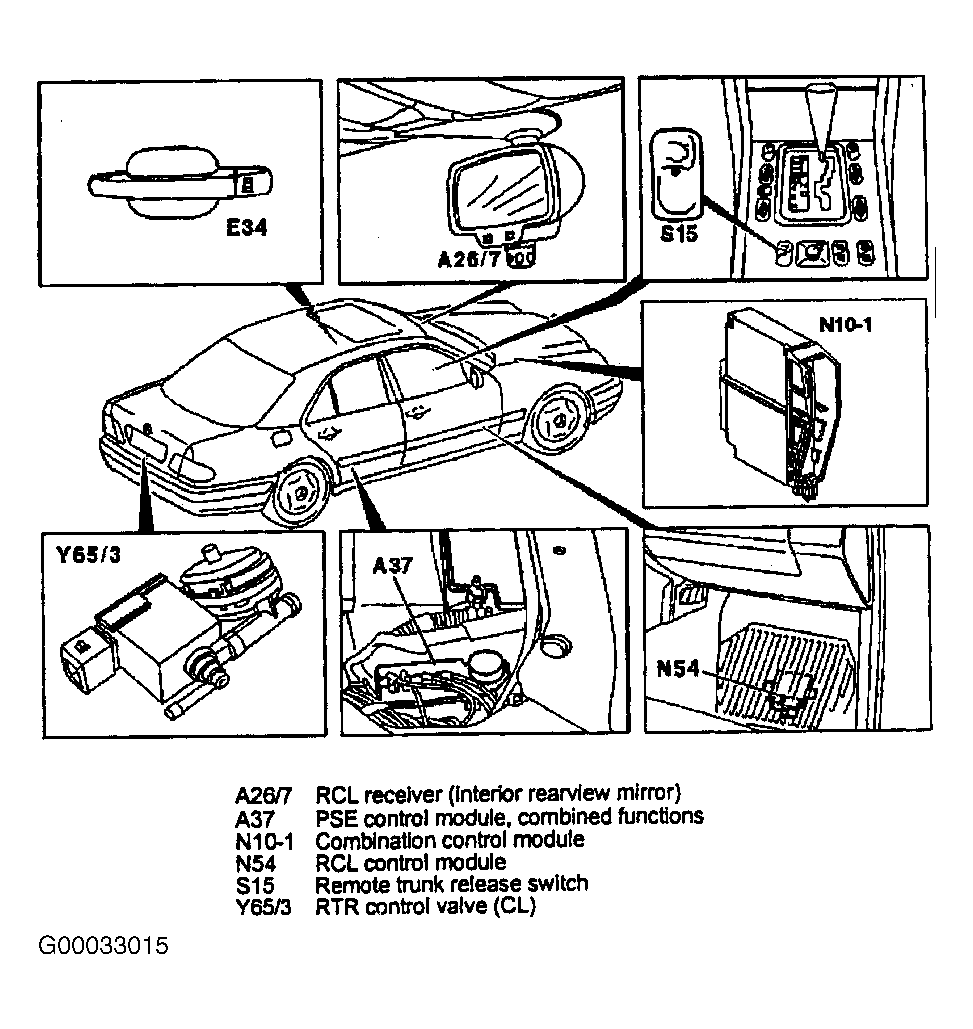

Fig 19: Component Locations (19 Of 47)

G00033015

Courtesy of DAIMLERCHRYSLER CORPORATION

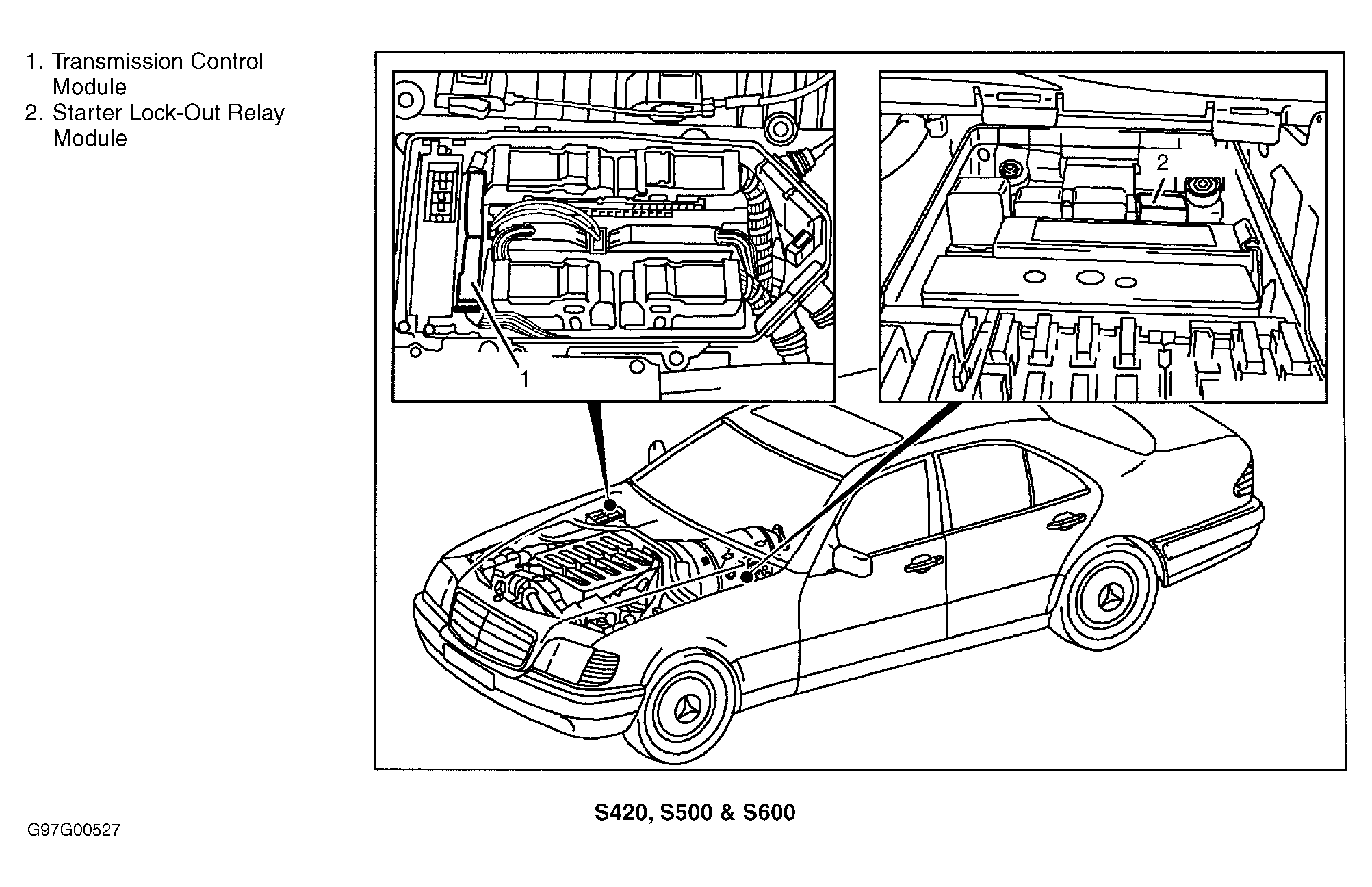

Fig 20: Component Locations (20 Of 47)

G97G00527

Courtesy of DAIMLERCHRYSLER CORPORATION

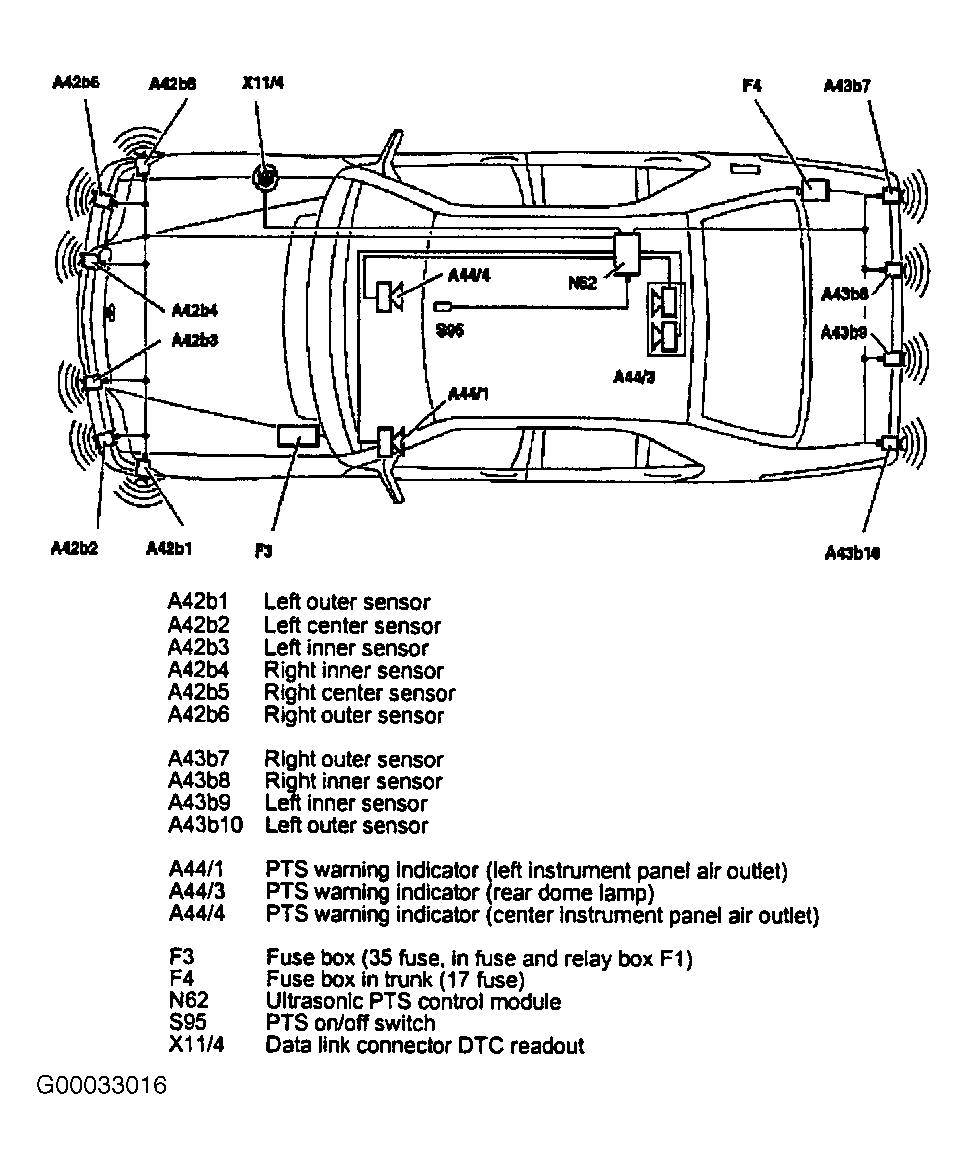

Fig 21: Component Locations (21 Of 47)

G00033016

Courtesy of DAIMLERCHRYSLER CORPORATION

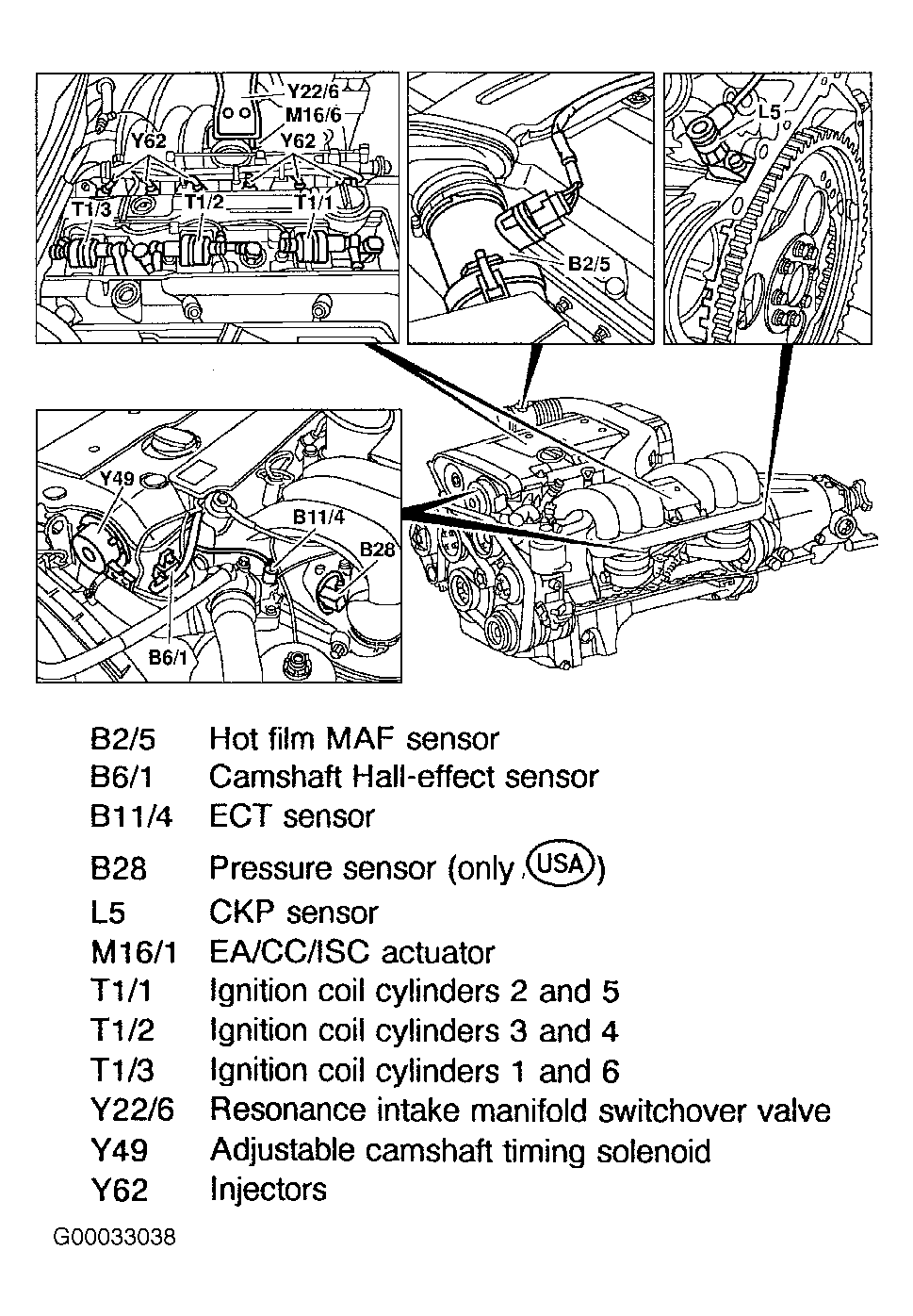

Fig 22: Component Locations (22 Of 47)

G00033038

Courtesy of DAIMLERCHRYSLER CORPORATION

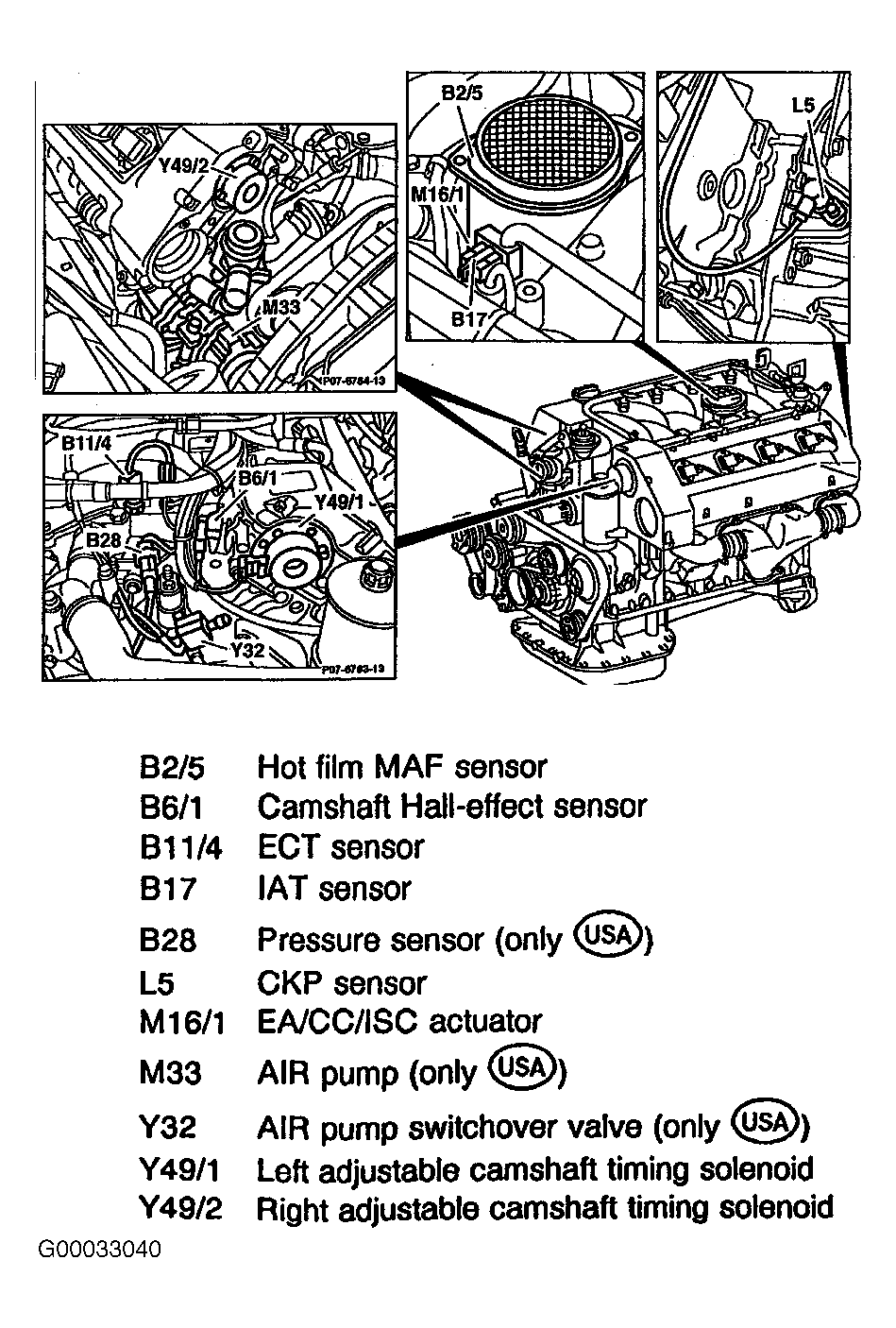

Fig 23: Component Locations (23 Of 47)

G00033040

Courtesy of DAIMLERCHRYSLER CORPORATION

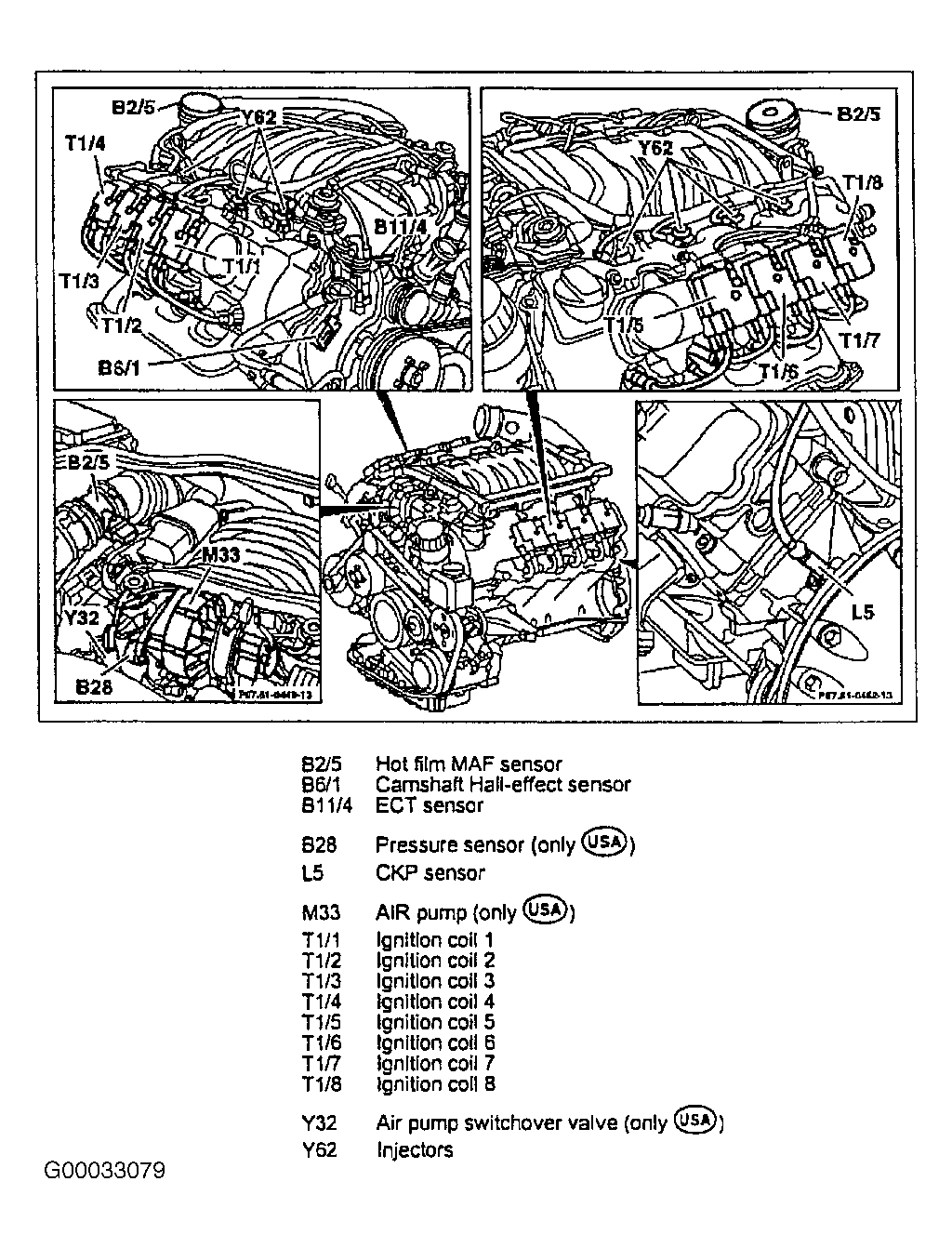

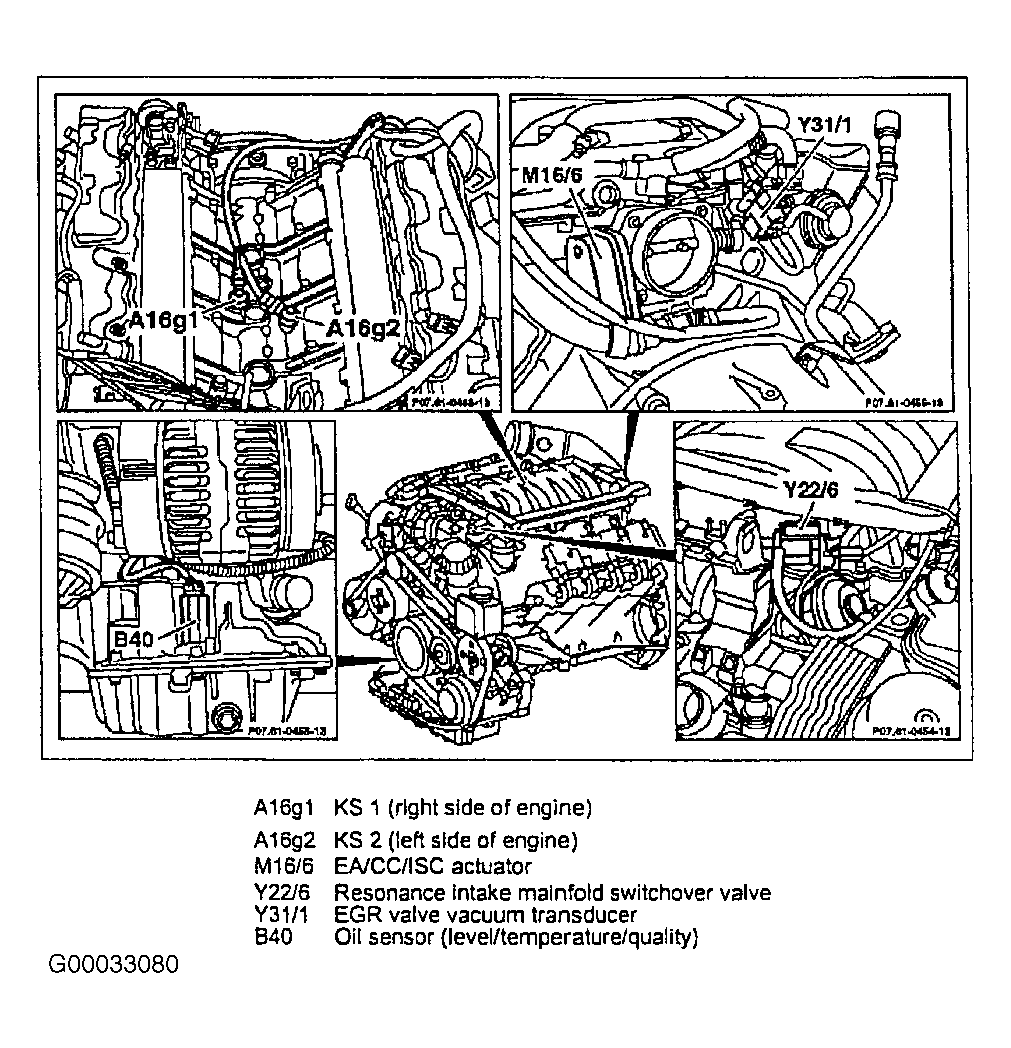

Fig 24: Component Locations (24 0f 47)

G00033079

Courtesy of DAIMLERCHRYSLER CORPORATION

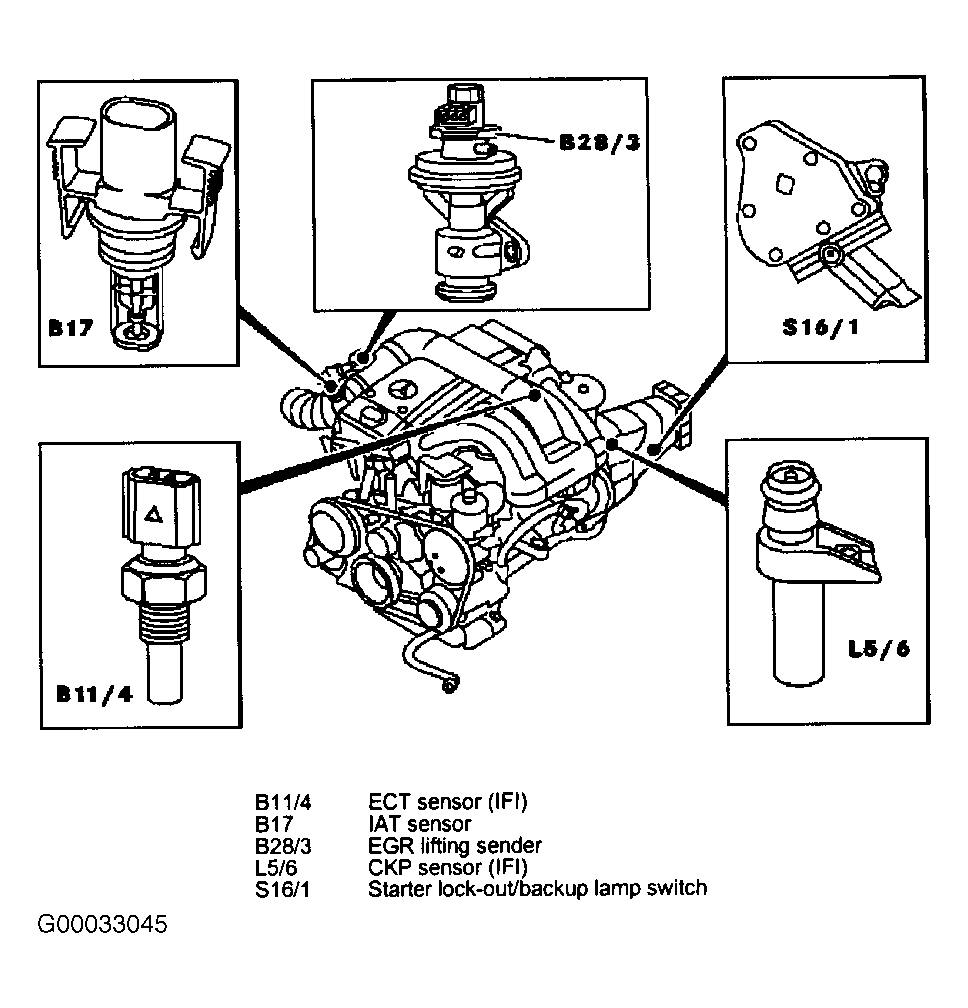

Fig 25: Component Locations (25 Of 47)

G00033045

Courtesy of DAIMLERCHRYSLER CORPORATION

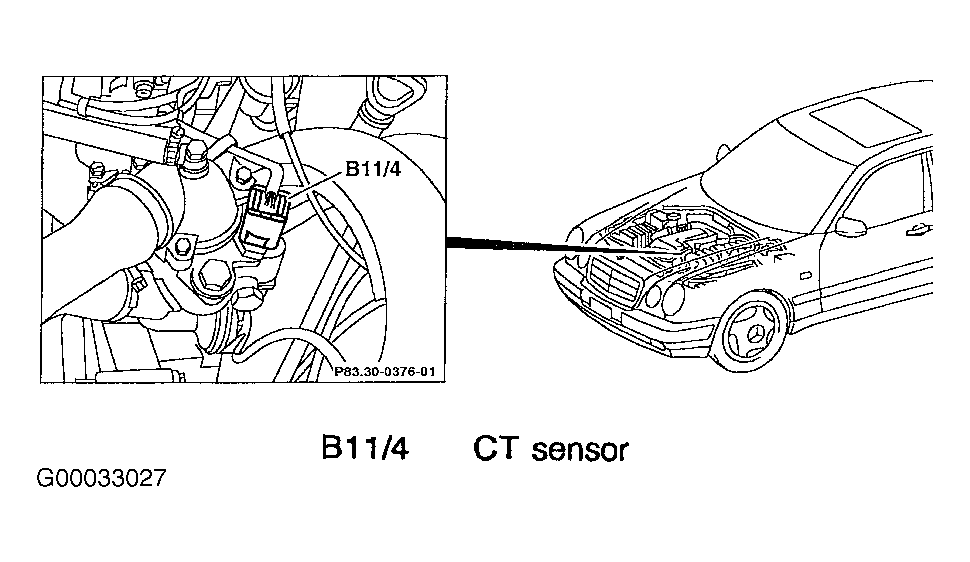

Fig 26: Component Locations (26 Of 47)

G00033027

Courtesy of DAIMLERCHRYSLER CORPORATION

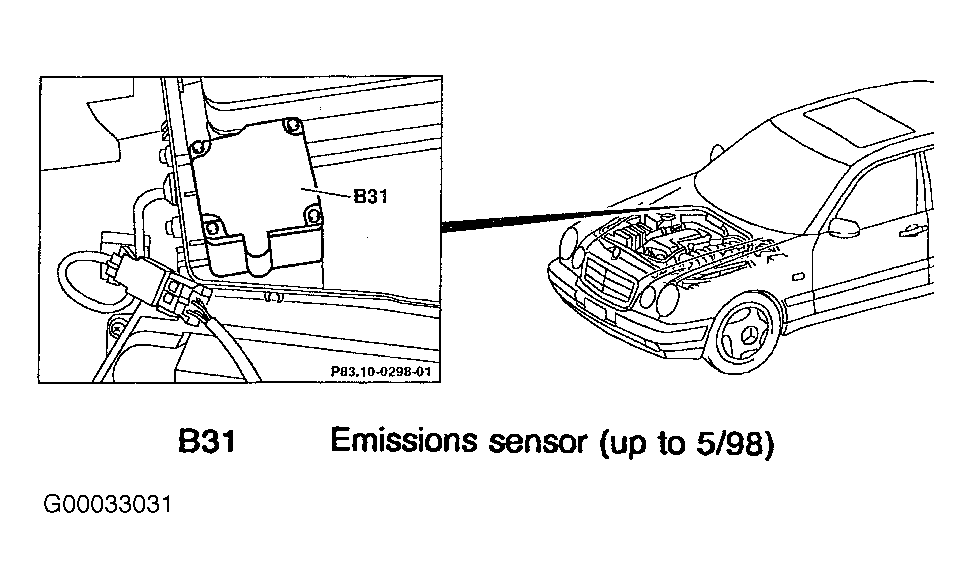

Fig 27: Component Locations (27 Of 47)

G00033031

Courtesy of DAIMLERCHRYSLER CORPORATION

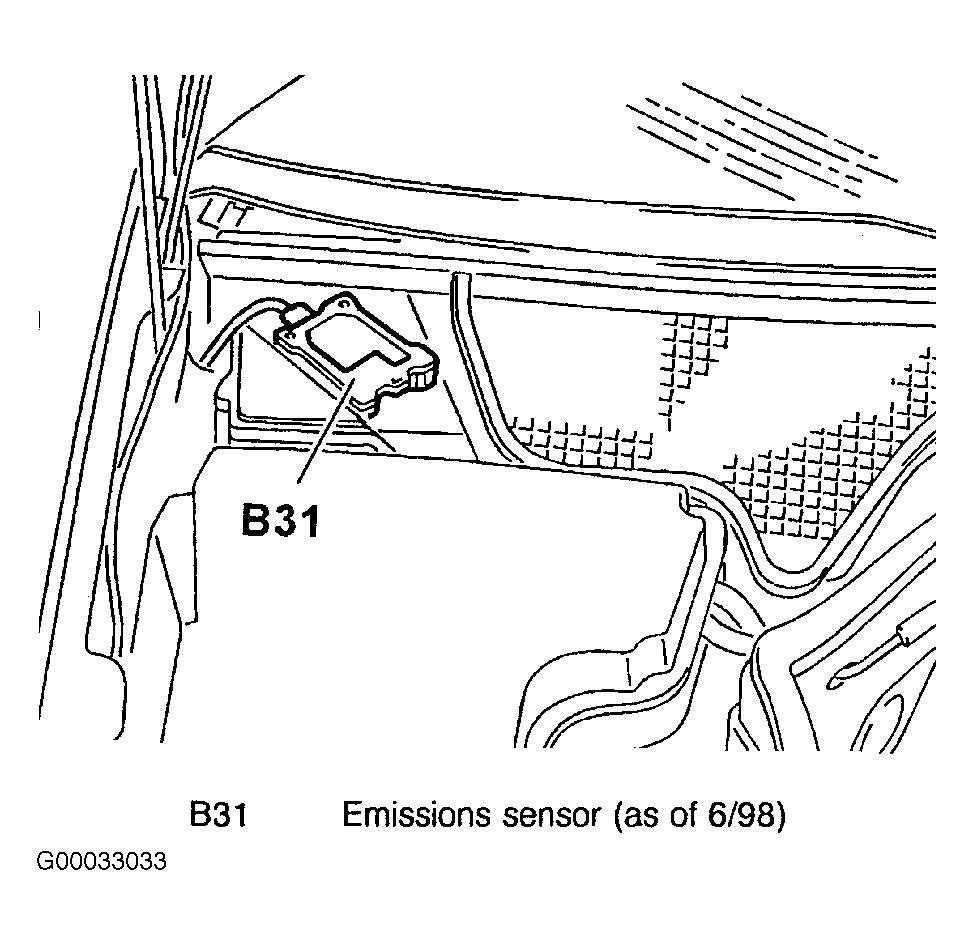

Fig 28: Component Locations (28 Of 47)

G00033033

Courtesy of DAIMLERCHRYSLER CORPORATION

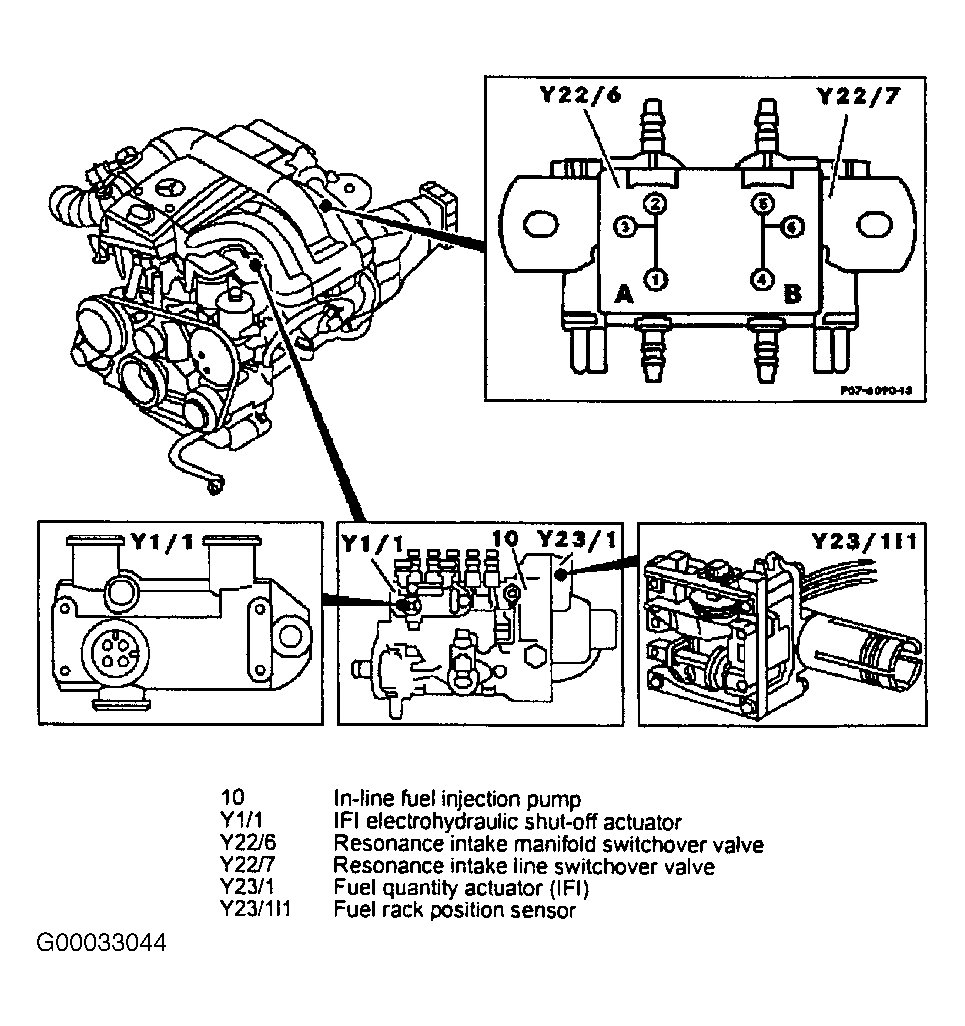

Fig 29: Component Locations (29 Of 47)

G00033044

Courtesy of DAIMLERCHRYSLER CORPORATION

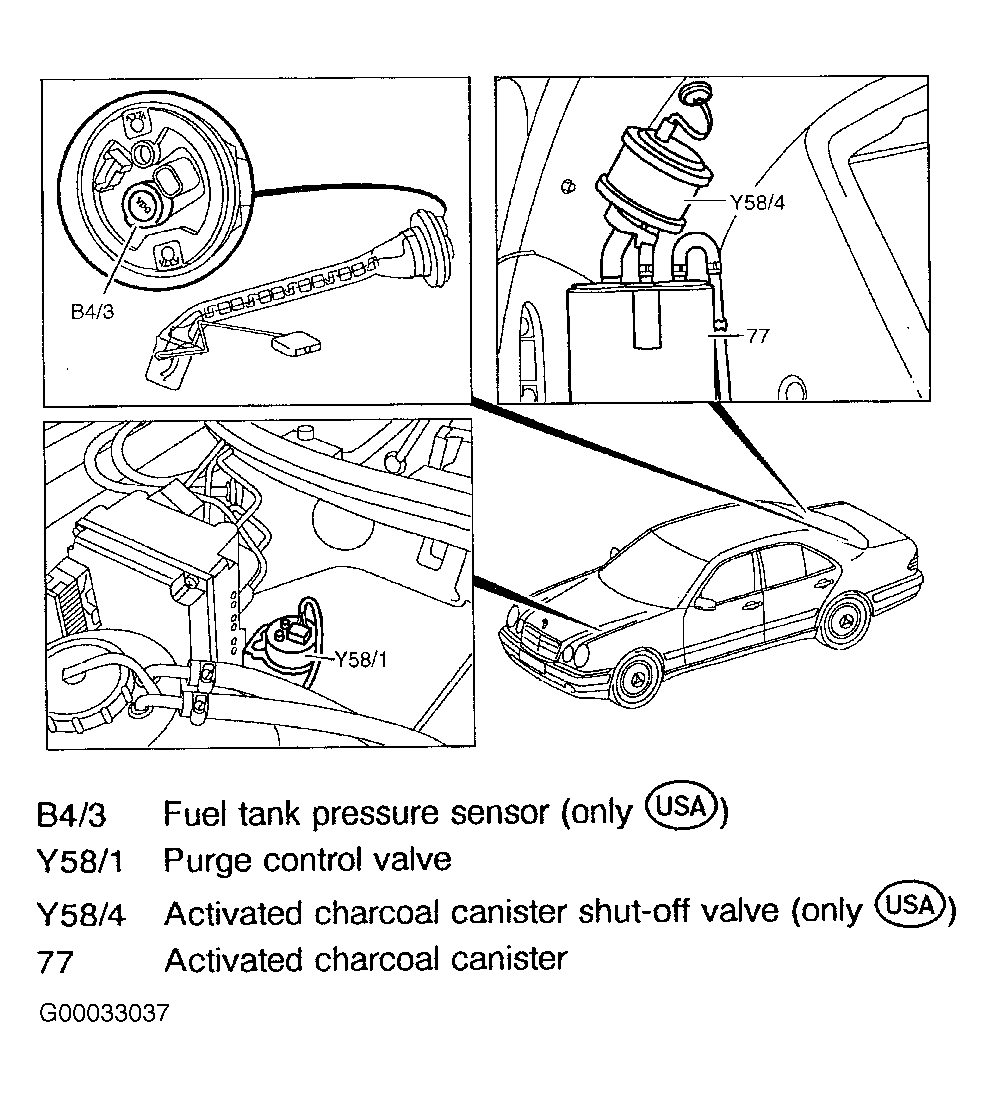

Fig 30: Component Locations (30 Of 47)

G00033037

Courtesy of DAIMLERCHRYSLER CORPORATION

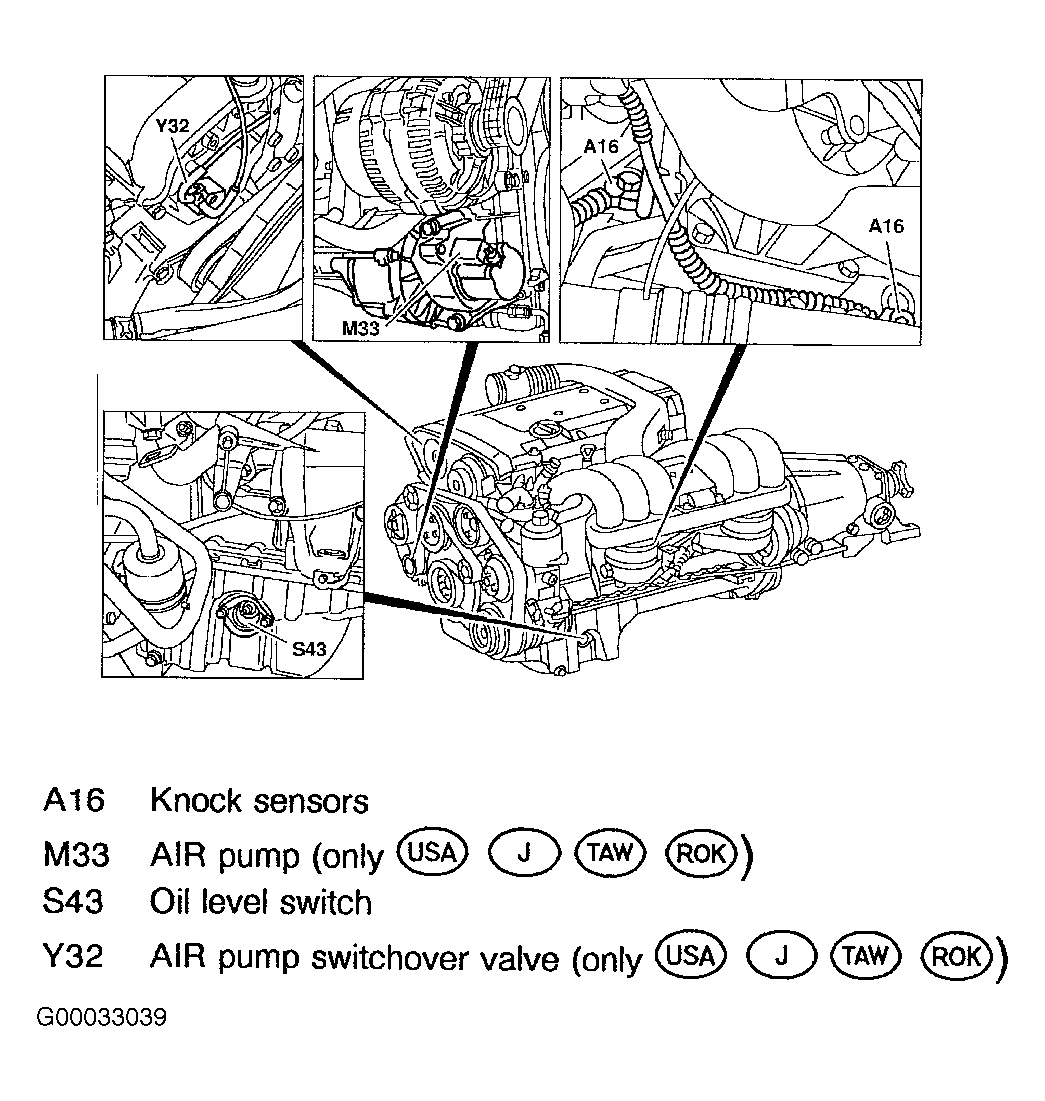

Fig 31: Component Locations (31 Of 47)

G00033039

Courtesy of DAIMLERCHRYSLER CORPORATION

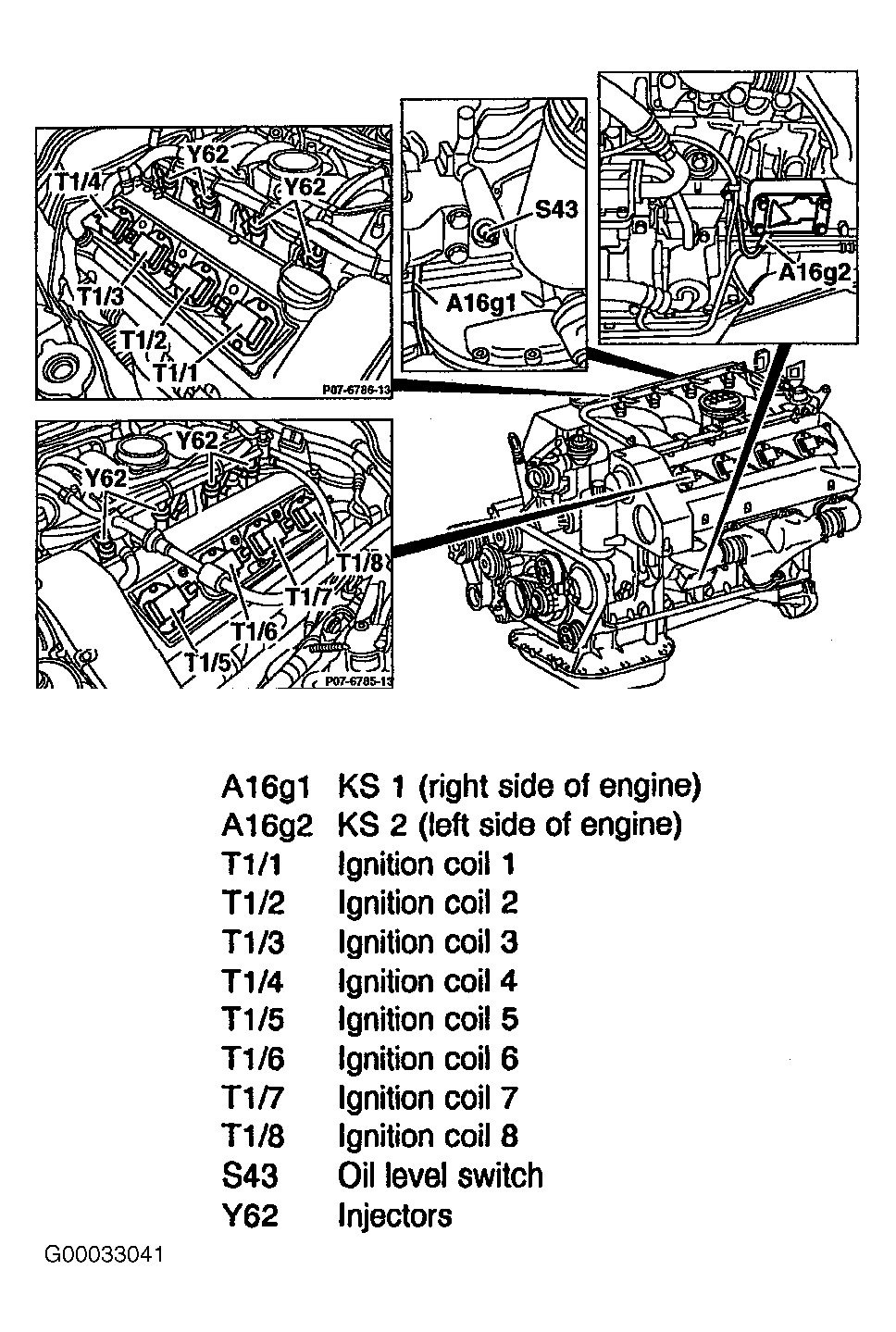

Fig 32: Component Locations (32 Of 47)

G00033041

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 33: Component Locations (33 0f 47)

G00033080

Courtesy of DAIMLERCHRYSLER CORPORATION

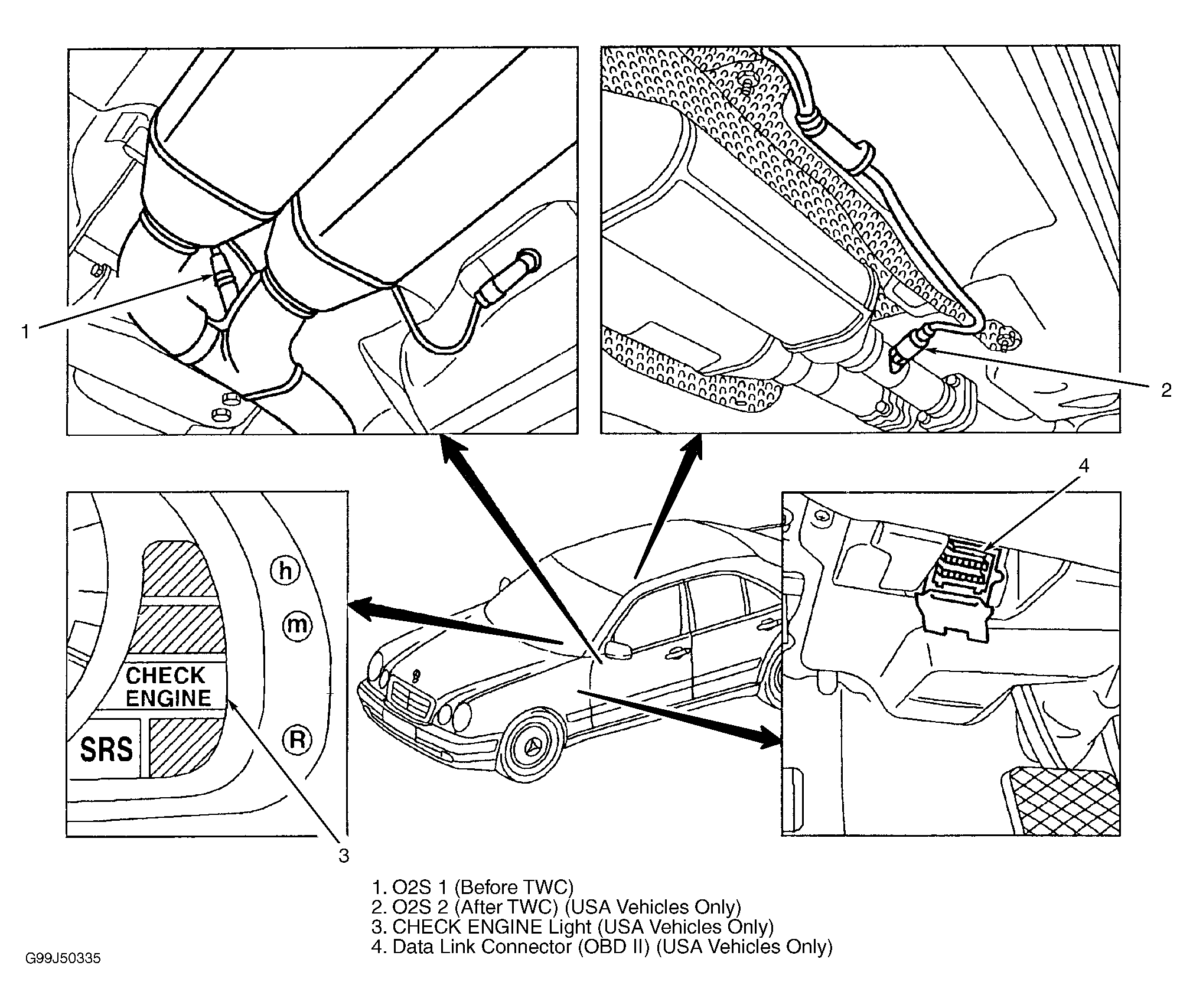

Fig 34: Component Locations (34 Of 47)

G99J50335

Courtesy of DAIMLERCHRYSLER CORPORATION

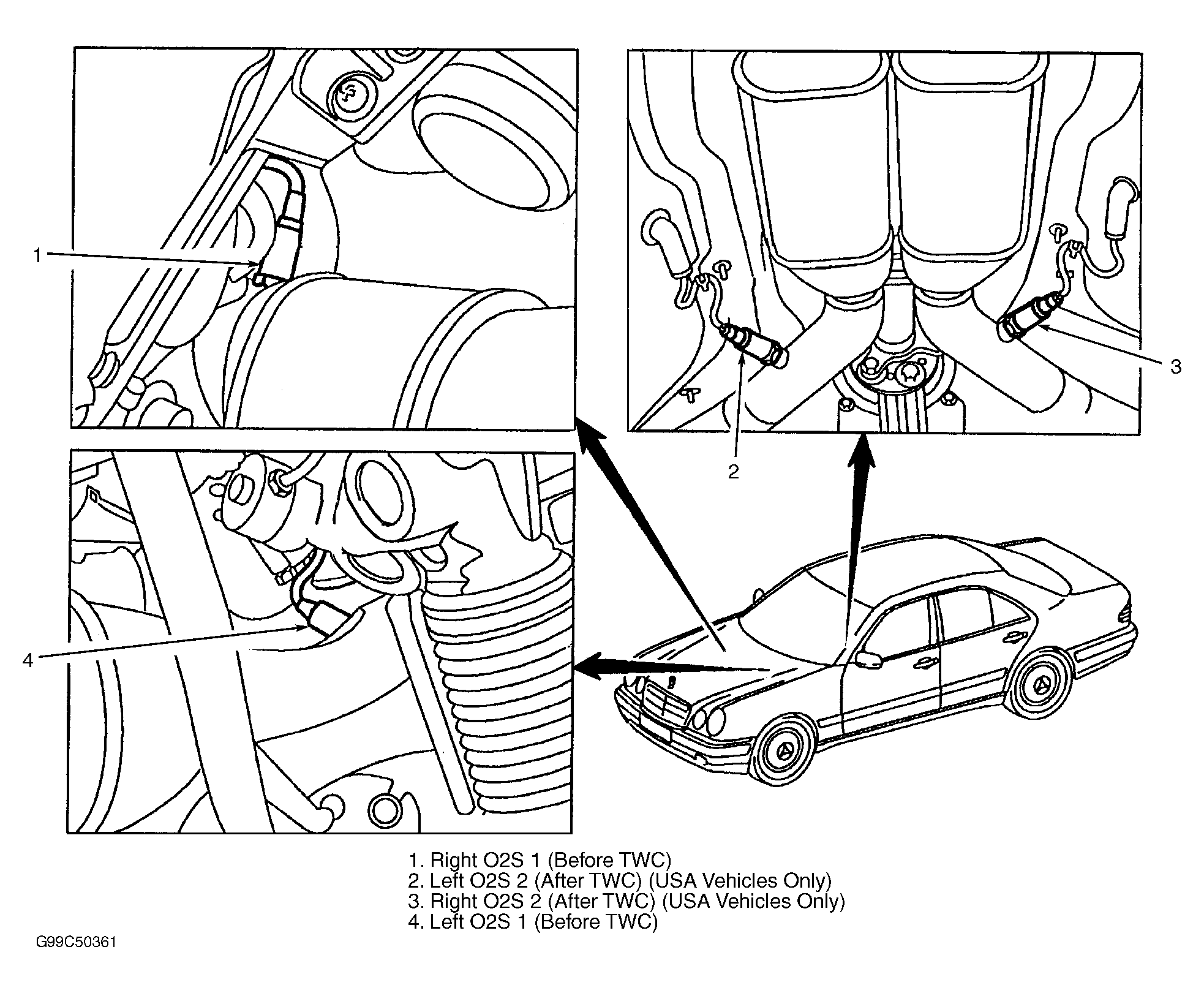

Fig 35: Component Locations (35 Of 47)

G99C50361

Courtesy of DAIMLERCHRYSLER CORPORATION

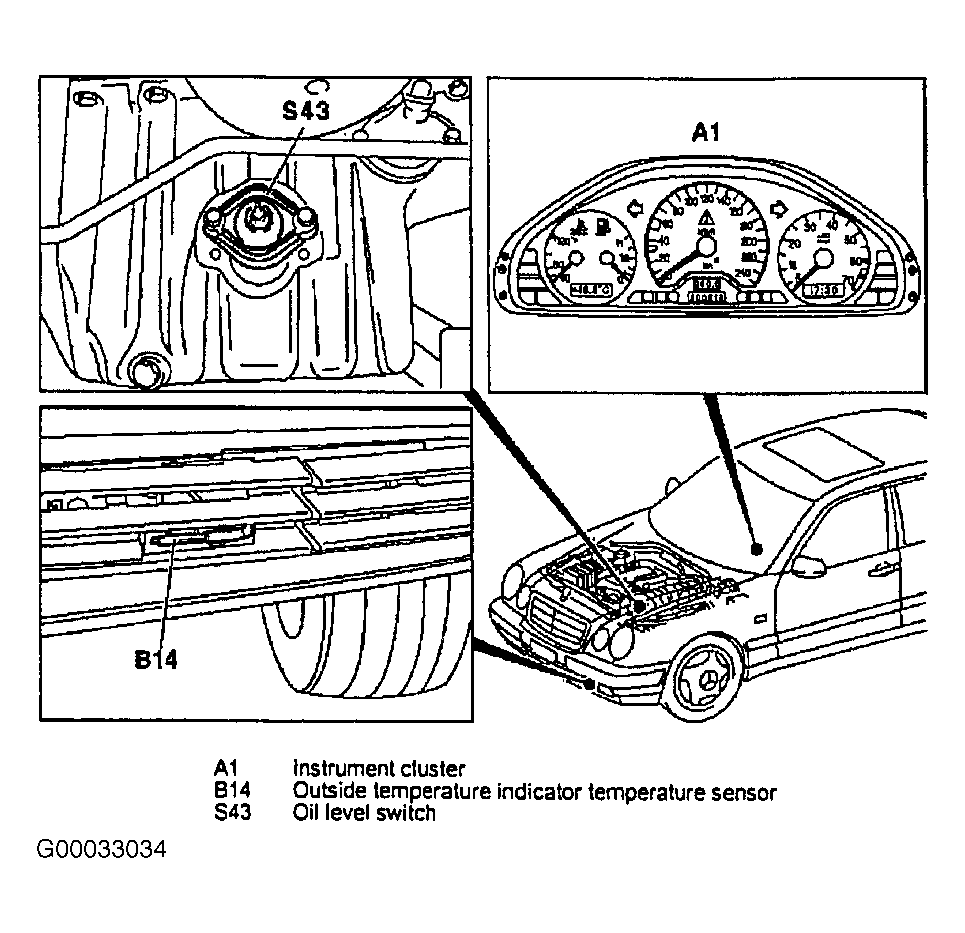

Fig 36: Component Locations (36 Of 47)

G00033034

Courtesy of DAIMLERCHRYSLER CORPORATION

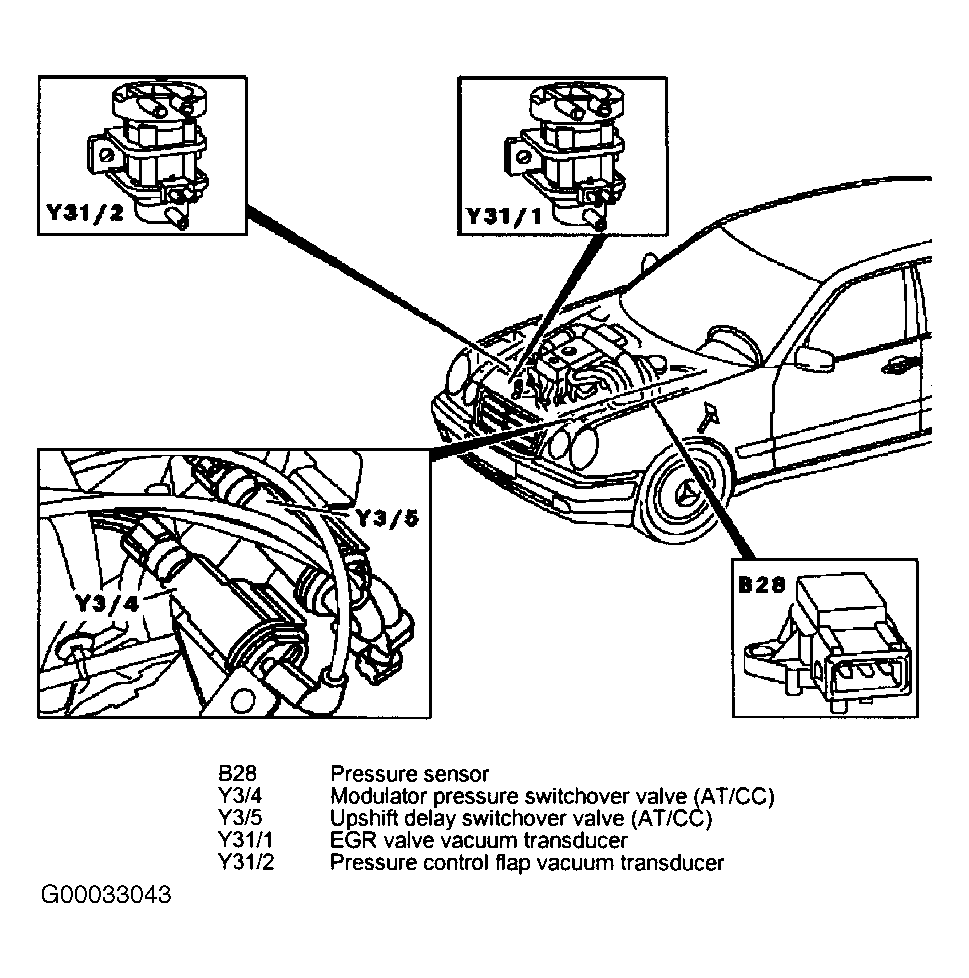

Fig 37: Component Locations (37 Of 47)

G00033043

Courtesy of DAIMLERCHRYSLER CORPORATION

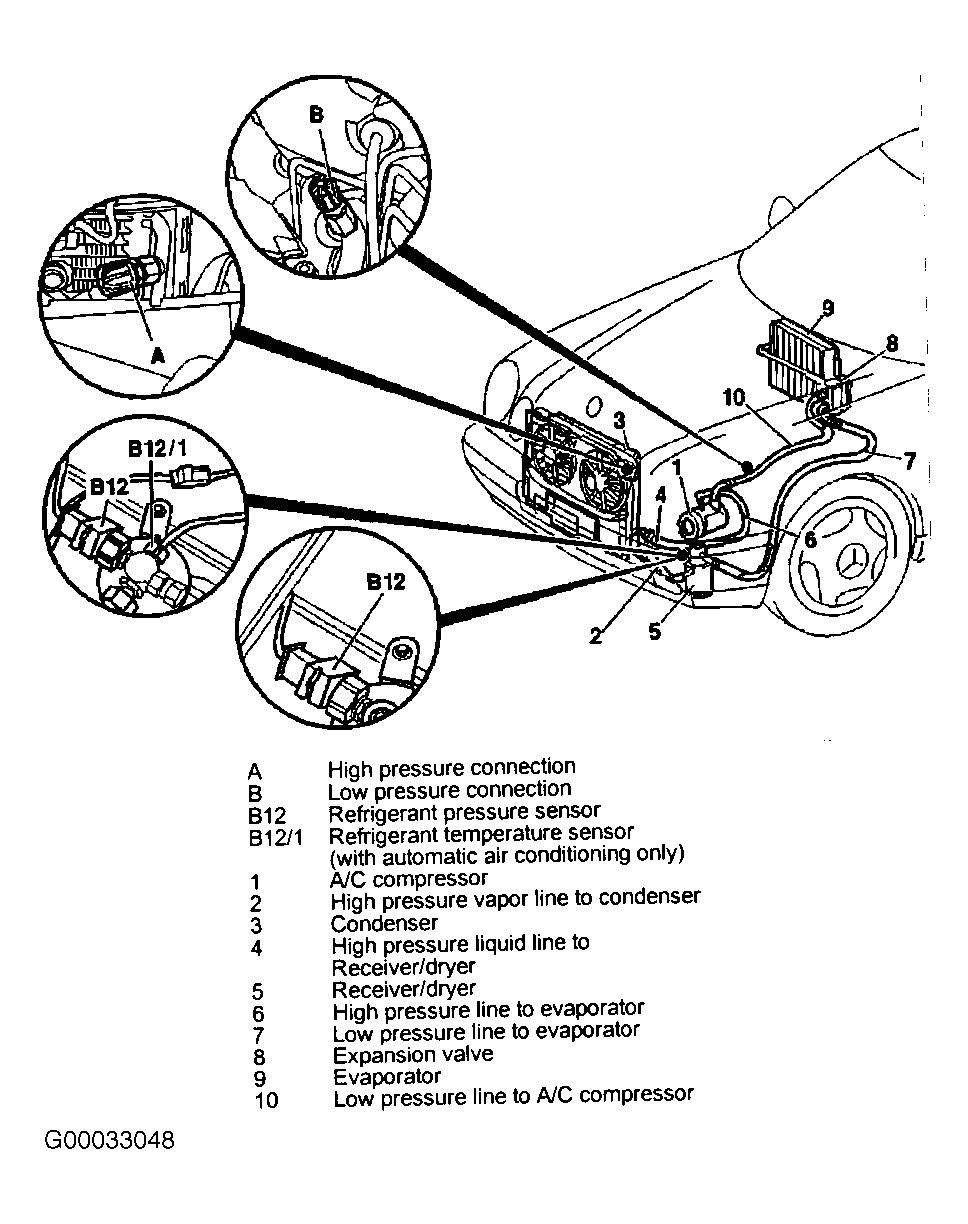

Fig 38: Component Locations (38 Of 47)

G00033048

Courtesy of DAIMLERCHRYSLER CORPORATION

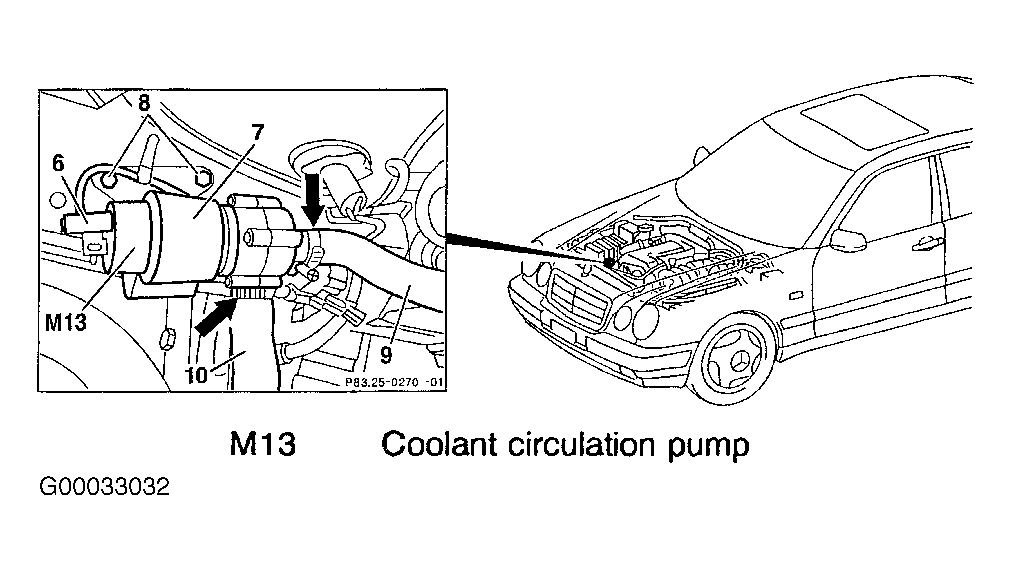

Fig 39: Component Locations (39 Of 47)

G00033032

Courtesy of DAIMLERCHRYSLER CORPORATION

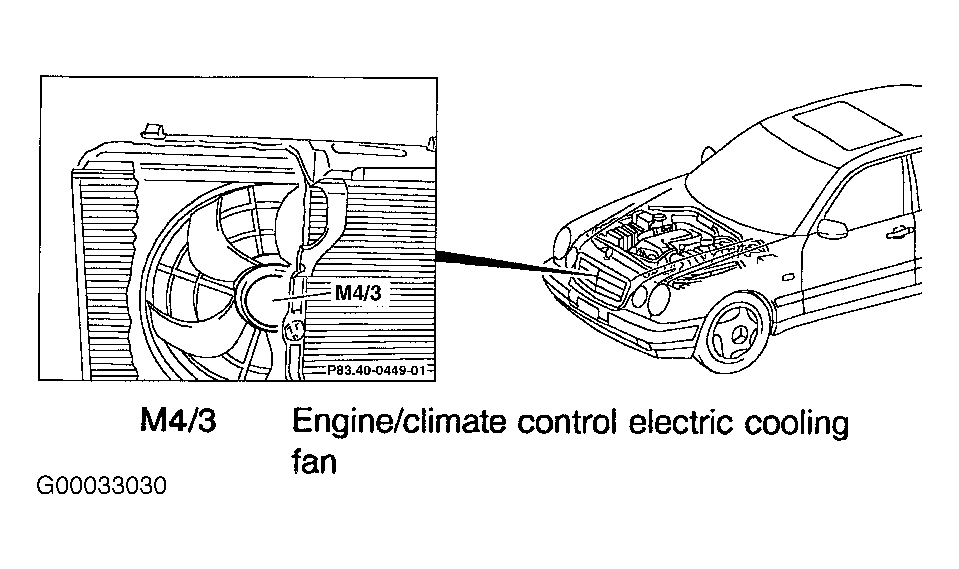

Fig 40: Component Locations (40 Of 47)

G00033030

Courtesy of DAIMLERCHRYSLER CORPORATION

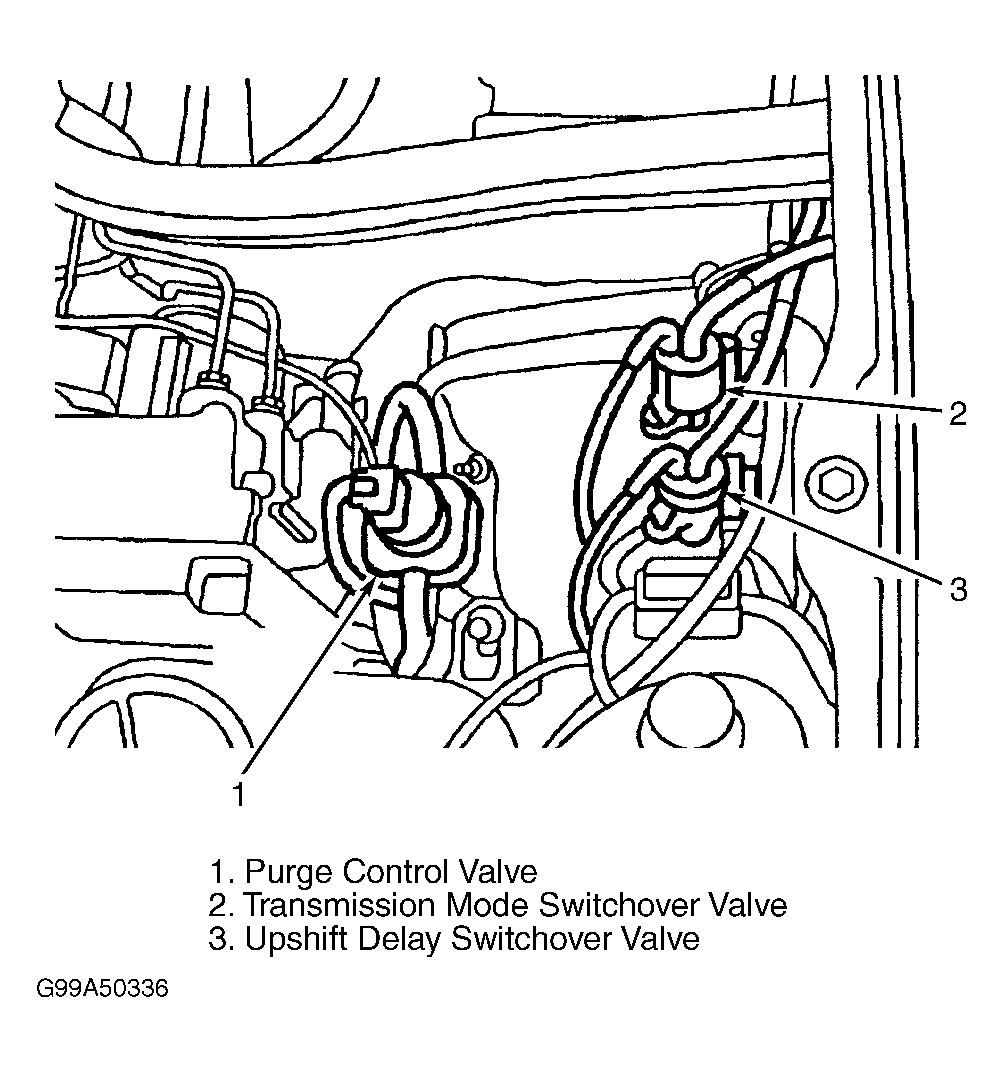

Fig 41: Component Locations (41 Of 47)

G99A50336

Courtesy of DAIMLERCHRYSLER CORPORATION

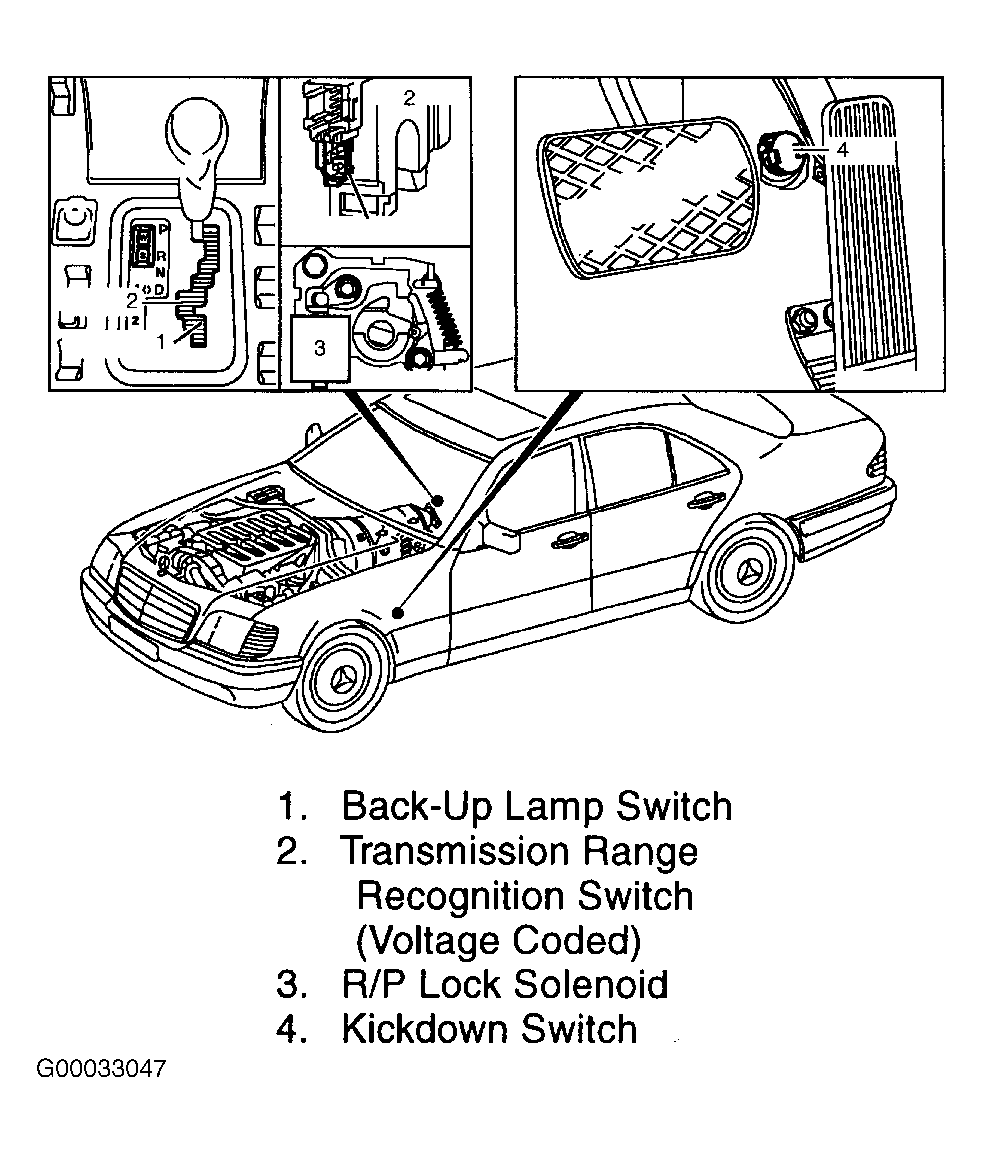

Fig 42: Component Locations (42 Of 47)

G00033047

Courtesy of DAIMLERCHRYSLER CORPORATION

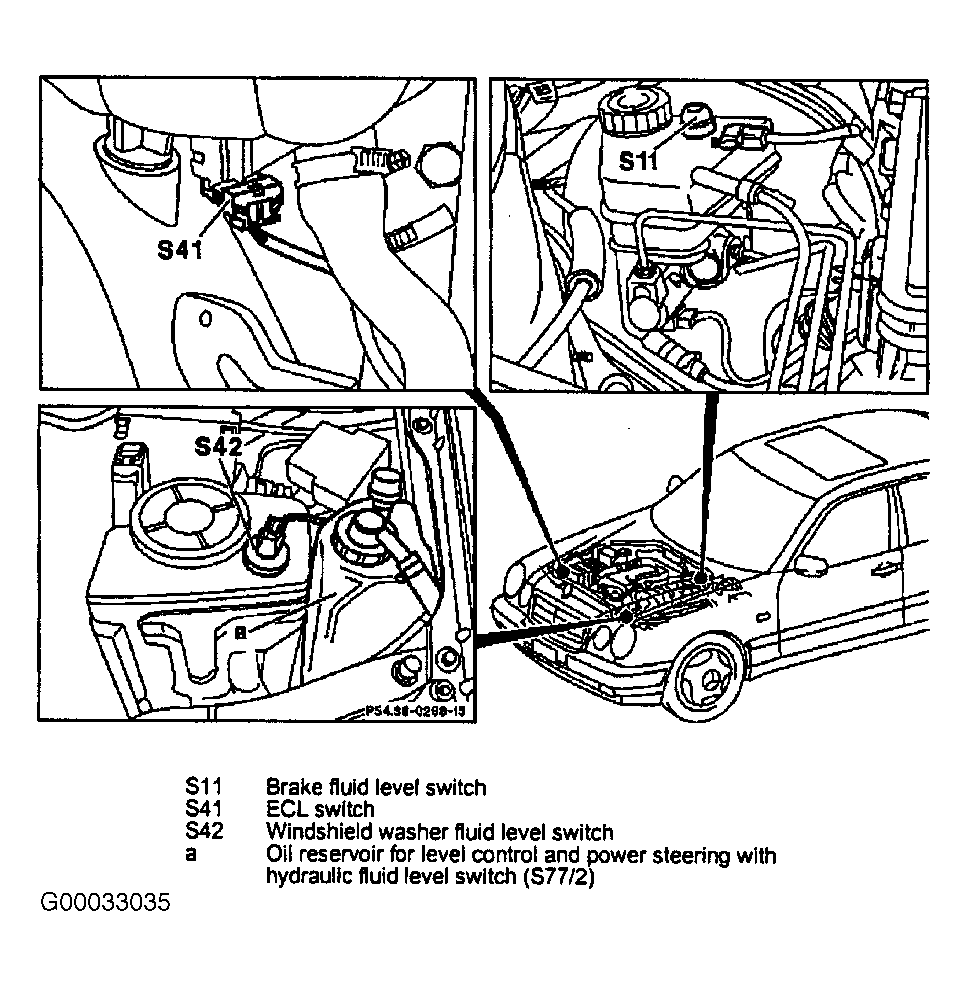

Fig 43: Component Locations (43 Of 47)

G00033035

Courtesy of DAIMLERCHRYSLER CORPORATION

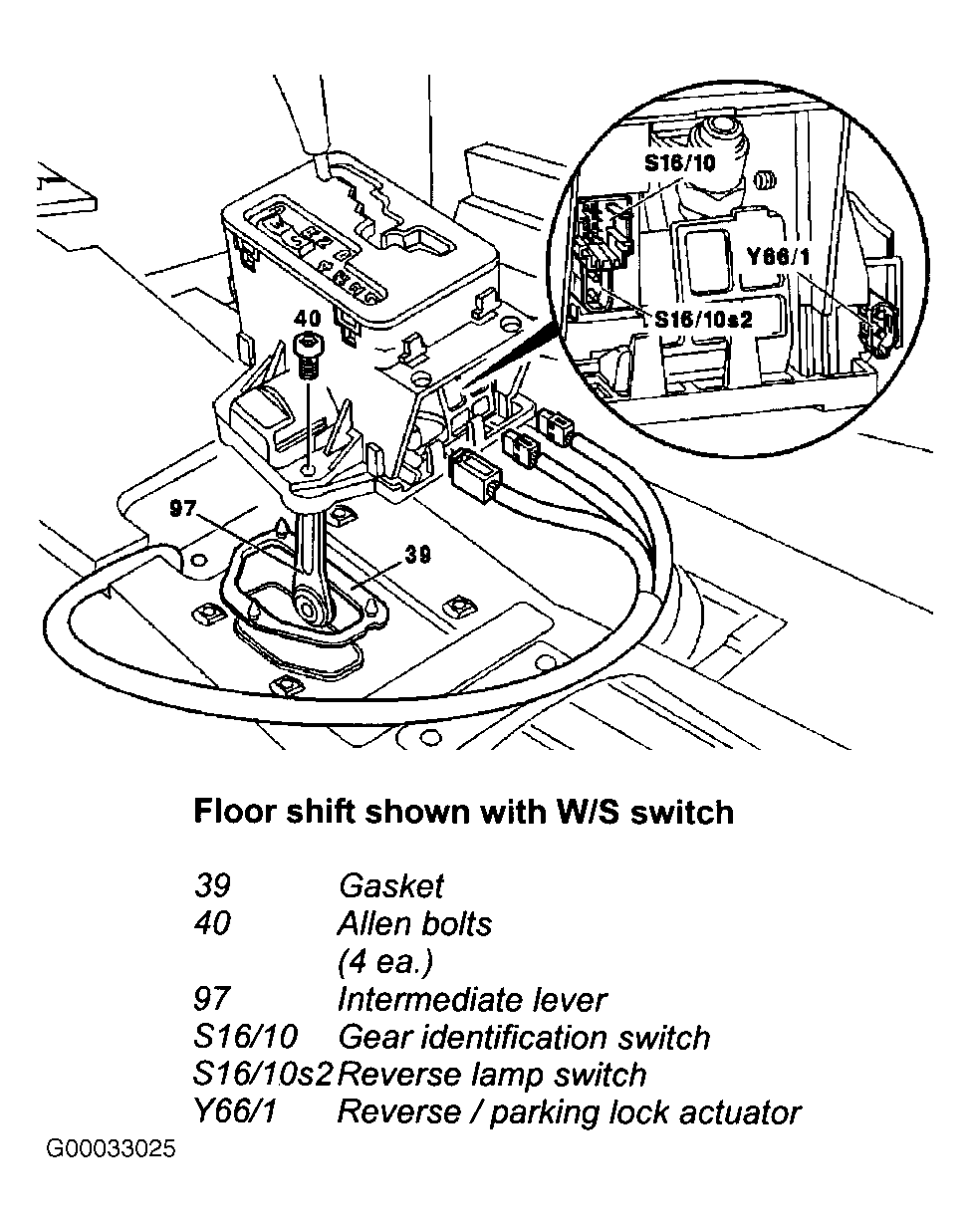

Fig 44: Component Locations (44 Of 47)

G00033025

Courtesy of DAIMLERCHRYSLER CORPORATION

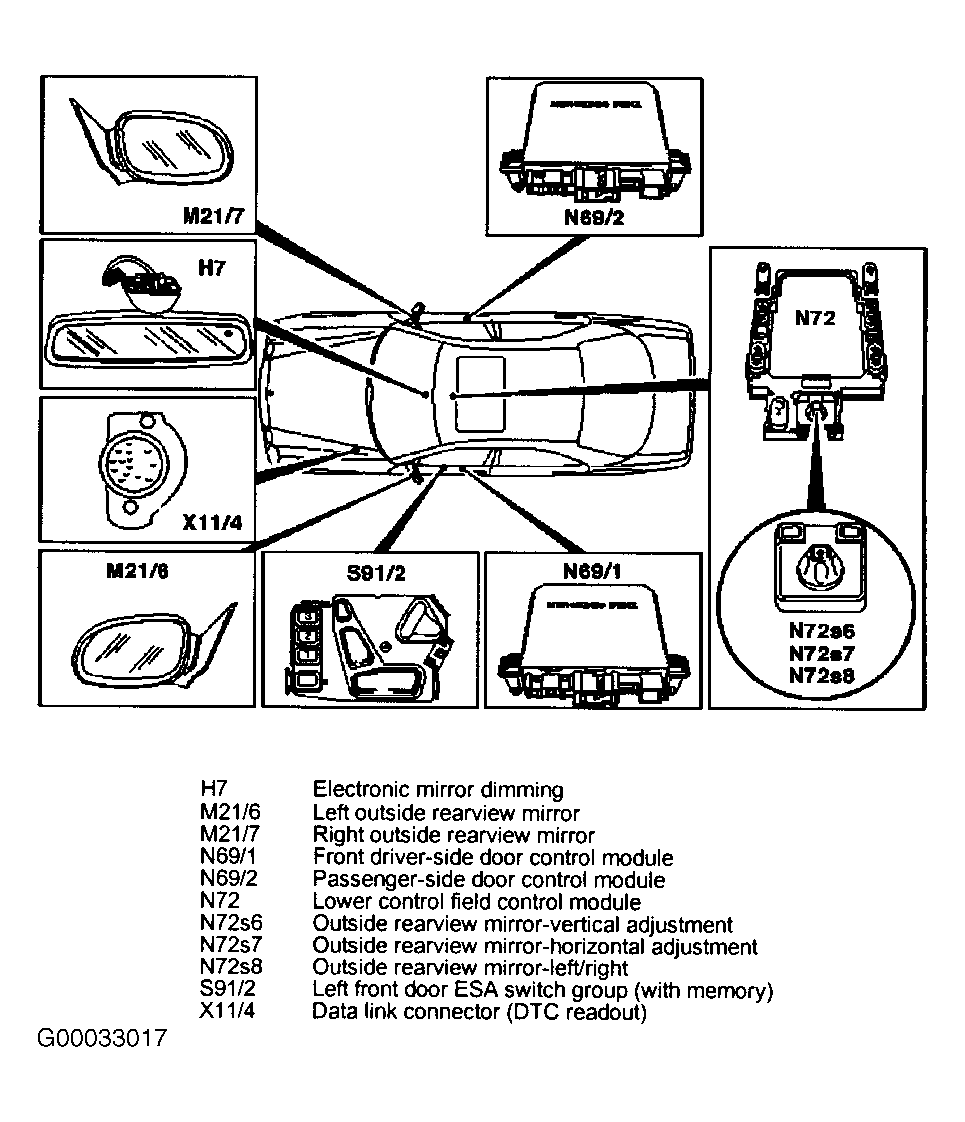

Fig 45: Component Locations (45 Of 47)

G00033017

Courtesy of DAIMLERCHRYSLER CORPORATION

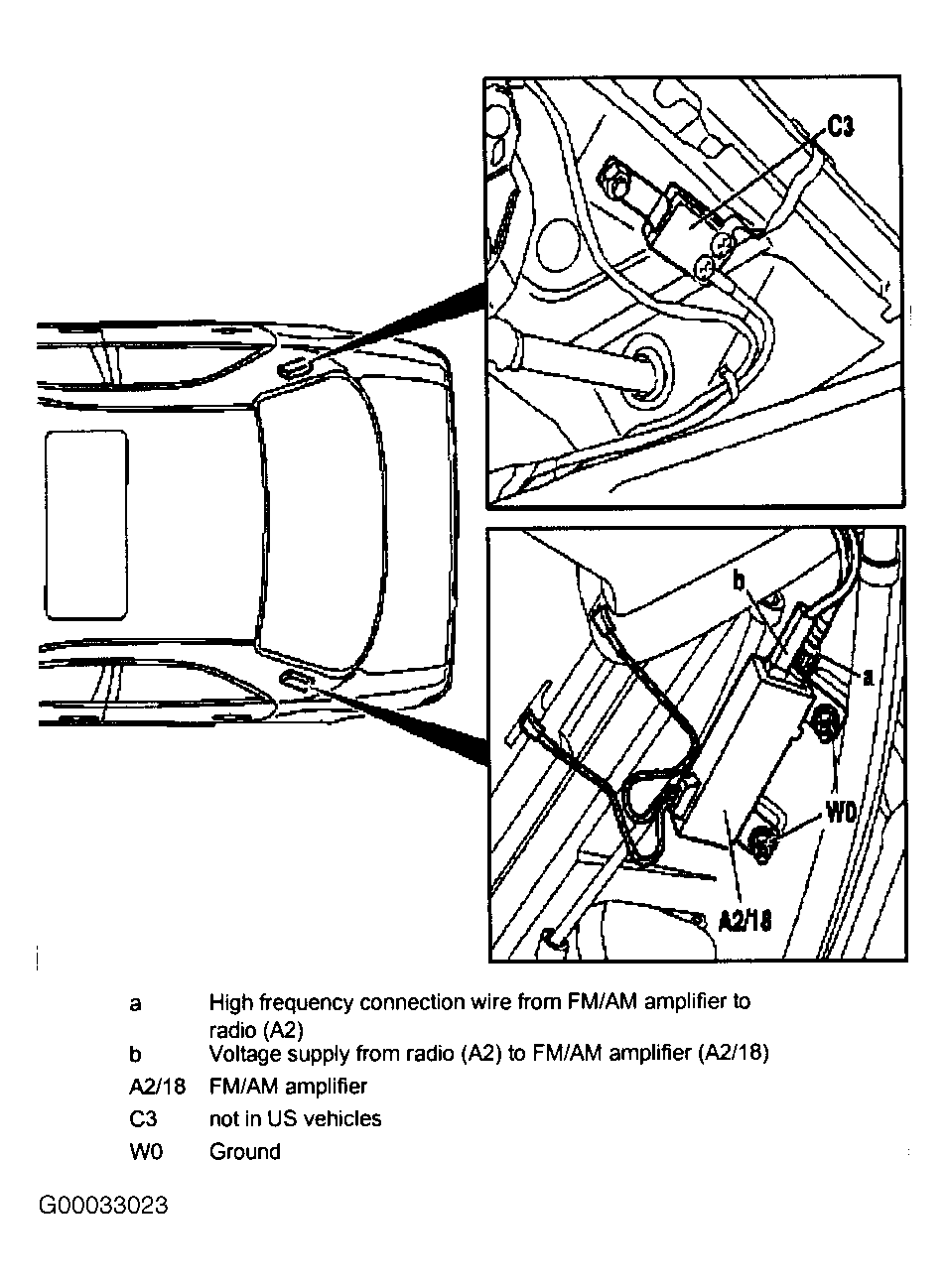

Fig 46: Component Locations (46 Of 47)

G00033023

Courtesy of DAIMLERCHRYSLER CORPORATION

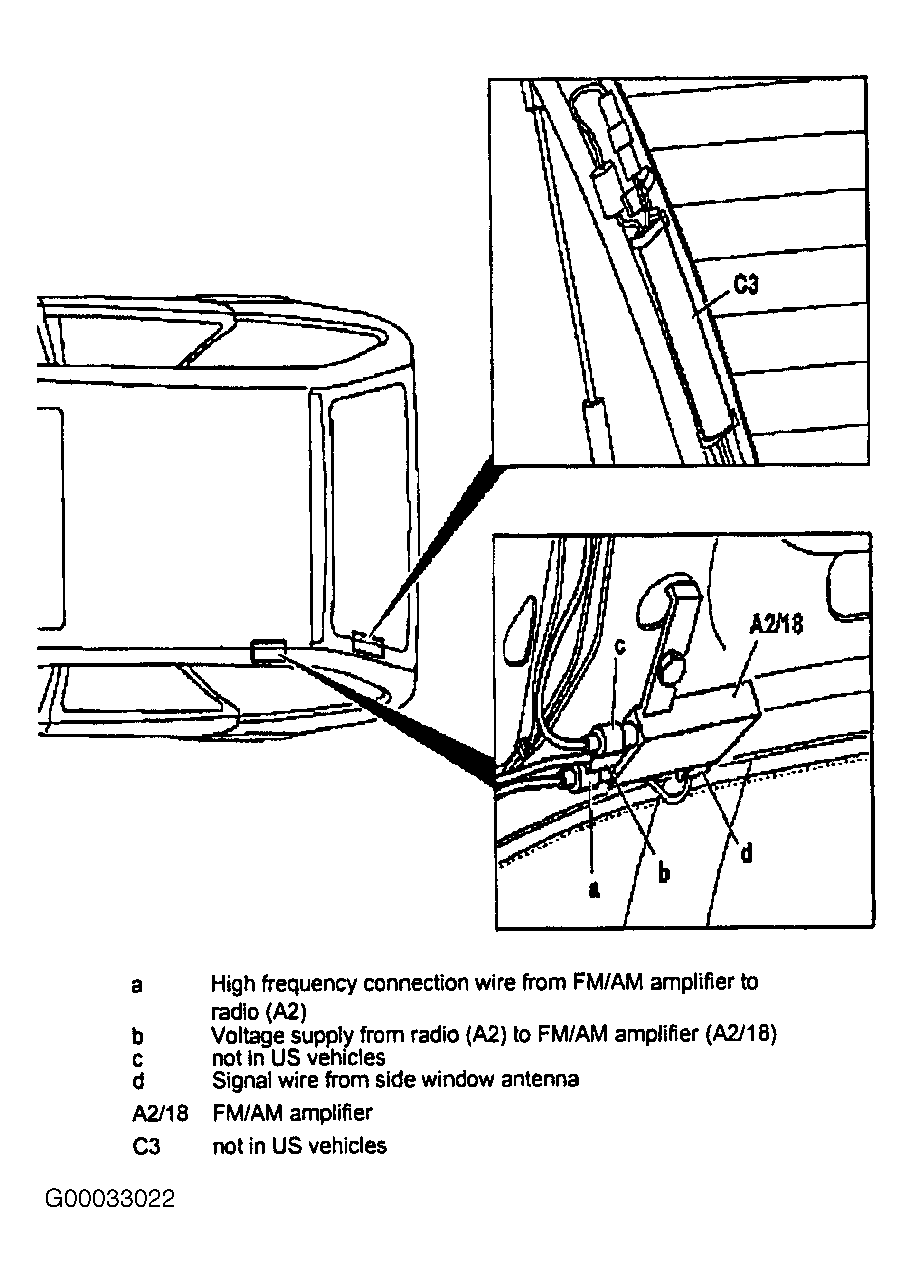

Fig 47: Component Locations (47 Of 47)

G00033022

Courtesy of DAIMLERCHRYSLER CORPORATION
