Control Units
CONTROL UNITS

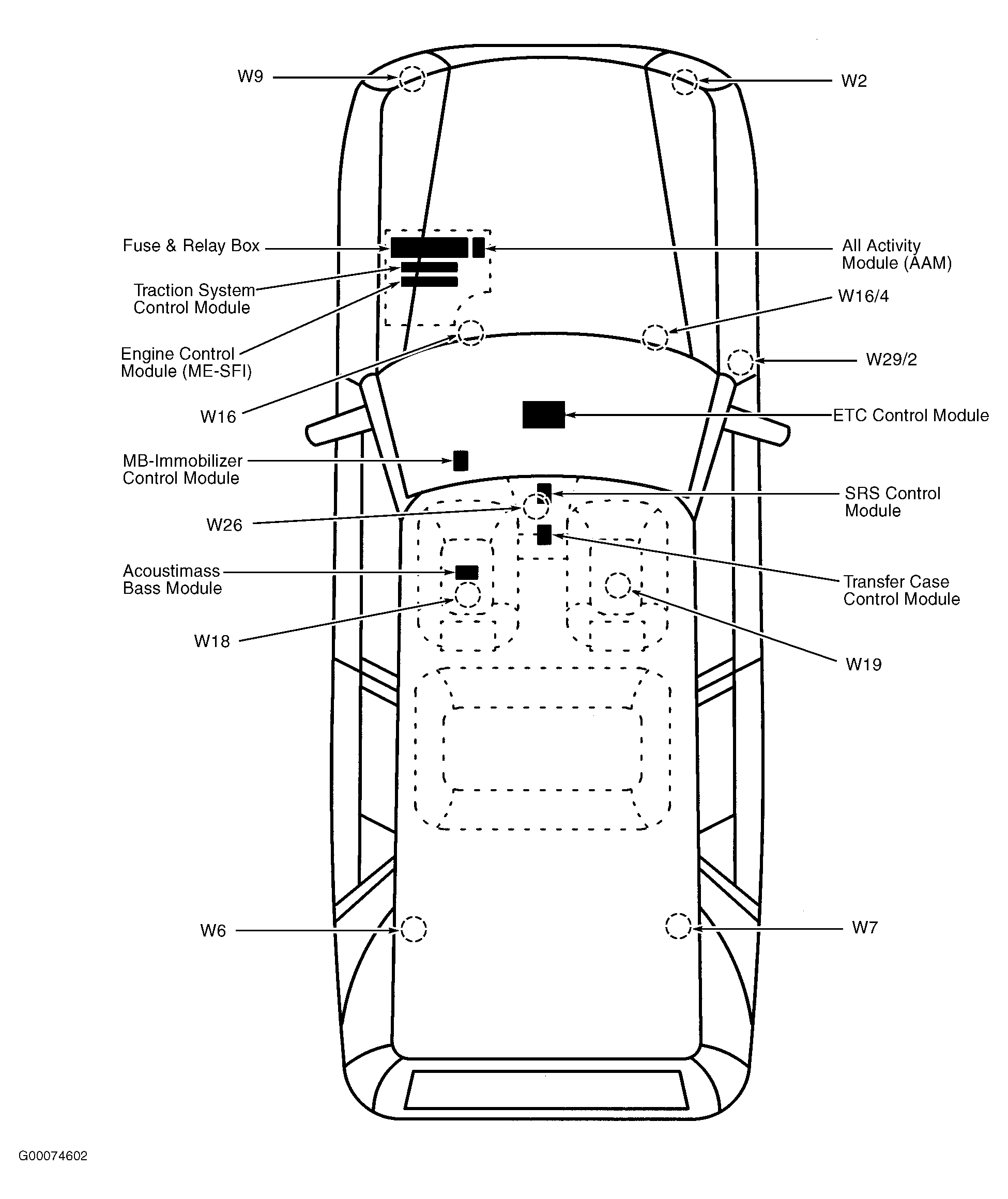

| Component | Component Location |
|---|---|
| Acoustimass Bass Module | Under driver's seat. See Figure . |
| All Activity Module (AAM) | In left side of engine compartment, in "E" box. See Figure . |
| ASR/ETS/ESP Hydraulic Unit | In left side of engine compartment, below washer bottle. |
| ATA Control Module | At right rear of engine compartment. |
| Engine Control Module (ME-SFI) | In left side of engine compartment, in "E" box. See Figure . |
| ESP/SPS/BAS Control Module | In left side of engine compartment, in "E" box. |
| ETC Control Module | Behind center of dash. See Figure . |
| MB-Immobilizer Control Module | In top right side of steering column. See Figure . |
| SRS Control Module | Below front of center console. See Figure . |
| Traction System Control Module | In left side of engine compartment in "E" box. See Figure . |
| Trailer Turn Signal Control Module | Integral to trailer harness. |
| Transfer Case Control Module | Below center console, behind shift assembly. See Figure . |
| Trip Computer Control Module | In front of roof. |
