Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

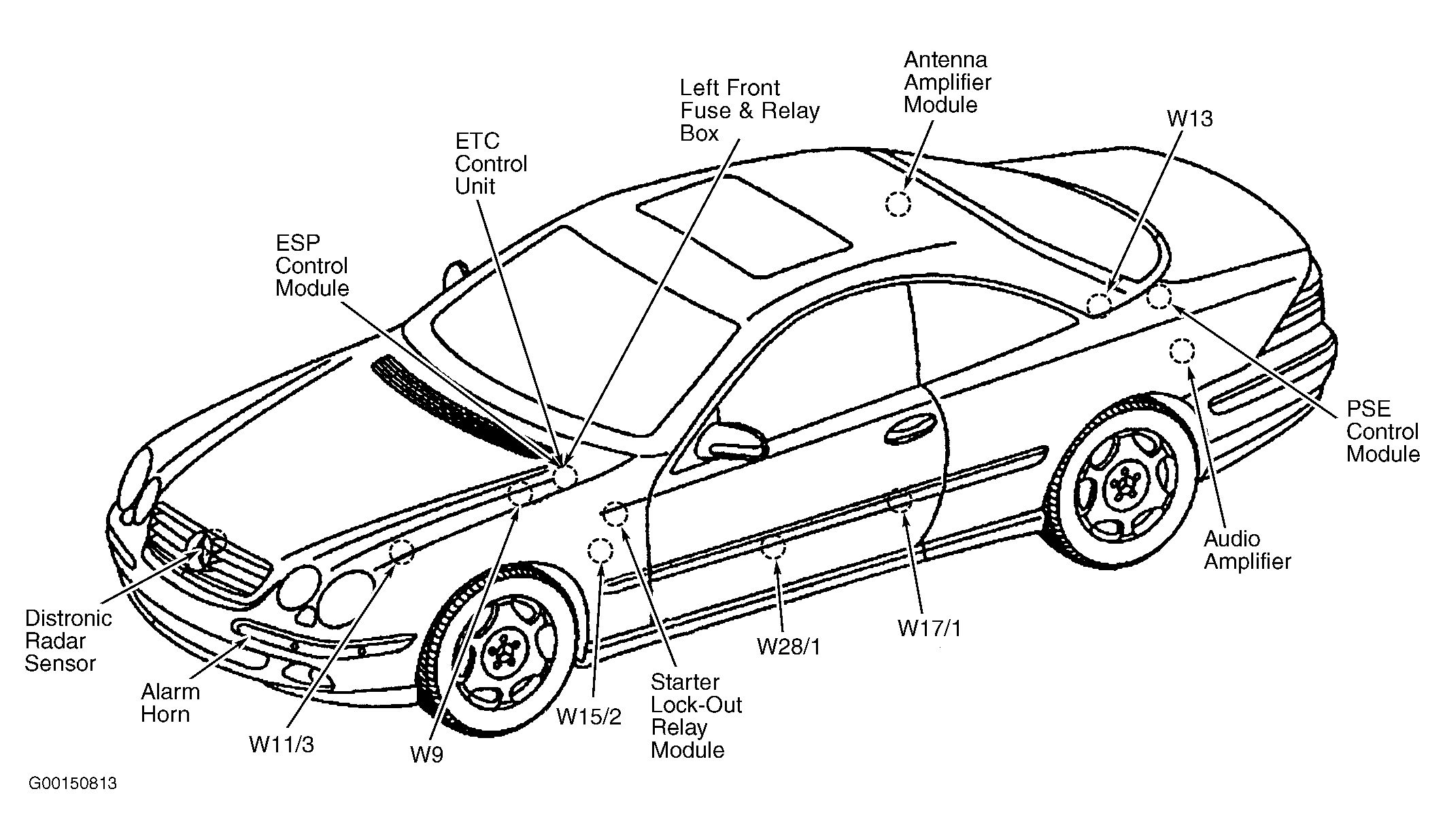

Fig 1: Vehicle Overview, Right Side

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

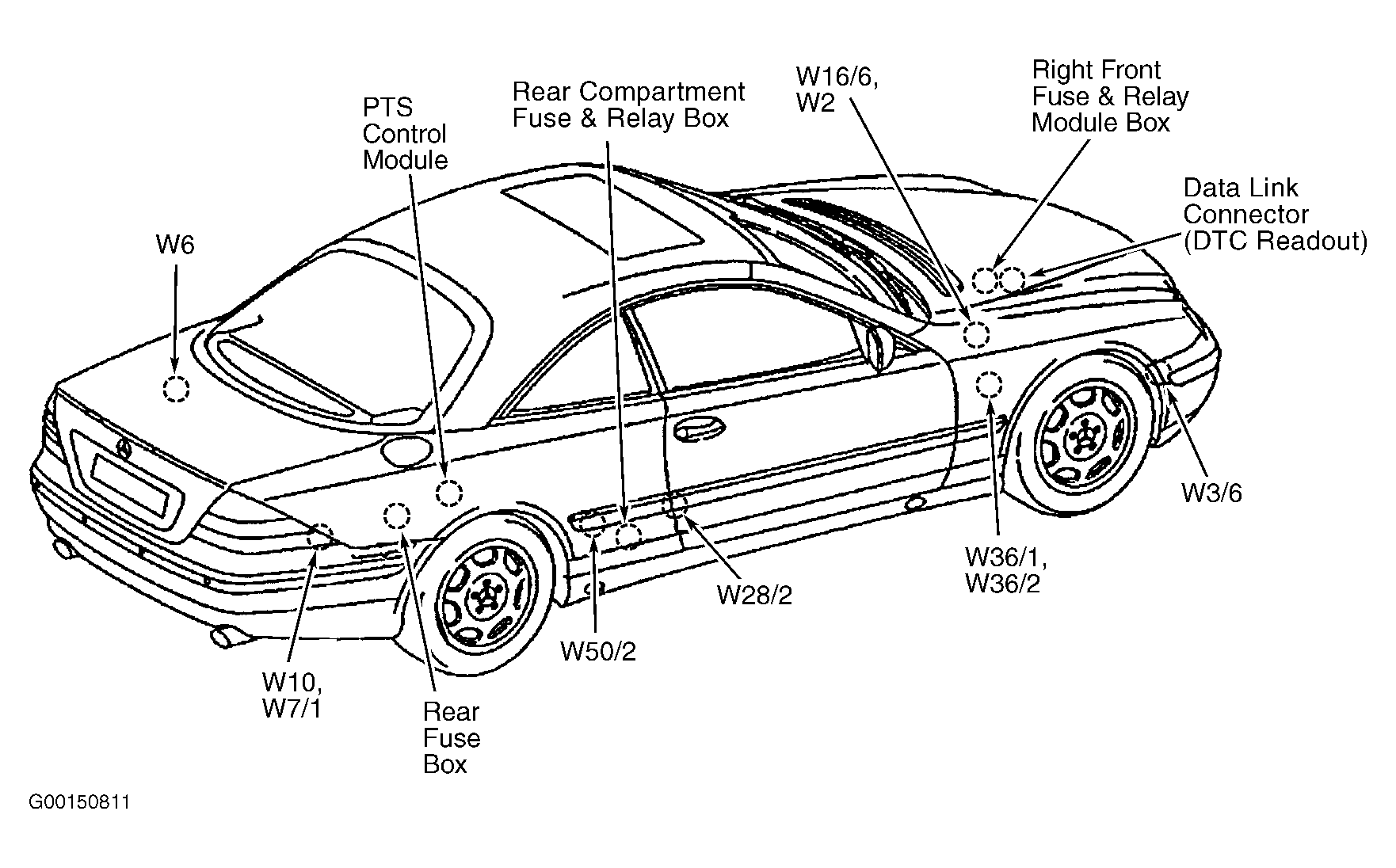

Fig 2: Vehicle Overview, Left Side

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Dash

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
