DTC Description

NOTE: Use this information to further understand DTC diagnosis and/or diagnose intermittent failures.

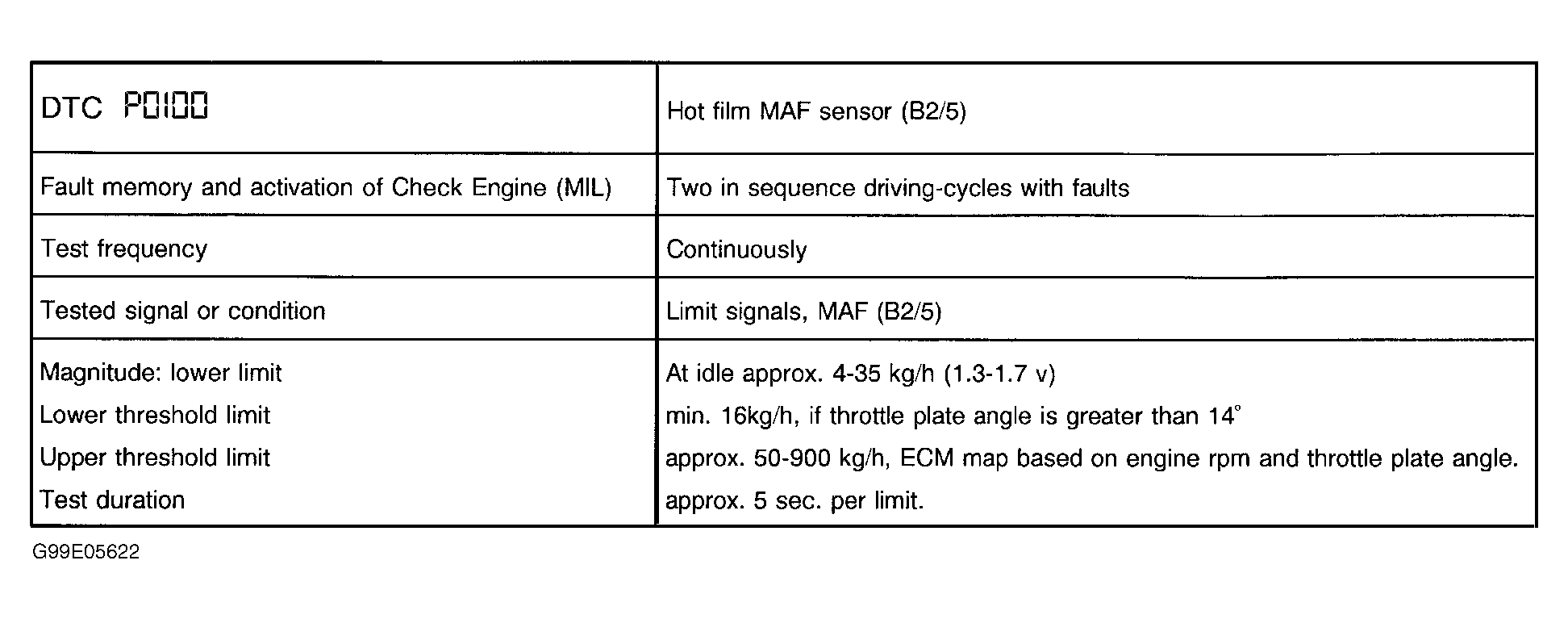

Fig 1: DTC Description (P0100)

G99E05622

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

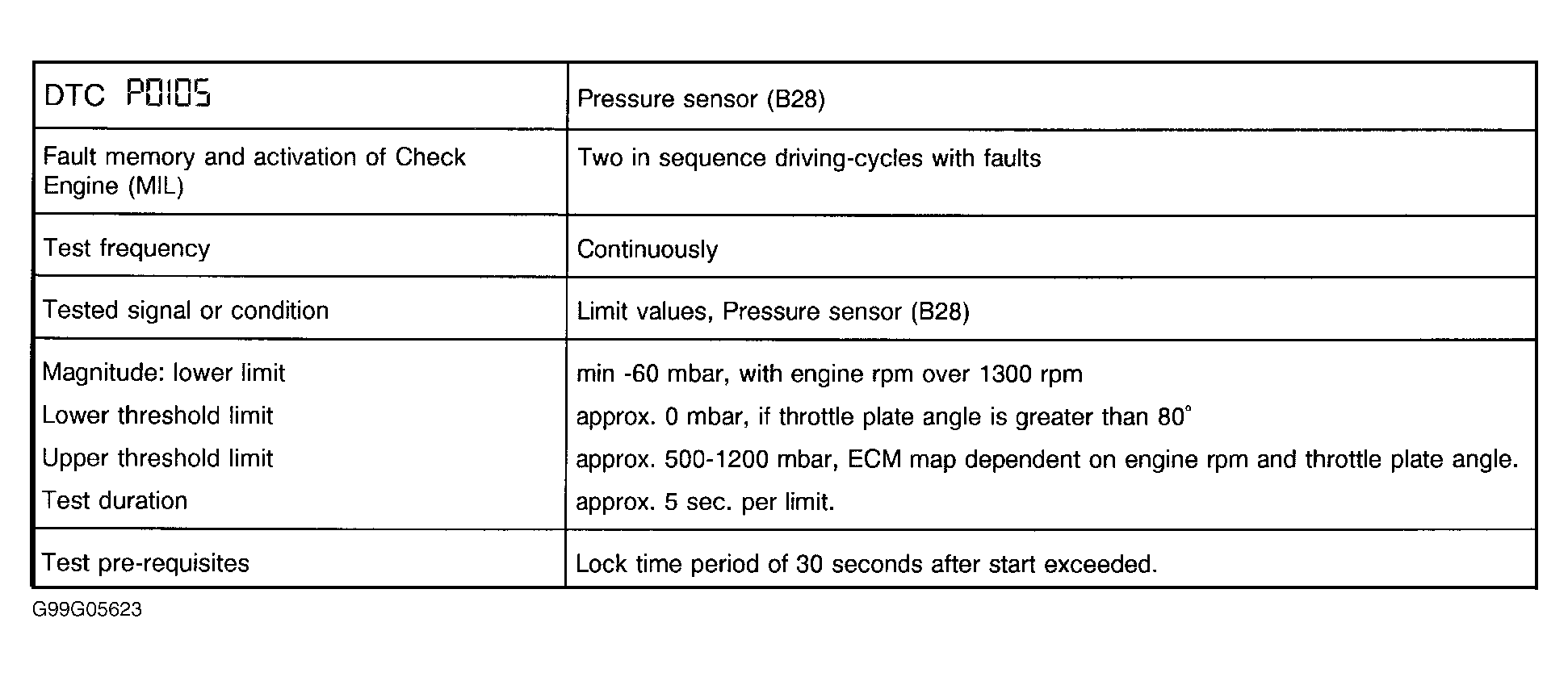

Fig 2: DTC Description (P0105)

G99G05623

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

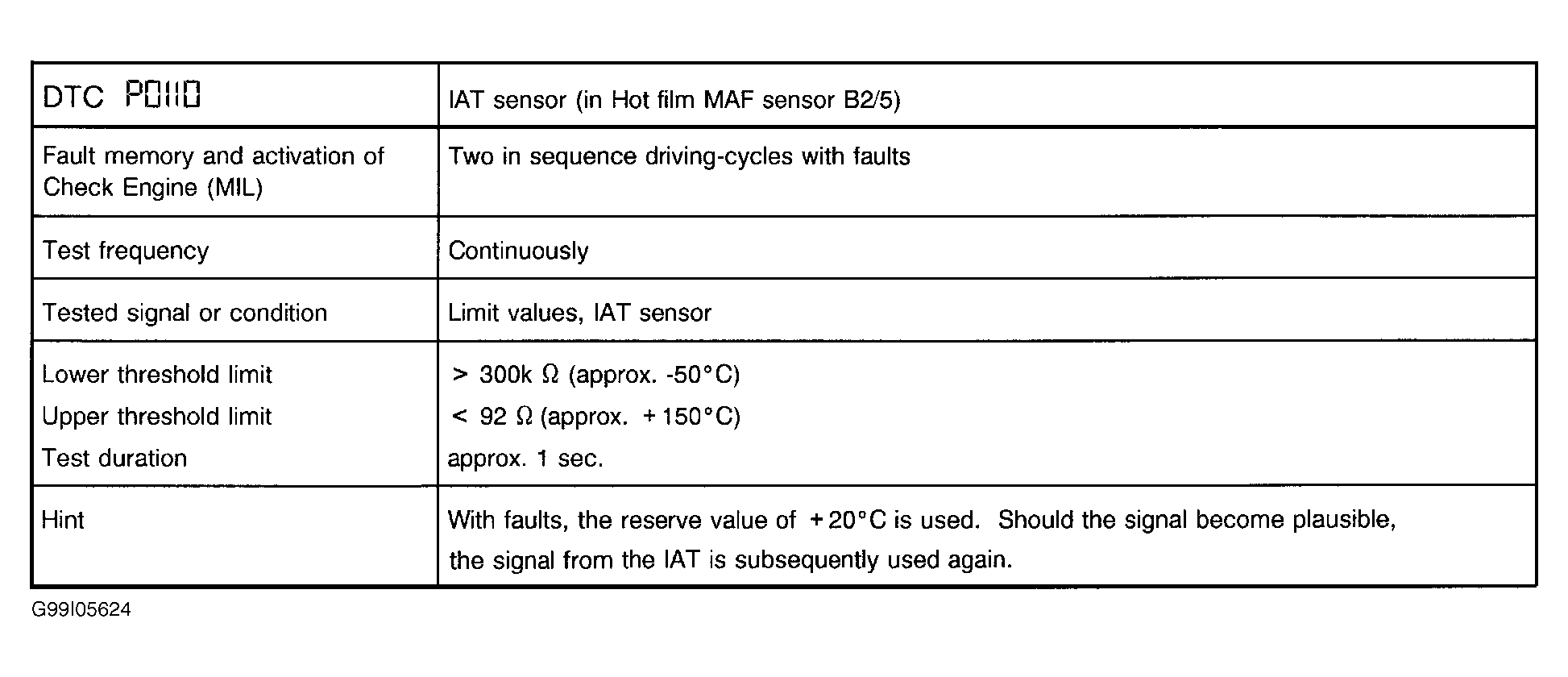

Fig 3: DTC Description (P0110)

G99I05624

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

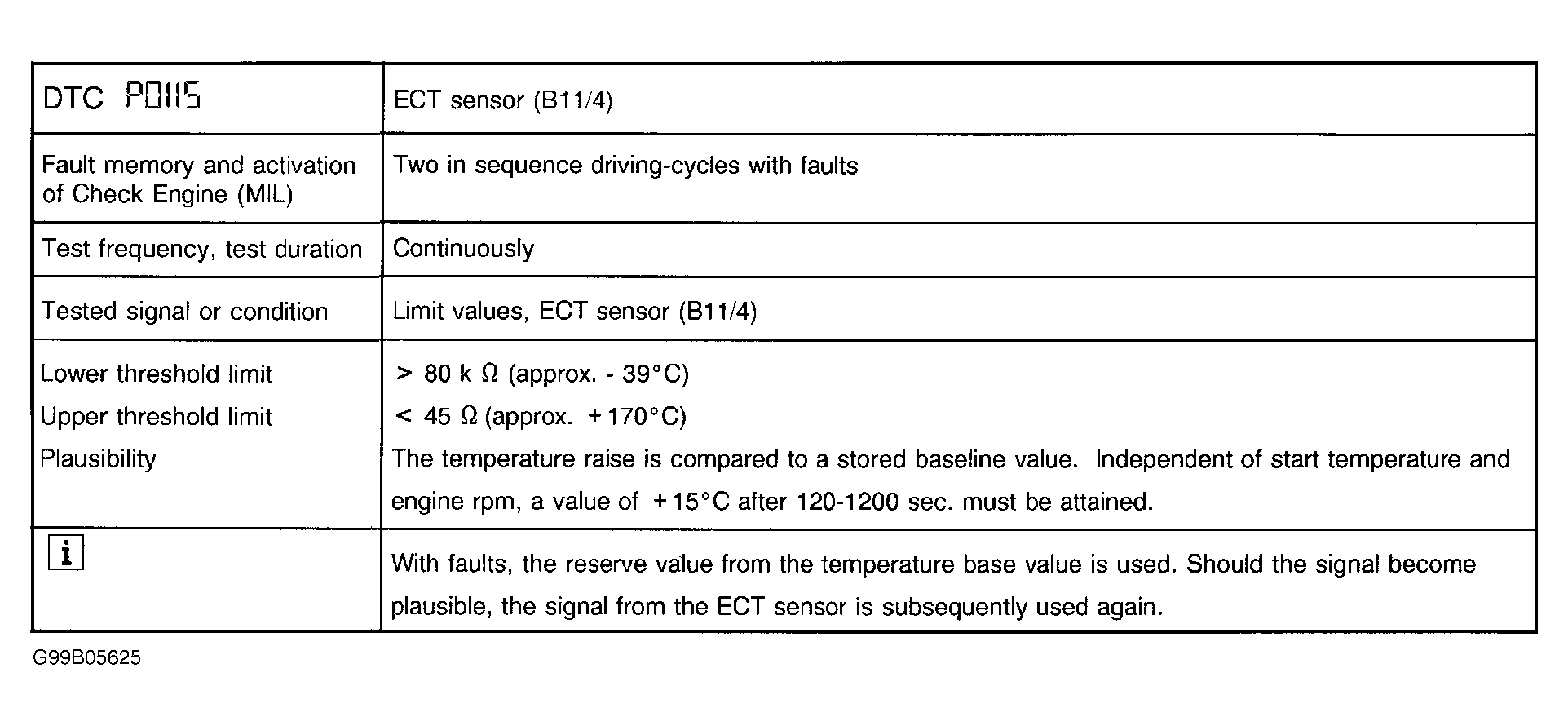

Fig 4: DTC Description (P0115)

G99B05625

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

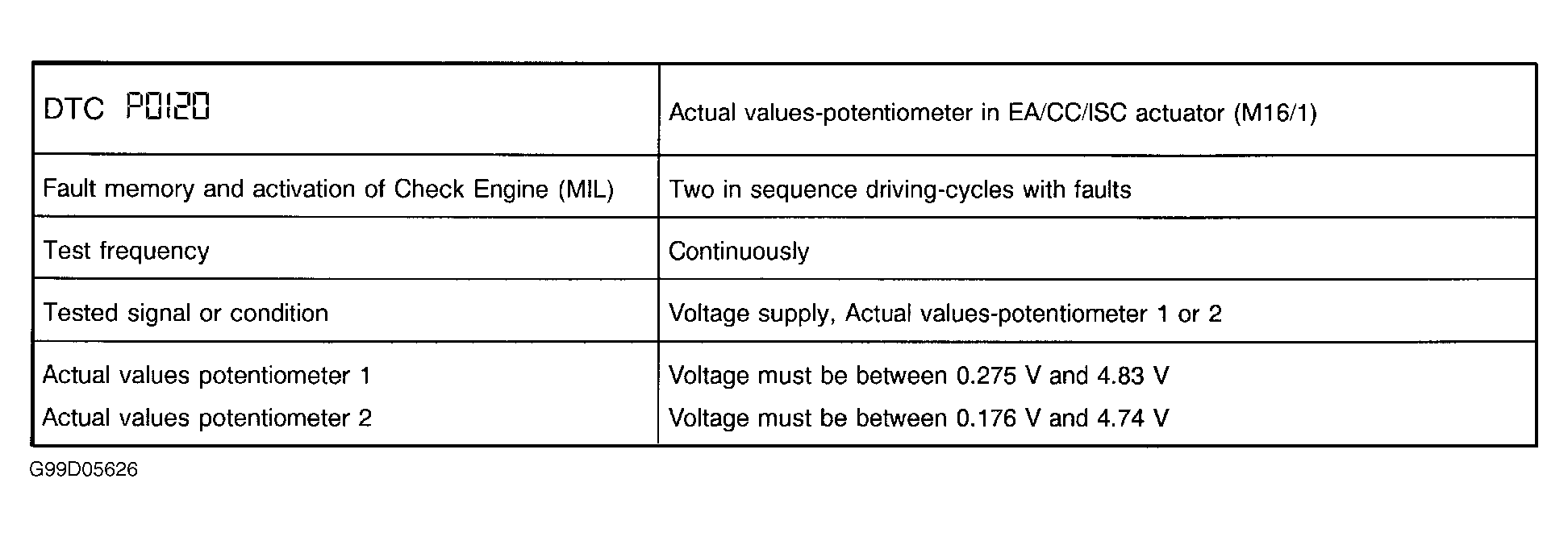

Fig 5: DTC Description (P0120)

G99D05626

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

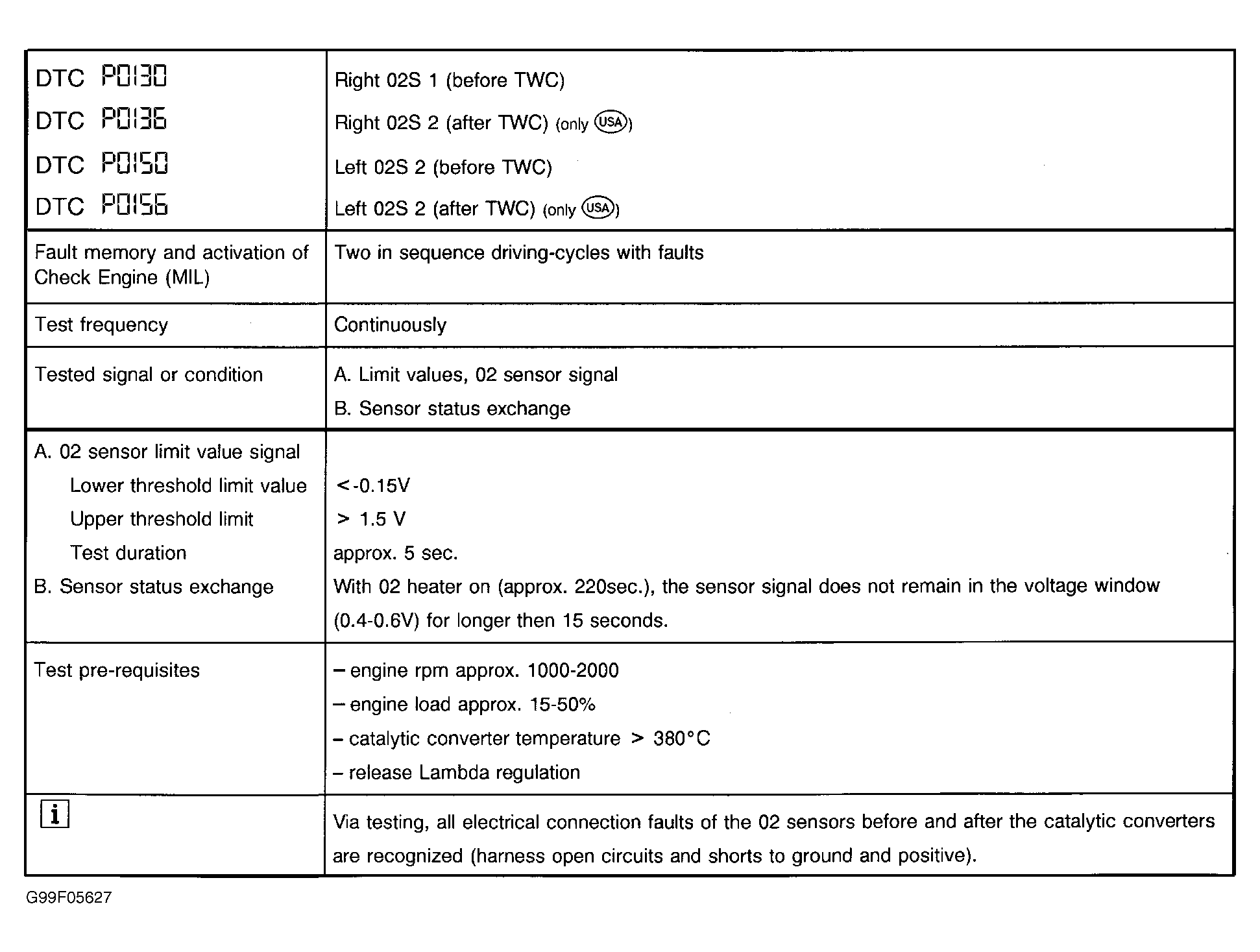

Fig 6: DTC Description (P0130, P0136, P0150 & P0156)

G99F05627

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

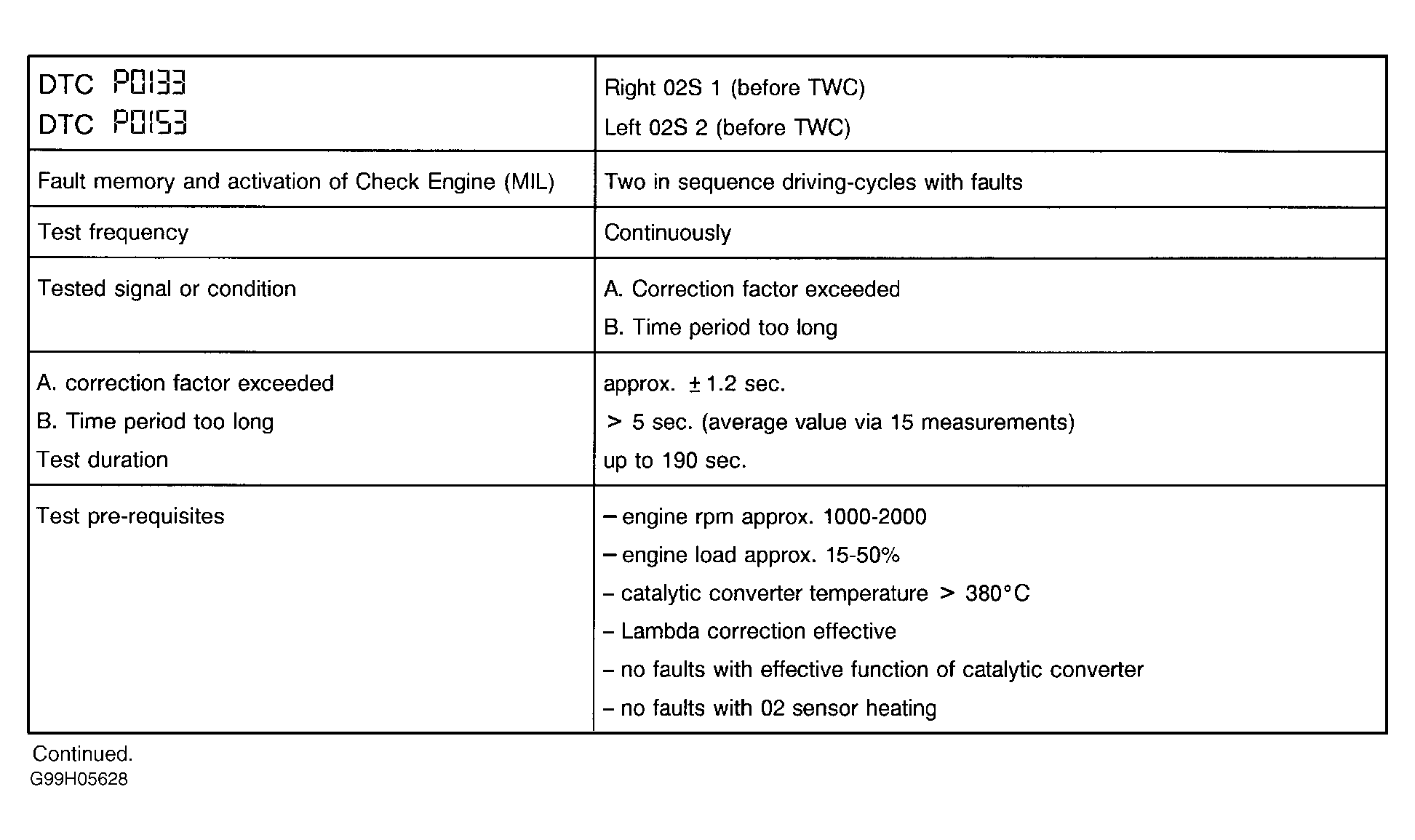

Fig 7: DTC Description (P0133 & P0153 - 1 Of 2)

G99H05628

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

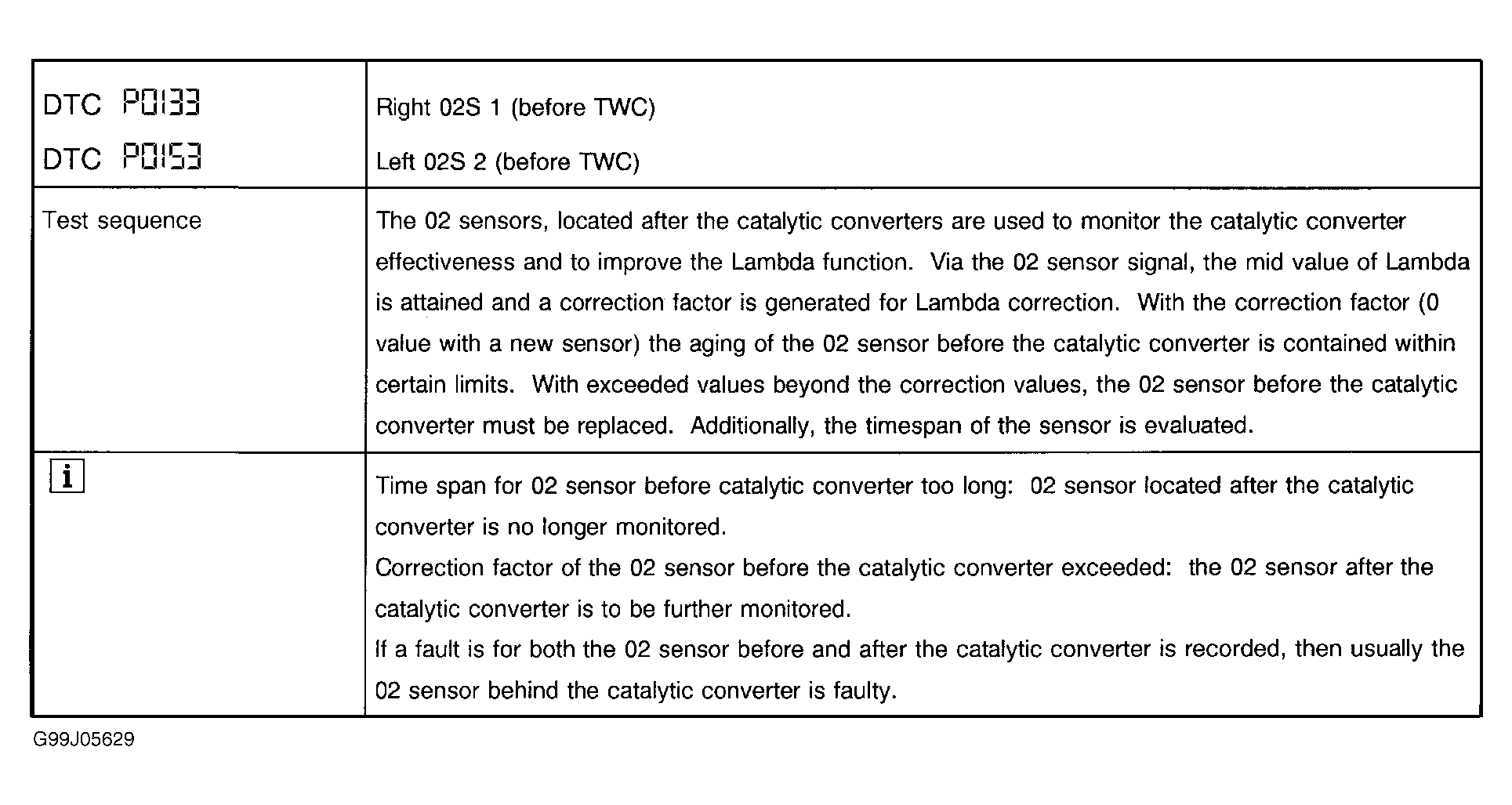

Fig 8: DTC Description (P0133 & P0153 - 2 Of 2)

G99J05629

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: DTC Description (P0135, P0141, P0155 & P0161)

G99B05630

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

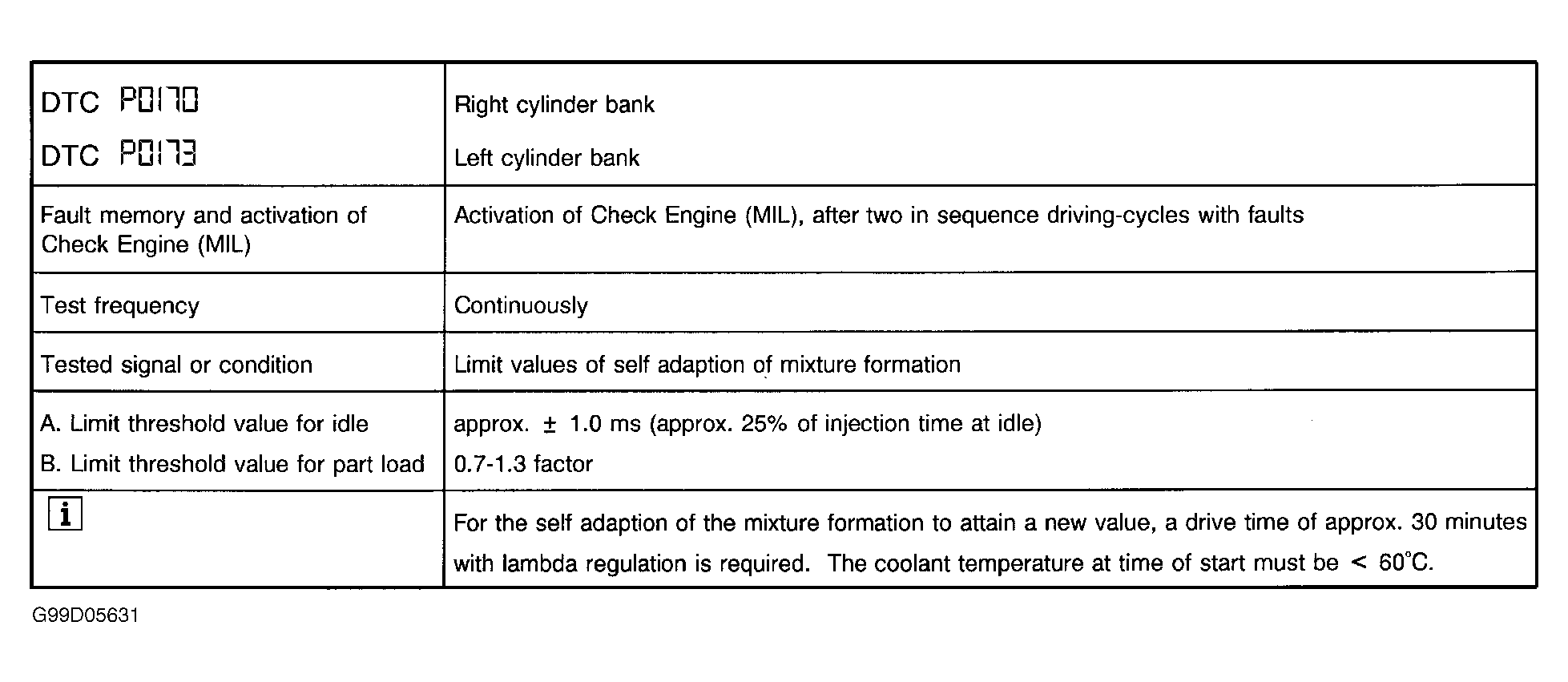

Fig 10: DTC Description (P0170 & P0173)

G99D05631

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

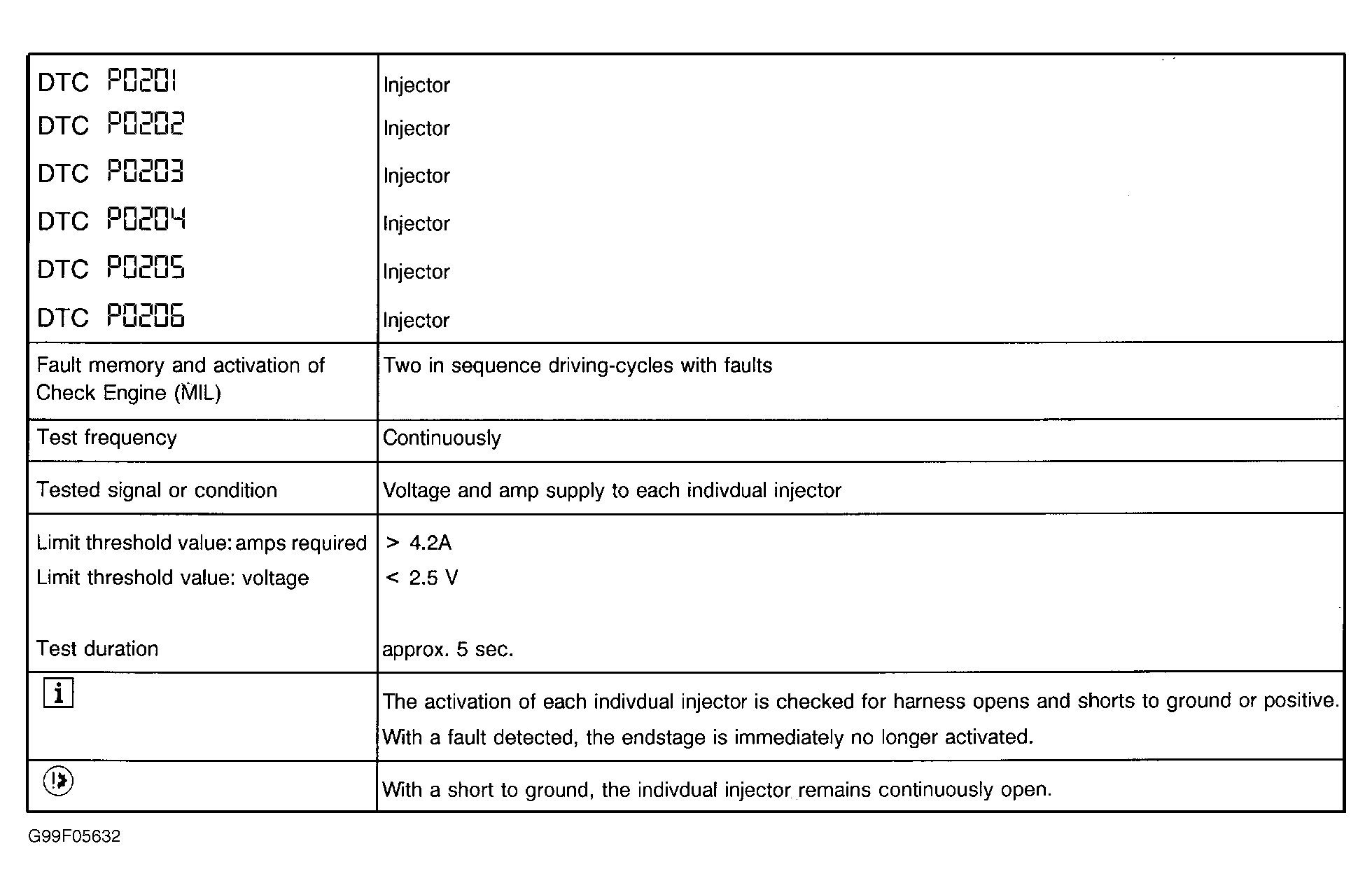

Fig 11: DTC Description (P0201, P0202, P0203, P0204, P0205 & P0206)

G99F05632

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

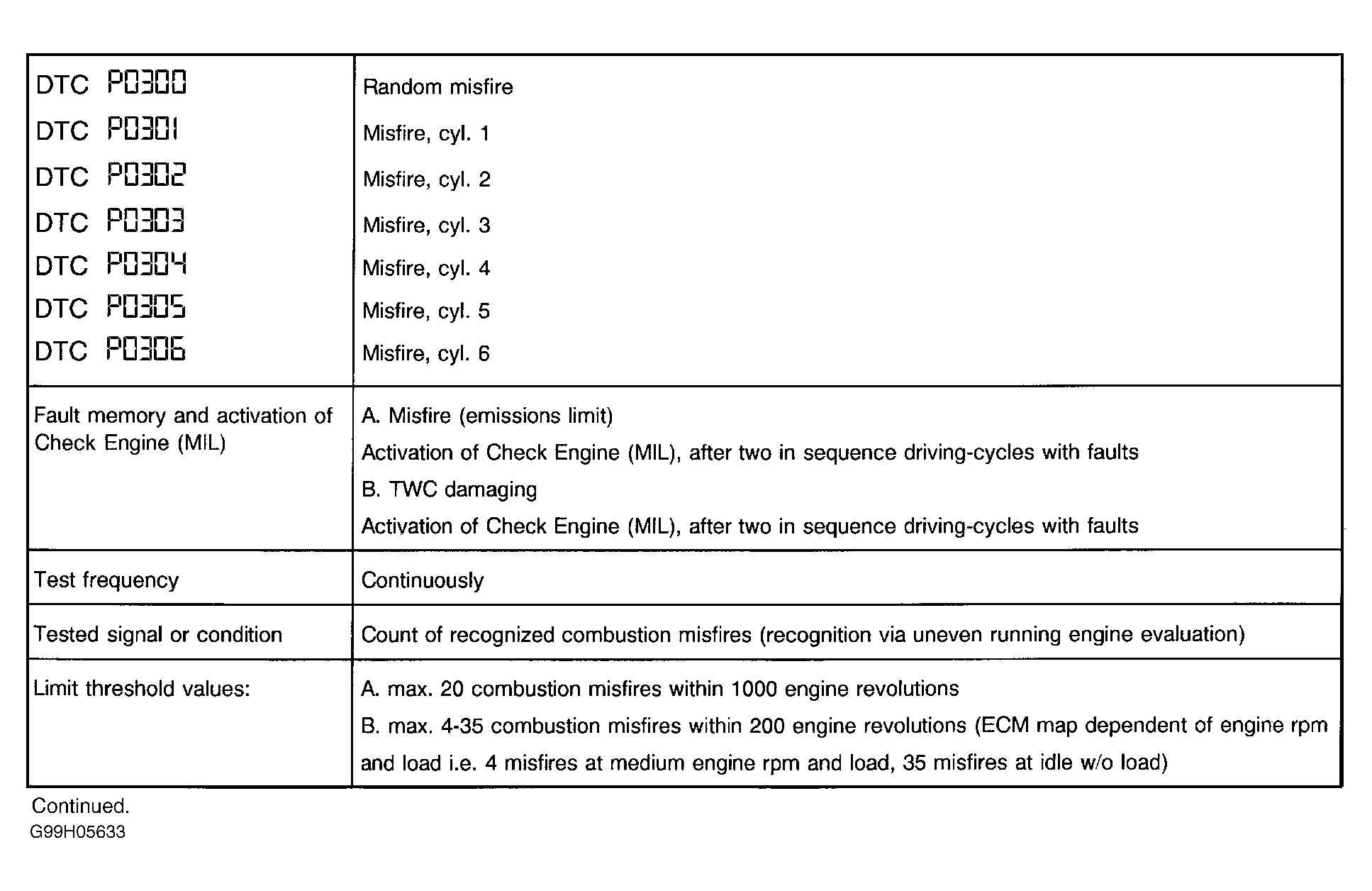

Fig 12: DTC Description (P0300, P0301, P0302, P0303, P0304, P0305 & P0306 - 1 Of 3)

G99H05633

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 13: DTC Description (P0300, P0301, P0302, P0303, P0304, P0305 & P0306 - 2 Of 3)

G99J05634

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

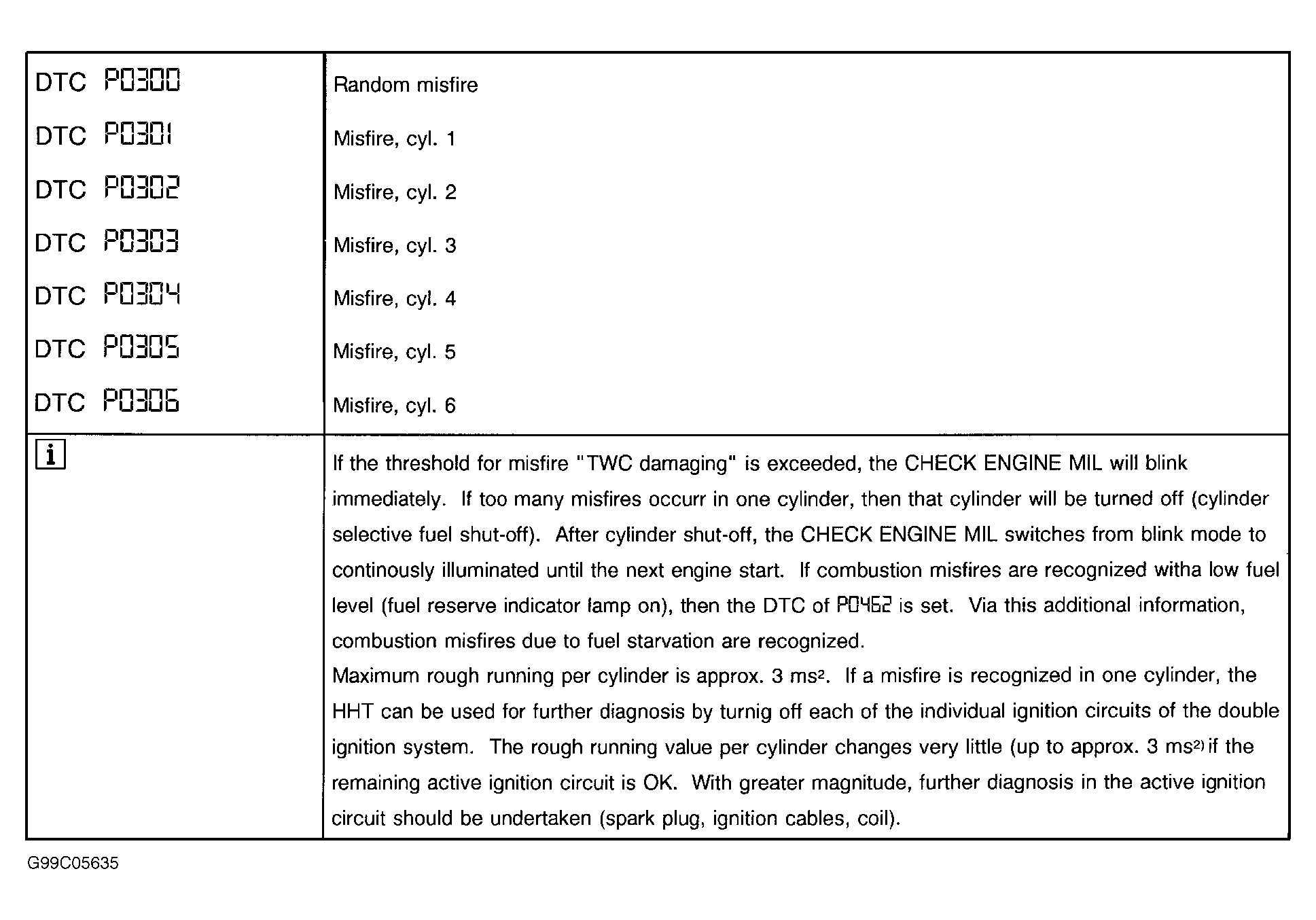

Fig 14: DTC Description (P0300, P0301, P0302, P0303, P0304, P0305 & P0306 - 3 Of 3)

G99C05635

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

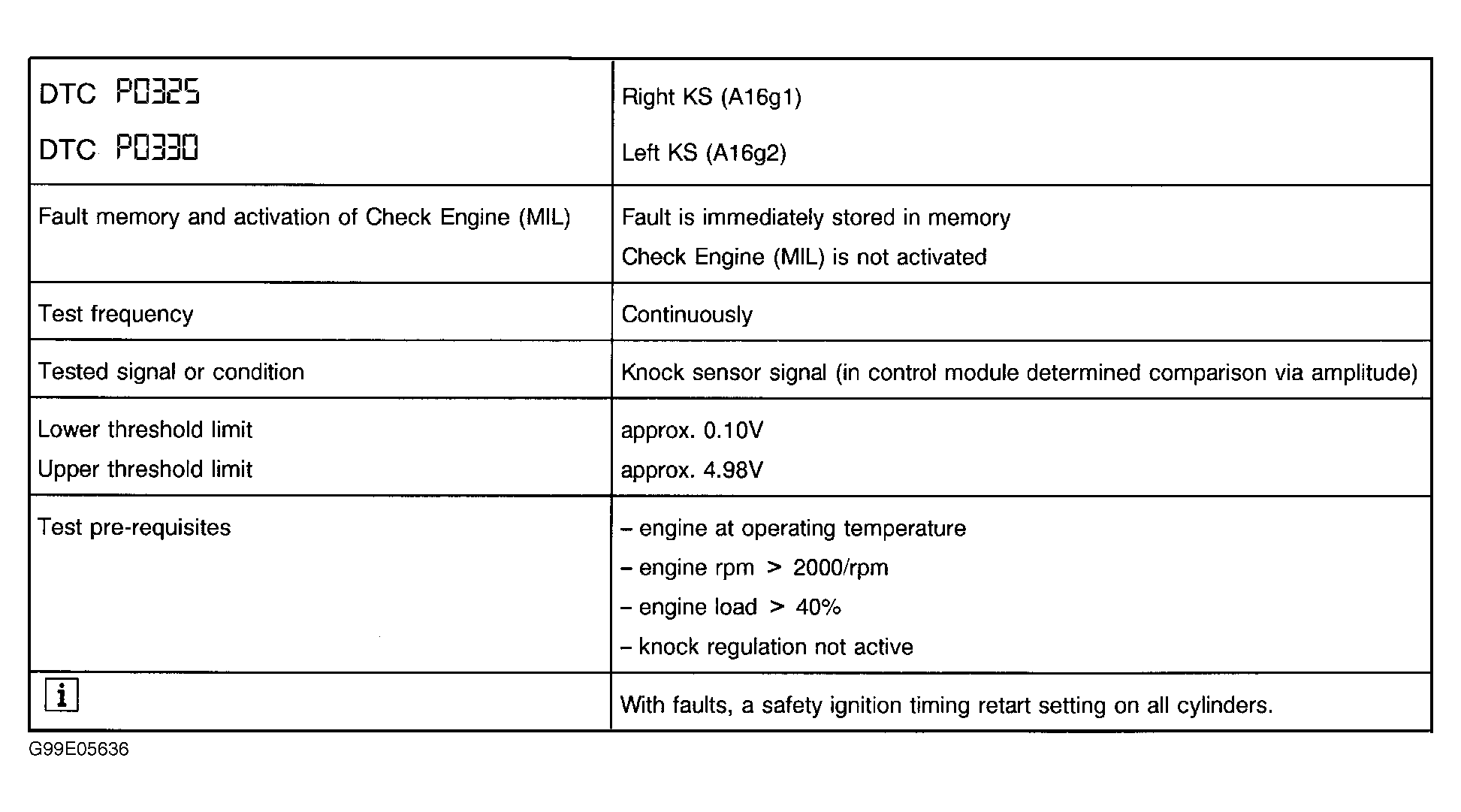

Fig 15: DTC Description (P0325 & P0330)

G99E05636

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

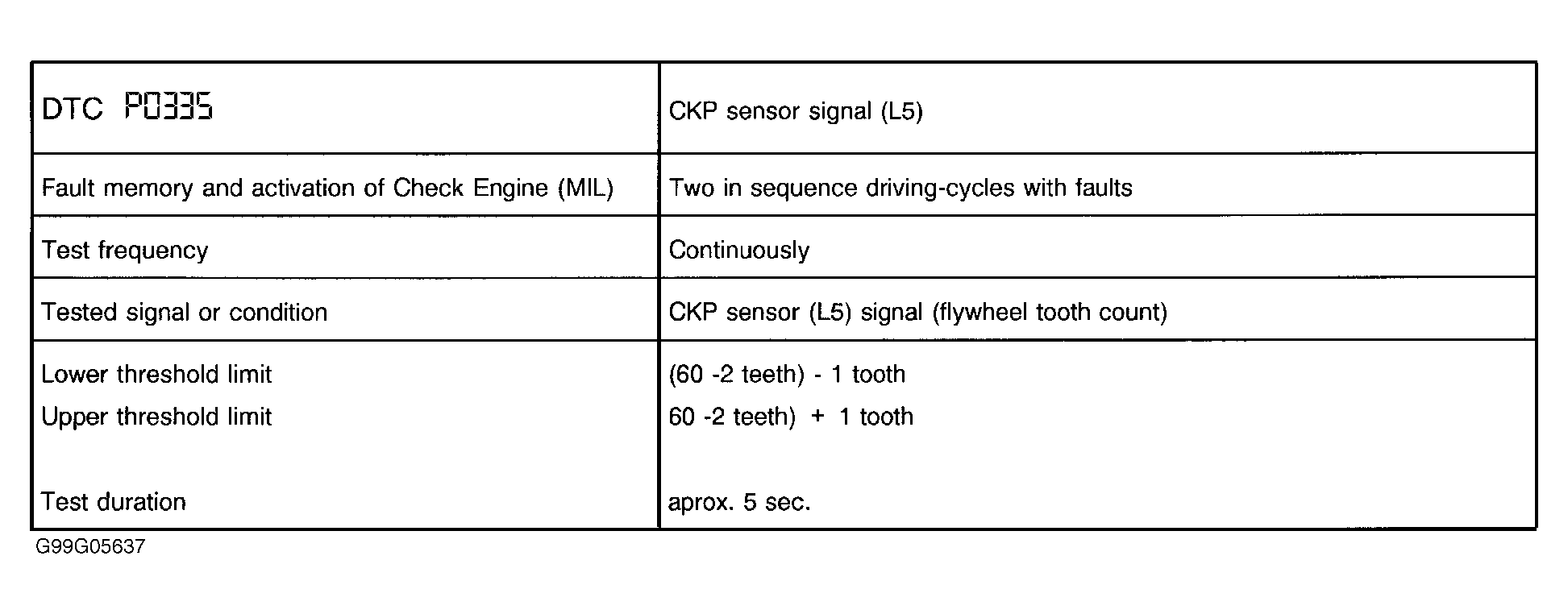

Fig 16: DTC Description (P0335)

G99G05637

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

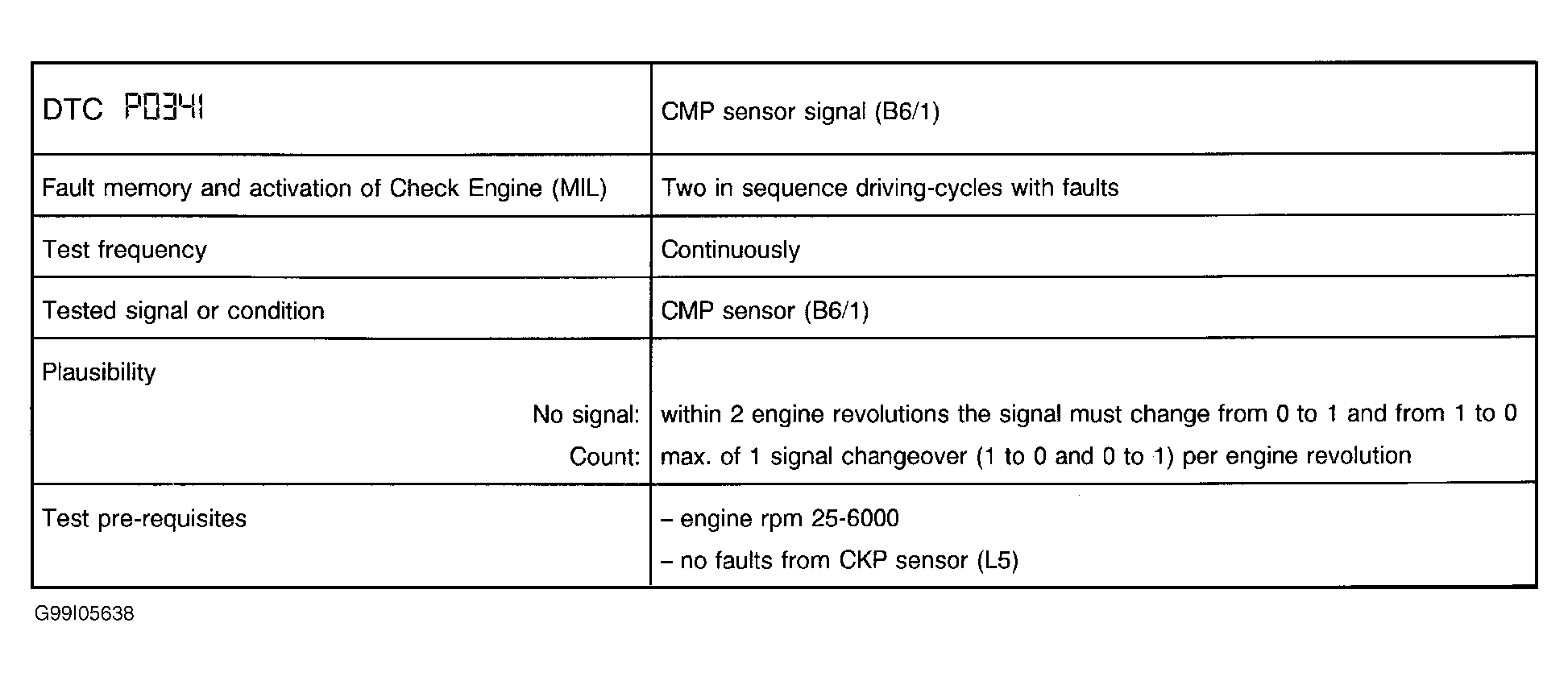

Fig 17: DTC Description (P0341)

G99I05638

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

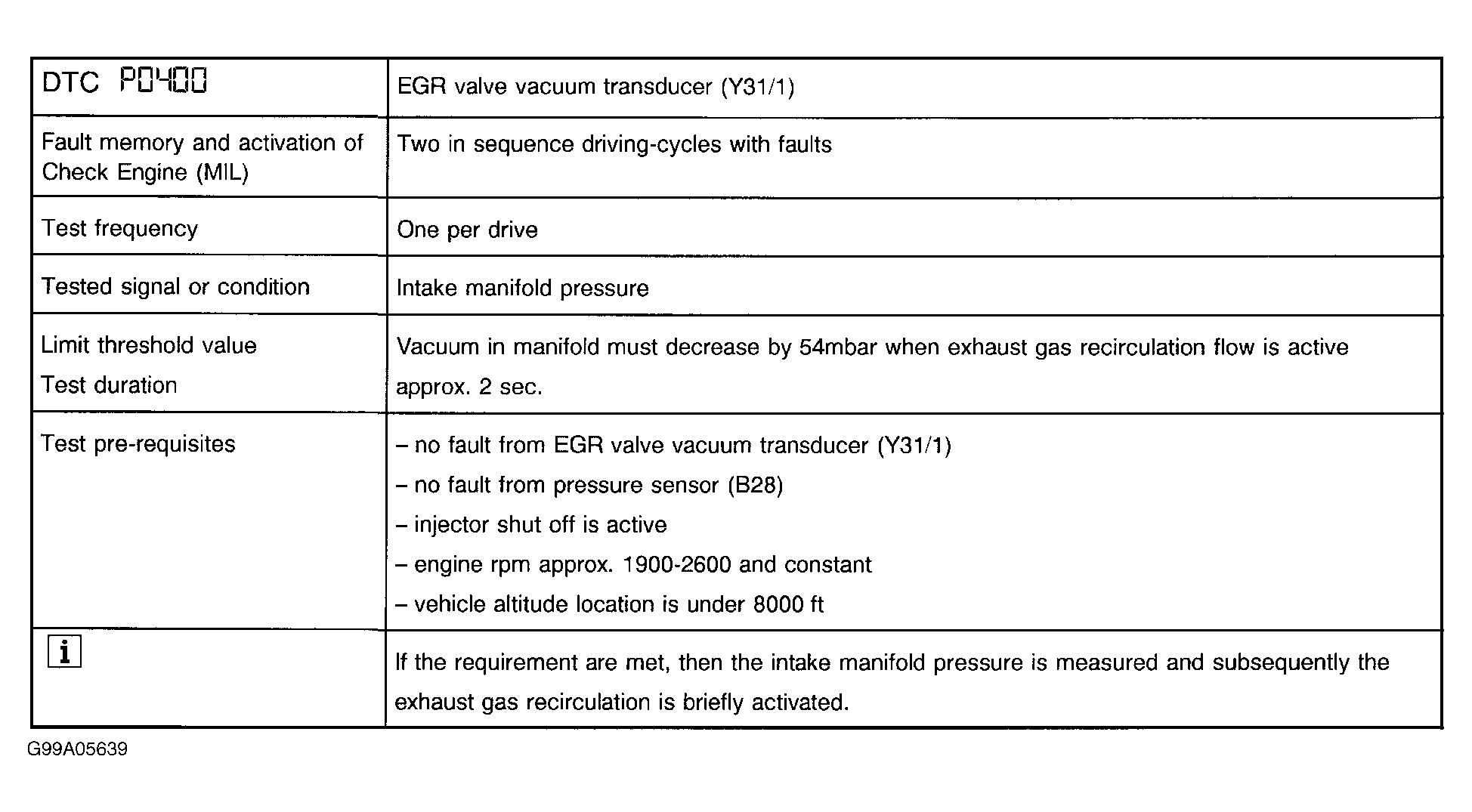

Fig 18: DTC Description (P0400)

G99A05639

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

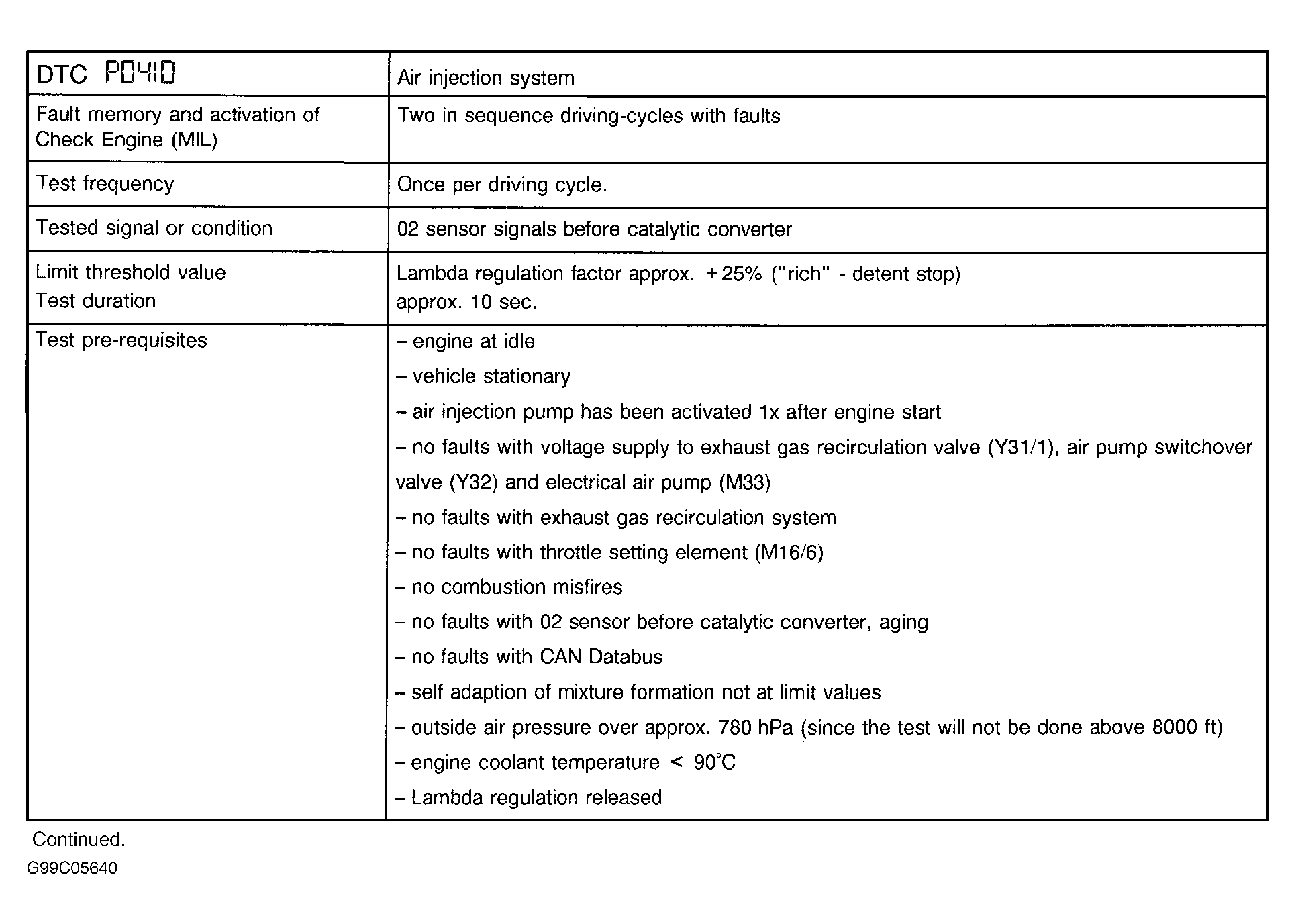

Fig 19: DTC Description (P0410 - 1 Of 2)

G99C05640

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

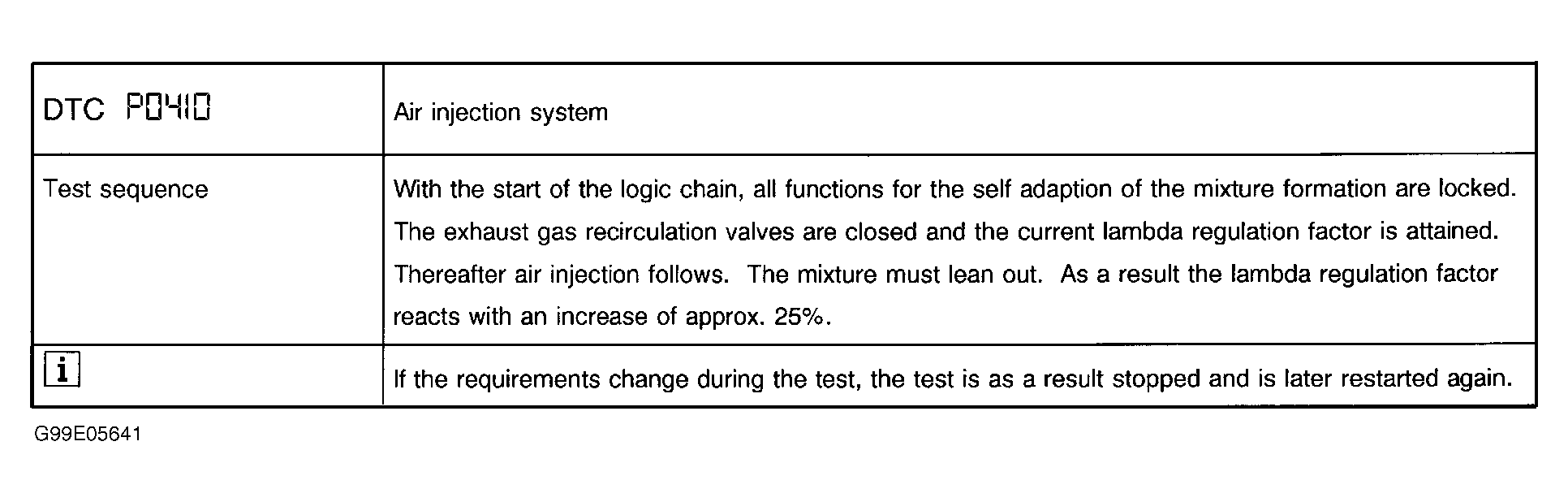

Fig 20: DTC Description (P0410 - 2 Of 2)

G99E05641

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

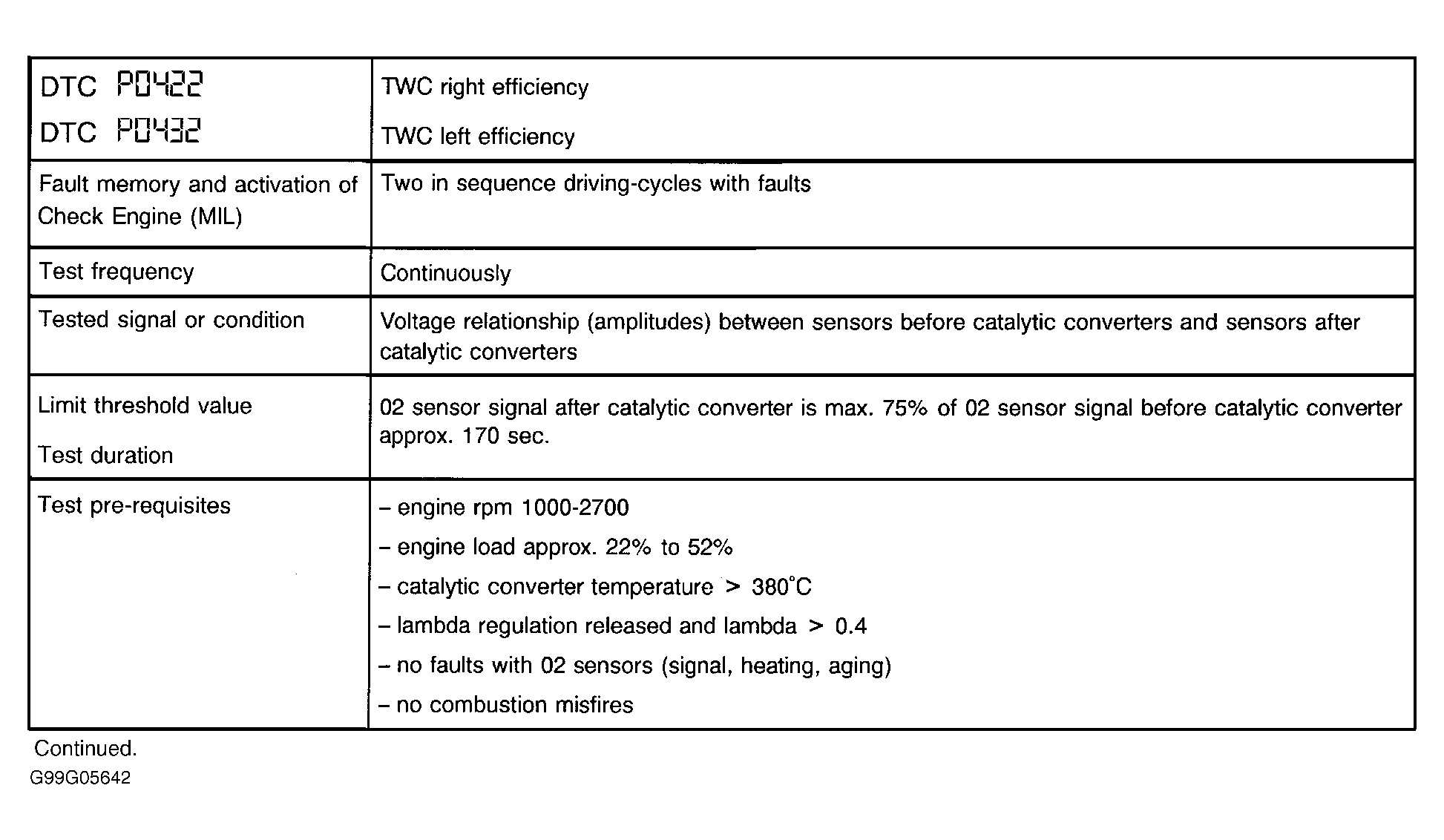

Fig 21: DTC Description (P0422 & P0432 - 1 Of 2)

G99G05642

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

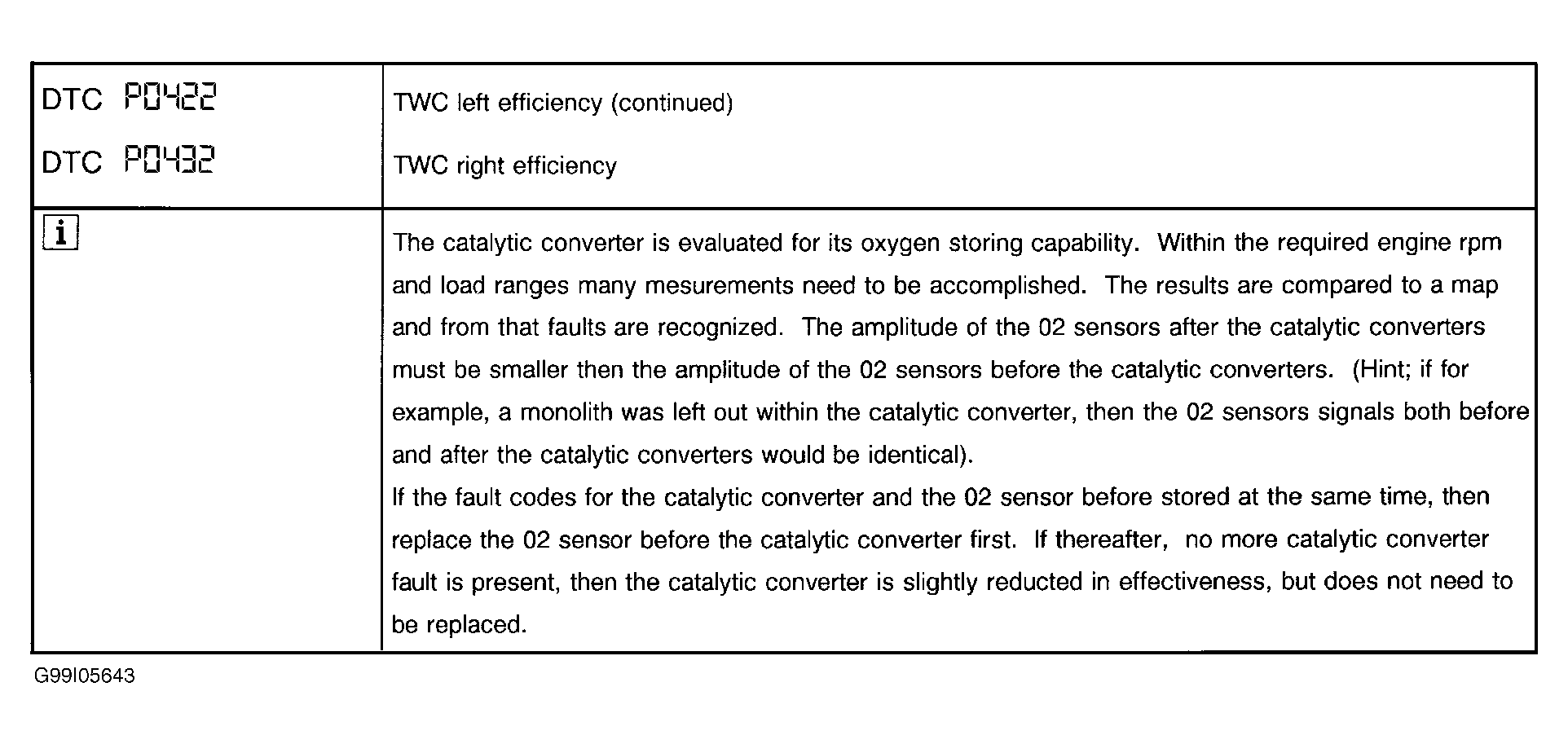

Fig 22: DTC Description (P0422 & P0432 - 2 Of 2)

G99I05643

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

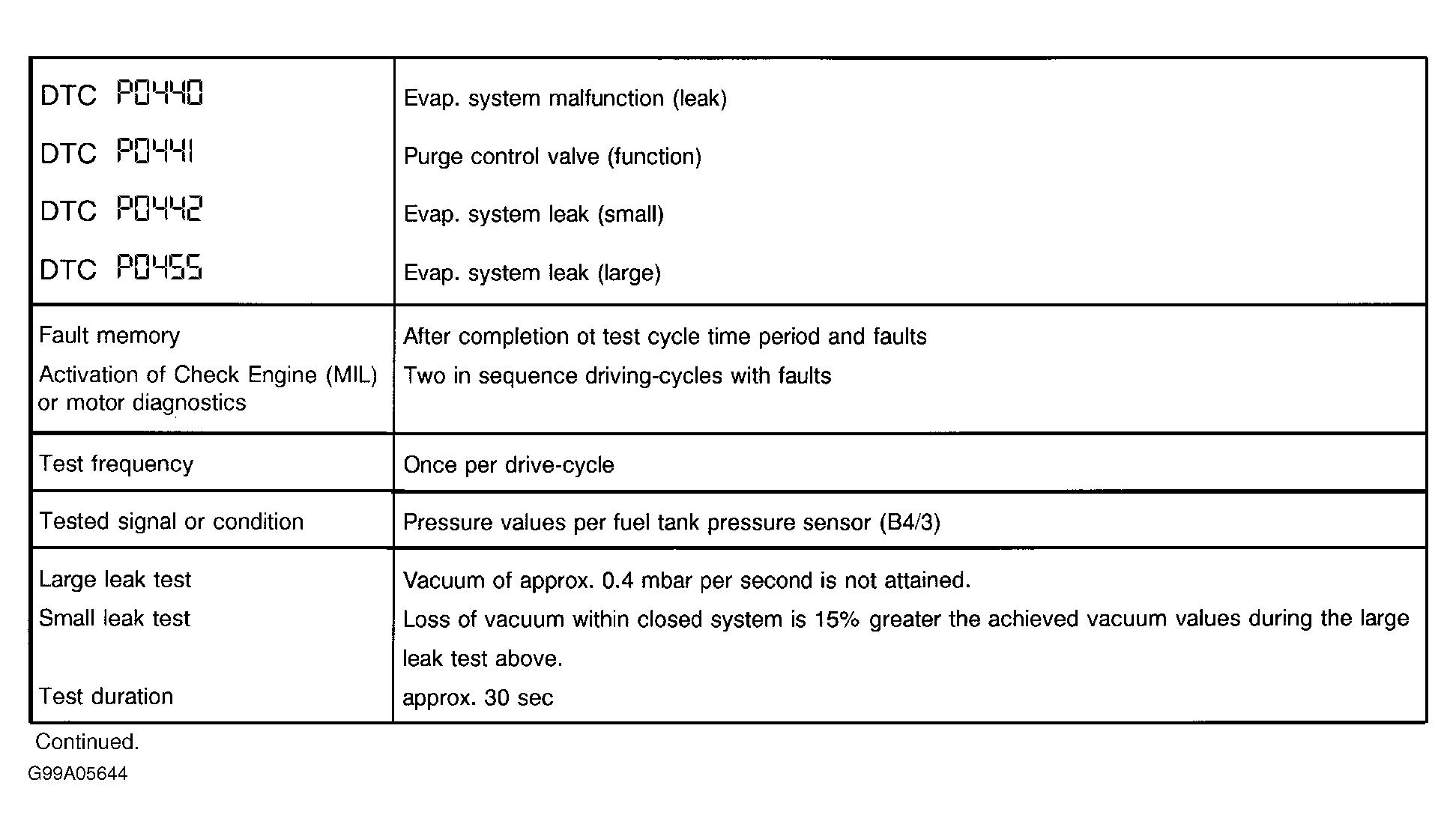

Fig 23: DTC Description (P0440, P0441, P0442 & P0455 - 1 Of 2)

G99A05644

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

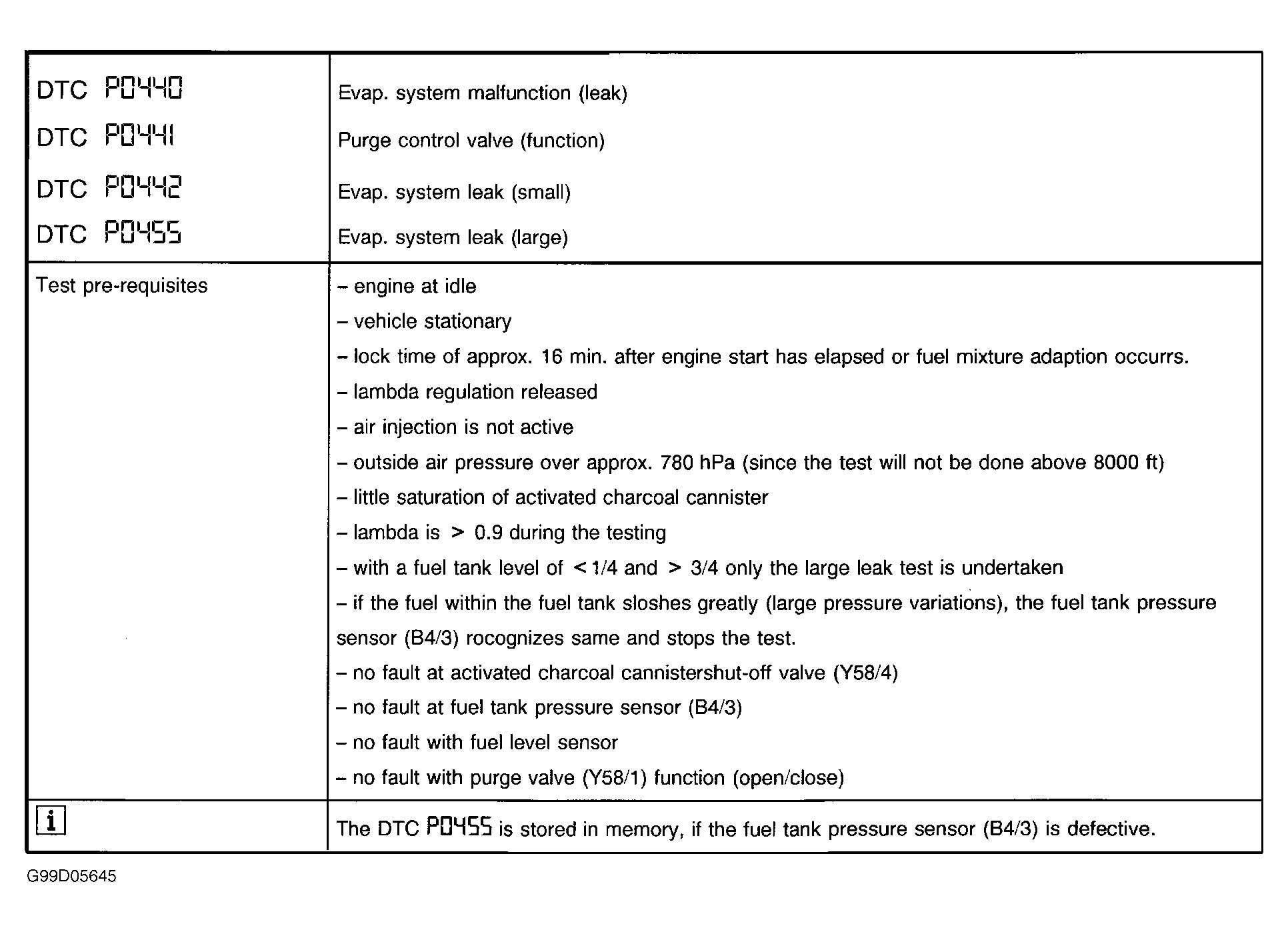

Fig 24: DTC Description (P0440, P0441, P0442 & P0455 - 2 Of 2)

G99D05645

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

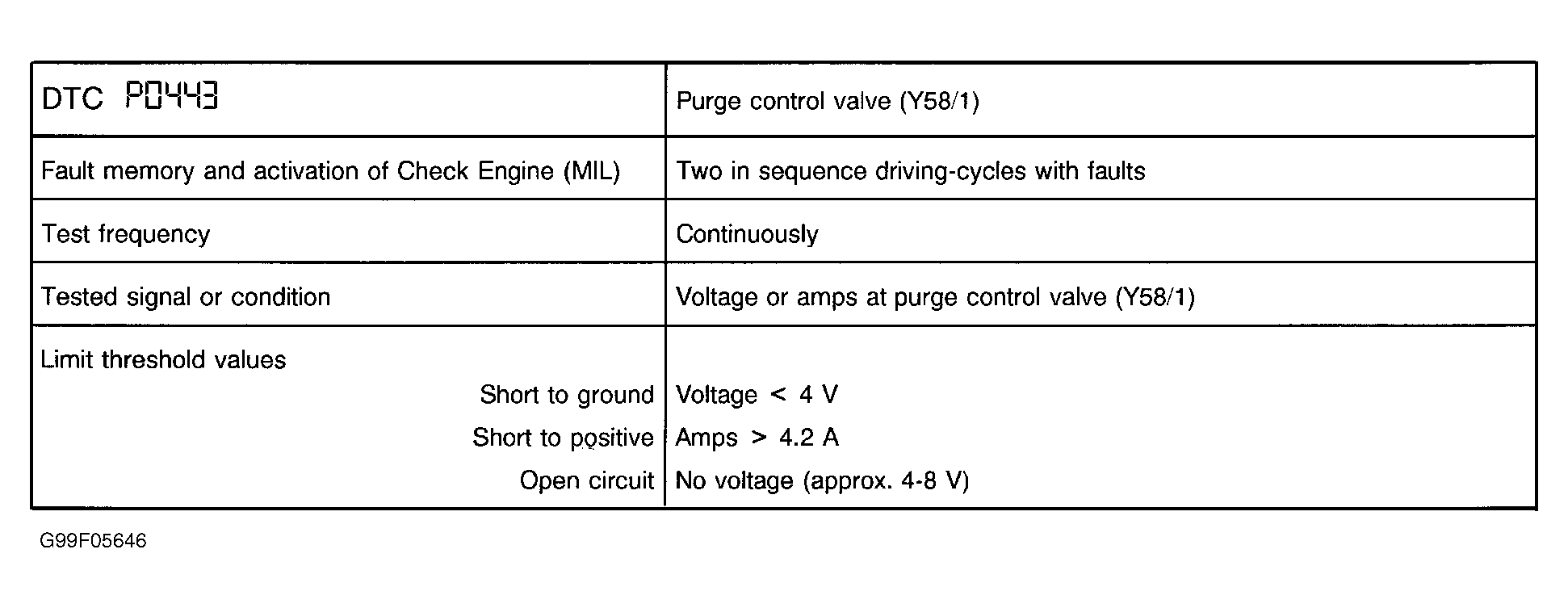

Fig 25: DTC Description (P0443)

G99F05646

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

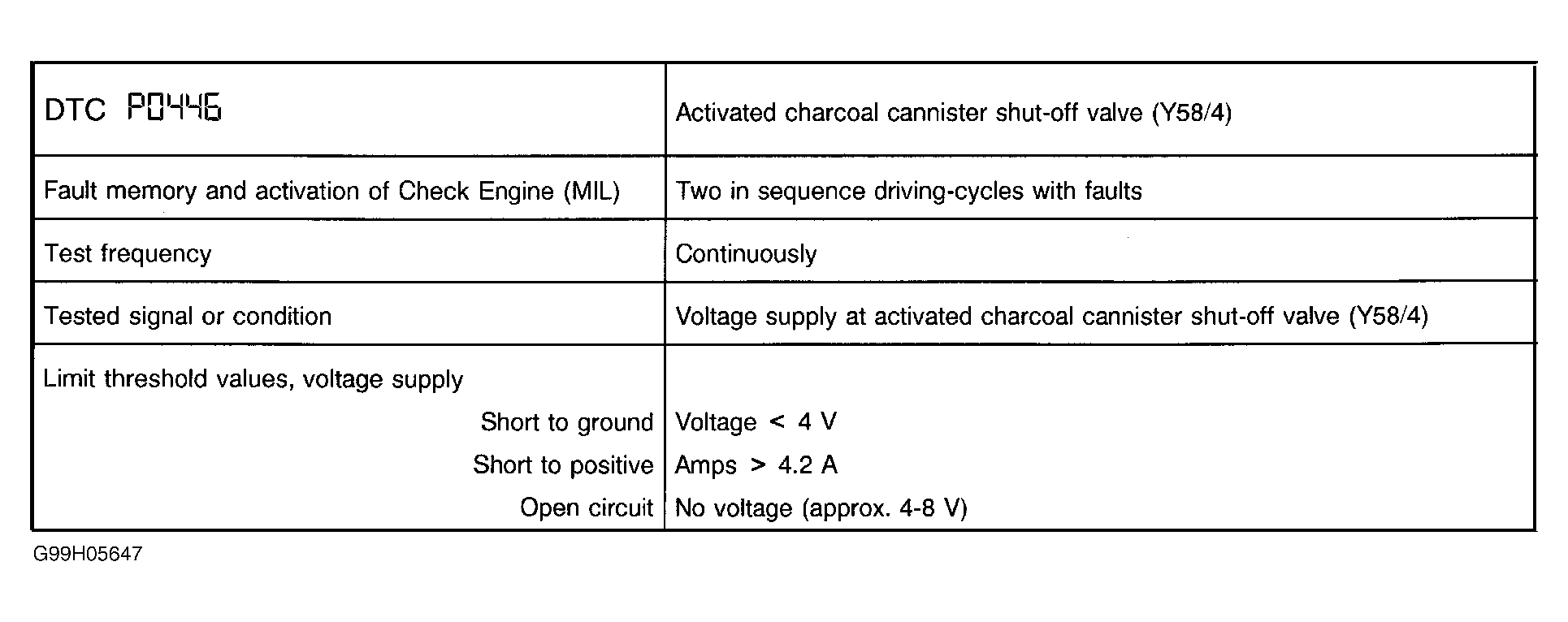

Fig 26: DTC Description (P0446)

G99H05647

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

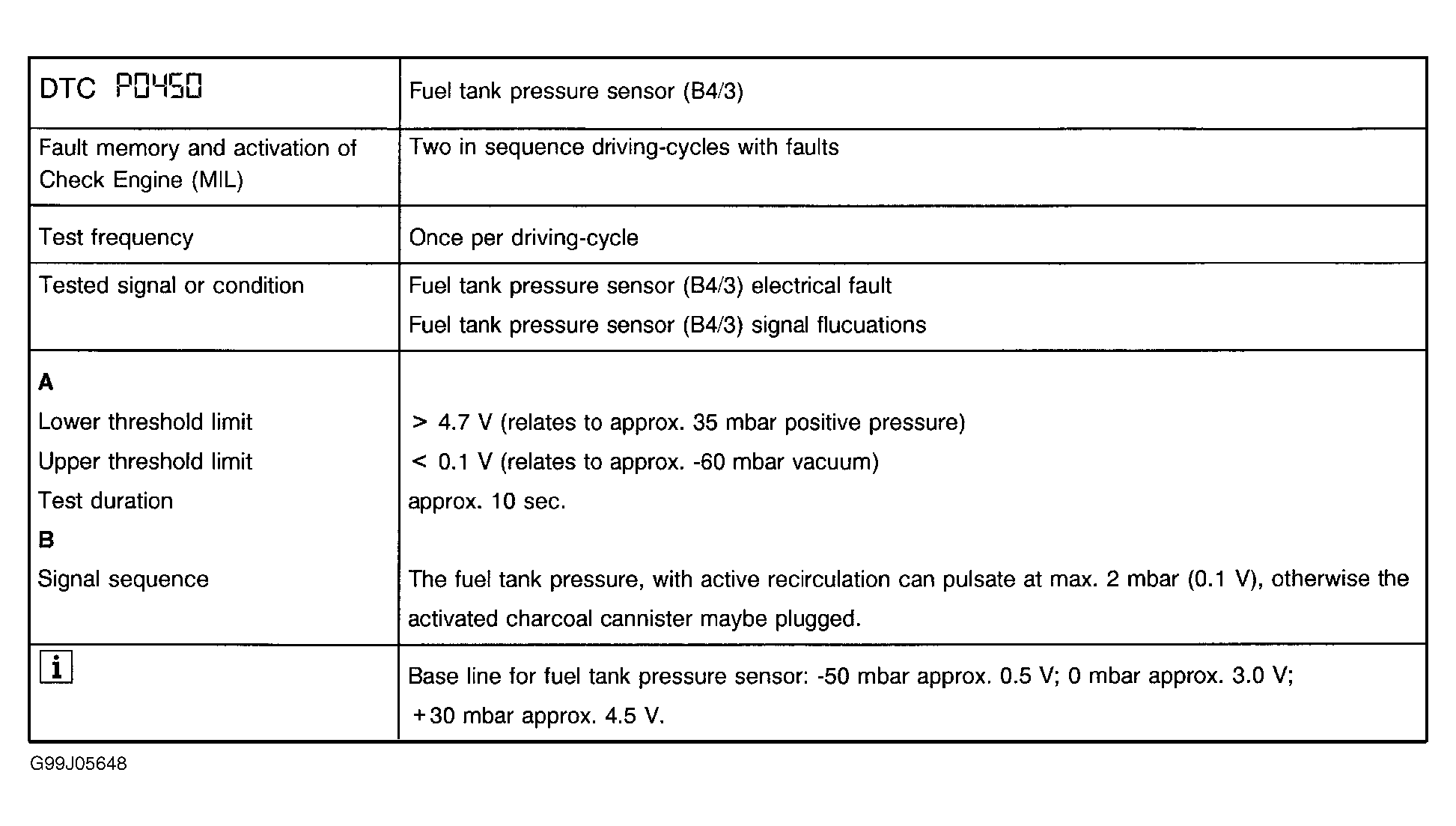

Fig 27: DTC Description (P0450)

G99J05648

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

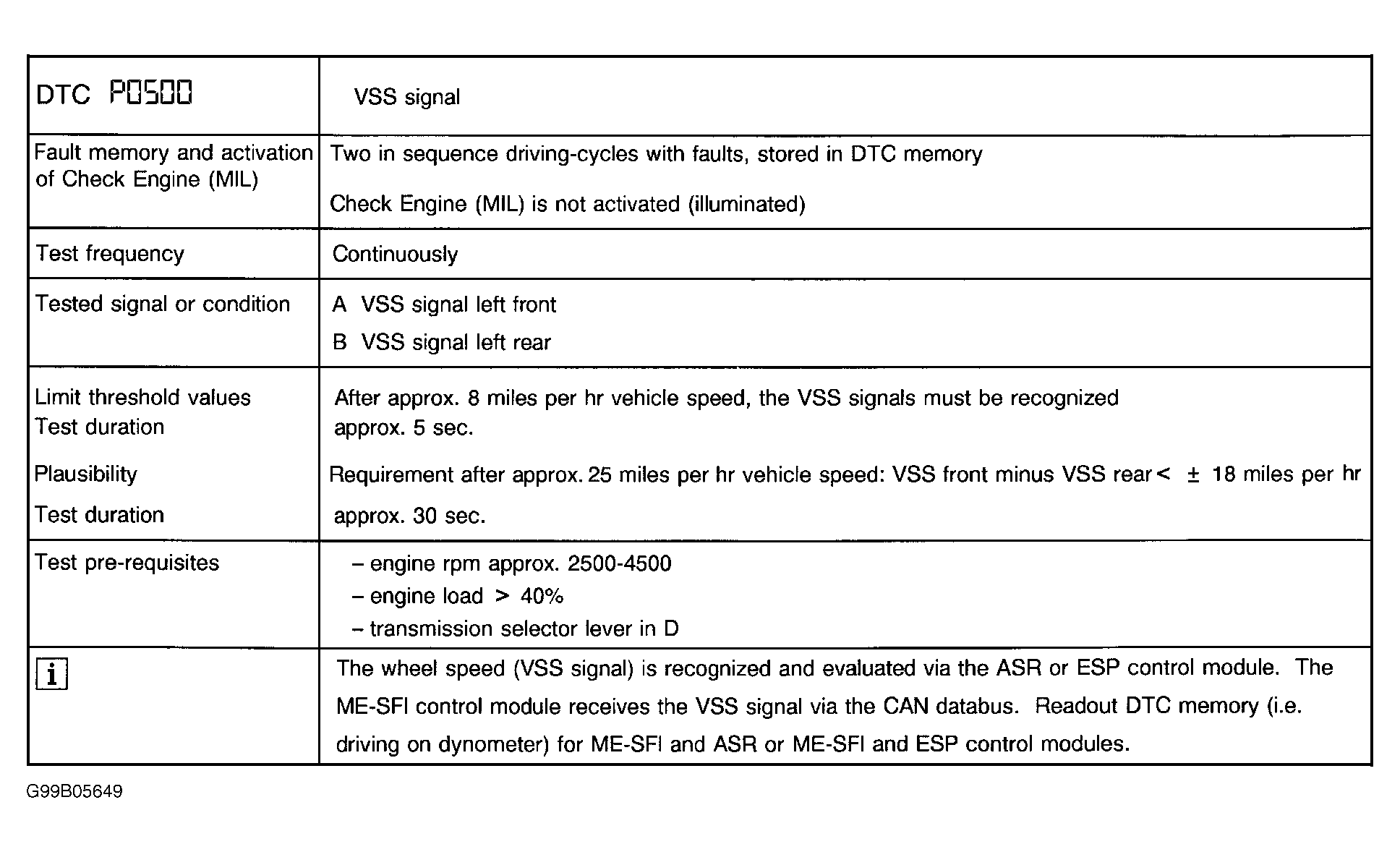

Fig 28: DTC Description (P0500)

G99B05649

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

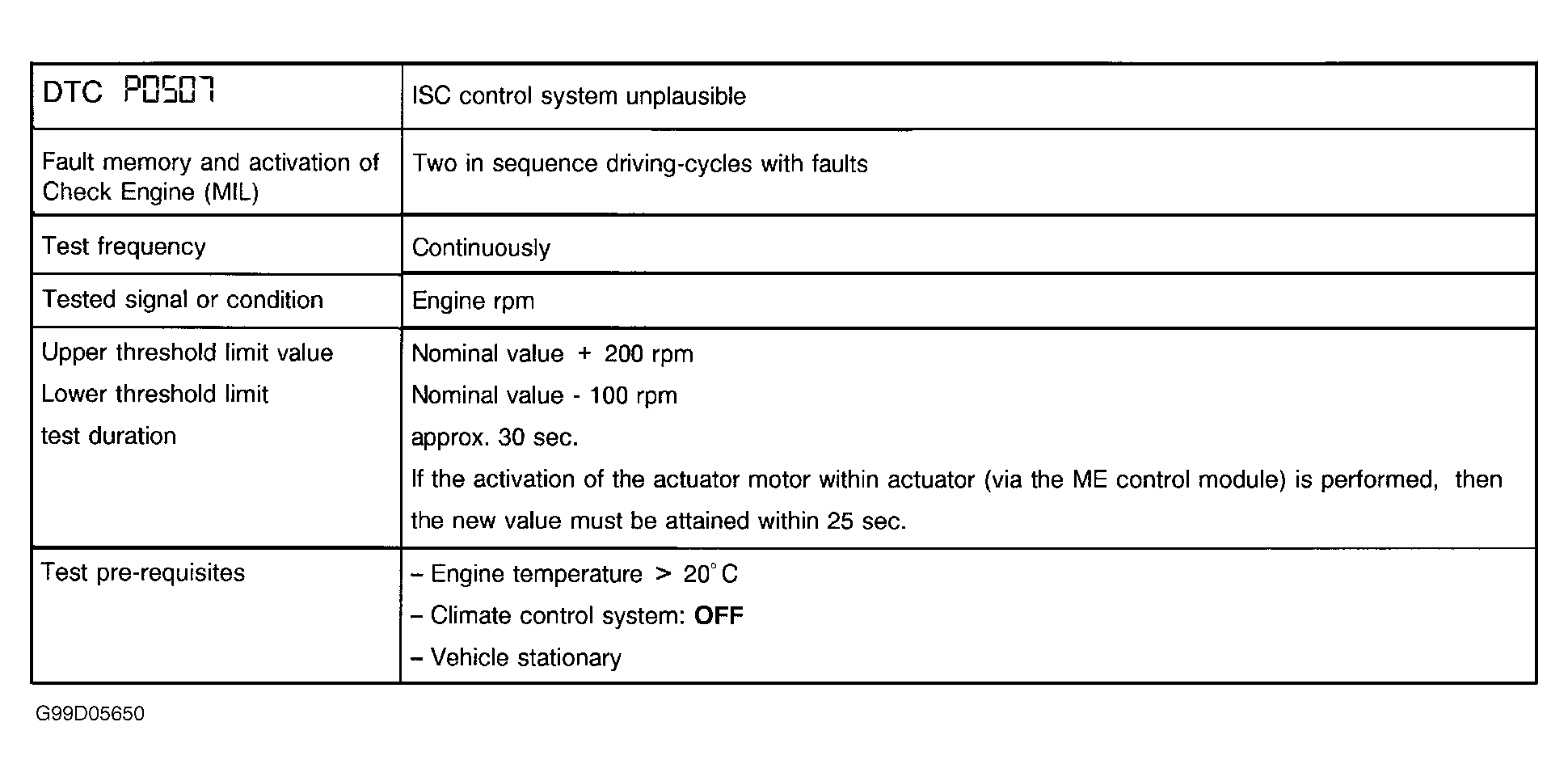

Fig 29: DTC Description (P0507)

G99D05650

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

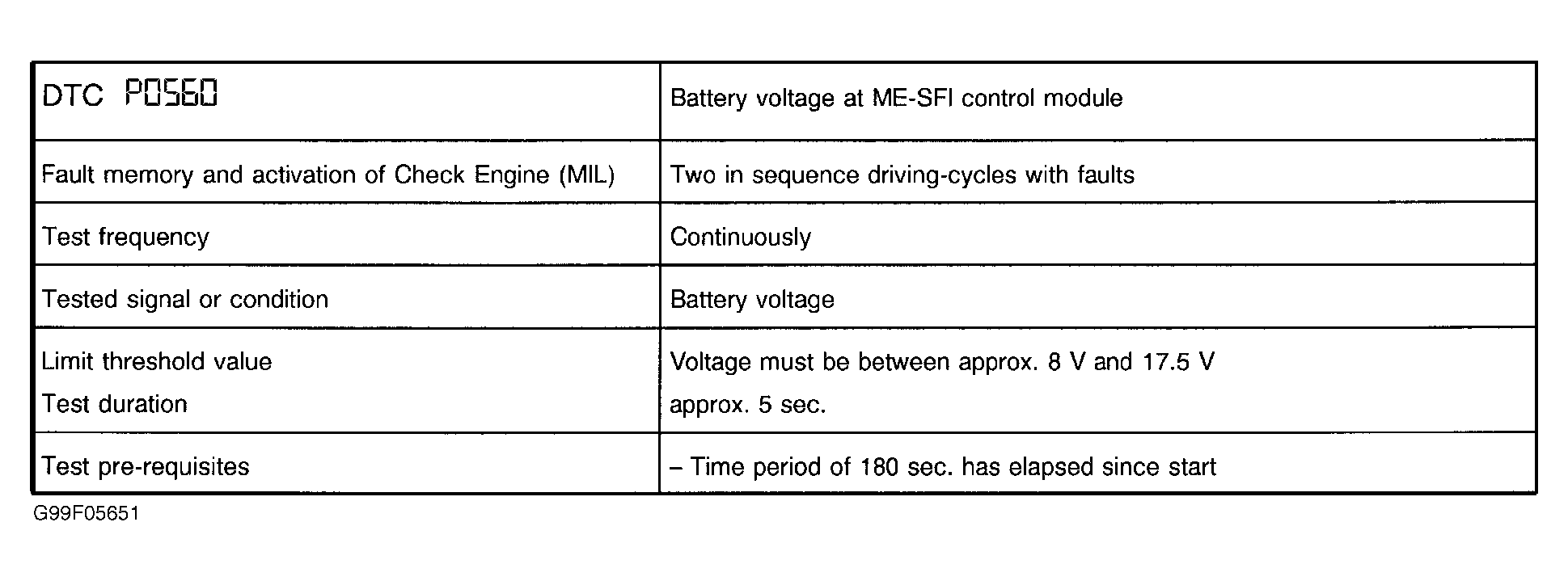

Fig 30: DTC Description (P0560)

G99F05651

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

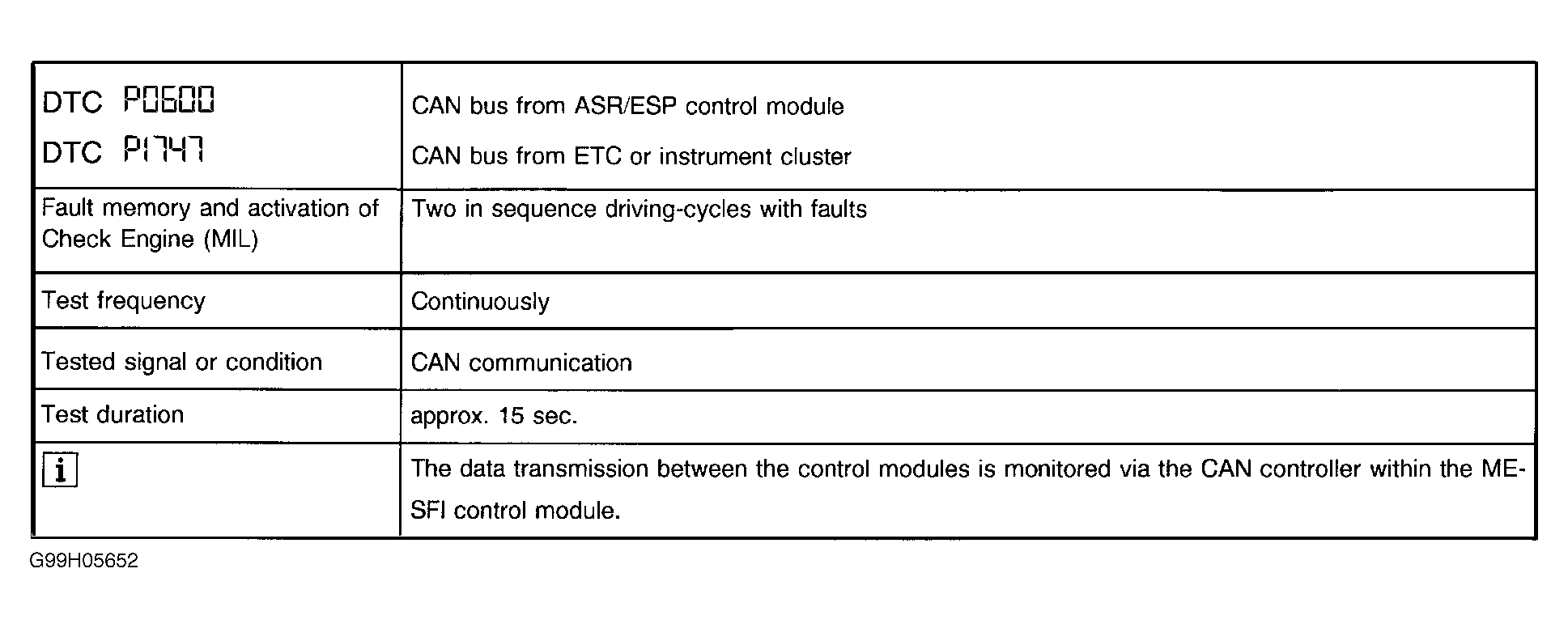

Fig 31: DTC Description (P0600 & P1747)

G99H05652

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

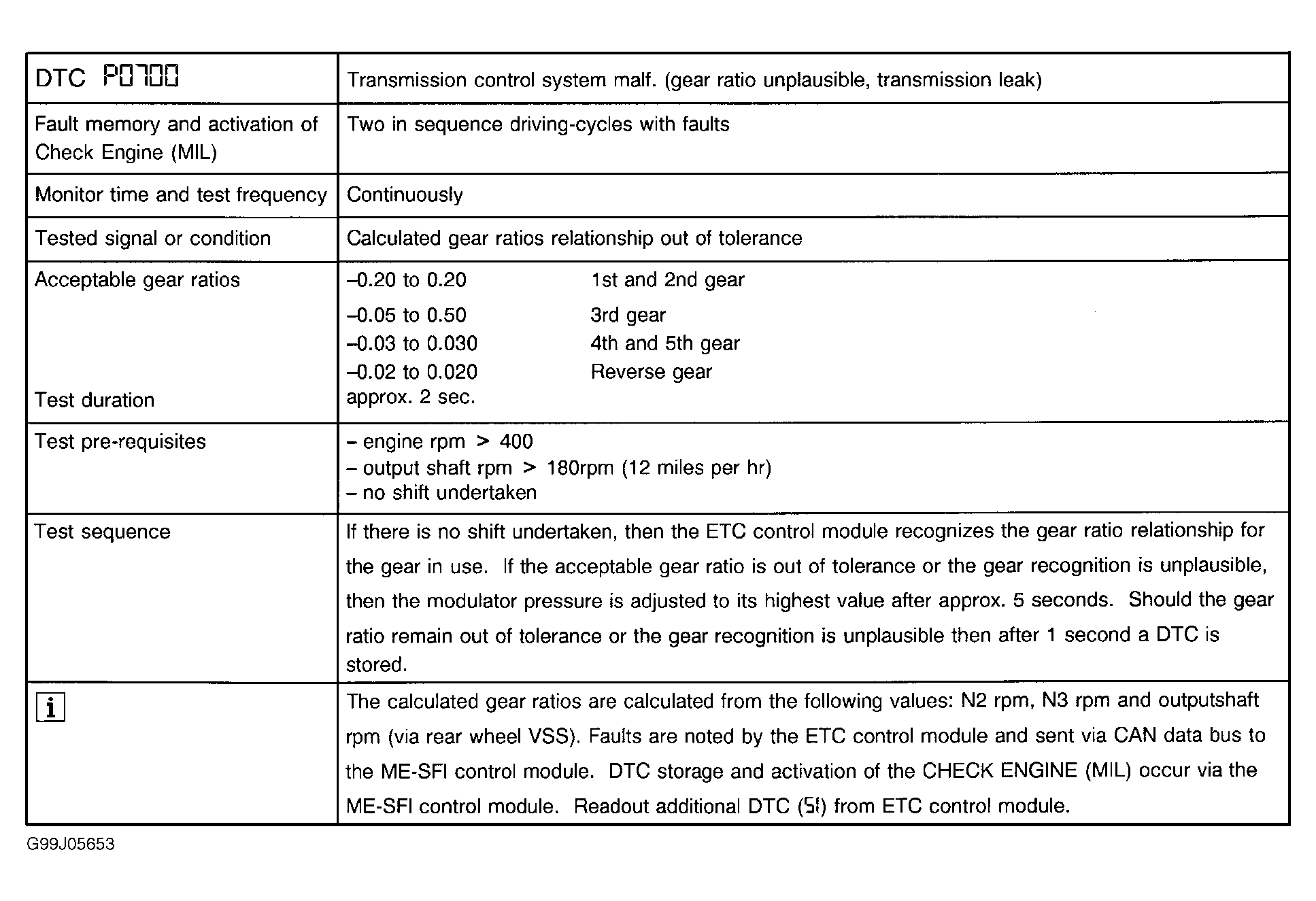

Fig 32: DTC Description (P0700 - 1 Of 2)

G99J05653

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

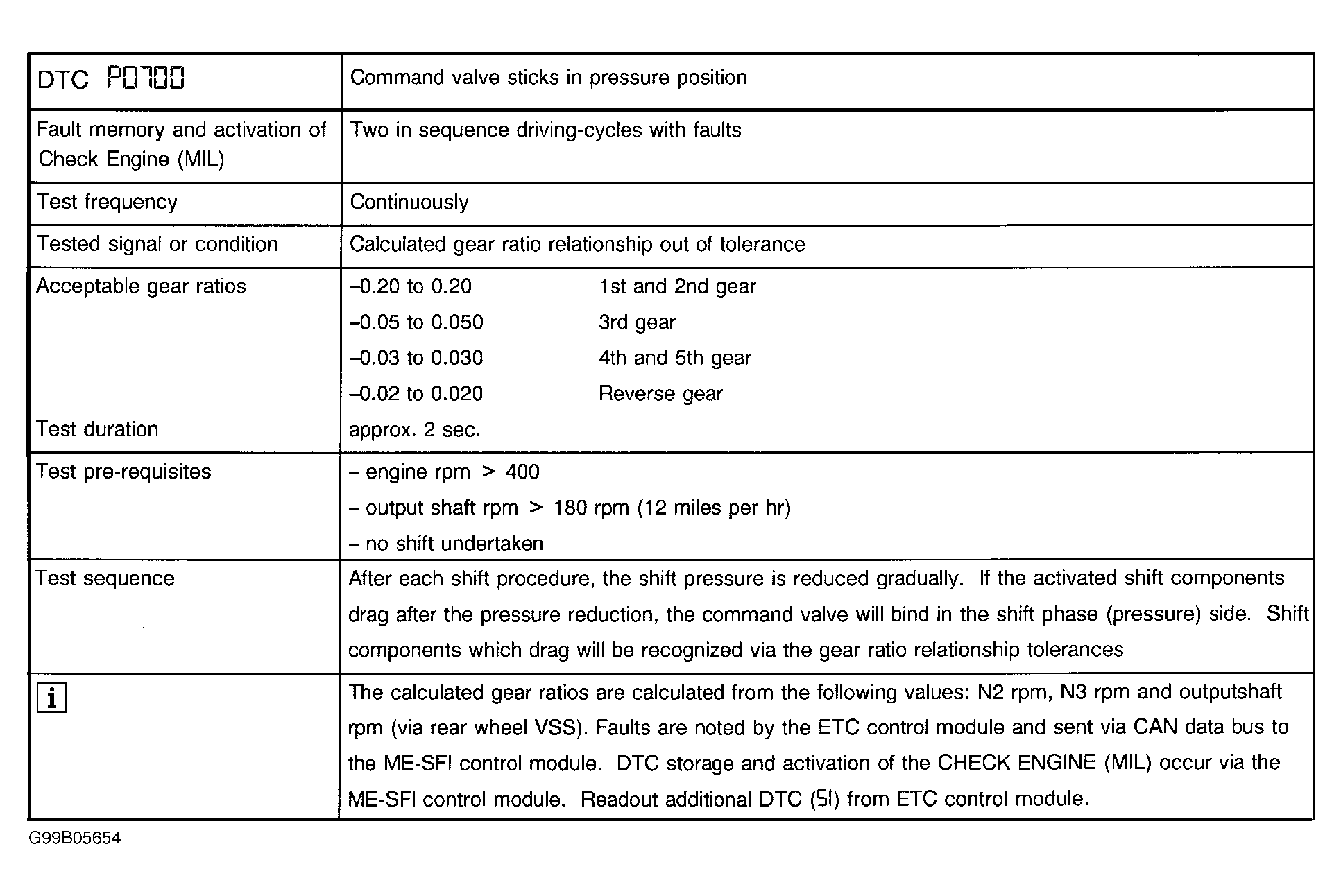

Fig 33: DTC Description (P0700 - 2 Of 2)

G99B05654

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

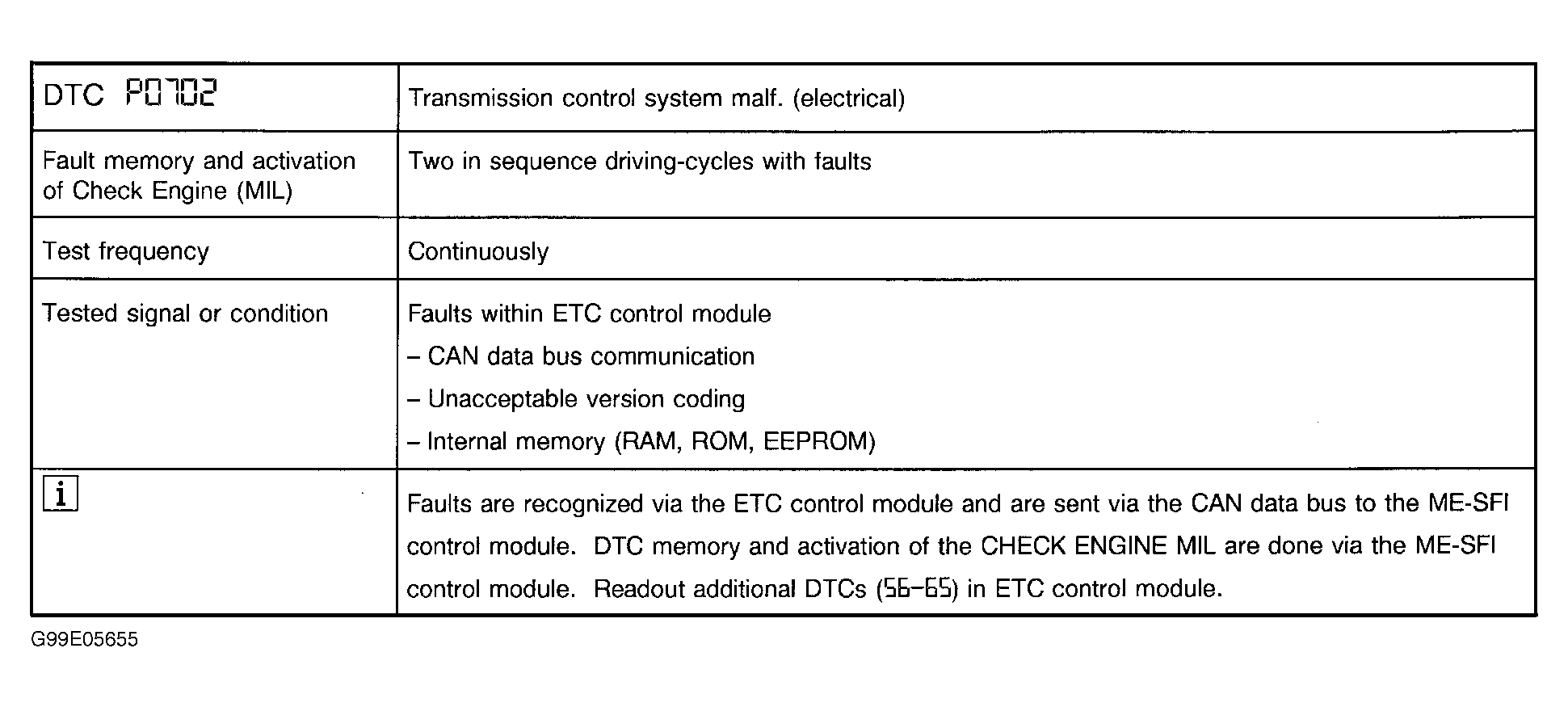

Fig 34: DTC Description (P0702 - 1 Of 2)

G99E05655

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

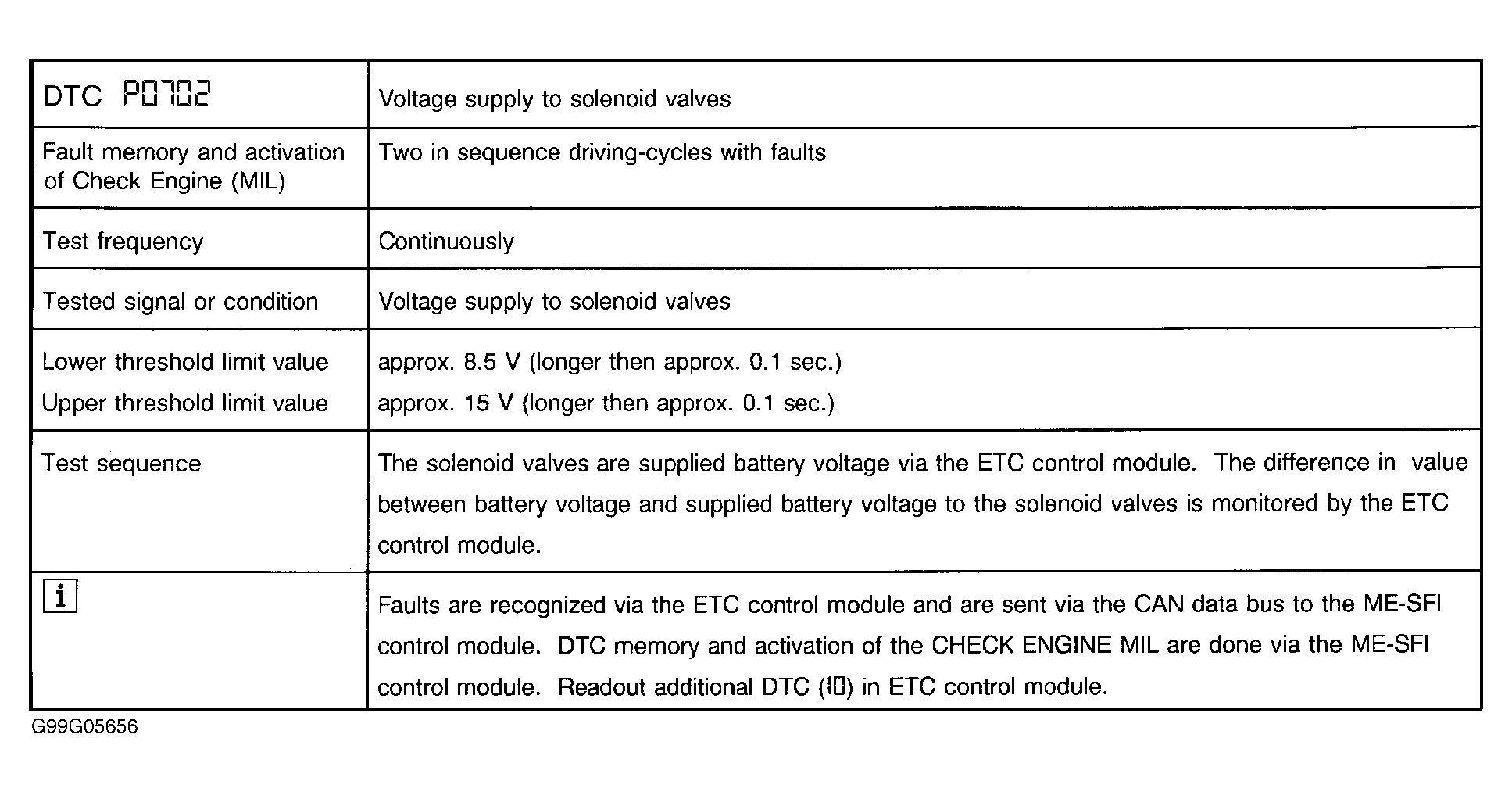

Fig 35: DTC Description (P0702 - 2 Of 2)

G99G05656

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

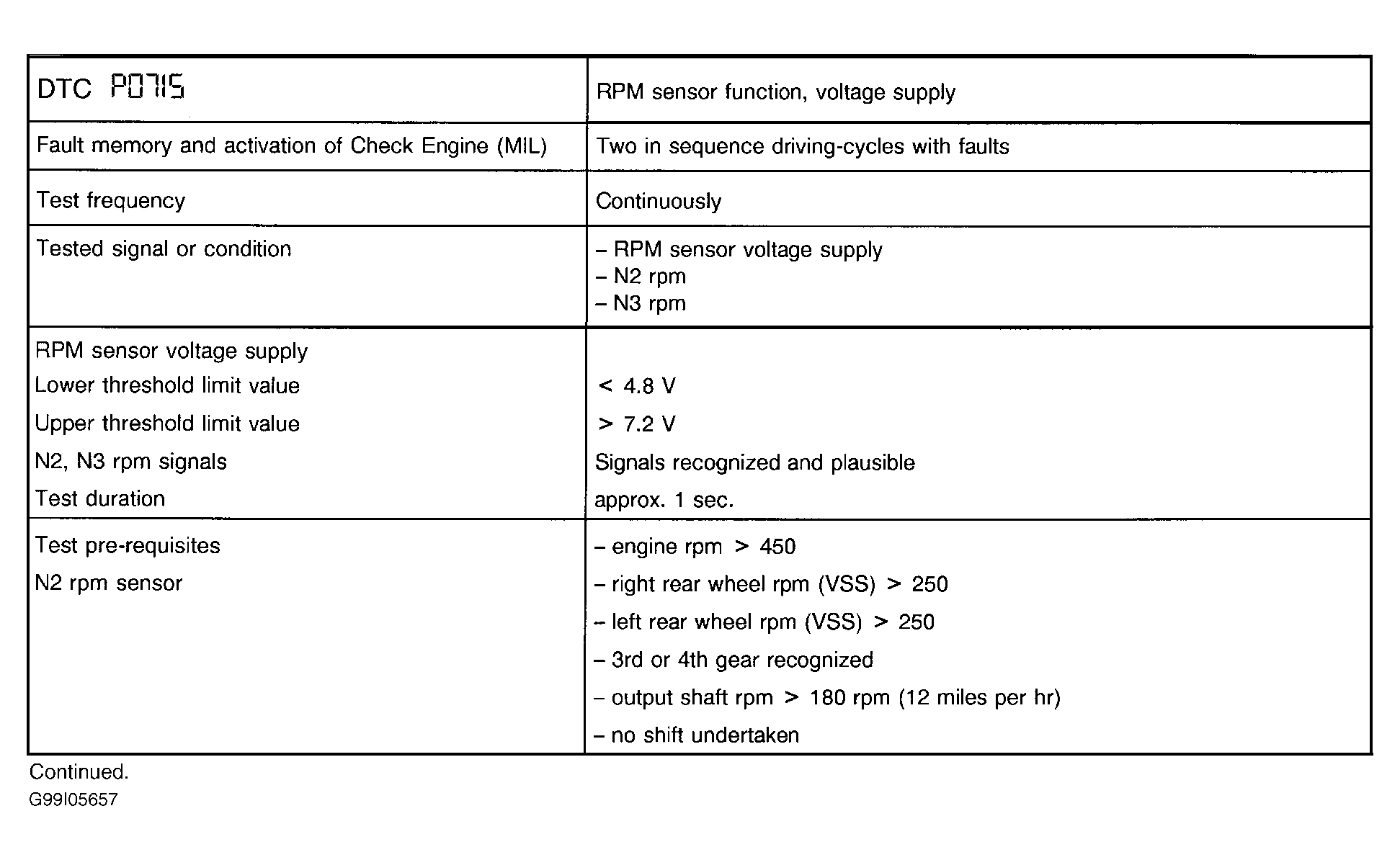

Fig 36: DTC Description (P0715 - 1 Of 2)

G99I05657

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

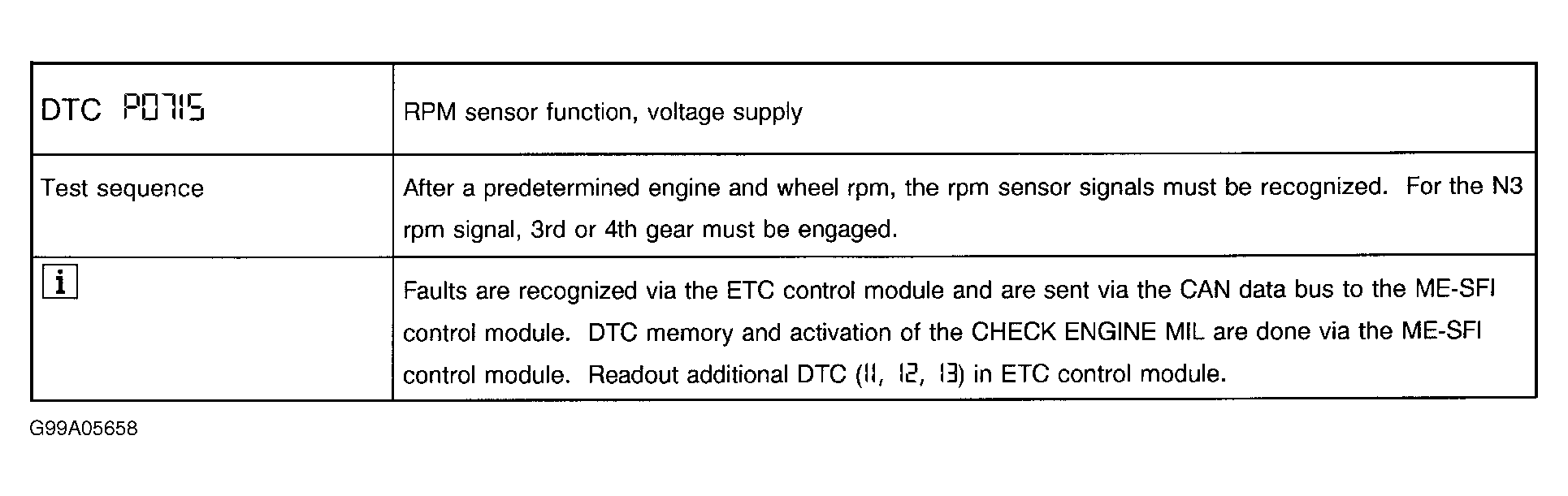

Fig 37: DTC Description (P0715 - 2 Of 2)

G99A05658

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

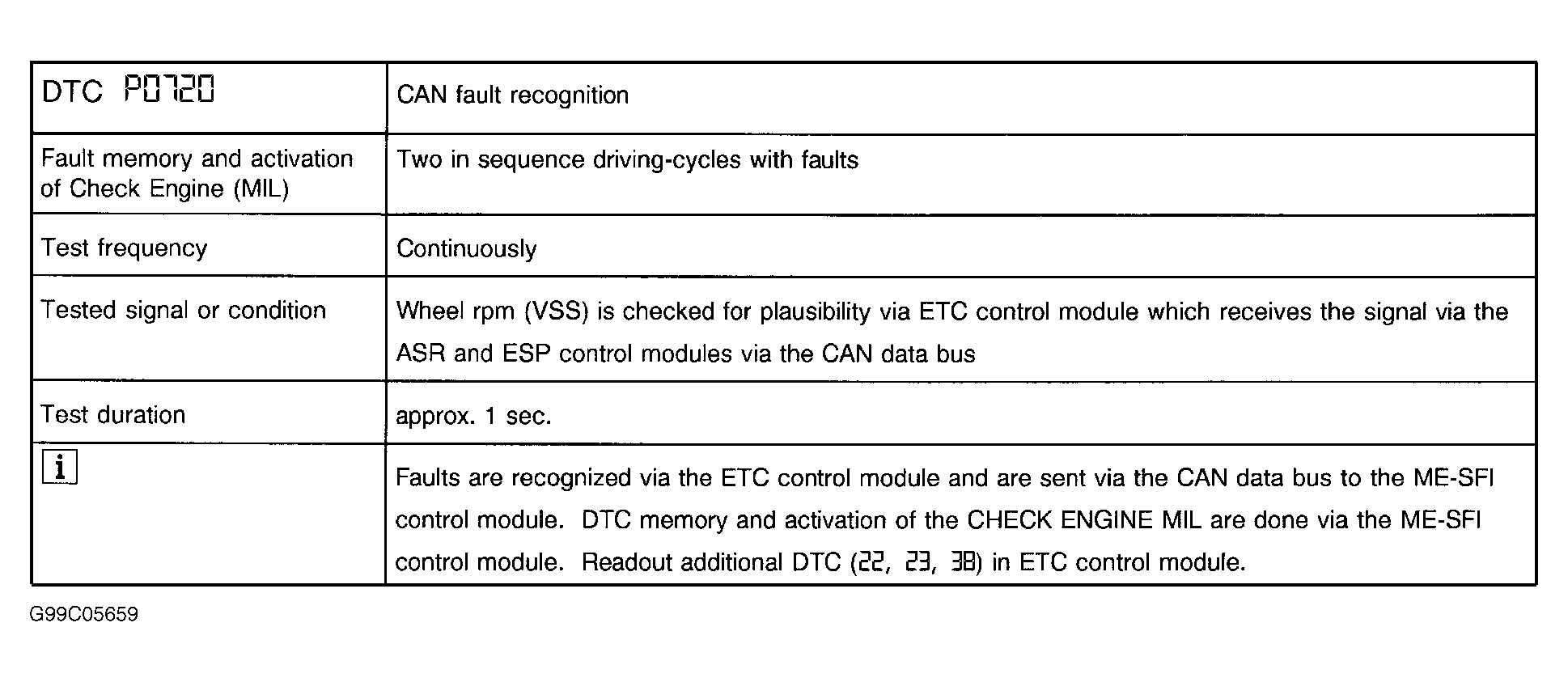

Fig 38: DTC Description (P0720)

G99C05659

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

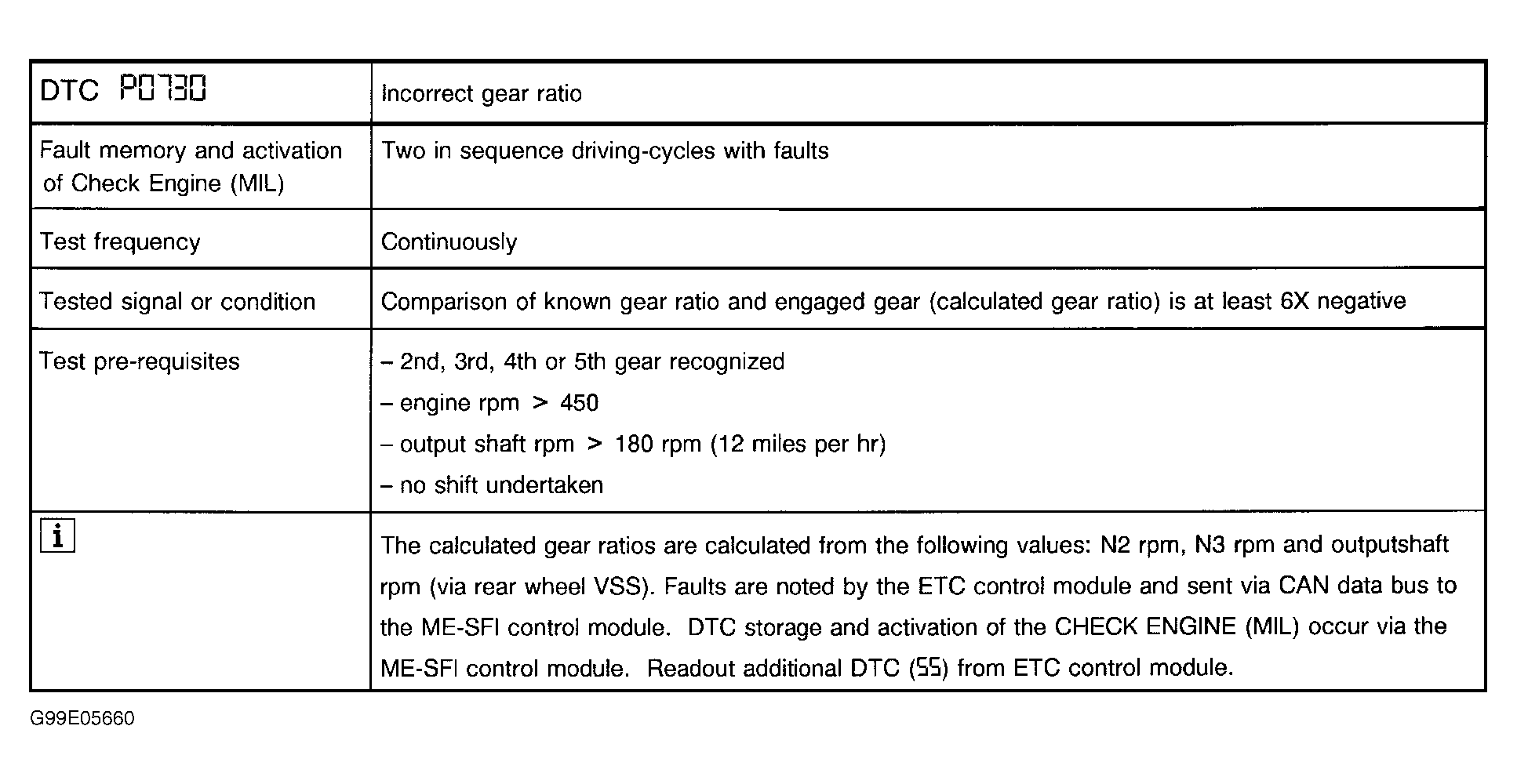

Fig 39: DTC Description (P0730)

G99E05660

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

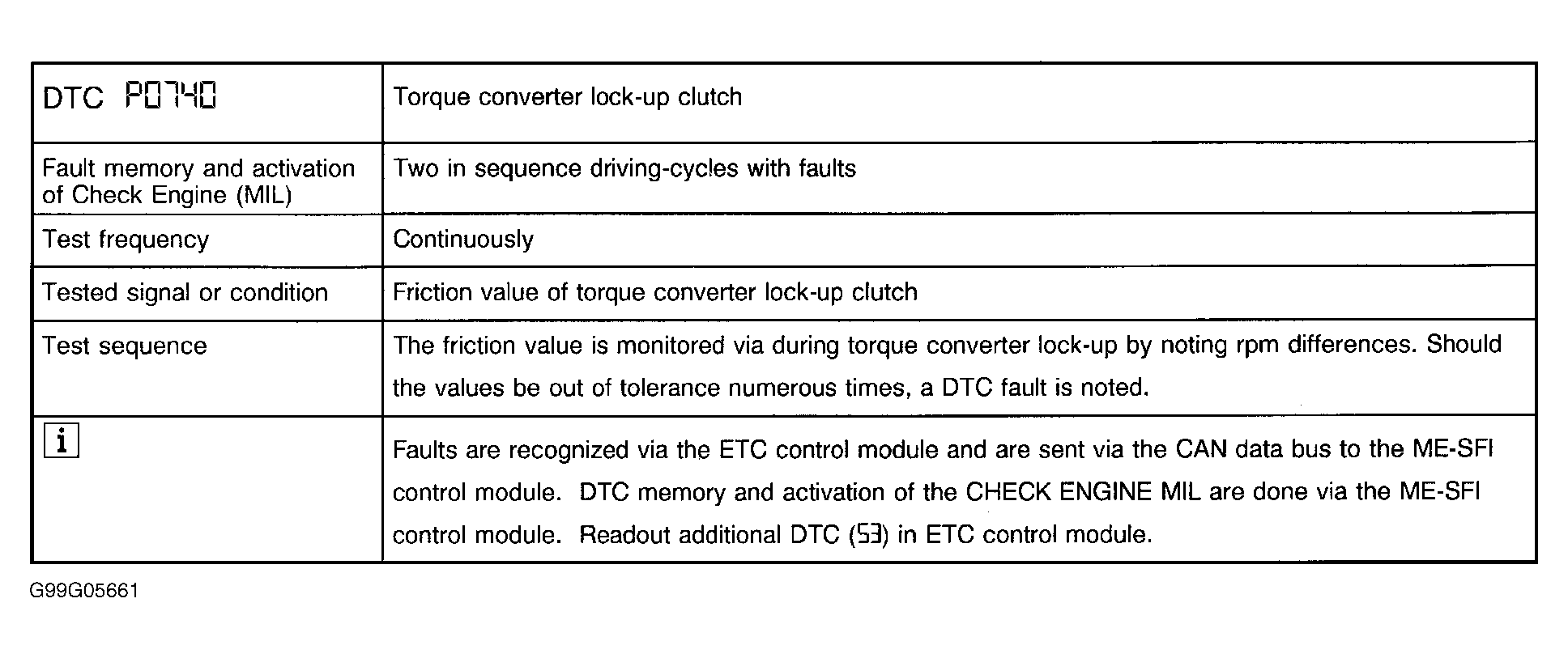

Fig 40: DTC Description (P0740)

G99G05661

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

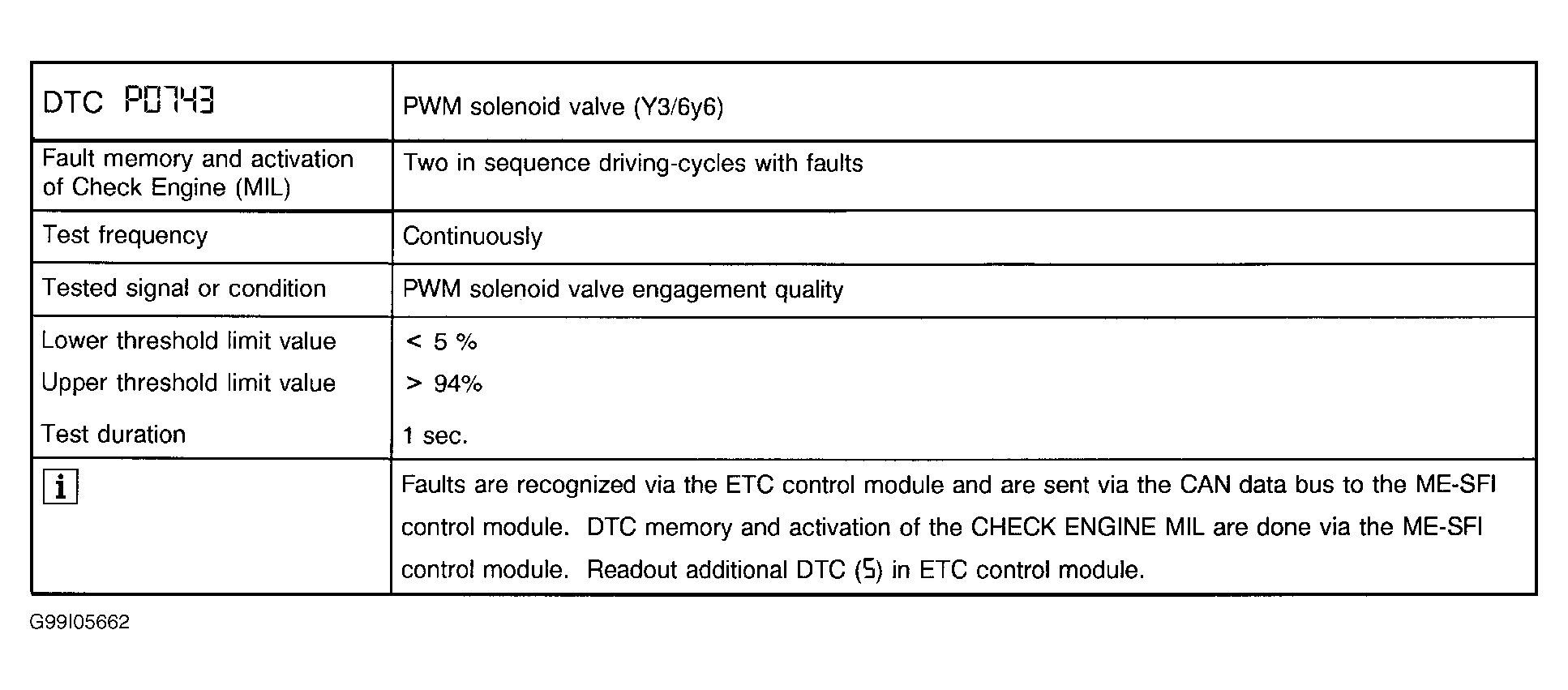

Fig 41: DTC Description (P0743)

G99I05662

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

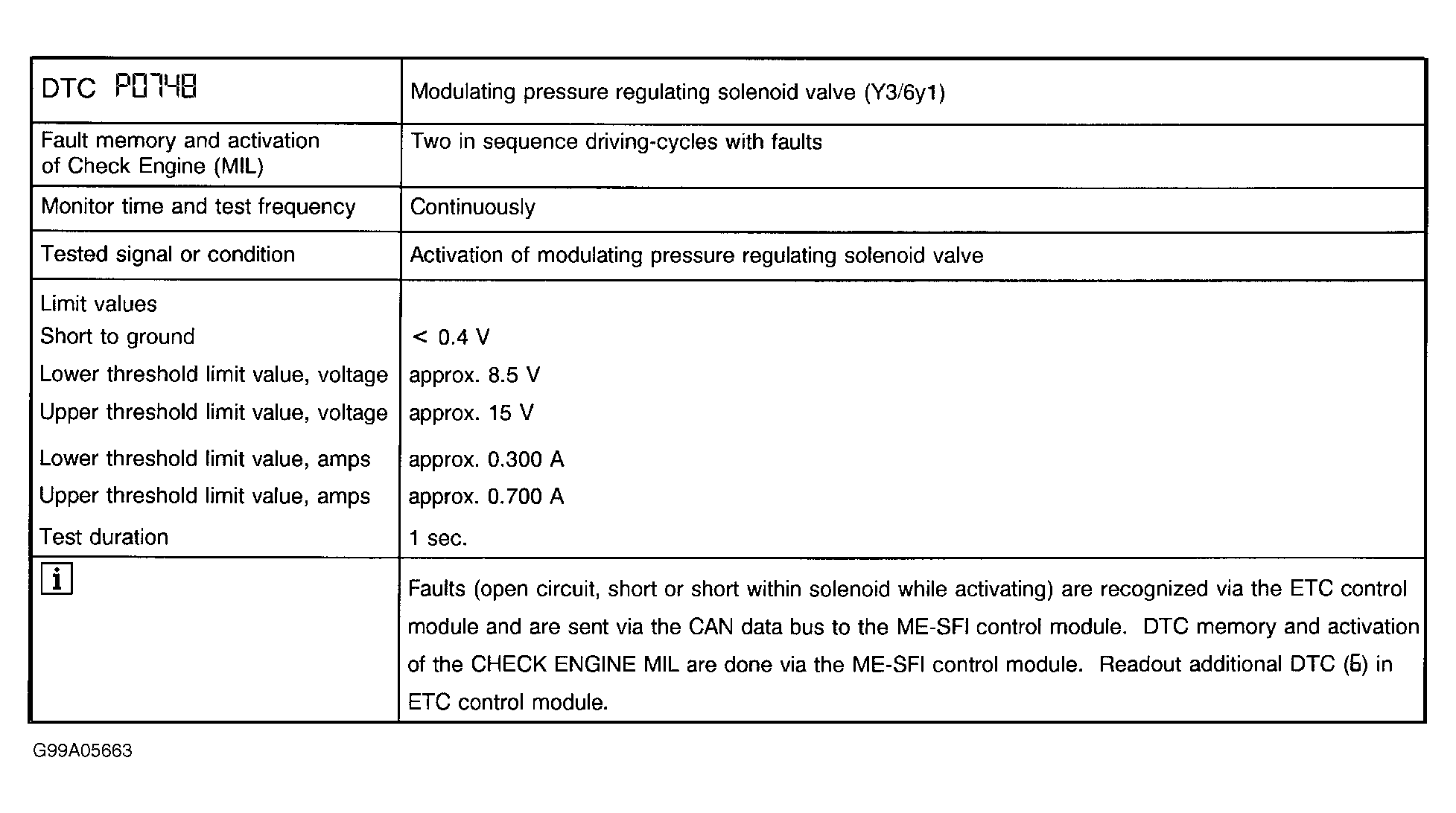

Fig 42: DTC Description (P0748 - 1 Of 2)

G99A05663

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

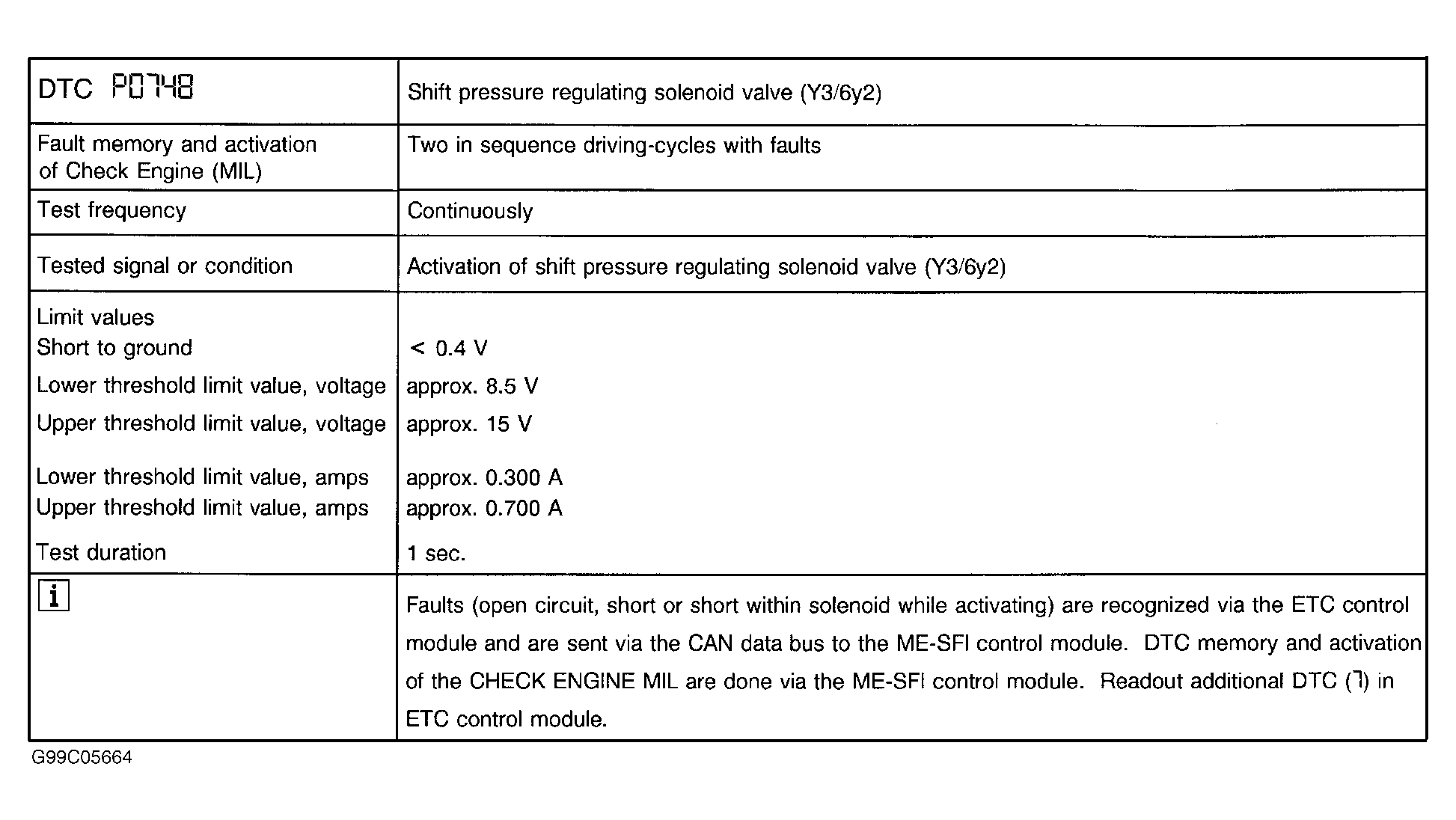

Fig 43: DTC Description (P0748 - 2 Of 2)

G99C05664

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

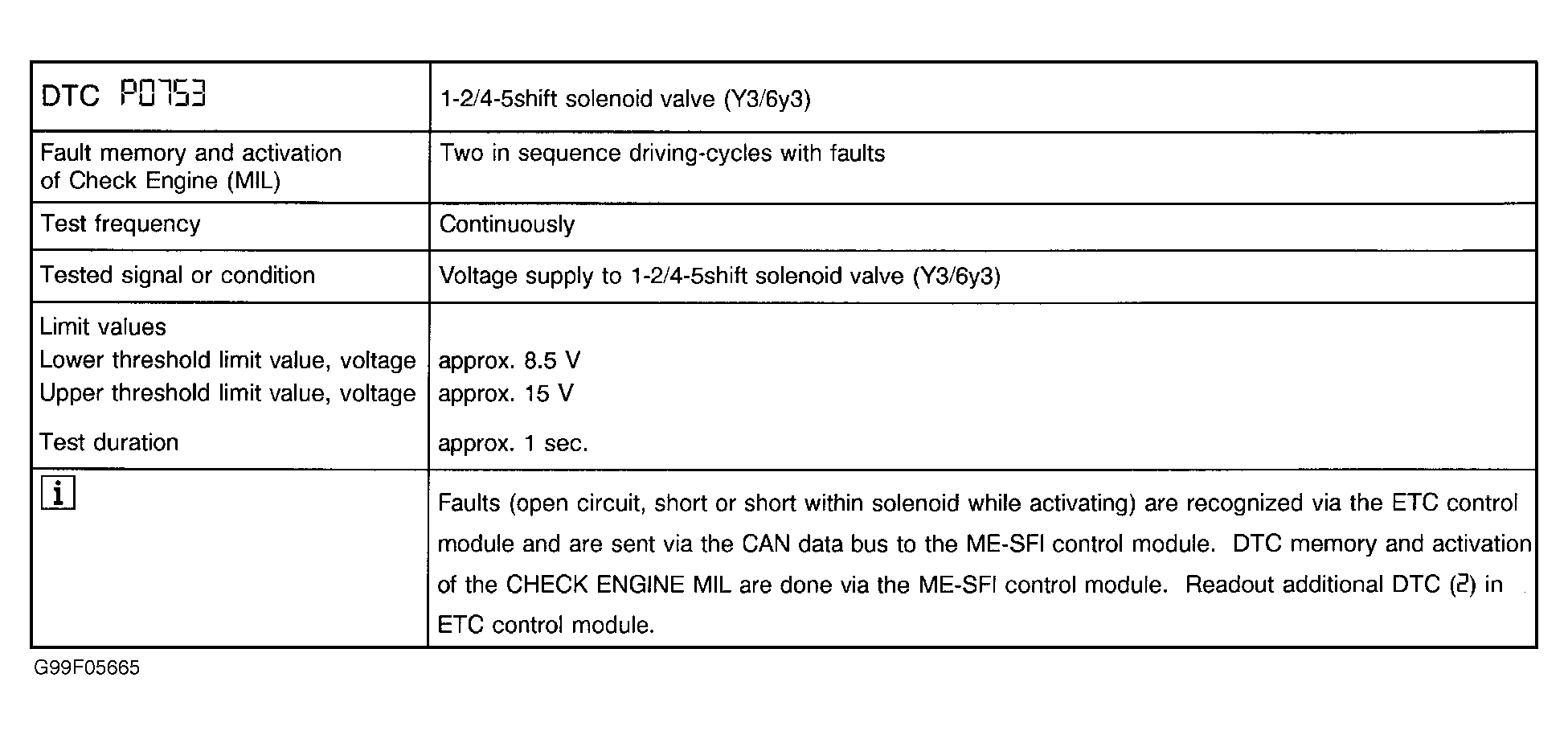

Fig 44: DTC Description (P0753)

G99F05665

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

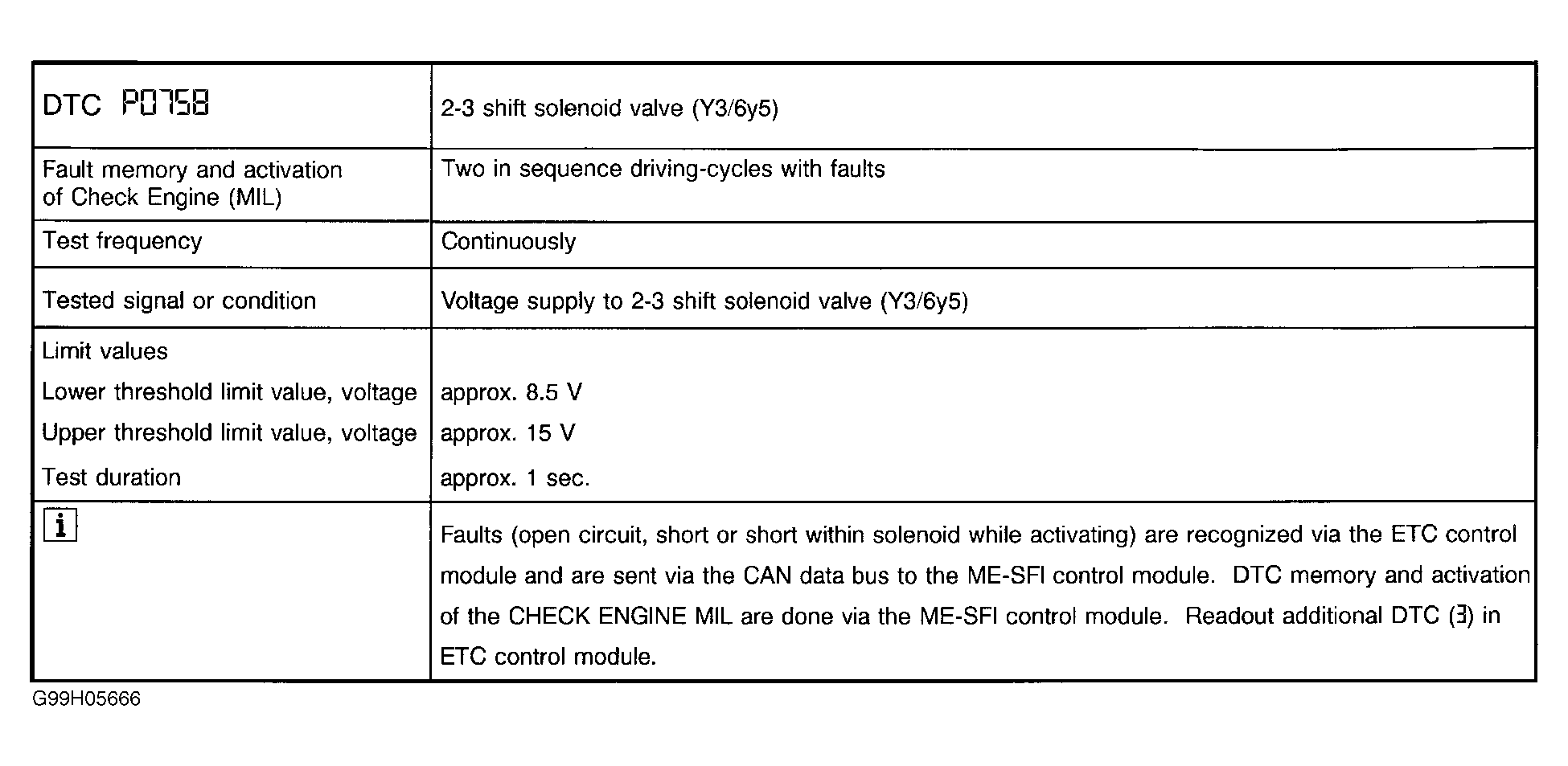

Fig 45: DTC Description (P0758)

G99H05666

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

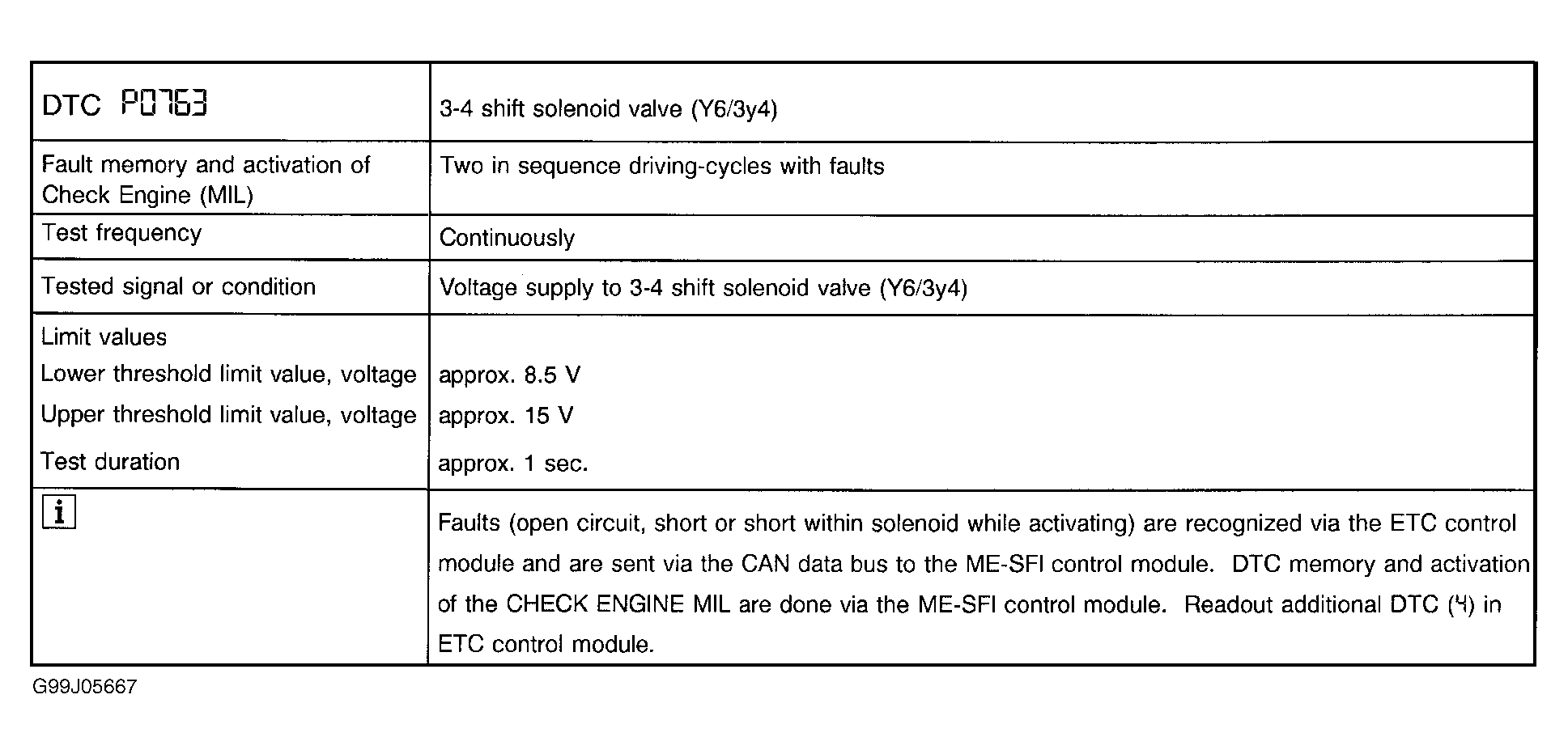

Fig 46: DTC Description (P0763)

G99J05667

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

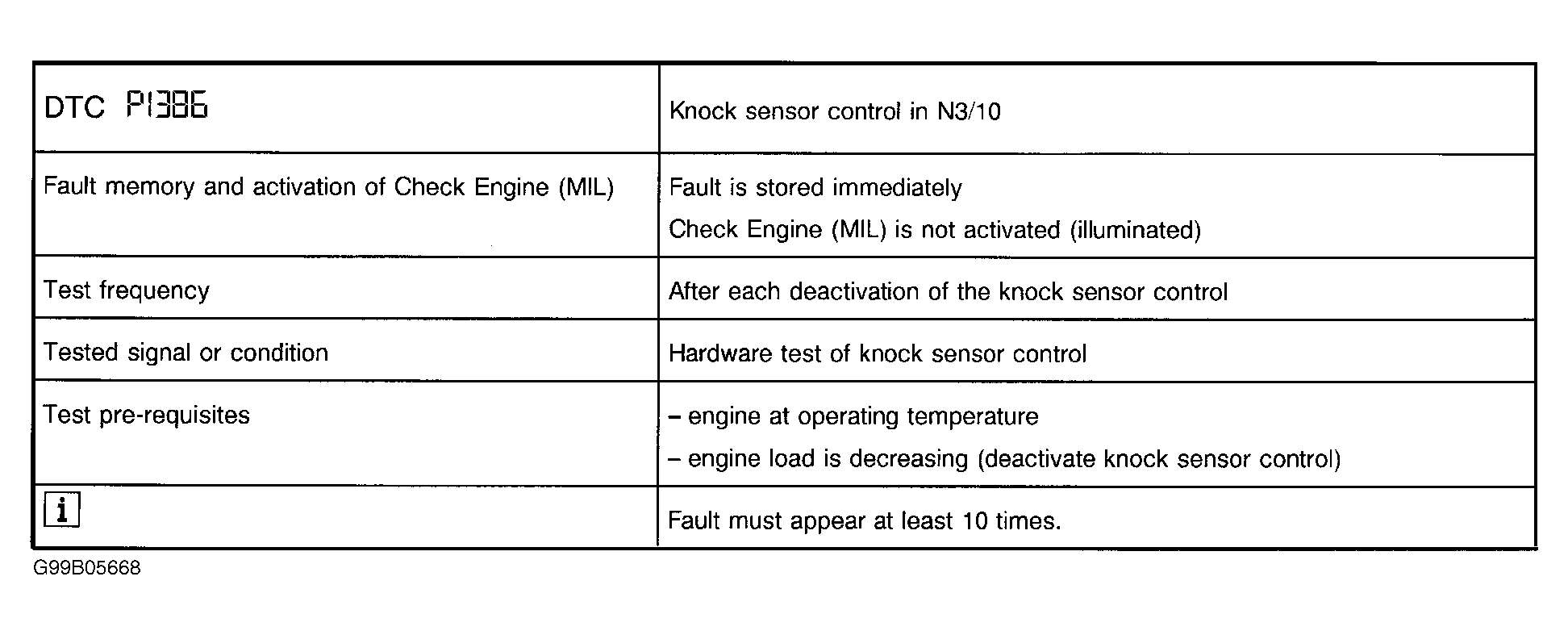

Fig 47: DTC Description (P1386)

G99B05668

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

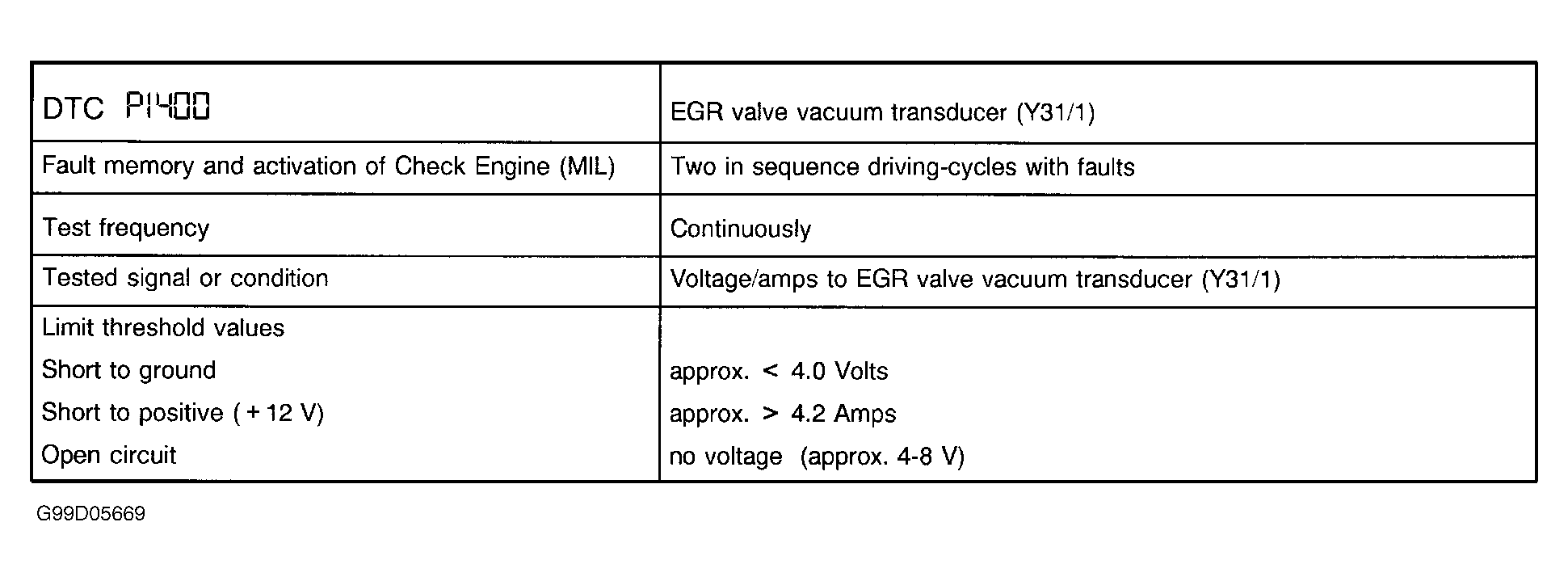

Fig 48: DTC Description (P1400)

G99D05669

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

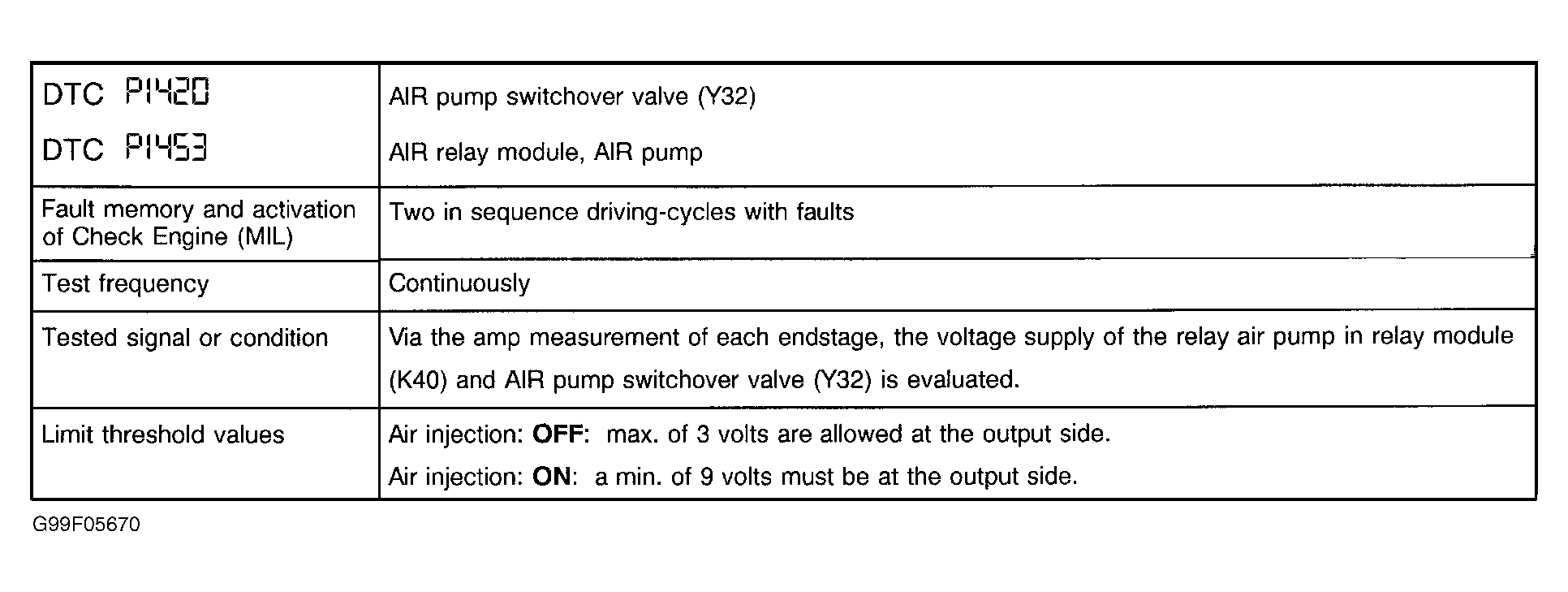

Fig 49: DTC Description (P1420 & P1453)

G99F05670

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

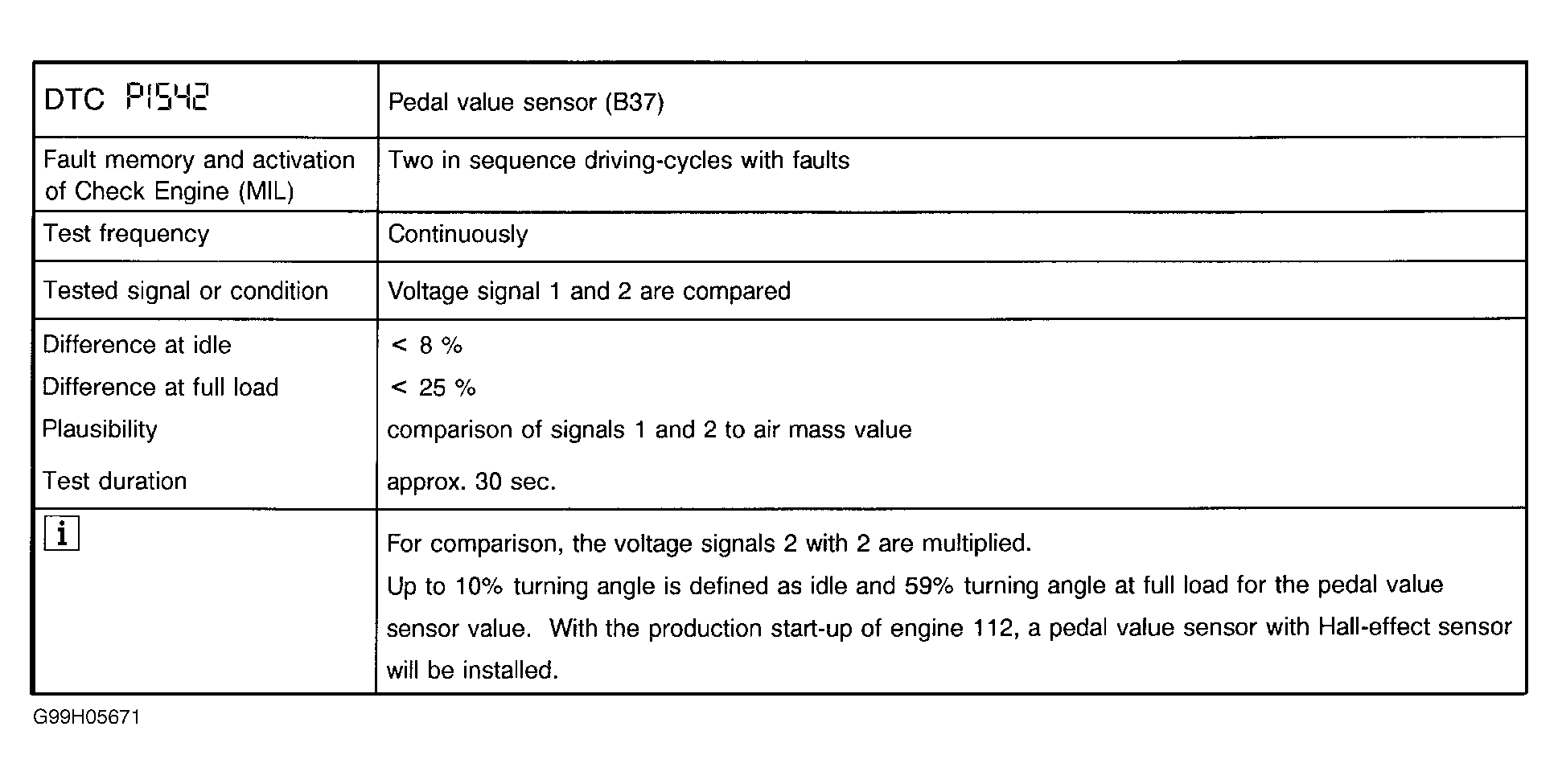

Fig 50: DTC Description (P1542)

G99H05671

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

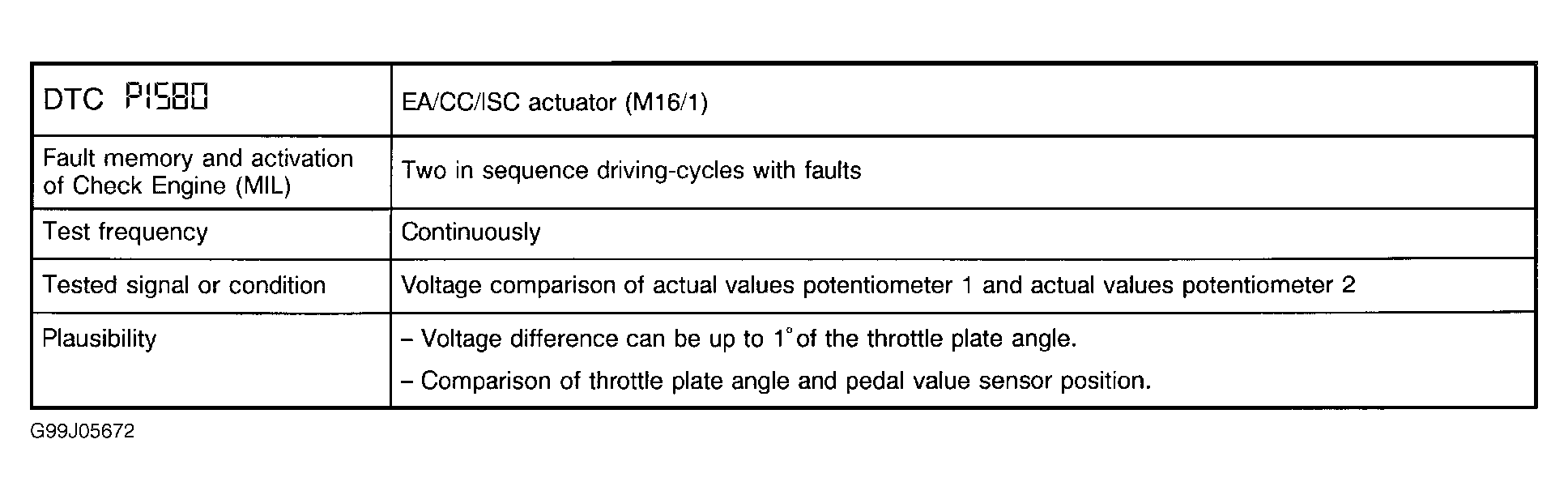

Fig 51: DTC Description (P1580)

G99J05672

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
