Electronic Accelerator Test (Steps 2.1-3.1)

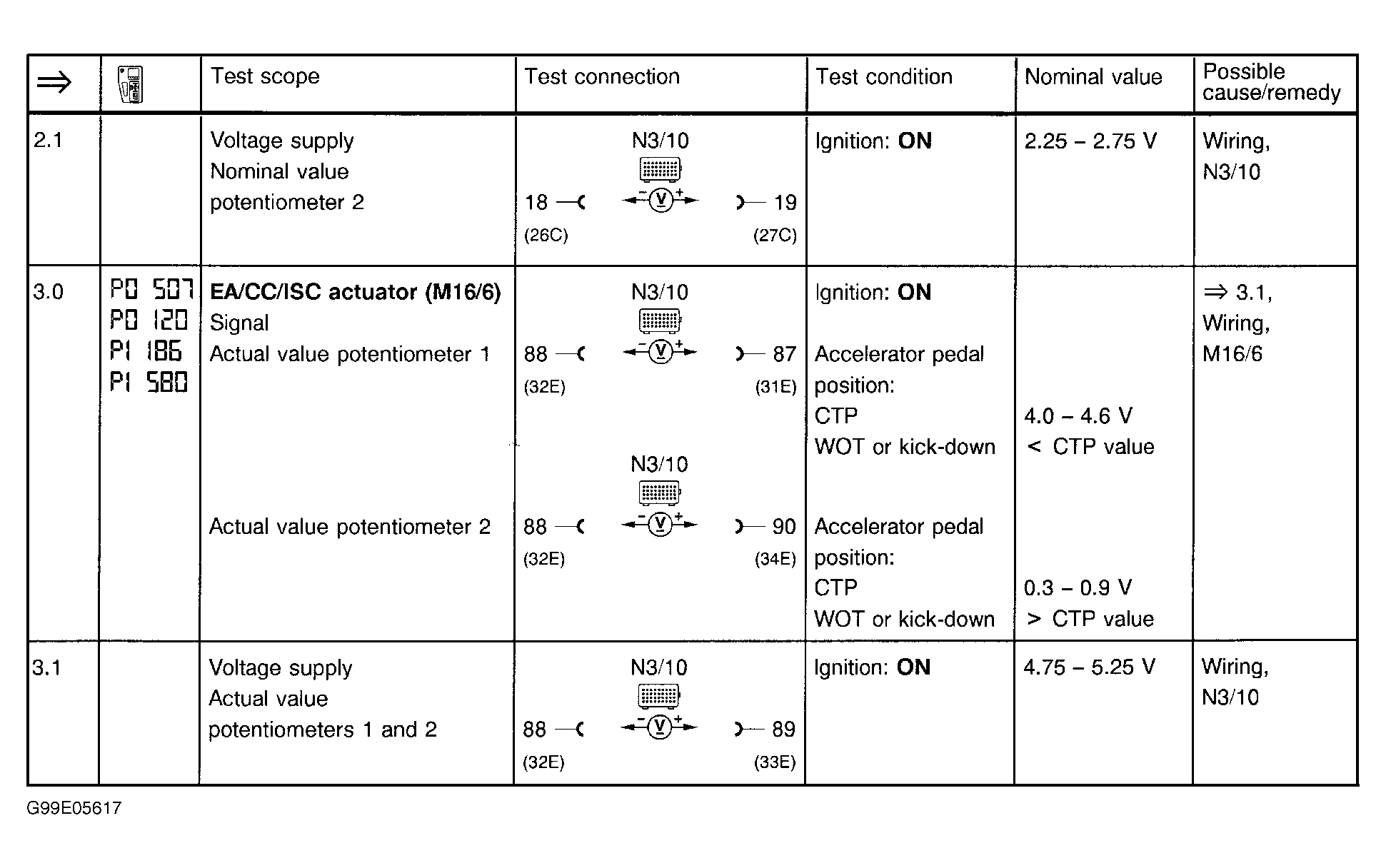

Fig 1: Electronic Accelerator Test (Steps 2.1-3.1)
G99E05617Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
