Position sensor, location/task/function - GF27.19-P-5129GH

TRANSMISSION 722.6 in MODEL 163 without touch shift

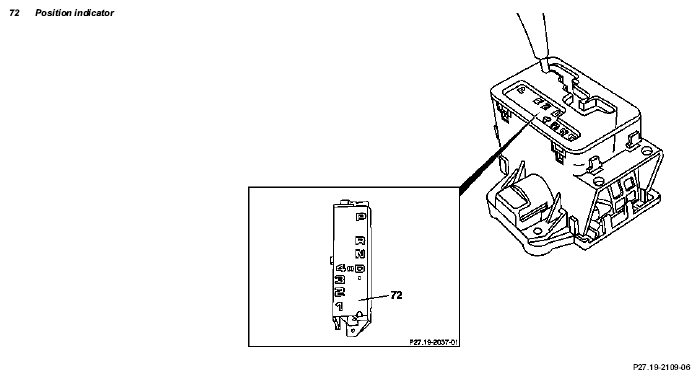

Fig 1: Identifying Position Indicator Location

	Shift pattern display, location	The position indicator (72) is located in the floor shift.
	Shift pattern display, task	Visual display of the selector lever position.
	Shift pattern display, function	The position indicator (72) is actuated via the transmission range recognition switch (S16/10).
