Pedal value sensor, location/task/design/function - GF30.20-P-4011L
ENGINE 104.941 /943 /944 /991 /994 as of 1.8.96
ENGINE 104.995
with CODE (494a) USA-Ausfuhrung
with CODE (807) Model year 1997
with CODE (808) Model year 1998
with CODE (498) as of Model Year 97 Japan-Ausfuhrung
ENGINE 111.921 /942 as of 1.9.98,
111.946 as of 1.6.98,
111.944/975 as of 1.8.96,
111.943 /947 /951 /952 /955 /956 /957 /958 /973 /974 /982 /983
ENGINE 111.945
in MODEL 202.020 /080 as of 1.9.98,
208.335/435 as of 1.6.98
with CODE (494a) USA-Ausfuhrung
with CODE (807) Model year 1997
with CODE (808) Model year 1998
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969
ENGINE 119.980 /981 /982 /985
ENGINE 120.982 /983
ENGINE 137.970
ENGINE 166.940 /960 /990 /995
ENGINE 604.910/915 as of 1.2.98
ENGINE 604.912/917 as of 1.4.98
ENGINE 611.961/960/962
ENGINE 612.961/962/963
ENGINE 613.960/961
ENGINE 628.960 /963
ENGINE 668.940 /941 /942
ENGINE 612.967 in MODEL 209.316

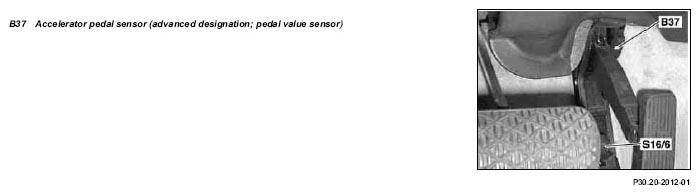

Shown on model 203, 215, 220
| Pedal value sensor position | Model 129 | GF30.20-P-4011-01D | |
| Model 140 | GF30.20-P-4011-01A | ||
| Model 163 | GF30.20-P-4011-01GH | ||
| Model 168 | GF30.20-P-4011-01GC | ||
| Model 170 | GF30.20-P-4011-01G | ||
| Model 202, 208 | GF30.20-P-4011-01E | ||
| Model 203, 209 | GF30.20-P-4011-01P | ||
| Model 210 | GF30.20-P-4011-01F | ||
| Model 211 | GF30.20-P-4011-01T | ||
| Model 215, 220 | GF30.20-P-4011-01M | ||
| Model 230 | GF30.20-P-4011-01R | ||
| Pedal value sensor task | Detects the accelerator pedal position and passes on the information to the engine control unit | ||
| Pedal value sensor design | Located in engine compartment with two rotary potentiometers | GF30.20-P-4011-02A | |
| Located in engine compartment with two Hall elements | GF30.20-P-4011-02B | ||
| Model 203, 209, 211, 215, 220, 230 and Model 170 with Engine 111 EVO and 112: Location at accelerator pedal module |
GF30.20-P-4011-02C | ||
| Pedal value sensor function | The accelerator pedal sensor (B37) converts the mechanical actuation determined by the accelerator pedal into an electrical signal according to the accelerator pedal position. | ||
| Pedal value sensor characteristic curve when reversing function | GF30.20-P-4013E |
