Fuel delivery module location/task/design/function - GF47.20-P-4101GH
ENGINE 111.977, 112.942/970, 113.942/965 in MODEL 163
| |

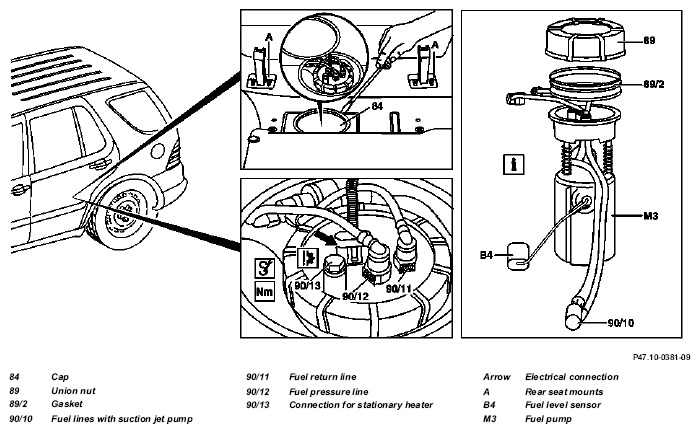

Location |
Installed into the fuel tank from above |
|
| |
Task |
- Making available an adequate quantity of fuel to the fuel system at the required pressure
- Supplying the engine with fuel in the event of a low fuel level in the fuel tank and during lengthy cornering
- Determining the fuel level in the fuel tank.
|
|
| |
Body |
The fuel delivery module consists of:
- Fuel level sensor (B4) as a float-and-lever sensor
- Fuel pump (M3)
- Splash bowl (fuel pump built-in)
- Suction jet pump for filling the splash bowl
|
|
| |
Fuel delivery module function |
Model 163 with engine 111, 112, 113.94/96 |
GF47.20-P-4101-03GH |
